AiNex ROS Education AI Vision Humanoid Robot Powered by Raspberry Pi  in Bangladesh
AiNex ROS Education AI Vision Humanoid Robot Powered by Raspberry Pi  in Bangladesh

AiNex ROS Education AI Vision Humanoid Robot Powered by Raspberry Pi

SKU: 250324004741

Category: AI Development Kit

Share:

Product details of AiNex ROS Education AI Vision Humanoid Robot Powered by Raspberry Pi

The Hiwonder AiNex Biped Humanoid Robot is an advanced AI-powered educational and research platform designed for robotics enthusiasts, students, educators, and developers. Built on the Robot Operating System (ROS) and powered by a Raspberry Pi, AiNex combines intelligent vision, inverse kinematics, and programmable motion control in a compact humanoid design.

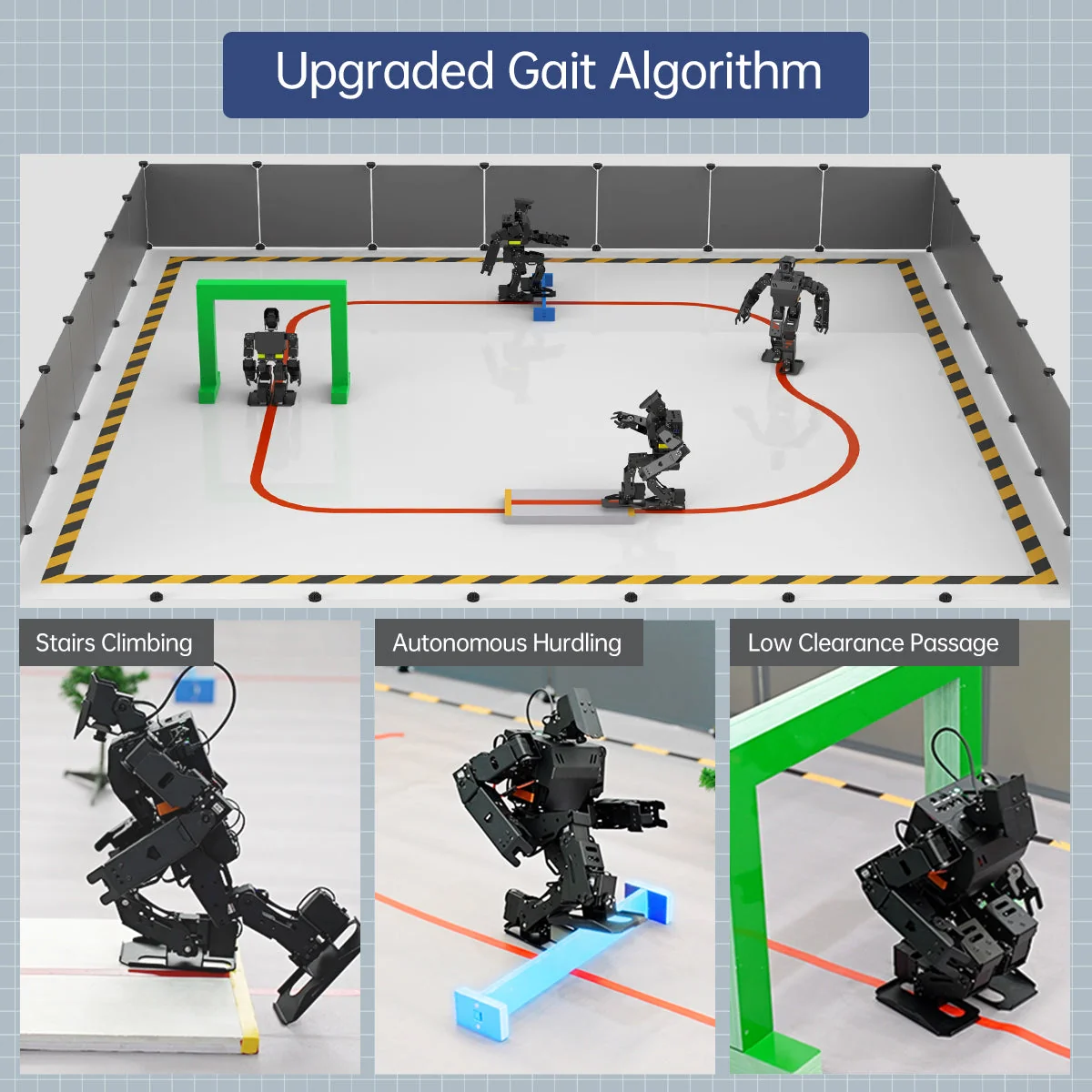

Featuring up to 24 Degrees of Freedom (DOF), intelligent serial bus servos, and a 120° HD wide-angle camera, AiNex can perform stable biped walking, obstacle crossing, stair climbing, object tracking, line following, autonomous grasping, and various AI vision applications. The robot supports Python programming, OpenCV-based computer vision, ROS development, and graphical action editing, making it an excellent platform for robotics education, AI research, and advanced humanoid robot development.

With comprehensive tutorials, ROS source code support, and multiple control methods—including PC software, WonderROS mobile app, and wireless controller, AiNex provides an ideal environment for learning robotics, artificial intelligence, machine vision, and motion planning.


Key Highlights

  • ROS (Robot Operating System) based humanoid robot platform
  • Powered by Raspberry Pi controller

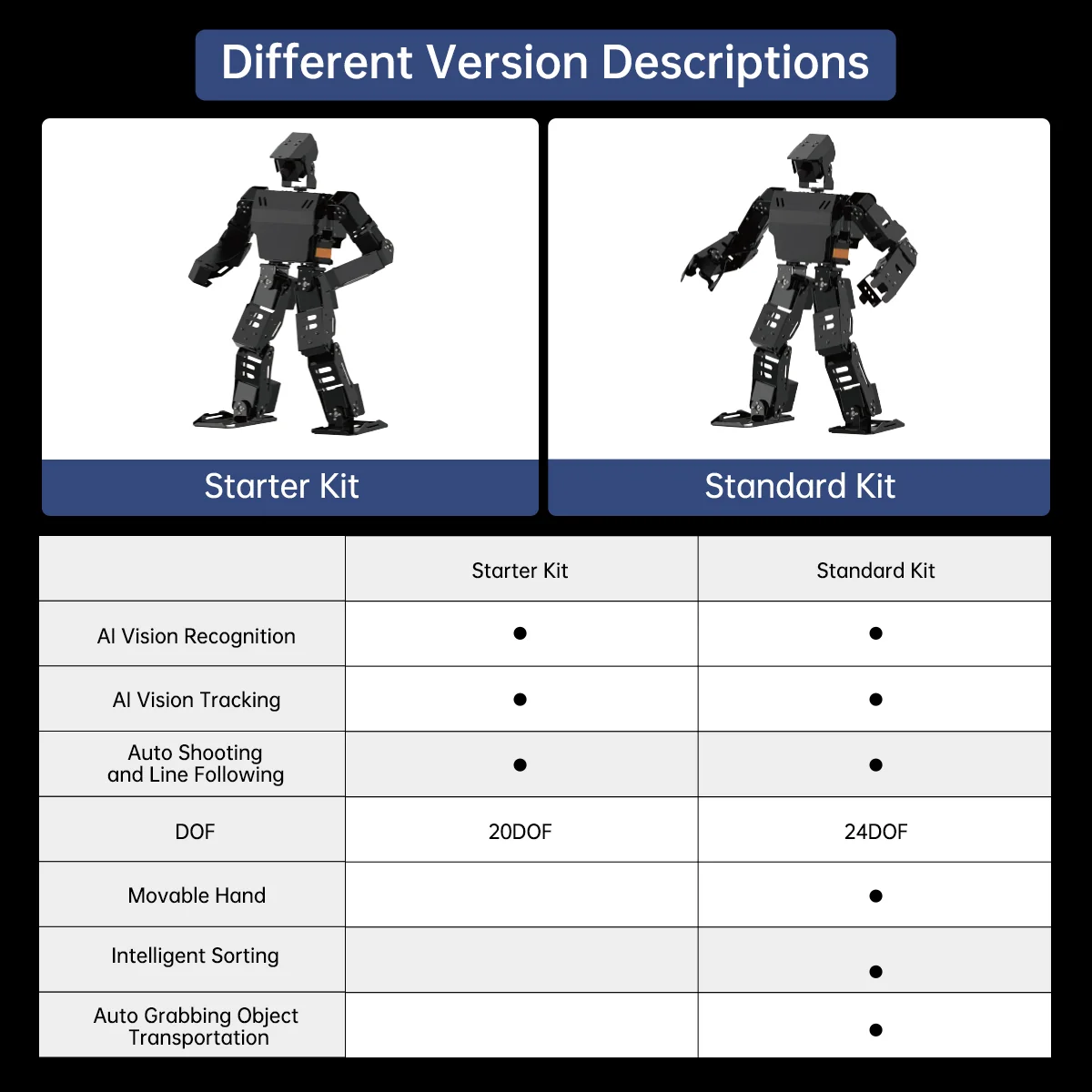

  • Available in 20DOF (Starter) and 24DOF (Standard) configurations

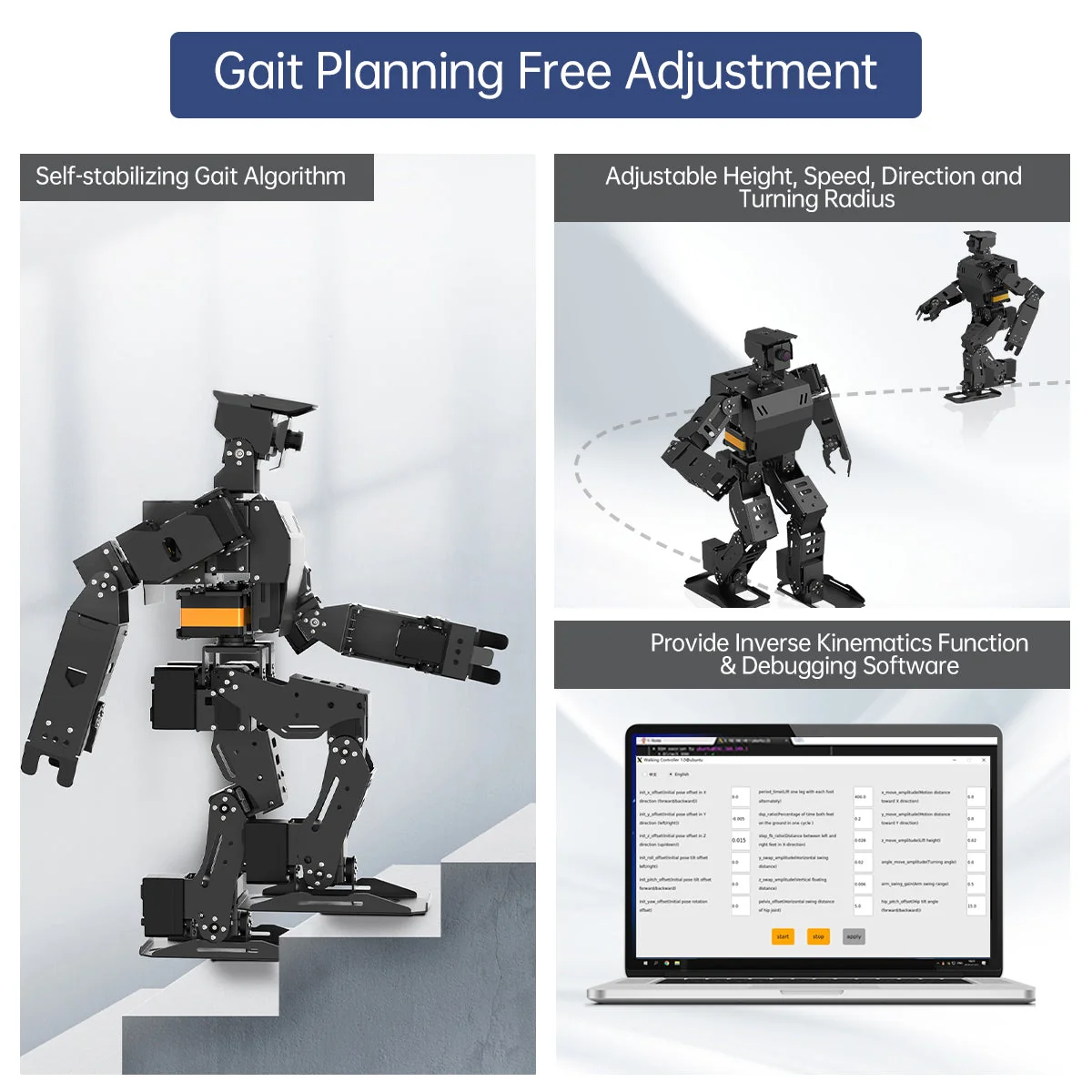

  • Advanced inverse kinematics algorithm for stable biped walking
  • 120° HD wide-angle AI vision camera with manual focus

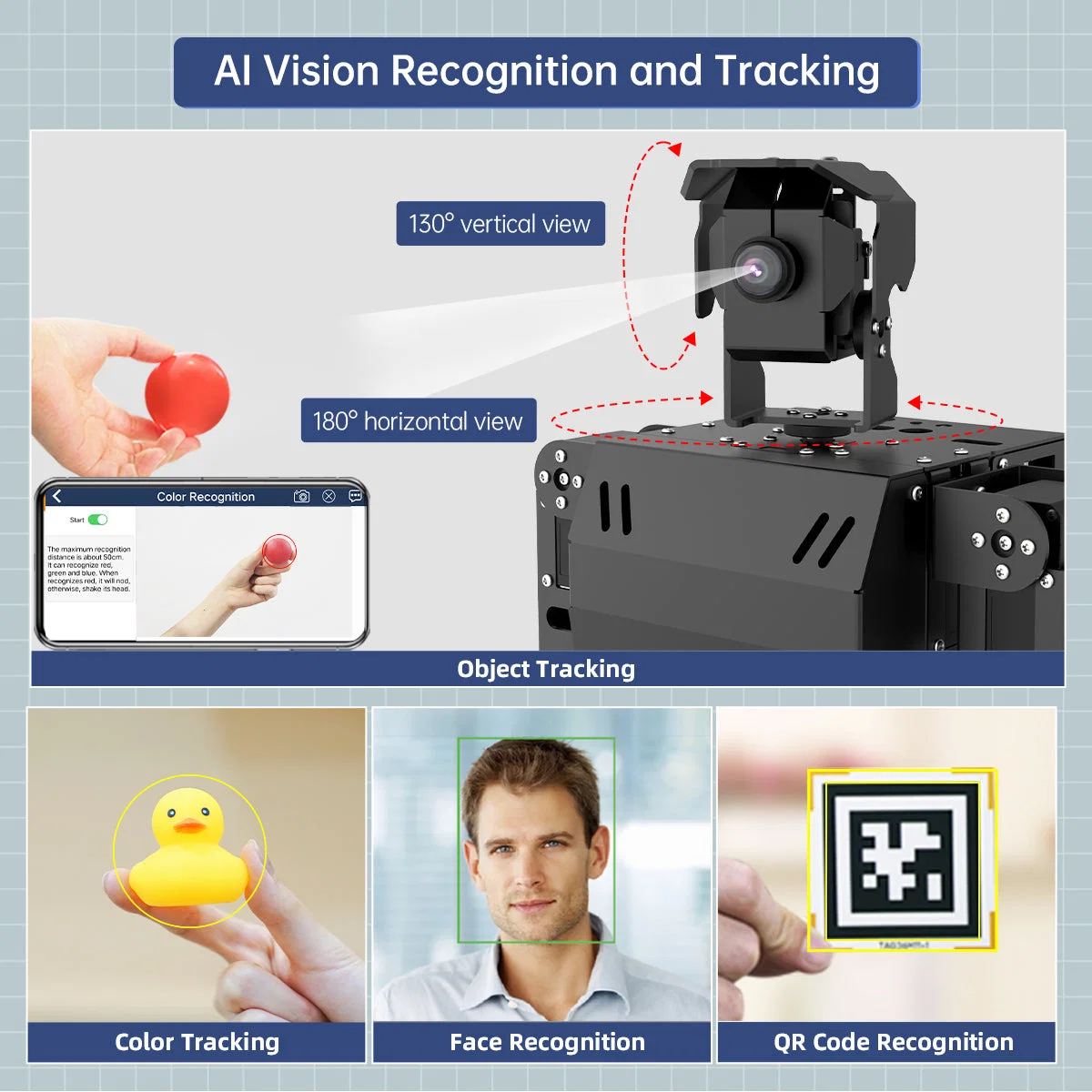

  • OpenCV-based object recognition and tracking
  • Intelligent serial bus servos with voltage, position, and temperature feedback

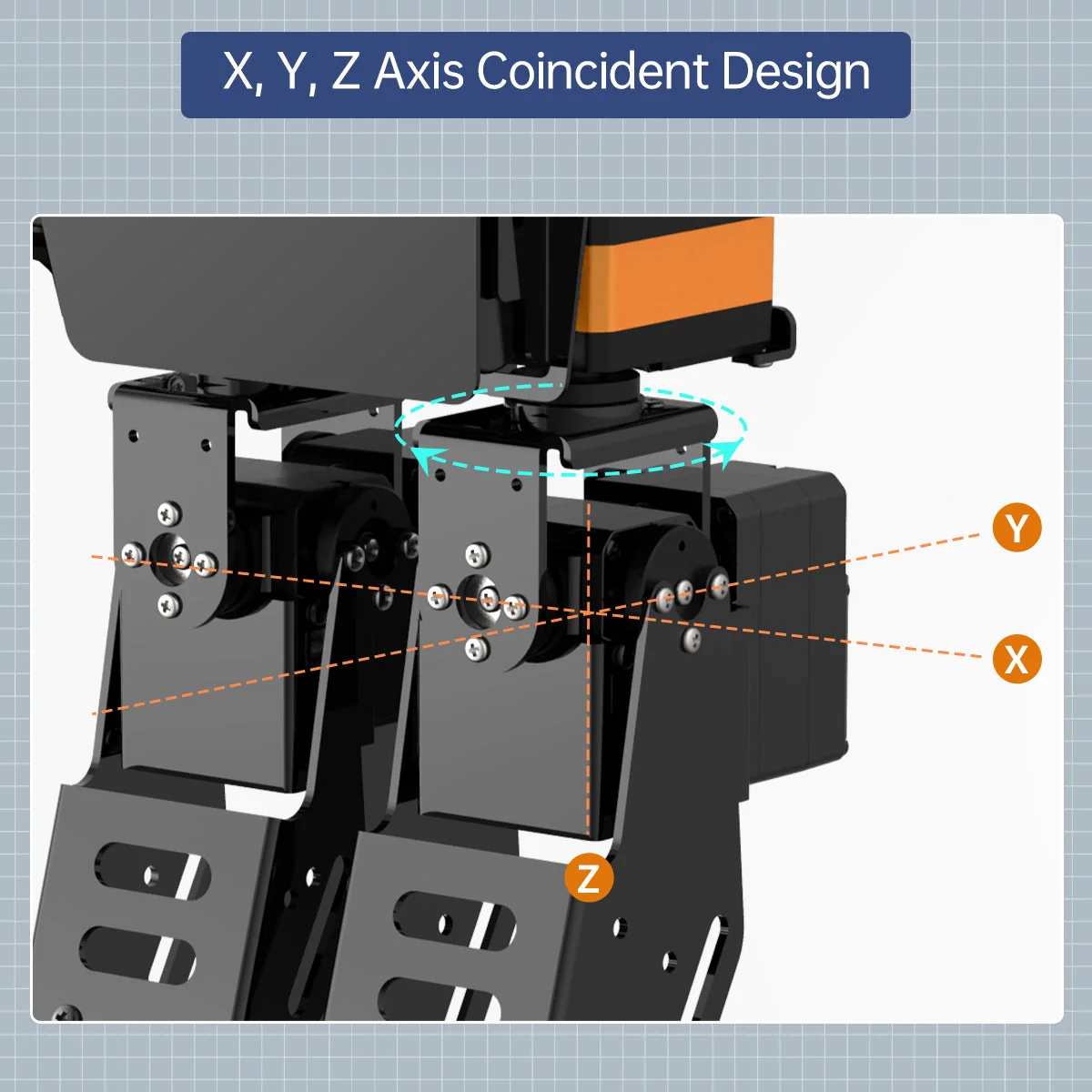

  • Magnetic encoder servos on hip joints for improved precision (Standard version)
  • Aluminum alloy body for strength and durability
  • Supports Python programming and ROS development

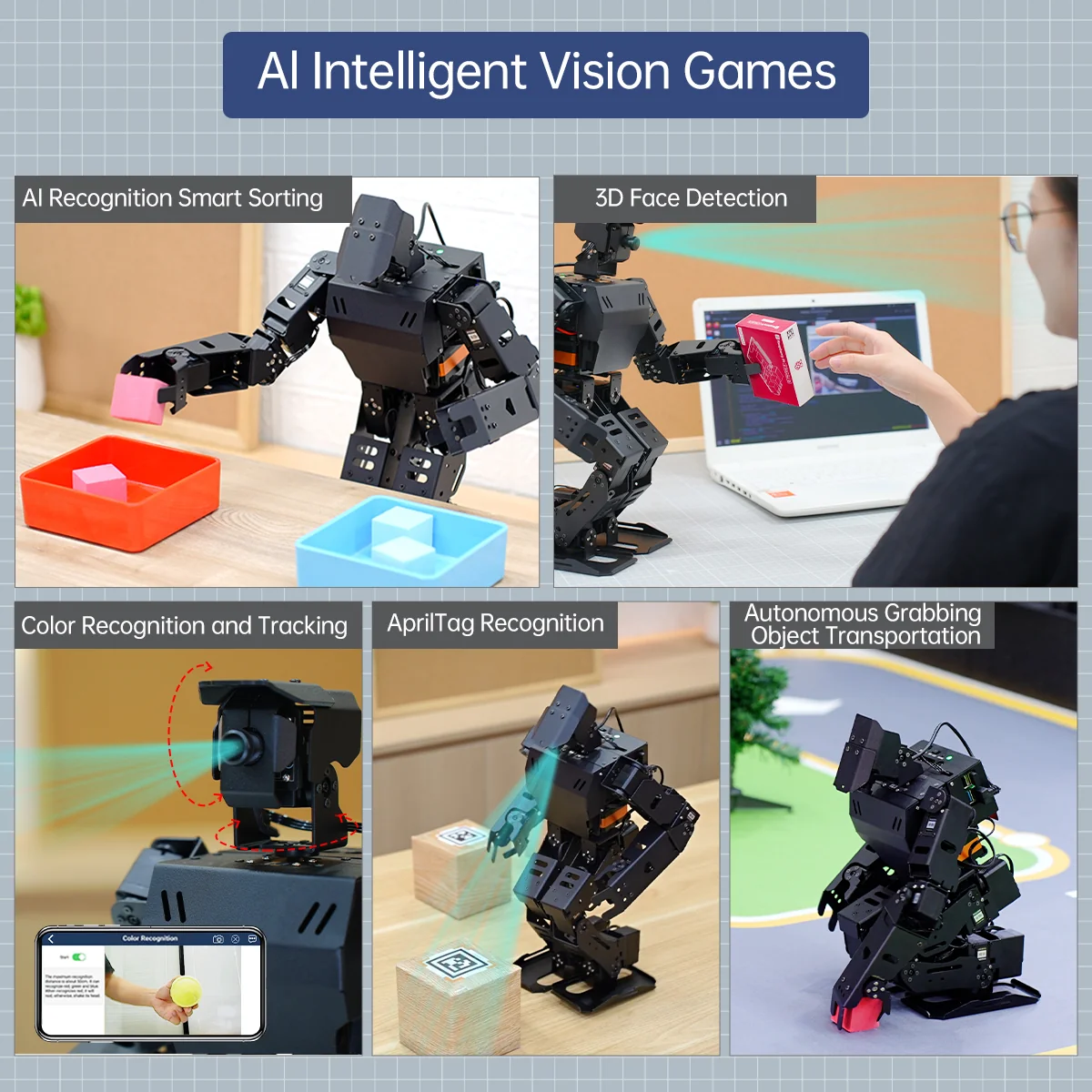

  • AI vision applications including line following, target tracking, sorting, and object detection
  • Robotic hands capable of grasping and transporting small objects (Standard version)
  • Built-in IMU with gyroscope, accelerometer, and compass

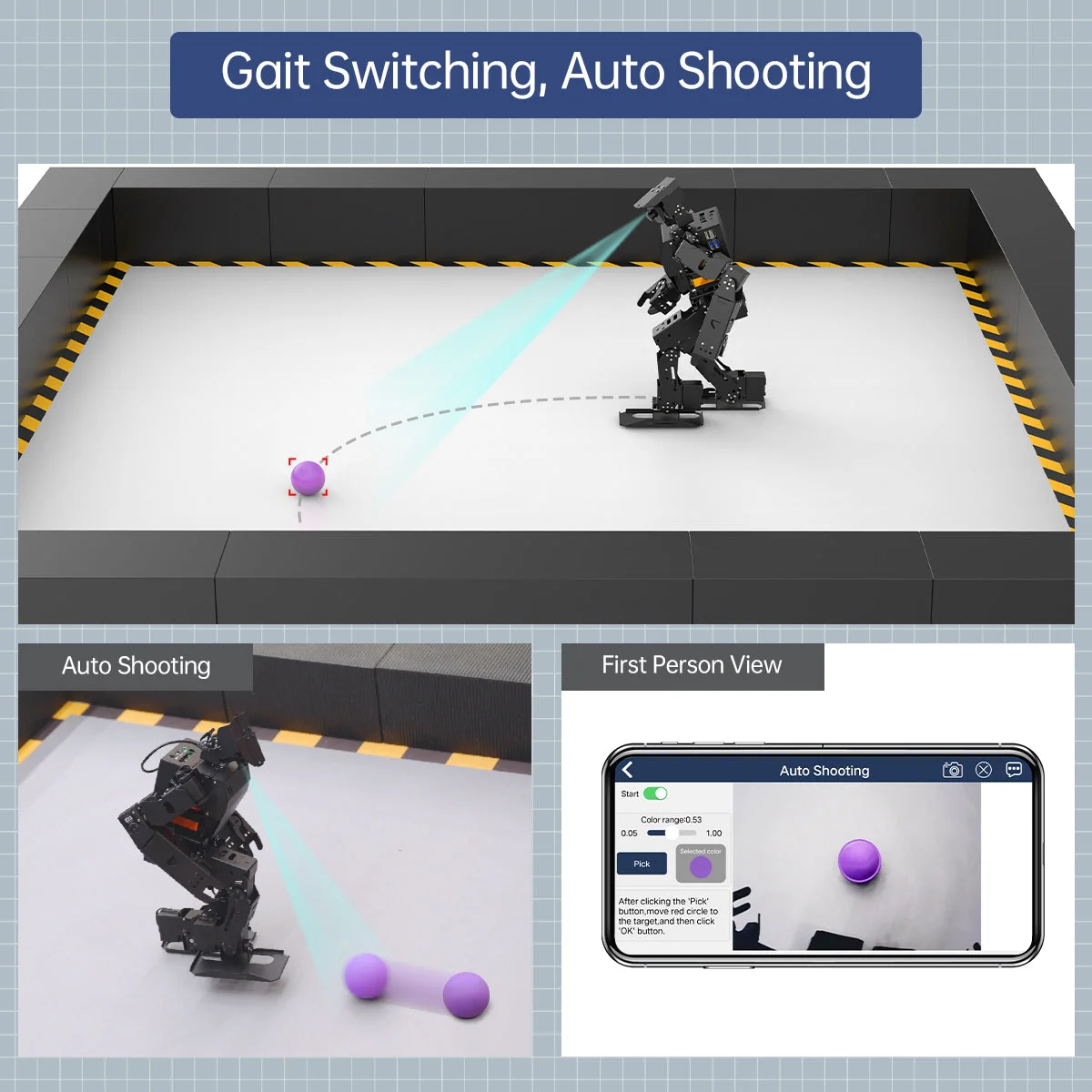

  • Adjustable walking speed, turning radius, and gait

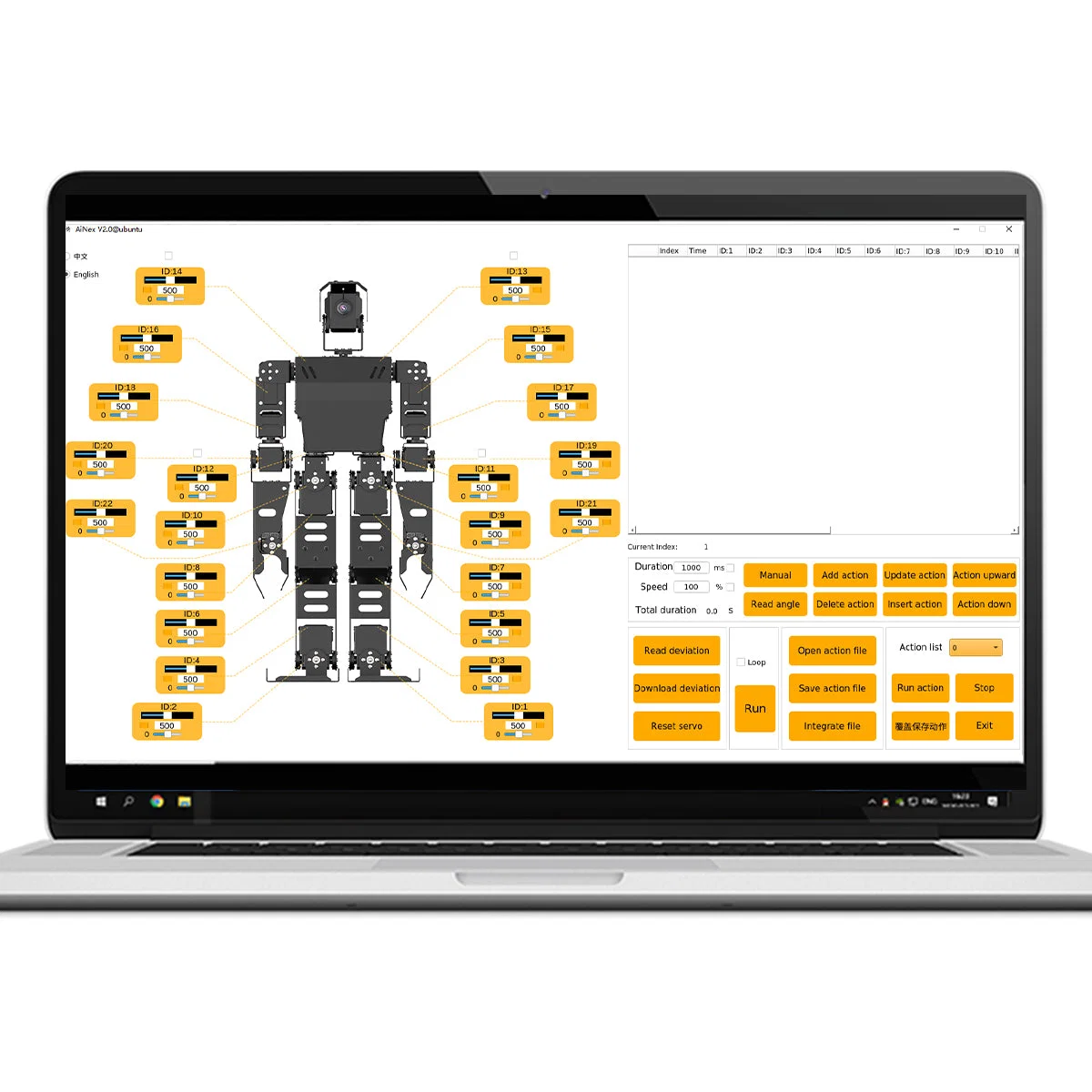

  • Graphical action editing software for custom motion programming
  • Multiple control methods: WonderROS App, PC software, and wireless controller
  • Includes comprehensive tutorials and ROS source code support for secondary development.

Specifications

Parameter Specification
Product Name Hiwonder AiNex Biped Humanoid Robot
Controller Raspberry Pi
Operating System ROS (Robot Operating System)
Programming Language Python
Degrees of Freedom 20 DOF (Starter), 24 DOF (Standard)
Camera 120° HD Wide-angle, 1MP, Manual Focus
Vision Library OpenCV
Walking Speed Up to 21 cm/s

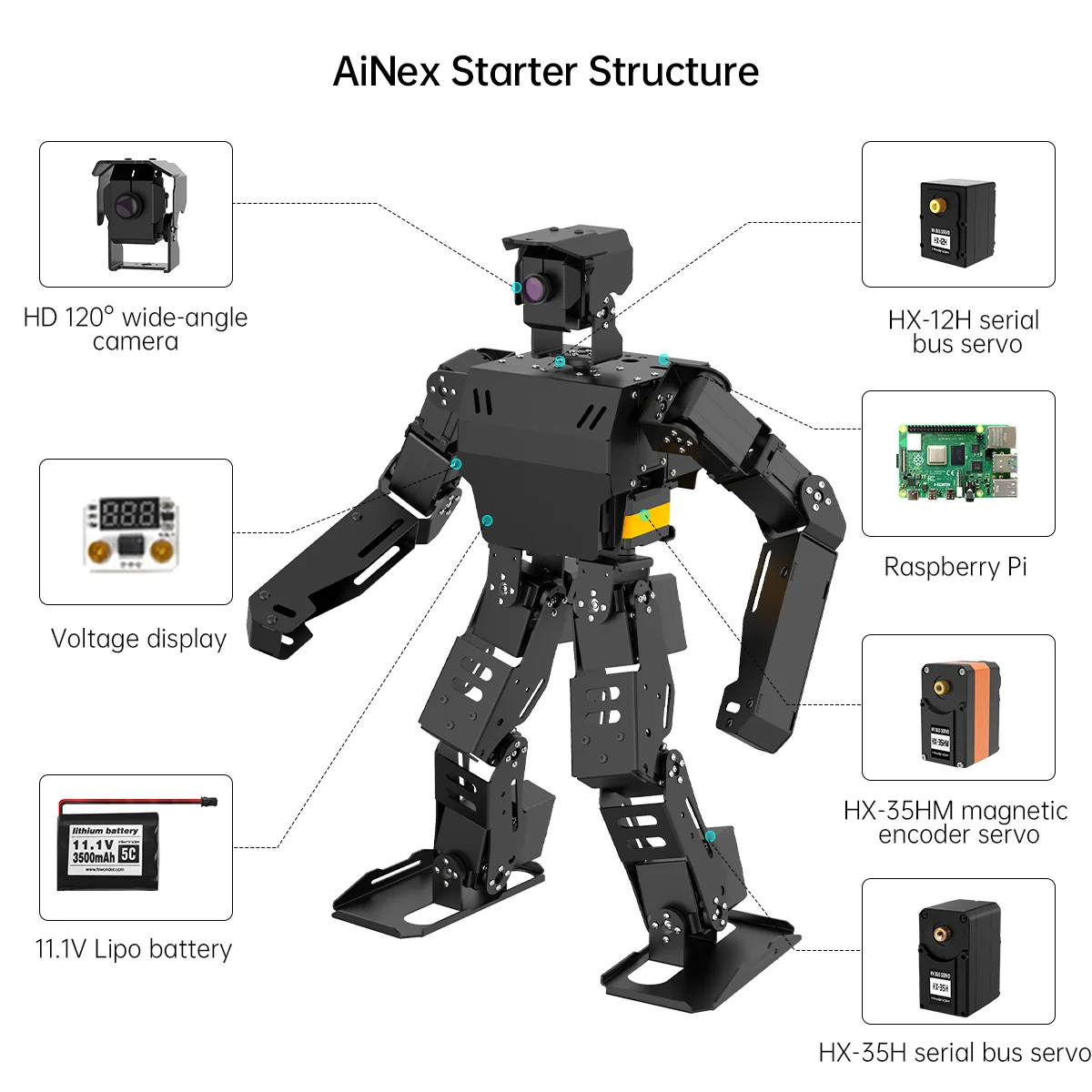

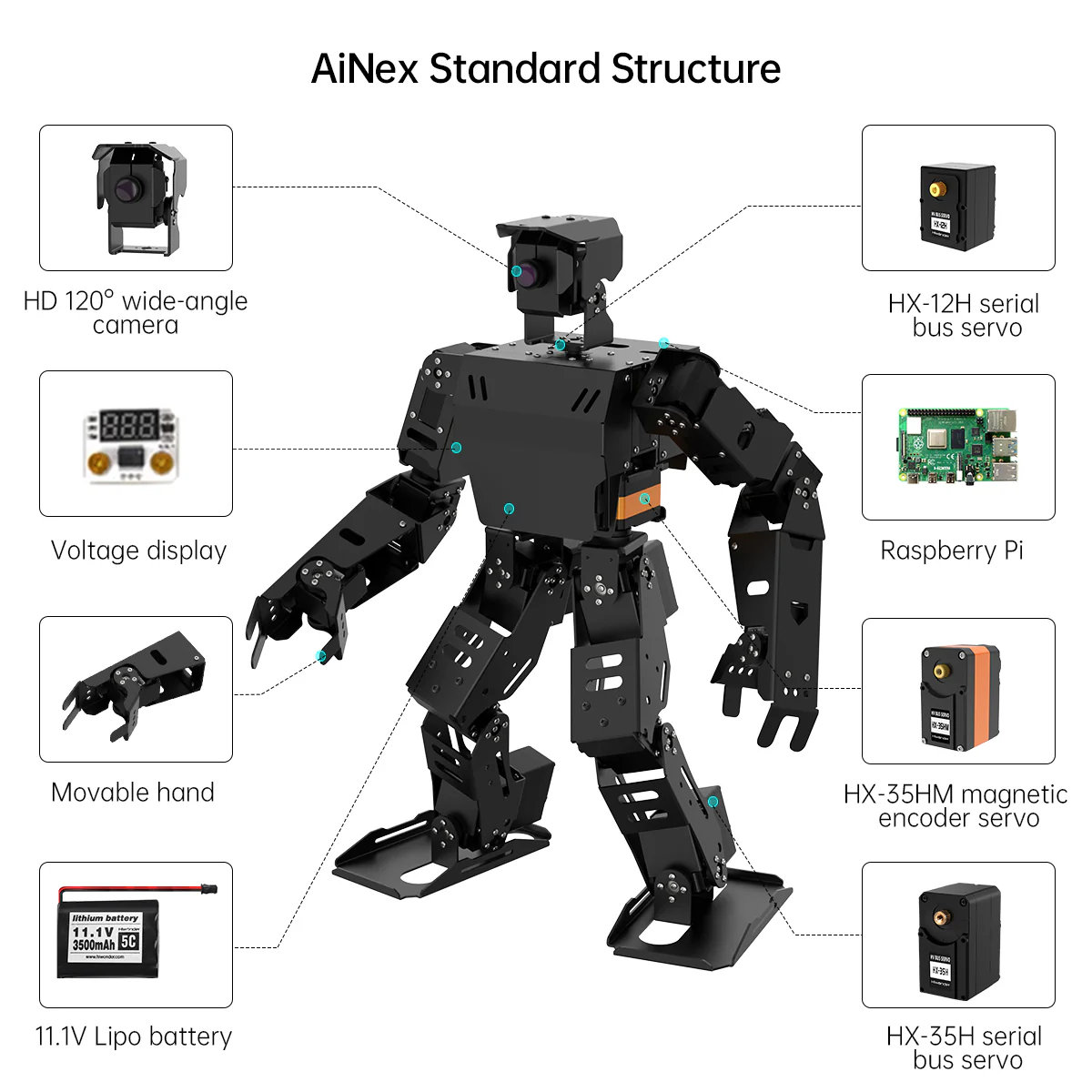

Intelligent Servos HX-35H, HX-35HM Magnetic Encoder, HX-12H Serial Bus Servos
Joint Feedback Voltage, Position, Temperature
IMU 3-axis Gyroscope, 3-axis Accelerometer, 3-axis Compass
CPU Broadcom BCM2711 Quad-Core Cortex-A72
Storage 32GB MicroSD Card

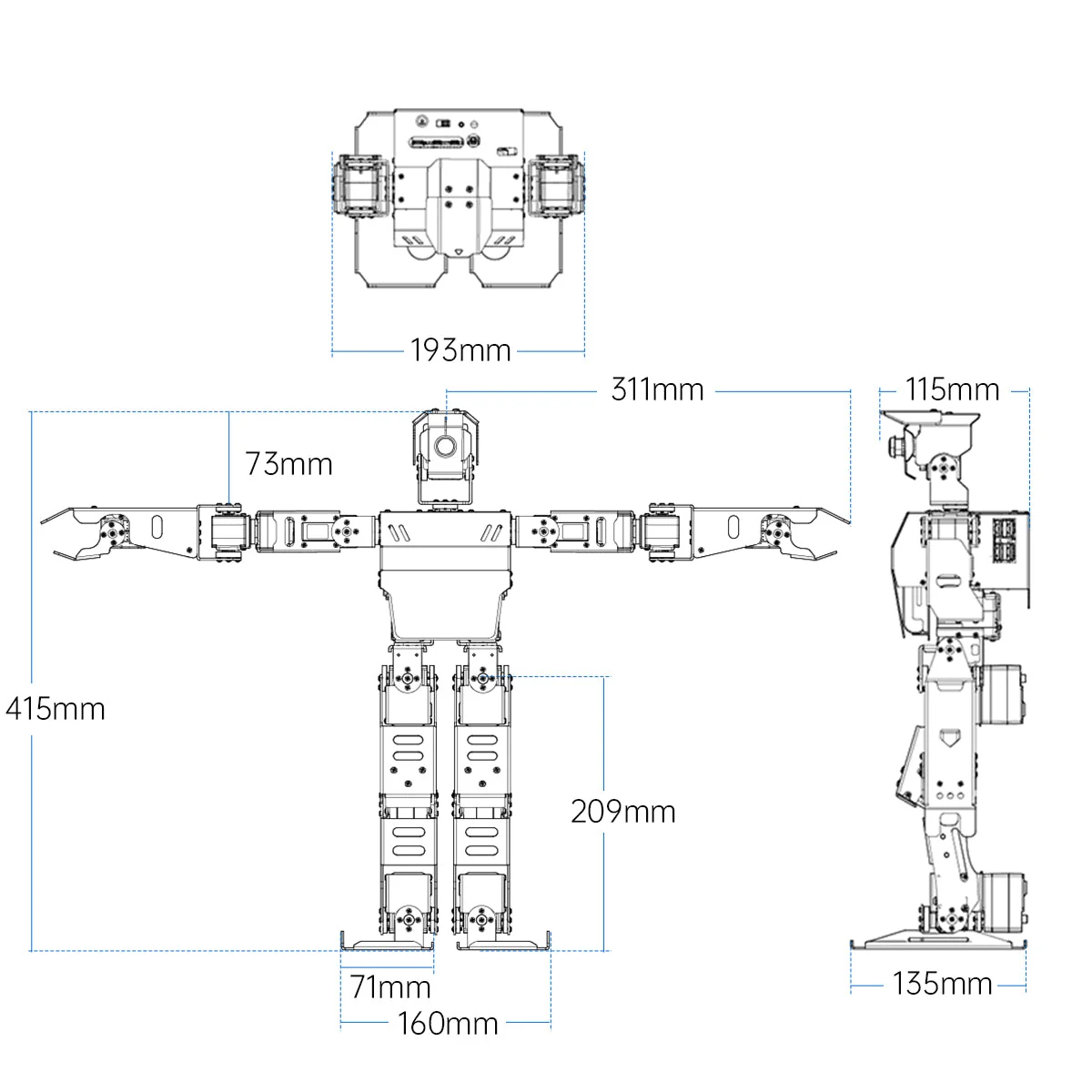

Product Dimensions 193 × 135 × 415 mm (Standard Kit)
Product Weight 2.25 kg (Starter), 2.45 kg (Standard)
Battery 11.1V 3500mAh 5C LiPo
Frame Material Aluminum Alloy
PC Software AiNex Visual Action Editor
Mobile App WonderROS (Android & iOS)
Package Size 500 × 290 × 230 mm
Package Weight Approximately 3.7 kg

Applications:

  • Robotics education and STEM learning
  • Artificial Intelligence (AI) research
  • ROS development and algorithm testing
  • Computer vision and OpenCV projects
  • Inverse kinematics research
  • Biped locomotion research
  • Object recognition and tracking
  • Autonomous line following
  • Pick-and-place demonstrations
  • Intelligent sorting applications
  • University robotics laboratories
  • Engineering training programs
  • Robotics competitions
  • Human-robot interaction studies
  • Motion planning and gait analysis

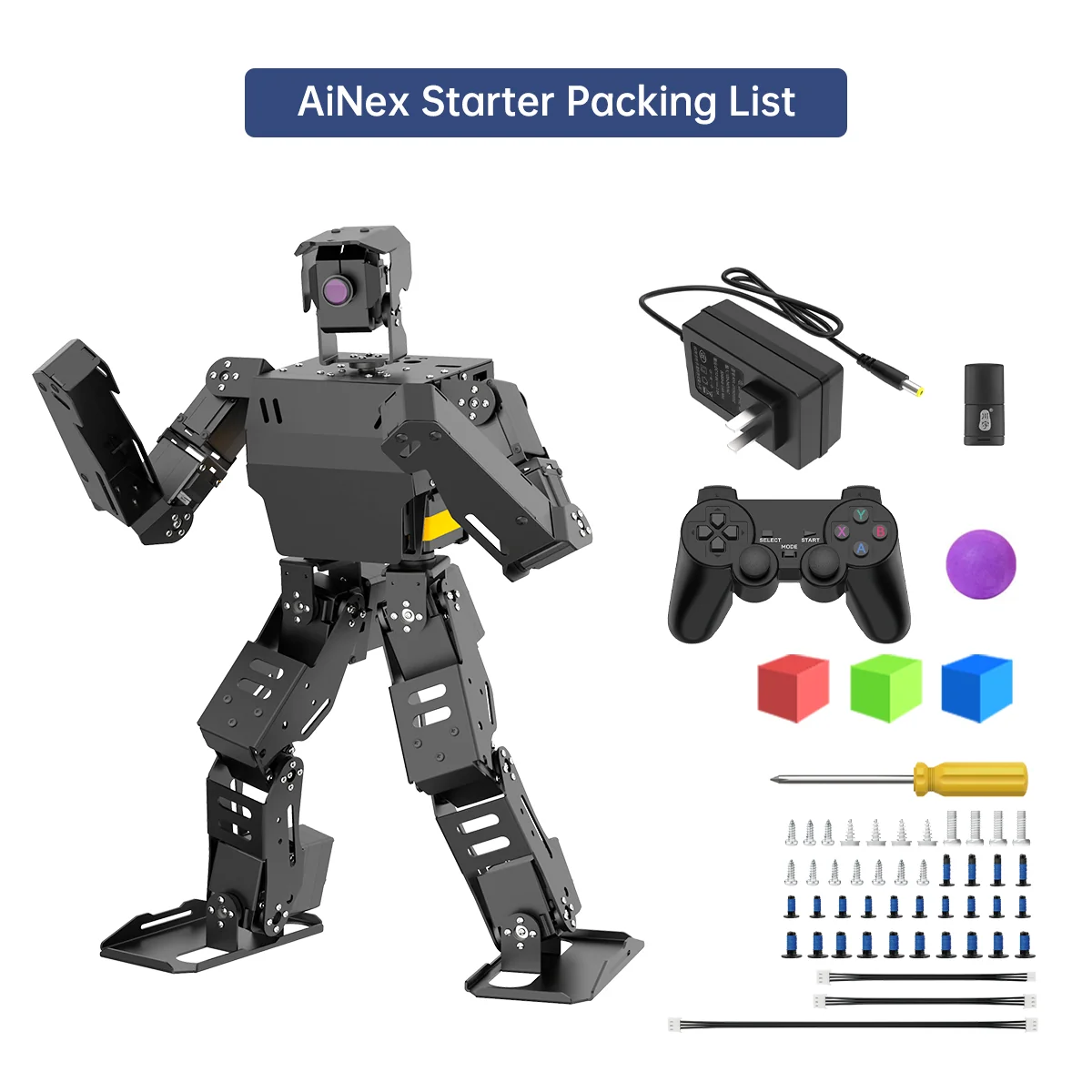

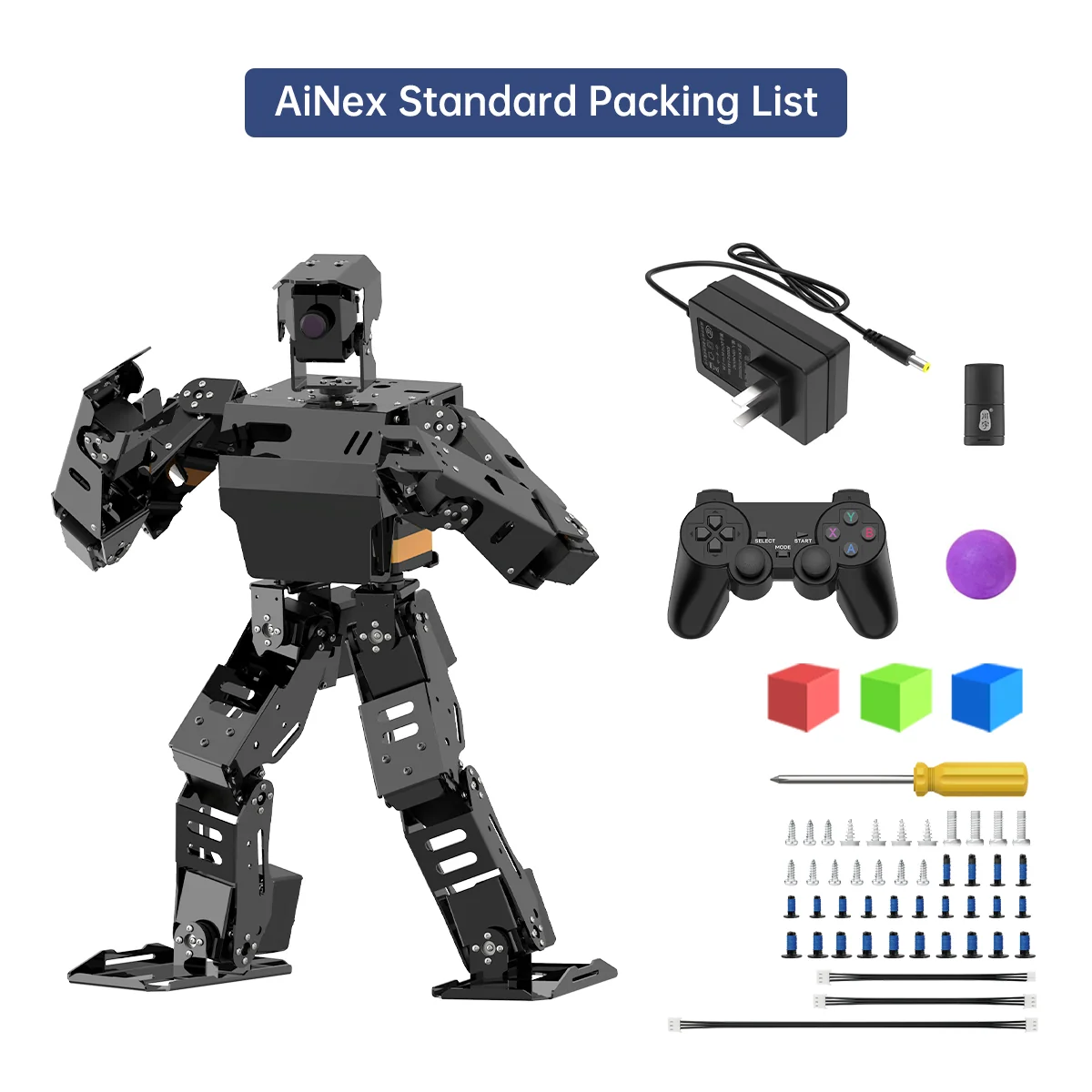

Packaging Details

The standard package typically includes:

  • 1 × Hiwonder AiNex Humanoid Robot (assembled)
  • 1 × Raspberry Pi controller (depending on selected version)
  • 1 × 11.1V 3500mAh LiPo Battery
  • 1 × Battery Charger
  • 1 × Power Adapter
  • 1 × 32GB MicroSD Card (preloaded system)
  • 1 × USB Cable
  • 1 × Required Connection Cables
  • 1 × User Documentation
  • Access to ROS tutorials and software resources (available according to Hiwonder's distribution policy).

Note: Package contents may vary slightly depending on whether the Starter Kit or Standard Kit is selected.
