Slash 4X4 Ultimate Car Chassis in Bangladesh
Slash 4X4 Ultimate Car Chassis in Bangladesh

Slash 4X4 Ultimate Car Chassis

SKU: 250417004779

Category: Miscellaneous

Share:

Product details of Slash 4X4 Ultimate Car Chassis

The Traxxas Slash 4X4 Ultimate is a high-performance 1/10-scale 4WD electric short-course RC vehicle designed for demanding off-road driving, racing, and high-speed recreational applications. It features a performance-optimized Low-CG chassis that improves handling, cornering stability, and overall control. The vehicle combines a shaft-driven direct 4WD drivetrain with a Velineon 3500 brushless motor and VXL-3s electronic speed control for strong acceleration and high-speed performance.

The Slash 4X4 Ultimate is equipped with premium GTR threaded aluminum shocks with titanium-nitride shafts, heavy-duty suspension components, adjustable front and rear sway bars, and upgraded aluminum suspension hardware. Its TQi 2.4 GHz radio system with Traxxas Stability Management (TSM) and factory-installed telemetry sensors provides precise control and real-time vehicle data monitoring. The sealed limited-slip differential and robust drivetrain make it suitable for a wide range of off-road surfaces and demanding RC applications.

Traxxas Slash 4X4 VXL Ultimate

Key Features / Highlights

  • Pre-Installed Heavy-Duty Aluminum Upgrades: Includes blue-anodized 6061-T6 aluminum C-hubs, steering blocks, rear hub carriers, and axle nuts for enhanced durability and premium chassis performance.
  • Clipless ProGraphix® Painted Body: Features a pre-painted body with applied decals, scale short-course race truck styling, chassis nerf bars, and scale front and rear tube-style bumpers.
  • VXL-3s™ Waterproof Electronic Speed Control: Provides Sport, Race, and patented Training driving modes, EZ-Set® one-button setup, a large heat sink, and built-in two-stage LiPo low-voltage detection.
  • Velineon® 3500 kV Brushless Motor: Delivers high-performance electric power with high-temperature sintered neodymium magnets, a precision-balanced rotor, high-speed bearings, and a blue-anodized finish.
  • Traxxas Stability Management® (TSM): Improves acceleration and braking control on low-traction surfaces while maintaining steering response and allowing controlled throttle-on powerslides.
  • TQi™ 2.4 GHz High Output Radio System: Includes a 2-channel transmitter and 5-channel micro receiver with fail-safe security, integrated telemetry ports, programmable controls, and adjustable steering and throttle settings.

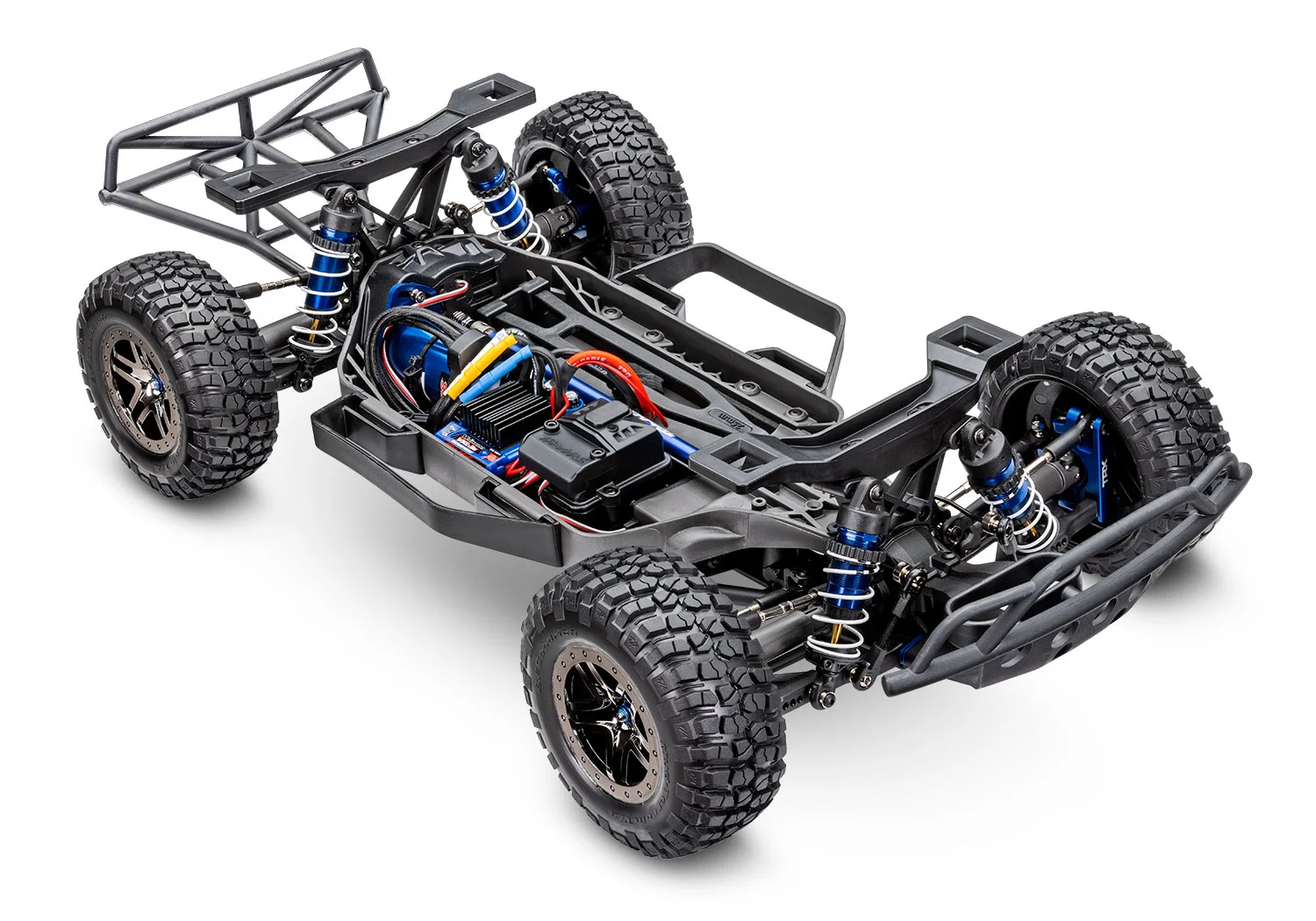

  • Low-CG Reinforced Monocoque Chassis: Keeps the battery and electronics positioned low for improved handling, faster cornering, and greater stability, with a modular design for easier maintenance.
  • Easy Access Battery Compartment: Features an adjustable battery hold-down and supports 6- and 7-cell NiMH flat packs as well as many 2S and 3S LiPo battery configurations.
  • Transmission and Driveline: Features full-time shaft-driven 4WD, a blue-anodized aluminum center driveshaft, Torque-Control™ slipper clutch, large 32-pitch gearing, sealed silicone-filled differentials with steel gears, and upgraded extreme-duty telescoping driveshafts.
  • Steering System: Equipped with a digital high-speed 2075R waterproof metal gear steering servo and dual bellcrank steering with an integrated servo saver for responsive and durable steering performance.
  • Suspension: Includes impact-resistant heavy-duty suspension arms, adjustable front and rear sway bars, adjustable steel turnbuckles, and captured rod ends designed to stay securely connected.
  • Aluminum GTR Shocks: Features high-volume aluminum GTR shock bodies with adjustable ride-height collars, titanium-nitride coated shafts, and race-tuned white powder-coated springs for adjustable suspension performance.
  • Officially Licensed BFGoodrich® Mud-Terrain™ T/A® Tires: S1 race compound tires are paired with 2-inch outer diameter, 3-inch inner diameter dual-profile short-course truck wheels for performance-focused off-road driving.
  • Rubber-Sealed Ball Bearings: Help provide smooth drivetrain and suspension operation while protecting bearing components from external contaminants.
  • Precision Hex Hardware: Provides secure fastening throughout the vehicle and supports reliable maintenance and assembly.
  • Traxxas Support and Parts Availability: Backed by Traxxas support and an extensive parts availability network for maintenance and replacement needs.
  • Battery and Charger Required: Battery and charger are required for operation and are sold separately.

Technical Specifications

Traxxas Slash 4X4 VXL Ultimate MODEL SPECS

MODEL SPECS
Name Slash 4X4 Ultimate Clipless
Type Short Course Truck
Speed 60+ mph with optional gearing and 3s LiPo battery (sold separately)
Skill Level 2
Scale 1/10
Weight 5.03 pounds (2.28 kg)

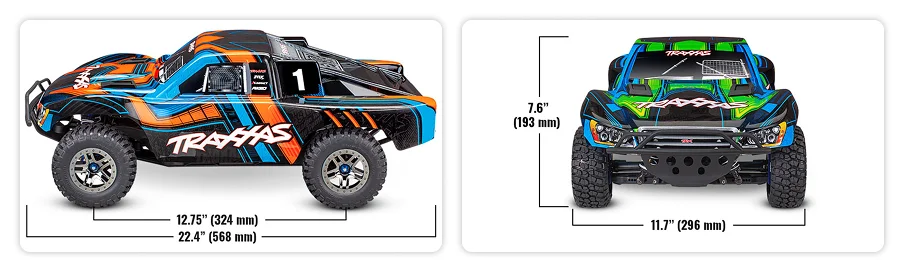

Length 22.36 inches (568 mm)
Width 11.65 inches (296 mm)
Track 11.65 inches (296 mm)
Height 7.60 inches (193 mm)
Wheelbase 12.75 inches (324 mm)
Center Ground Clearance 1.85 inches (47 mm)
Driveline Shaft-driven 4WD
Differential Type Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal) 11.82:1
Gear Pitch 32 pitch
Steering Servo 2075R metal gear, digital high-torque, waterproof
Radio System TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver and 6511 Wireless Module
Battery Compartment Specs 165 mm X 49.5 mm X 23 mm , 25 mm

Traxxas Slash 4X4 VXL Ultimate MOTOR & ESC SPECS

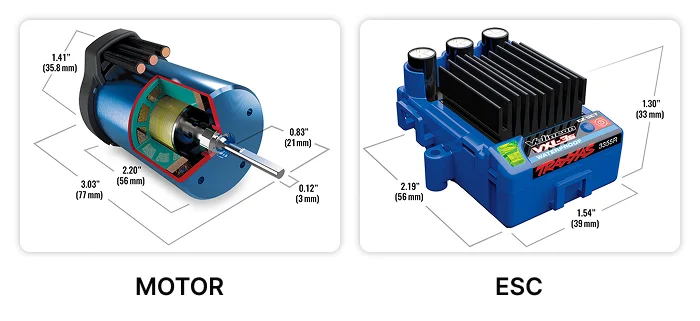

MOTOR SPECS
Name Velineon® 3500
Type Sensorless brushless 3500 Kv
Weight 9.24 ounces (262 g)
Length 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Diameter 1.41 inches (36 mm)
Shaft Size 3 mm
Connector Type 3.5 mm bullet
ESC SPECS
Name VXL-3s™ electronic speed control
Type Sensorless brushless
Case Size 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
Weight 3.17 ounces (90 g)
Motor Connectors 3.5 mm bullet
Battery Connectors Traxxas High-Current Connector
Power Wire 12 gauge Maxx® Cable

Packaging Details

  • 1 × Slash 4X4 Ultimate RC Vehicle / Chassis Assembly
  • 1 × Velineon 3500 Brushless Motor
  • 1 × VXL-3s Electronic Speed Control
  • 1 × TQi 2.4 GHz Transmitter
  • 1 × TQi Receiver with TSM and Telemetry Support
  • 1 × ProGraphix Pre-Painted Body
  • 4 × Pre-Glued RC Tires with Wheels
  • 1 × GTR Aluminum Shock Set
  • 1 × Front and Rear Sway Bar Set
  • 1 × User/Instruction Manual
  • Accessories and tools as supplied with the specific model/version

Note: Battery, charger, and transmitter batteries may be excluded depending on the exact product version/package configuration. Current Slash 4X4 Ultimate versions are also sold in configurations where the battery and charger are not included, so the exact package contents should be verified against the seller's model number before listing.

Applications & Use Cases

  • RC short-course racing: Suitable for short-course RC racing and performance-oriented driving.
  • Off-road RC driving: Designed for recreational driving across suitable grass, gravel, and dirt surfaces.
  • Hobby and recreational use: A premium choice for RC enthusiasts looking for an advanced electric vehicle.
  • RC vehicle performance testing: Useful for evaluating handling, drivetrain response, and suspension performance.
  • Suspension and drivetrain experimentation: Suitable for exploring RC suspension and drivetrain characteristics.
  • Robotics and mechanical engineering demonstrations: Can be used as an example platform for demonstrating electric drivetrain and vehicle mechanics.
  • RC racing practice and training: Provides a capable platform for practicing vehicle control and racing techniques.
  • Vehicle dynamics and chassis handling demonstrations: Useful for demonstrating how chassis and suspension setup affects vehicle behavior.
  • Educational projects involving electric drivetrain and radio control systems: Can support educational demonstrations involving RC electronics and mechanical systems.
  • Outdoor terrain testing: Suitable for controlled testing on appropriate surfaces such as grass, gravel, and dirt.

Documentation & Official Sources

For complete technical diagrams, exploded views, and original factory guides, refer to the Traxxas Slash 4X4 Ultimate Official Product Page. You can also see the vehicle's dynamic performance and features in action on the Traxxas Slash 4X4 Ultimate Overview Video.
