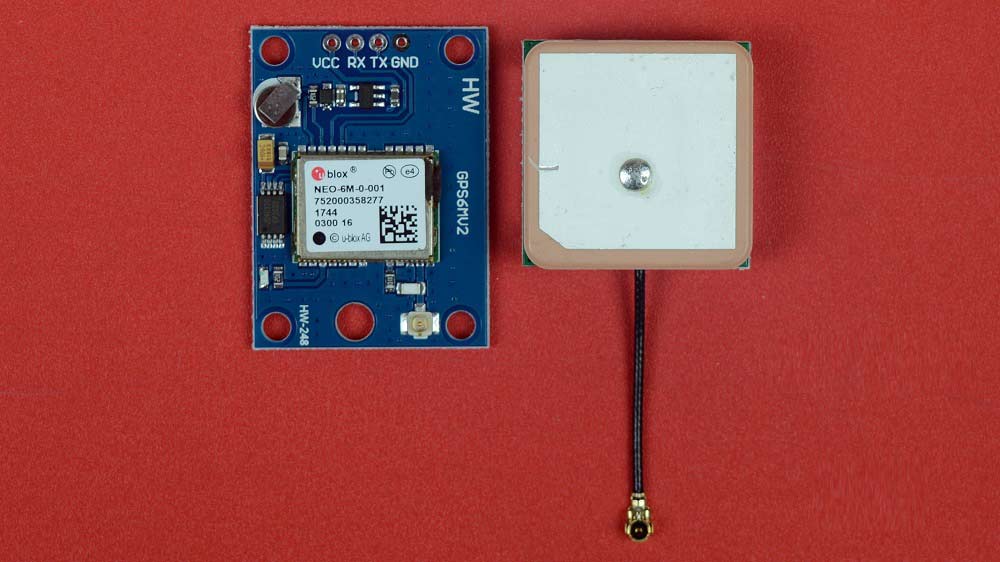

GPS module GY neo-6m uses the popular Ublox Neo 6M GPS chip.

The detachable high gain antenna supports fast satellite acquisition, keeping the gps accuracy within 5m. There's dedicated EEPROM and a backup battery onboard that stores the satellite ephemeris data when powered off and thus helps faster location estimation as soon as the module powers on.

Features

  • u-blox NEO-6M onboard, with high-gain active antenna

  • Chargeable backup battery, keeps the ephemeris data when power down, supports hot starts

  • Onboard EEPROM for storing config information

  • Compatible with Arduino and Raspberry Pi

Applications

  • GPS Tracker

  • Multicopter Positioning

Usage Notes

  • GPS doesn't work indoor. Please use the module outside buildings for it to function preperly.

  • You'll need a USB-Serial converter if you want to configure this module using U-center. (click here).

Links

Clich here to download "U-center for windows"

Click here to download Arduino library and codes.



Caution:

Put 3.3V to the VCC pin, not 5V. The Tx and Rx pin can work with both 5V or 3.3V logic level.


Power supply: 3V-5V

Board Models: GY - GPS6MV2

GPS Chip: Ublox Neo 6M

Antenna: ceramic antenna, signal strong

Data Backup:  EEPROM saves the configuration parameter data when power down with data backup battery

Default baud rate: 9600

Module size 25 x 35 mm (0.98'' x 1.37'')

Antenna size: 25 x 25 mm (0.98''x 0.98'')

Question & Answer

Total 1 questions

Q: Will it be re-stocked? Questioned by [email protected], 13-Aug-2021

Yes, hopefully it'll be available within 3 weeks. Answered by almamun3248, 14-Aug-2021 11:48 AM
