5050 RGB Full Color RGB 8 LED Module
5050 RGB Full Color RGB 8 LED Module

5050 RGB Full Color RGB 8 LED Module

SKU: BEC-00079

Brand: Made in China

Warranty: 3 Days

Model: N/A

৳ 240.01

Add to Wishlist

Category: LED

Share:

Description of 5050 RGB Full Color RGB 8 LED Module

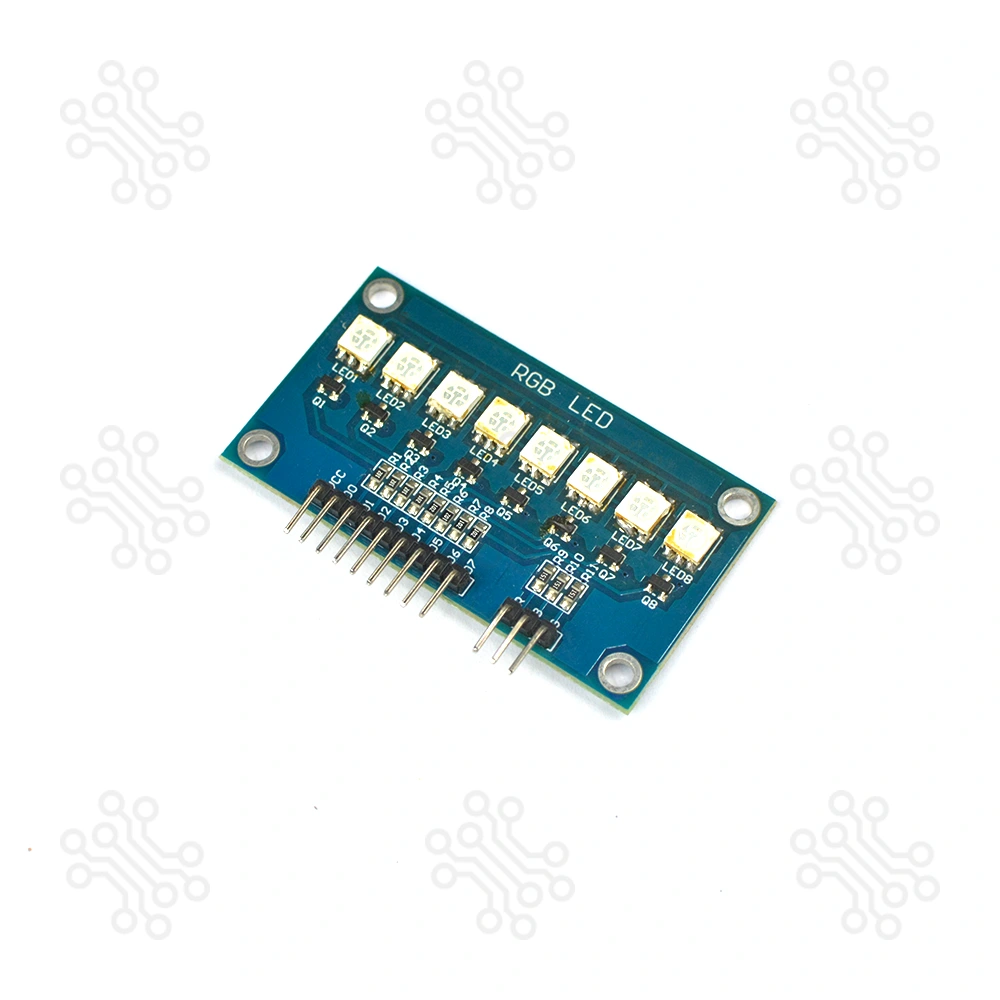

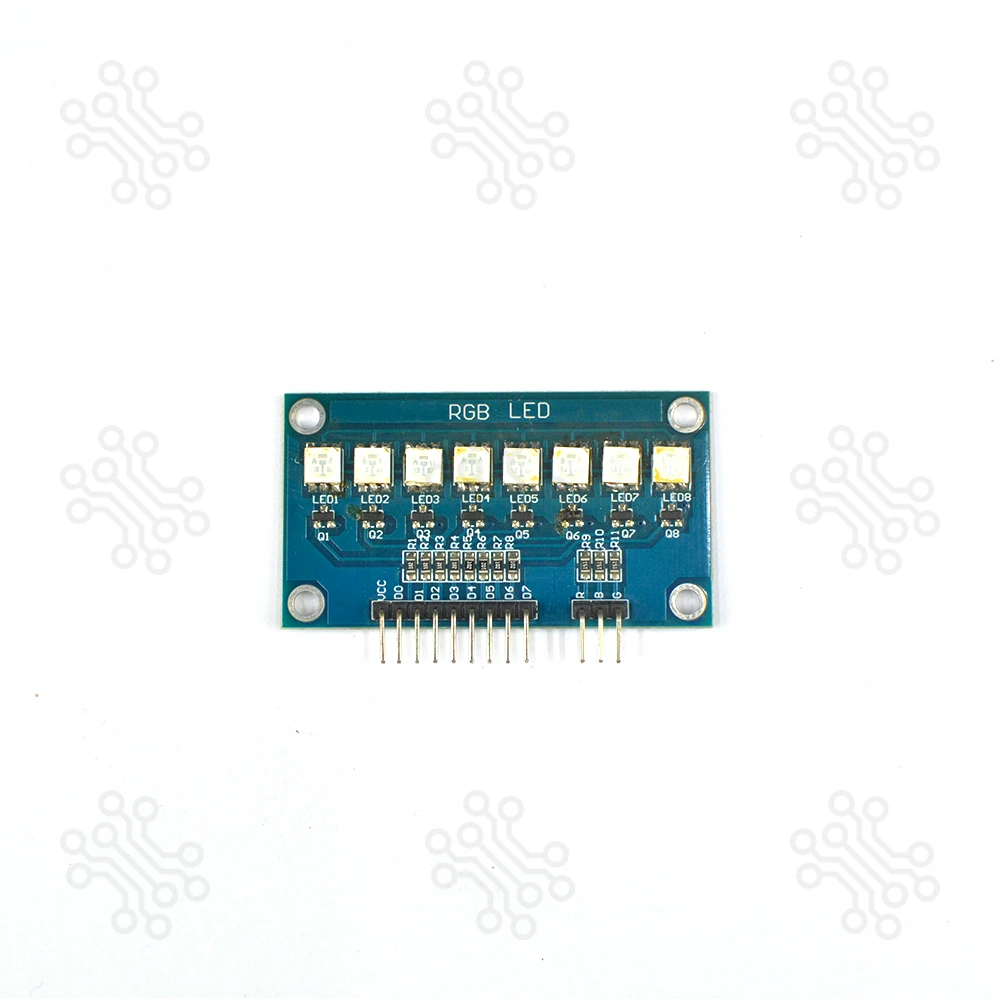

The 5050 RGB Full Color 8 LED Module is a versatile LED display solution featuring 8 individually selectable RGB LEDs (type 5050). Designed for compatibility with Arduino and other microcontrollers, this module allows users to control each LED’s color and on/off state through simple digital I/O connections. Its compact form factor and intuitive pinout make it ideal for DIY electronics, visual indicators, or educational projects.

Key Features


  • 8 x 5050 RGB full-color LEDs for vibrant, multicolor output
  • Individual LED selection (D0–D7) via 9-pin header
  • Color control (R, G, B) via 3-pin header
  • Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers
  • Simple wiring and coding for fast prototyping
  • Compact size, low power consumption


Technical Specifications


Parameter Specification

LED Type

5050 RGB Full Color

Number of LEDs

8

Input Voltage

5V DC

Control Method

Digital I/O pins (individual select)

LED Select Header

9-pin (D0–D7 + Vcc) - 0.1" pitch

Color Select Header

3-pin (R, G, B) - 0.1" pitch

Compatibility

Arduino UNO, MEGA, etc.

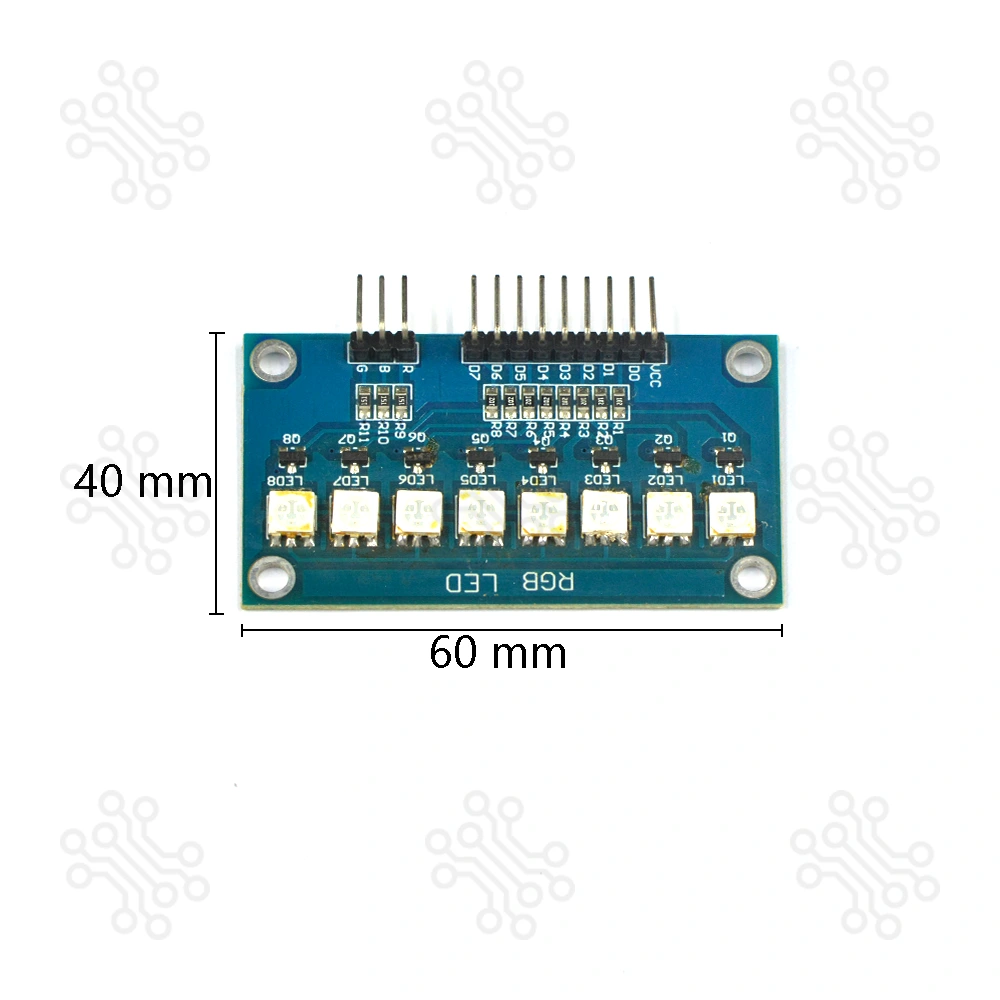

Dimensions

L: 2-3/8" × W: 1-5/16" × H: 1/4"

Weight

0.02 lbs (approx. 9 g)


Pin Configuration & Wiring Guide


Pin Function Example (Arduino Uno)

Vcc

Power Supply (5V)

5V

D0–D7

Select LEDs

Digital Pins 2–9

R

Red Control Line

Digital Pin 10

G

Green Control Line

Digital Pin 11

B

Blue Control Line

Digital Pin 12


Applications


  • Visual signal indicators
  • DIY lighting projects
  • Microcontroller-based light shows
  • Status displays and diagnostics
  • STEM learning and electronics education


Package Contents


  • 1 x 5050 RGB Full Color 8 LED Module


Document


Attention


Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, don't hesitate to get in touch with us to determine if further actions may be taken.


Need Help?


Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 08:00 pm (7 days a week). You can also reach us via Live Chat or Facebook Inbox.


Frequently Asked Questions (FAQ)


Can I control each LED individually for different colors?

This module allows individual selection of LEDs (D0–D7), but the color is controlled globally through the R, G, and B pins. You cannot assign different colors to each LED separately.

What voltage does this module require?

The module operates on 5V DC, which can be supplied directly from an Arduino or any 5V power source.

Do I need external resistors for the LEDs?

In most cases, the module includes built-in current-limiting resistors. However, it’s recommended to check the specific module version or test it carefully to avoid overcurrent.

Can I use this module with microcontrollers other than Arduino?

Yes, the module is compatible with any microcontroller that has digital output pins, including ESP32, STM32, and Raspberry Pi (with logic level conversion if needed).

How do I control the colors?

Connect the R, G, and B pins to either GND or digital pins. By toggling them HIGH or LOW, you can mix colors like red, green, blue, cyan, magenta, yellow, or white.

What happens if I enable multiple D0–D7 pins at the same time?

All corresponding LEDs will turn on in the selected color, allowing you to illuminate multiple LEDs simultaneously.

Can I dim the LEDs using PWM?

Yes. If you connect the R, G, or B lines to PWM-capable digital pins, you can adjust brightness by controlling the duty cycle.
