6DOF Robotic Arm
6DOF Robotic Arm

6DOF Robotic Arm

SKU: ROB-00191

Brand: Made in China

Warranty: 3 Days

Model: N/A

৳ 4145.08

Add to Wishlist

Category: Robotic Kits

Share:

Description of 6DOF Robotic Arm

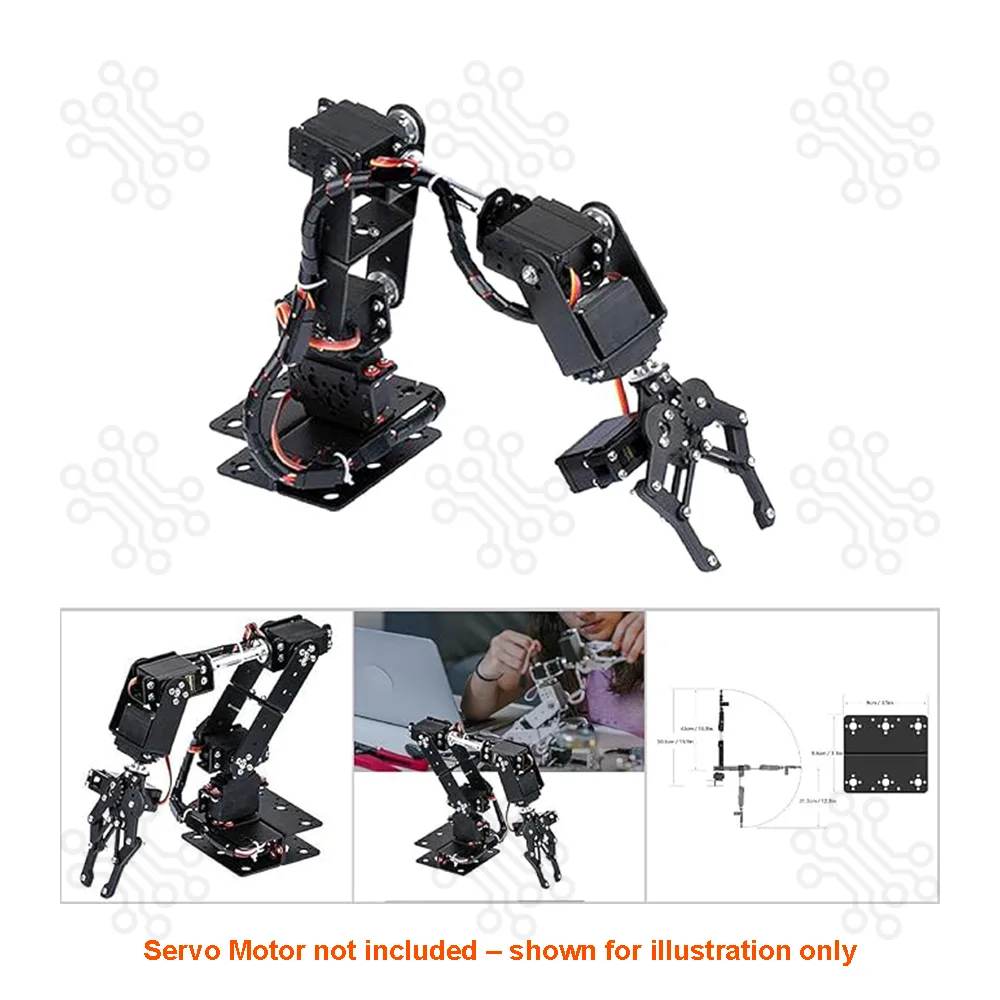

The 6DOF Robotic Arm is a high-precision mechanical robot arm kit ideal for robotics enthusiasts, students, and STEM learners. Made from durable aluminum alloy, it features six degrees of freedom (6DOF), enabling flexible rotation, lifting, and gripping—perfect for automation, prototyping, and educational use.
This DIY robotic arm with gripper is designed for use with MG995 or MG996 servo motors (not included) and is fully compatible with Arduino, Raspberry Pi, and other microcontroller platforms. It's a great choice for hands-on robotics projects, coding experiments, and robotic motion control systems.


Note: Servo motors, power supply, and controller are not included in the package. This is a mechanical kit that requires assembly.


Key Features


  • 6 Degrees of Freedom for flexible, multi-axis movement
  • Aluminum alloy construction for strength and reduced weight
  • Robotic gripper included for real-world object handling
  • Modular structure—compatible with MG995 / MG996 servo motors
  • Perfect for Arduino, Raspberry Pi, or other microcontroller platforms
  • Supports expansion with USB servo controllers and an external power supply


Technical Specifications


 Feature

Specification

Product Name

6DOF Robotic Arm

Degrees of Freedom

6

Dimensions

21 × 17.4 cm

Weight

Approx. 500g

Material

High-grade Aluminum Alloy

Functionality

Clamping, rotating, and lifting

Servo Compatibility

MG995 / MG996 (not included)


Application


  • Robotics education and STEM curriculum
  • University labs and engineering research
  • DIY robotics and hobbyist automation
  • Object sorting, gripping, and controlled movement
  • Integration into Arduino or Raspberry Pi projects

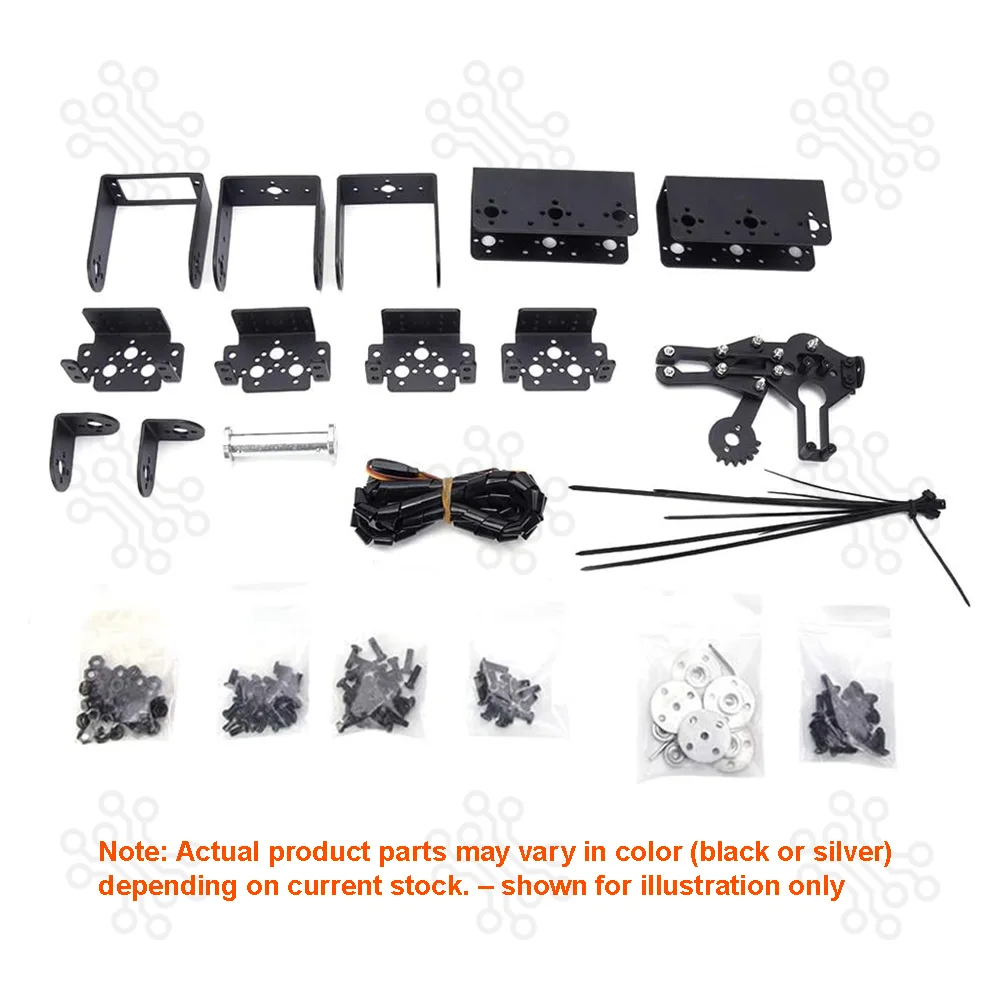

Packaging Details


  • 4 × Multifunctional Brackets
  • 2 × Long U-Shape Brackets
  • 1 × Long U-Shape Bracket with Servo Cutout
  • 2 × L-Shape Brackets
  • 2 × U-Beam Brackets
  • 1 × Robotic Gripper
  • 3 × Cup Bearings
  • 1 Set of Screws & Nuts
  • Cable accessories include cable ties, servo wire extenders, spiral wire wrap, and more.


Recommended Accessories


  • Recommended compatible servo motor: MG-996 (click here)  or MG995 (click here)
  • See also: USB servo controller (click here)
  • Compatible servo horn: Metal Servo Horn (click here
  • Recommended also: Servo power supply (click here


6DOF Robotic Arm – Frequently Asked Questions


Are servo motors included with the robotic arm kit?

Servo motors are not included in the package; users will need to purchase compatible MG995 or MG996 servo motors separately.


Is the robotic arm pre-assembled or ready to use out of the box?

The kit does not come pre-assembled. It is a DIY mechanical assembly kit intended for hands-on learning and educational use.


Is this robotic arm compatible with Arduino and Raspberry Pi?

This robotic arm is fully compatible with Arduino, Raspberry Pi, and similar microcontroller platforms for custom programming and servo control.


What material is used to build the robotic arm?

The arm is made from high-quality aluminum alloy, which provides a durable yet lightweight structure suitable for robotic applications.


What types of movements can the robotic arm perform?

Thanks to its six degrees of freedom, the arm can perform a range of actions, including clamping, rotating, and lifting for versatile motion control.


Does the kit come with software or programming examples?

The kit does not include built-in software or sample code; however, users can find a wide range of open-source libraries and examples online, particularly for Arduino-based servo control.


Will the color of the metal parts always be the same?

The color of the aluminum parts may vary, depending on current stock—components may be either silver or black, with no impact on functionality.


What accessories are needed to make the robotic arm functional?

To operate the robotic arm, users will need additional accessories such as MG995 or MG996 servo motors, a metal servo horn, a USB servo controller, and an external power supply—all sold separately.


Attention


Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, don't hesitate to get in touch with us to determine if further actions may be taken.


Need Help?


Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 08:00 pm (7 days a week). You can also reach us via Live Chat or Facebook Inbox

Ratings & Reviews of 6DOF Robotic Arm

4.88
Out of 5

17 Ratings and 2 Reviews

5 star
88.24%
4 star
11.76%
3 star
0.00%
2 star
0.00%
1 star
0.00%
Your Rating:

Reviews (2)

User
By Tahmeed Arif Arif on 22 Jan 2025
verified purchase Verified Purchase

The quality of the arm is great but I wouldn't suggest building the whole arm using Mg996 servos only. Building it with only those will not fully use the strength of the servos in the wrist region. I would suggest buying a 20kg-cm servo(TD-8120MG) for the shoulder and elbow region of the arm. Otherwise, I would suggest converting this arm to a 5DOF or 4DOF configuration if you don't buy a 20kg-cm servo for the shoulder and elbow region. Doing so will ensure that your Mg996 servos don't wear out quickly.

User
By Sadman Sakib on 26 Oct 2024
verified purchase Verified Purchase

Good quality product. Gets the job done

User
By Nazmul hasan on 27 Oct 2021
verified purchase Verified Purchase
User
By Abubakar Siddique on 25 Oct 2021
verified purchase Verified Purchase
User
By Yasin Hossain on 18 Oct 2021
verified purchase Verified Purchase
1 2 3 ..... 4 »

Questions & Answers about 6DOF Robotic Arm

Questions answered by Techshop (13)

can this use stepper motors instead?

By fuadzkamal@gmail.com on 24 Apr 2023

No

By Techshop on 26 Apr 2023

Do you have the arm flange rod for the 6 dof robotic arm.??

By mdsaberhossain on 07 Mar 2023

Sorry, we don't have it.

By Techshop on 09 Mar 2023

Do you have the arm flange rod for the 6 dof robotic arm.??

By mdsaberhossain on 07 Mar 2023

Hello. I have bought it. Can you please share how to assemble it.. cant find the proper one on yt

By Sayedsameer620@gmail.com on 15 Oct 2022

Please send us email (technicalsupport@techshopbd.com)for getting technical support about our products. Our technical team will help you, Thanks.

By Techshop on 20 Oct 2022

Is this product including servo horn?

By JahidHossainE on 12 Mar 2019

Packing list: Multifunctional bracket x 5 Long U shape bracket x 3 L shape bracket x 1 Cup bearing x 3 Screw nut x 1 set Alloy mechanical claw x 1 U beam bracket x 2 No horn.

By Techshop on 12 Mar 2019
