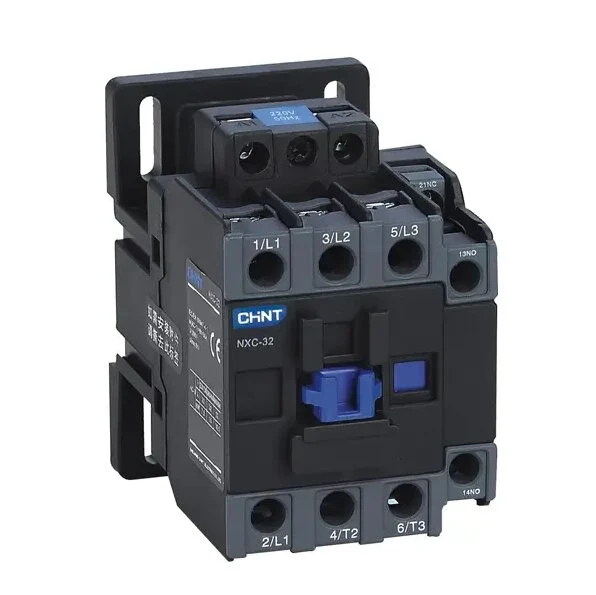

CHINT Magnetic Contactor G NXC 32 in Bangladesh
CHINT Magnetic Contactor G NXC 32 in Bangladesh

CHINT Magnetic Contactor G NXC 32

SKU: 260622005544

Brand : CHINT

Warranty : 7 Days

৳ 2450.05

Add to Wishlist

Category: Relay

Share:

Additional Information

Description of CHINT Magnetic Contactor G NXC 32

The CHINT NXC 32 is a three-pole AC magnetic contactor rated for 32A operational current, designed to handle the frequent start-stop switching that three-phase motors demand in industrial and commercial installations. Built around the NXC series platform, it delivers dependable contact performance in motor control centres, power distribution panels, pump stations, and HVAC systems - the kinds of load conditions common across manufacturing floors, RMG units, and building services installations in Bangladesh.

What makes the NXC 32 practical for panel builders is its combination of a compact footprint and a straightforward 1NO + 1NC auxiliary contact arrangement. It pairs directly with thermal overload relays to form a complete motor starter assembly, mounts on standard DIN rail or by screw, and is built to IEC 60947-4-1 — the international standard that consulting engineers and panel inspectors expect to see referenced.

Key Features of CHINT G NXC-32 AC Magnetic Contactor

  • 32A rated operational current (AC-3): sized for the inrush and breaking duty of direct-on-line three-phase motor starting, not just steady-state load.
  • Three main NO power contacts: a full 3-pole switching arrangement for standard three-phase circuits.
  • Built-in 1NO + 1NC auxiliary contacts: gives you a holding/latching circuit and an interlock or indication circuit without adding an auxiliary contact block.
  • Up to 15kW motor power at 400V AC-3: covers the bulk of mid-range industrial motor applications in a single device.
  • Mechanical life up to 10 million operations: engineered for high-cycle duty where the contactor switches many times per shift.
  • Electrical life up to 1.2 million operations: long contact service interval reduces panel maintenance downtime.
  • 690V rated insulation voltage (Ui): comfortable insulation margin above typical 400V three-phase system voltage.
  • IP20 protection class: finger-safe terminals suited to enclosed panel installation.
  • DIN rail or screw mounting: drops into existing panel layouts without custom brackets.
  • Multiple coil voltage options (24V, 110V, 220V, 380V AC): matches whatever control voltage your panel design already uses.
  • Compatible with thermal overload relays: combines into a complete electromagnetic motor starter for full overload protection.
  • IEC 60947-4-1 compliant: meets the low-voltage switchgear standard specified in most tender and consultancy documents.

Technical Specifications

Parameter Details
Model NXC-32
Brand CHINT
Rated Current (AC-3) 32A
Poles 3P
Main Contacts 3NO
Auxiliary Contacts 1NO + 1NC
Rated Insulation Voltage (Ui) 690V
Motor Power @ 400V AC-3 Up to 15kW
Protection Class IP20
Mechanical Life Up to 10 Million Operations
Electrical Life Up to 1.2 Million Operations
Mounting DIN Rail / Panel Mount
Standard IEC 60947-4-1

Applications & Use Cases

The CHINT NXC 32 Magnetic Contactor is widely used in industrial and commercial electrical installations, including:

  • Three-phase motor control. The core application. At 32A AC-3 and up to 15kW at 400V, the NXC 32 covers motors in the roughly 15kW / 20HP class in direct-on-line starter configurations.
  • Water pump control panels. Deep tube well pumps, booster pumps, and overhead tank fill systems in residential complexes, factories, and irrigation setups — all involve repeated start cycles the NXC 32's 10-million-operation mechanical life is built to absorb.
  • Air compressor systems. Workshop and factory compressors cycle constantly against pressure switches, making high electrical endurance more important than peak rating alone.
  • HVAC and chiller plant. Central air conditioning compressors, AHU fans, and cooling tower motors in commercial buildings and industrial cold storage.
  • Generator and changeover panels. Switching load circuits during mains-to-generator transfer in standby power installations — a routine requirement given load-shedding patterns across Bangladesh.
  • Industrial automation equipment. Conveyor drives, mixers, agitators, textile machinery, and packaging line motors controlled from PLC or relay logic.
  • Solar and electrical control panels. Load switching in solar power systems and general-purpose distribution boards where contactor-based control is required.

Documentation / Official Sources

For installation guidance, wiring recommendations, safety precautions, testing procedures, and troubleshooting information for the CHINT G-NXC-32 Magnetic Contactor, refer to the official CHINT NXC-32 AC Contactor Installation Guide. This resource provides step-by-step instructions to help ensure proper installation, reliable operation, and long-term performance of the NXC-32 contactor in industrial and commercial electrical applications.

Related CHINT Magnetic Contactors

Looking for different ratings or comprehensive control solutions? View our massive industrial automation inventory under the CHINT Brand Page. If your application requires lower operational current, browse the compact CHINT G NXC-09 Magnetic Contactor or check out the mid-tier CHINT G NXC-18 Magnetic Contactor to find the exact match for your project.

Buy CHINT Magnetic Contactor G NXC-32 Online in Bangladesh at TechShopBD

If you want to buy the CHINT Magnetic Contactor G NXC-32 online in Bangladesh, TechShopBD is your ultimate destination. We house a large collection of authentic electronic components and industrial automation modules, backed by official replacement warranty options. Enjoy fast and secure shipping right to your doorstep across all 64 districts in Bangladesh with our flexible Cash on Delivery (COD) service or seamless digital payments. Place your order today at TechShopBD for guaranteed original products and unbeatable customer support!
