ESP32 P4 ETH High Performance Development Board Based On ESP32 P4 With 100 Mbps RJ45 Ethernet Port in Bangladesh
ESP32 P4 ETH High Performance Development Board Based On ESP32 P4 With 100 Mbps RJ45 Ethernet Port in Bangladesh

ESP32 P4 ETH High Performance Development Board Based On ESP32 P4 With 100 Mbps RJ45 Ethernet Port

SKU: 260729005686

Brand : Waveshare Electronics

Warranty : 7 Days

৳ 2570.03

Add to Wishlist

Category: ESP32

Share:

Additional Information

Description of ESP32 P4 ETH High Performance Development Board Based On ESP32 P4 With 100 Mbps RJ45 Ethernet Port

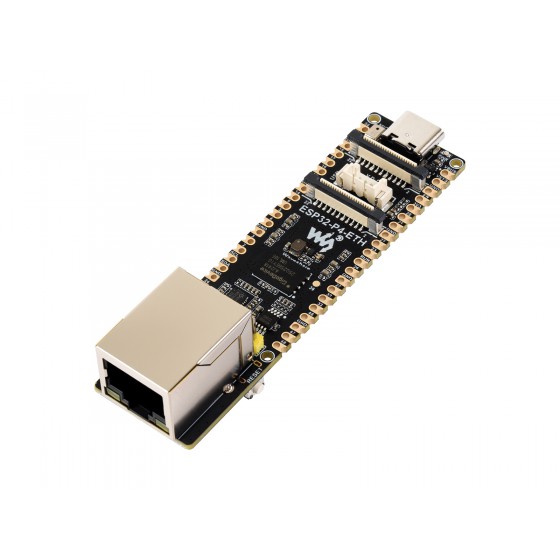

The Waveshare ESP32-P4-ETH (SKU: 32086) is a high-performance multimedia development board based on the Espressif ESP32-P4 processor. Designed for advanced embedded applications, it combines a powerful dual-core RISC-V MCU with 100Mbps Ethernet, USB 2.0 OTG, MIPI-CSI camera, MIPI-DSI display, 32MB PSRAM, and 32MB NOR Flash. It is ideal for industrial IoT, HMI, Edge AI, multimedia, robotics, and networking applications.

Key Features

  • ESP32-P4 high-performance RISC-V processor
  • Dual-core RISC-V (High-Performance) + Low-Power core
  • Up to 360MHz CPU frequency
  • 100Mbps RJ45 Ethernet port
  • 32MB PSRAM onboard
  • 32MB NOR Flash
  • USB Type-C for programming and power
  • USB 2.0 OTG High-Speed interface
  • MIPI-CSI camera interface with integrated ISP
  • MIPI-DSI display interface
  • microSD (TF) card slot
  • Built-in microphone
  • Speaker connector (MX1.25)
  • 40-pin GPIO header compatible with many Raspberry Pi Pico HATs
  • Optional PoE module support (sold separately)
  • Compatible with ESP-IDF and Arduino ecosystem.

Technical Specifications

Specification Details
Brand Waveshare
Model ESP32-P4-ETH
SKU 32086
Main Processor ESP32-P4
CPU Dual-core 32-bit RISC-V (HP) + Single-core LP RISC-V
Maximum Clock Speed Up to 360MHz
PSRAM 32MB
Flash Memory 32MB NOR Flash
Ethernet 10/100Mbps RJ45
USB USB Type-C + USB 2.0 OTG
Display Interface MIPI-DSI (2-Lane)
Camera Interface MIPI-CSI (2-Lane)
Storage microSD (TF Card Slot)
Audio Onboard Microphone + Speaker Header
GPIO 40-Pin Expansion Header
Power Supply USB Type-C or Optional PoE Module
Wireless None (ESP32-P4 does not integrate Wi-Fi/Bluetooth)

Onboard Interfaces

  • 100Mbps RJ45 Ethernet Port
  • USB Type-C
  • USB OTG Header
  • MIPI-CSI Camera Connector
  • MIPI-DSI Display Connector
  • microSD Card Slot
  • Microphone
  • Speaker Connector
  • Reset Button
  • Boot Button
  • Status LED
  • 40-Pin GPIO Header
  • Optional PoE Header.

Development Support

  • ESP-IDF
  • Arduino Framework
  • FreeRTOS
  • LVGL GUI Development
  • USB Host & Device Applications
  • Ethernet Applications
  • Camera Applications
  • Display Applications
  • AI Voice Interaction
  • Edge Computing Projects.

Applications

  • Industrial IoT Gateways
  • Human-Machine Interface (HMI)
  • Edge AI Systems
  • Ethernet Controllers
  • Smart Factory Automation
  • Robotics
  • Embedded Linux Companion Systems
  • Multimedia Devices
  • Camera-Based Vision Systems
  • Digital Signage
  • Smart Home Controllers

Package Includes

  • 1 × Waveshare ESP32-P4-ETH Development Board
  • 1 × User Documentation
