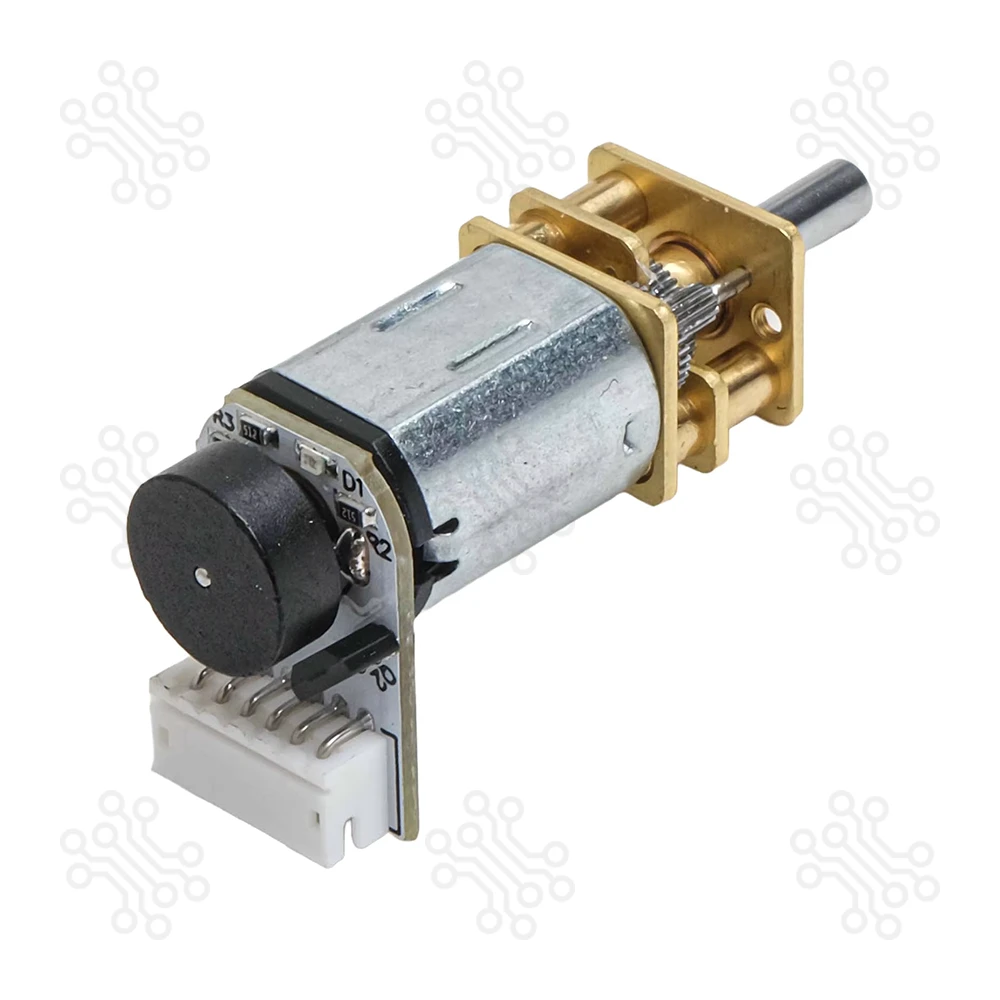

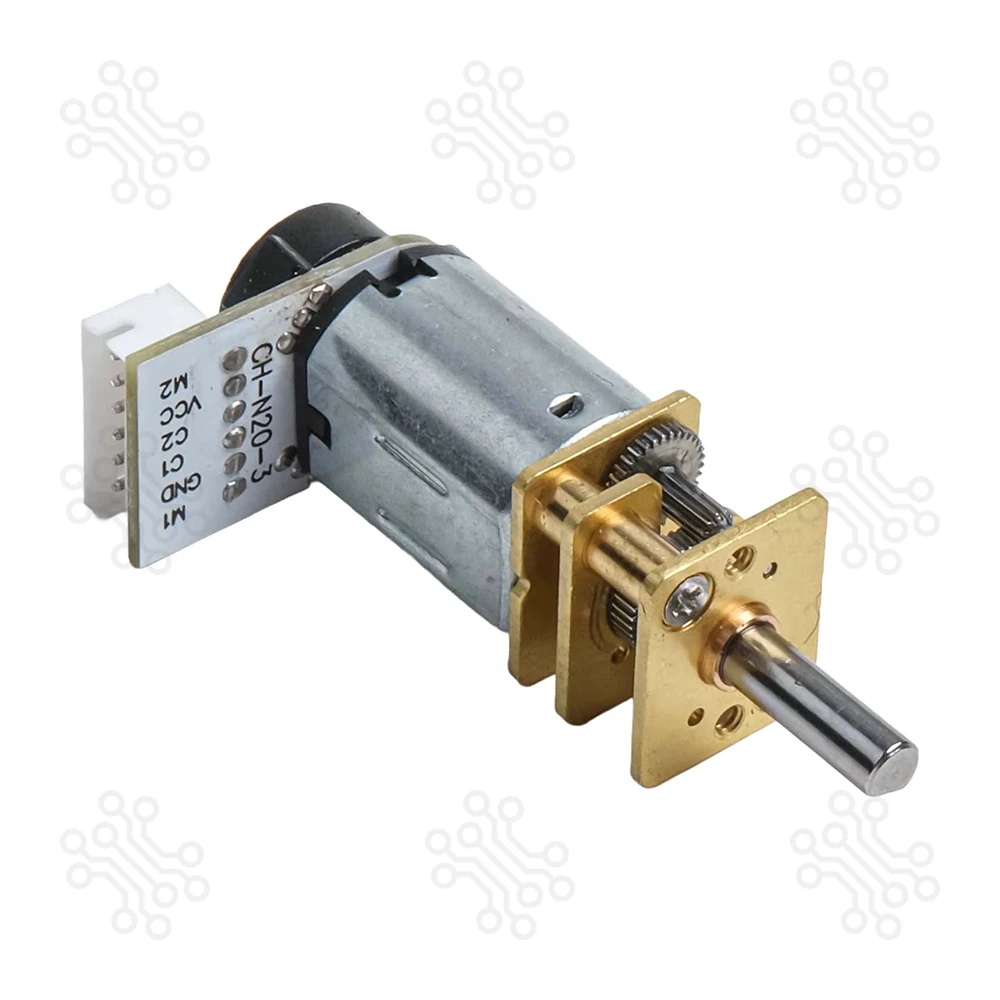

The GA12 N20 12V Micro Metal Gear DC Motor with Encoder is a compact and durable geared DC motor designed for robotics, DIY projects, automation, and precision motion control applications. It features an integrated Hall-effect quadrature encoder that provides feedback on motor speed and rotation direction.
With an all-metal gearbox, reversible rotation, multiple voltage options, and compact N20 form factor, this motor is suitable for applications where small size, reliable transmission, and encoder feedback are required.
| Specification | Details |
|---|---|
| Motor Type | Mini Micro Metal Gear DC Motor with Encoder |
| Model | GA12 N20 |
| Operating Voltage | 12V DC |
| No-Load Speed | 3000 RPM |
| Reduction Ratio | 10:1 |
| Encoder Type | Hall Effect Quadrature Encoder |
| Encoder Output | Square Wave AB Phase |
| Encoder Voltage | 3.3V – 5V DC |
| Encoder Resolution | 7 PPR |
| Hall Response Frequency | 100 kHz |
| No-Load Current | ≤75 mA |
| Rated Current | ≤0.3 A |
| Stall Current | 0.9 A |
| Maximum Torque | 0.2 kg.cm |
| Operating Temperature | -40°C to 120°C |

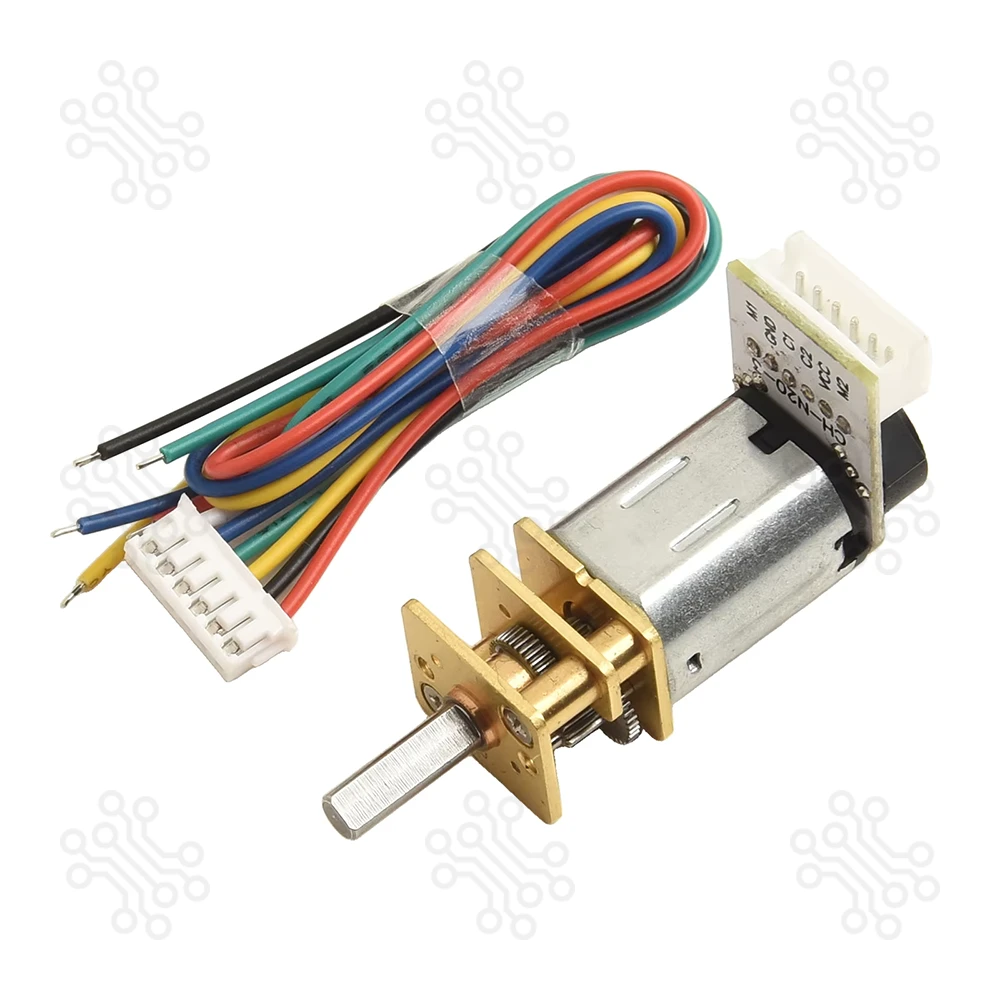

| Wire Color | Function | Description |
|---|---|---|
| Red | Motor Power + | Motor positive supply; swap with White to reverse rotation |
| Black | Encoder Power + | 3.3V – 5V DC (do not reverse polarity) |
| Yellow | Encoder Channel A | Signal feedback, 7 pulses per motor revolution |
| Green | Encoder Channel B | Signal feedback, 7 pulses per motor revolution |
| Blue | Encoder Power - | GND |
| White | Motor Power - | Motor negative supply; swap with Red to reverse rotation |
The following specifications are provided for the 12V version with different gearbox reduction ratios:
| Parameter | 10:1 | 30:1 | 50:1 | 100:1 | 150:1 | 210:1 | 298:1 | 380:1 |
|---|---|---|---|---|---|---|---|---|
| No-Load Current (mA) | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 |
| No-Load Speed (RPM) | 3000 | 1000 | 600 | 300 | 200 | 140 | 100 | 78 |
| Rated Torque (g.cm) | 0.2 | 0.6 | 1.0 | 200 | 3.0 | 340 | 3.0 | 3.0 |
| Rated Speed (RPM) | 2300 | 770 | 460 | 230 | 150 | 100 | 77 | 160 |
| Rated Current (A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Maximum Torque (kg.cm) | 0.2 | 0.48 | 0.8 | 1.6 | 2.4 | 3.4 | 3.4 | 3.4 |
| Stall Current (A) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
The GA12 N20 Micro Metal Gear DC Encoder Motor is suitable for:
Packaging Details
Ratings and 0 Reviews
Reviews (0)
No reviews yet. Be the first to review this product!
Etar gear ratio koto? No load speed e koto current khoroch hoy?
By comm4nder on 18 Aug 2026
What are the exact gearbox ratio, no-load/rated/stall current, rated/stall torque, encoder type (Hall/optical), A/B or single-channel, PPR/CPR, and is the 3000 RPM the gearbox output speed?
By aladdinkhanalofficial.yt on 13 Aug 2026
Aitar output speed or shaft speed 3000 rpm ?
By pkbiswas32100123@gmail.com on 21 Sep 2025
জ্বি স্যার 3000RPM Speed Or Shaft Speed হবে।
By TechShopBD on 22 Sep 2025
