Magnetic Reed Switch Sensor Module
Magnetic Reed Switch Sensor Module

Magnetic Reed Switch Sensor Module

SKU: MIS-00854

Brand: Made in China

Warranty: 3 Days

Model: N/A

৳ 110.07

Add to Wishlist

Category: Switch & Button

Share:

Description of Magnetic Reed Switch Sensor Module

The Reed Switch Sensor Module is a magnetic field detection sensor designed to provide reliable and contactless switching output when exposed to a magnetic field. It features a built-in reed switch integrated with a comparator circuit (LM393), status indicators, and passive components to ensure stability, durability, and ease of use in a wide variety of applications.

This module simplifies the implementation of magnetic field sensing by offering a plug-and-play interface compatible with microcontrollers such as Arduino, Raspberry Pi, or any digital logic system. It is ideal for both hobby and industrial projects where motion, position, or security status needs to be monitored.

Key Features


  • Contactless magnetic field detection
  • Stable digital output (High/Low)
  • Built-in LM393 comparator for precise switching
  • Power and output status LEDs for easy debugging
  • Compact and robust PCB design
  • Compatible with 3.3V and 5V logic systems
  • Long-lasting and low-cost

Technical Specifications


Feature

Specification

Operating Voltage

3.3V to 5V DC

Output Format

Digital output (0 or 1)

Main IC

LM393 Dual Comparator

Indicators

Power LED, Output Status LED

PCB Size

32mm x 14mm

Interface Pins

VCC, GND, OUT (3-pin header)

Compatibility

Microcontrollers (Arduino, etc.)

Design

Compact, easy to mount

Application


  • Contactless magnetic field detection
  • Stable digital output (High/Low)
  • Built-in LM393 comparator for precise switching
  • Power and output status LEDs for easy debugging
  • Compact and robust PCB design
  • Compatible with 3.3V and 5V logic systems
  • Long-lasting and low-cost

Packaging Details


  • 1 × Magnetic Reed Switch Sensor Module

Magnetic Reed Switch Sensor Module – Frequently Asked Questions


What is a Reed Switch Sensor Module?
A Reed Switch Sensor Module detects magnetic fields using a reed switch that closes or opens the circuit. It outputs a digital signal (0 or 1) based on the presence of a magnet.
How does the Reed Switch Sensor work with Arduino?
Connect the sensor’s OUT pin to a digital input pin of an Arduino. When a magnet is near the reed switch, the output becomes LOW (0); otherwise, it remains HIGH (1).
What is the operating voltage of this sensor?
The module
operates with a supply voltage between 3.3V and 5V, making it compatible with both 3.3V and 5V logic systems.
What type of output does the sensor provide?
It provides a digital output:
  • LOW (0) when a magnetic field is present
  • HIGH (1) when no field is present
Where can this reed switch sensor be used?
Common uses include:
• Door/window sensors
• Alarm and security systems
• Smart appliances
• Liquid/gas/electricity meters
• Robotics and automation projects
Is the sensor suitable for outdoor use?
This sensor is not weatherproof by default. For outdoor applications, use a waterproof enclosure for protection.
How to test if a Reed Switch Sensor is working?
Connect power (3.3V–5V) and monitor the output. Bring a magnet close to the sensor and observe the onboard output LED or measure voltage changes at the output pin.
Can the sensitivity be adjusted?
Some modules have an onboard potentiometer to fine-tune sensitivity. If available, rotate it gently to change magnetic field detection response.
What is the module’s size?

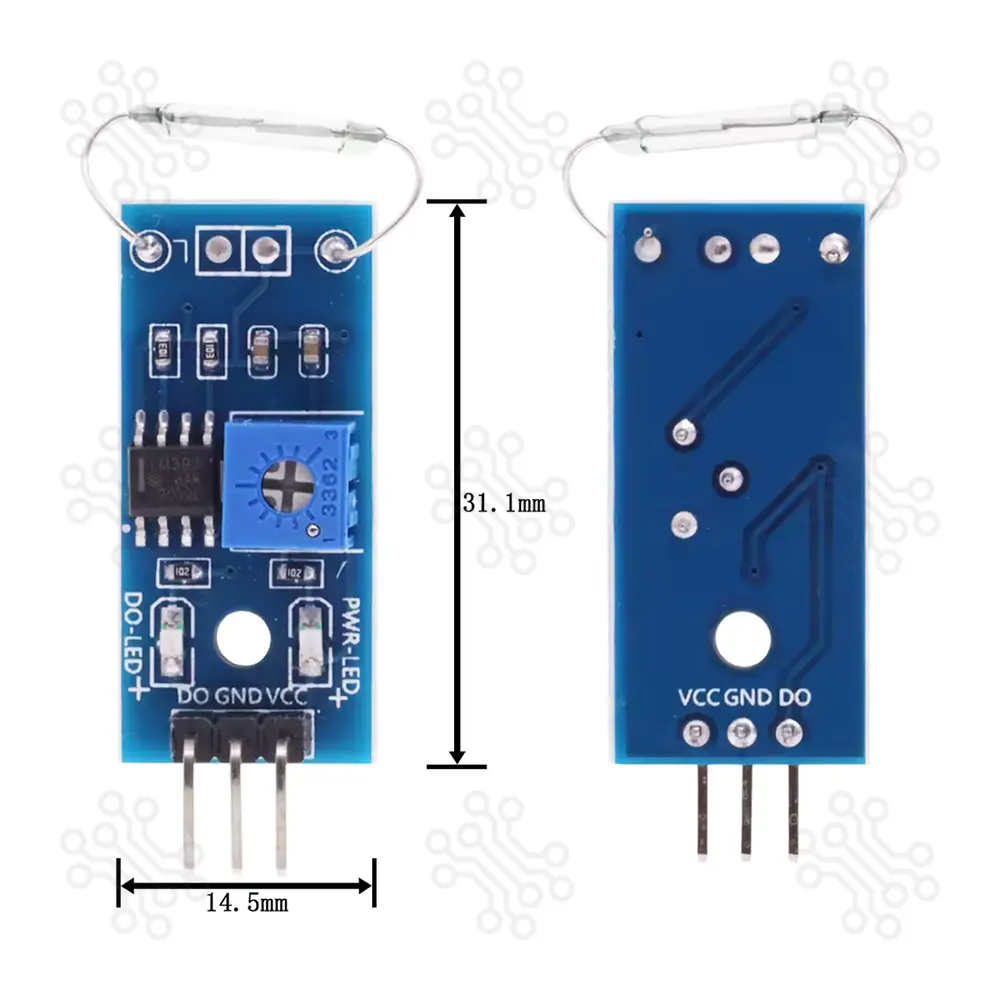

The PCB measures 31.1mm x 14.5mm, allowing it to fit easily into compact or embedded systems.
