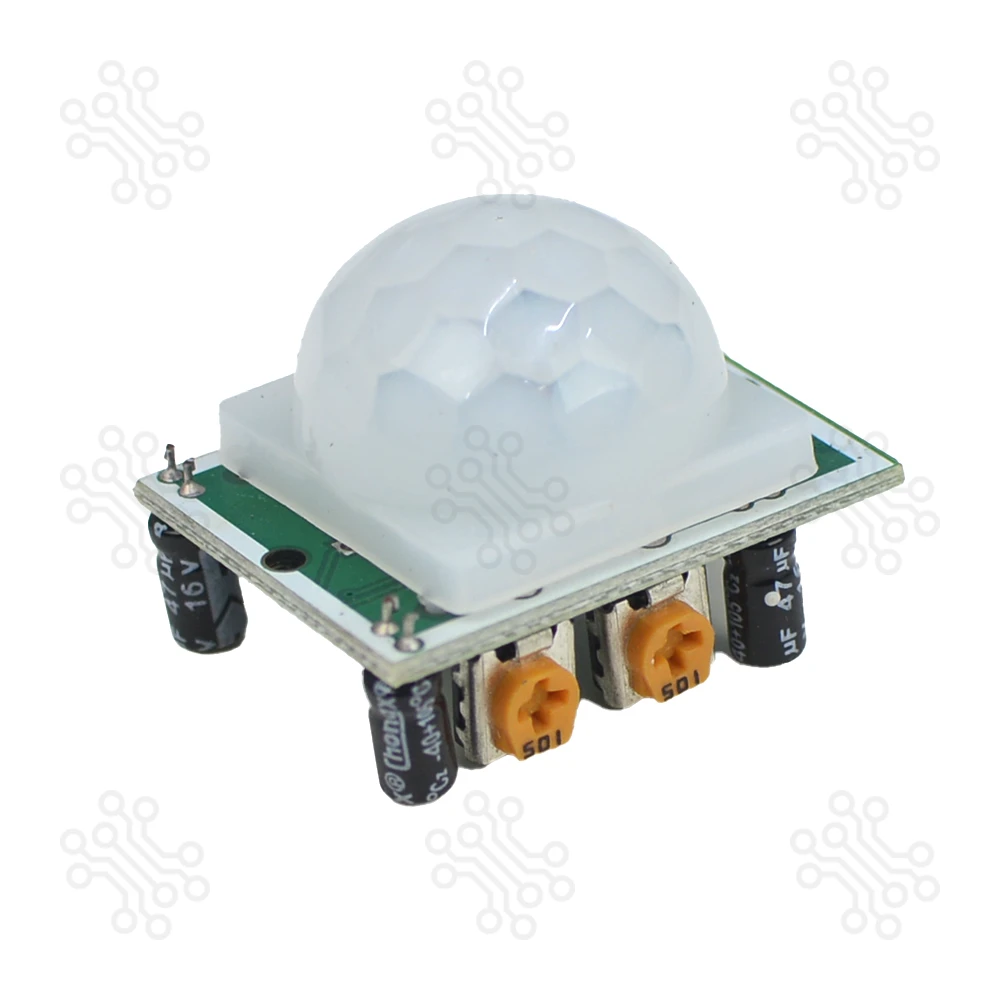

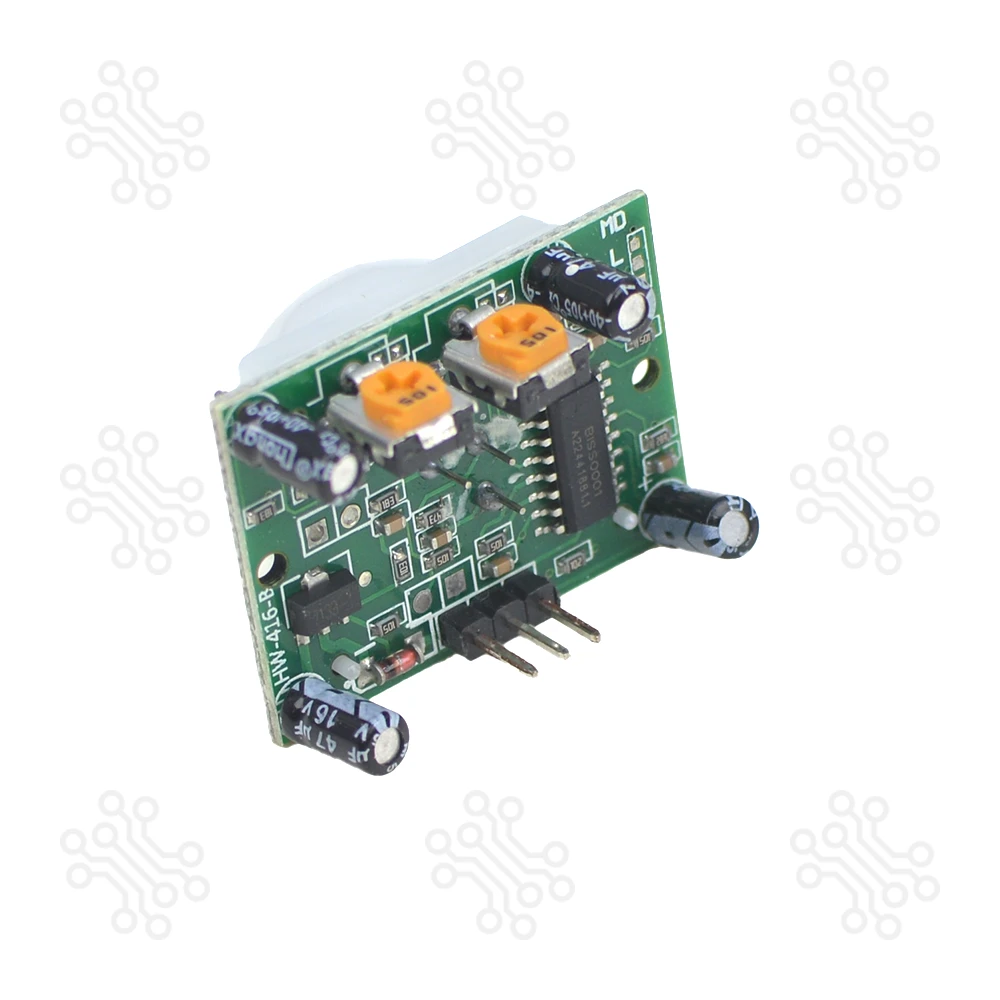

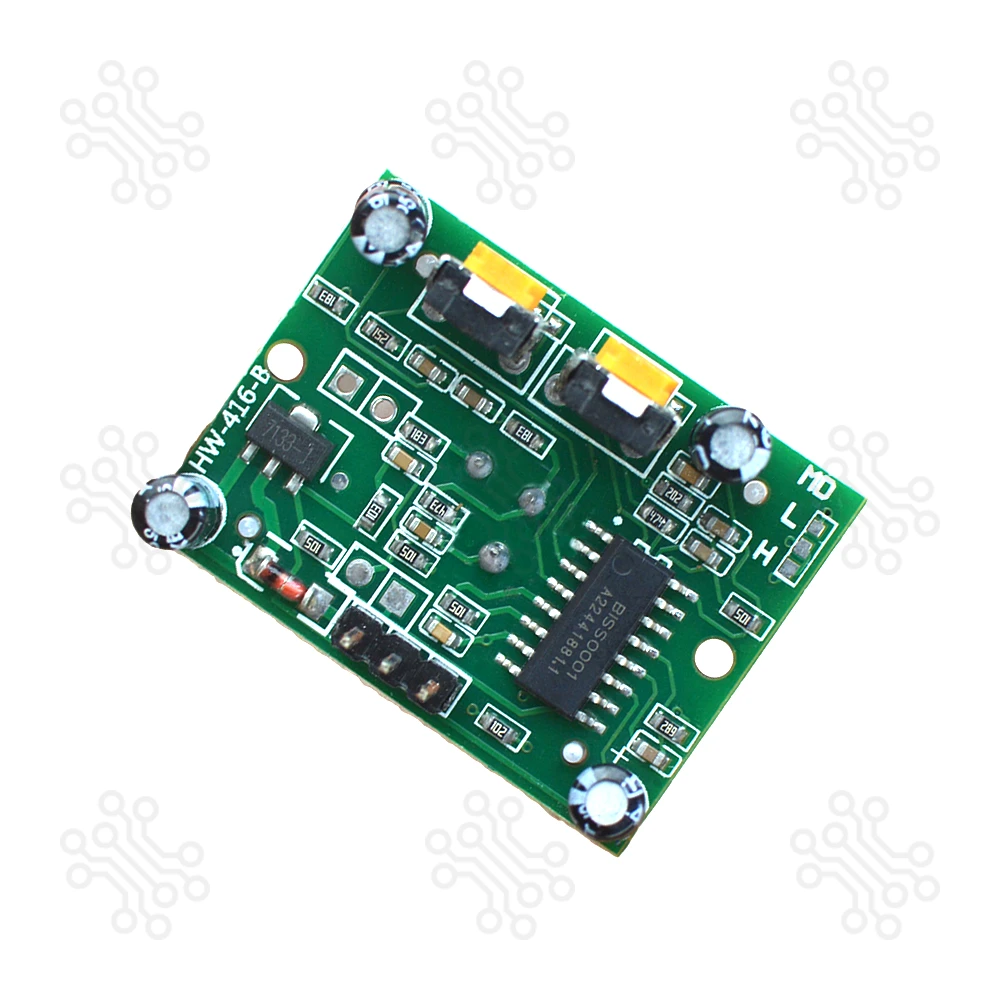

PIR Motion Sensor Module

SKU: 140303001336

Brand : Made in China

Warranty : 3 Days

৳ 95.04

Add to Wishlist

Category: Motion

Share:

Description of PIR Motion Sensor Module

The HC-SR501 PIR Motion Sensor Module is a low-cost Passive Infrared (PIR) sensor designed to detect motion from warm objects such as humans and animals. It provides a simple digital HIGH/LOW output, making it easy to use with Arduino, Raspberry Pi, and other microcontrollers. With adjustable sensitivity, delay time, and trigger modes, it is ideal for security, automatic lighting, smart automation, and robotics projects.


Key Features

  • Passive Infrared (PIR) motion detection
  • Adjustable sensitivity and detection range
  • Adjustable delay time
  • H / L trigger modes
  • Digital HIGH/LOW output
  • Fresnel lens for wider detection coverage
  • Simple VCC, OUT, GND interface
  • Suitable for Arduino, Raspberry Pi & microcontrollers

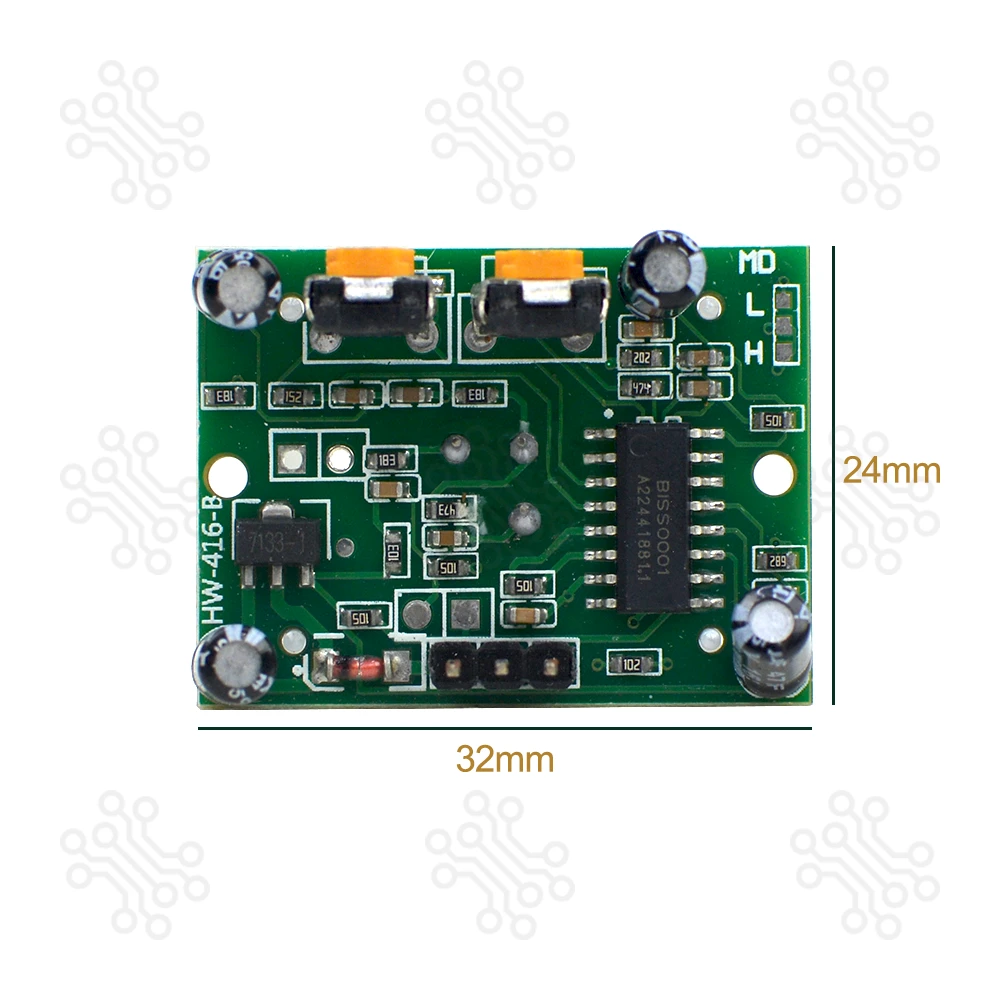

Technical Specification

Parameter Details
Product Type PIR Motion Sensor Module
Model HC-SR501
Sensor Type Passive Infrared (PIR)
Operating Voltage 5–20V DC*
Detection Range 3–7m, Adjustable
Detection Angle <120°
Output Digital HIGH/LOW
Interface VCC, OUT, GND
Sensitivity Adjustable
Delay Time Adjustable
Trigger Mode H: Repeatable / L: Non-Repeatable
Lens Fresnel Lens

Note: Specification may vary slightly depending on manufacturer/batch.


How Does the PIR Sensor Work?

The PIR sensor detects changes in infrared radiation within its sensing area. When a warm object such as a person moves across the detection zones, the infrared energy received by the sensing element changes. The internal circuit processes this change and produces a HIGH signal at the OUT pin.

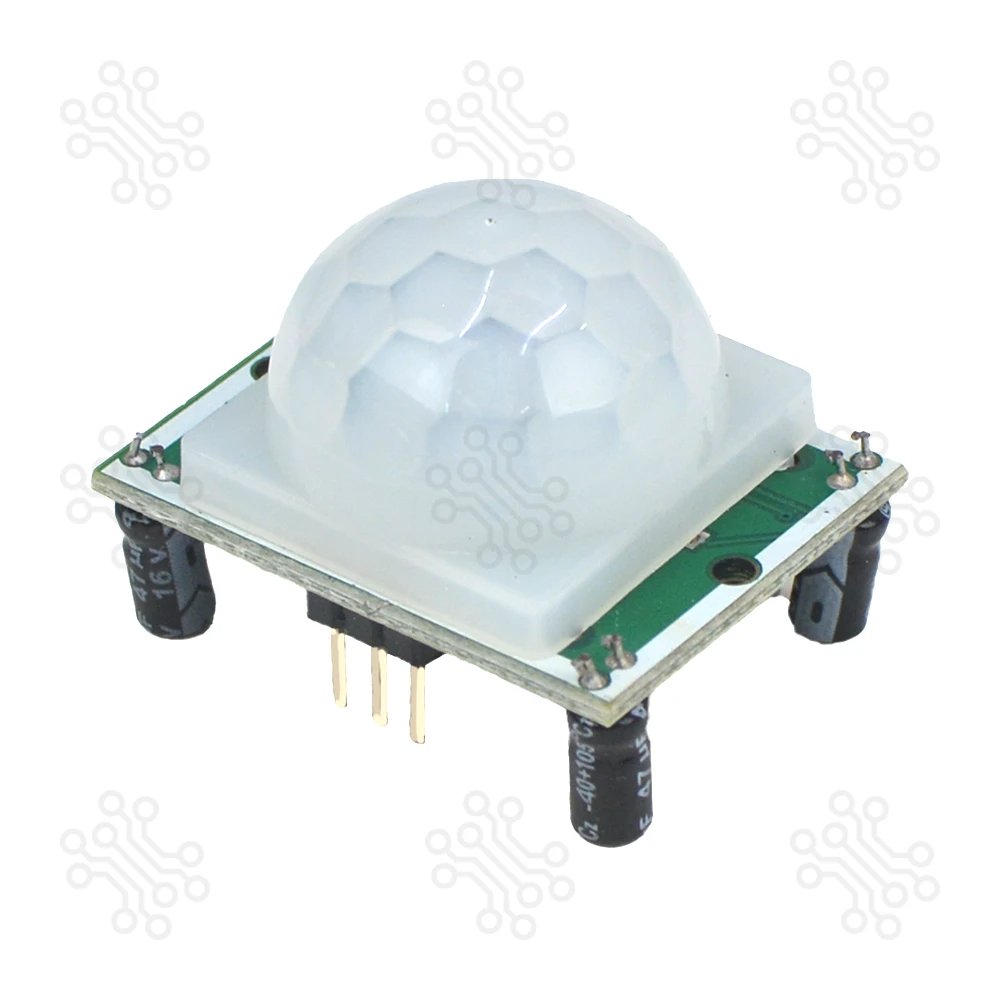

Fresnel Lens & Detection Zones

The Fresnel lens focuses and segments infrared radiation from different areas of the detection field onto the PIR sensing element, creating multiple detection zones.. When a warm object moves from one zone to another, the IR radiation changes, which the PIR circuit detects as motion.

When motion is detected:

  • The sensor Output goes HIGH.
  • Arduino reads the HIGH signal.
  • The system performs the programmed action, such as turning on a light, alarm, or display.

Sensitivity & Delay Control

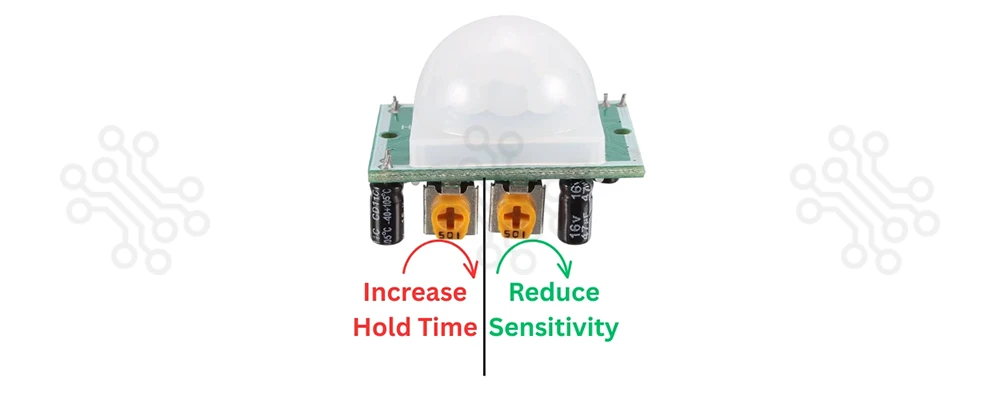

PIR-Motion-Sensor-Module-Sensitivity

The module has two adjustable potentiometers:

  • Sensitivity: Adjusts the motion detection range.
  • Delay Time: Controls how long the output remains HIGH after motion is detected.

H & L Trigger Modes

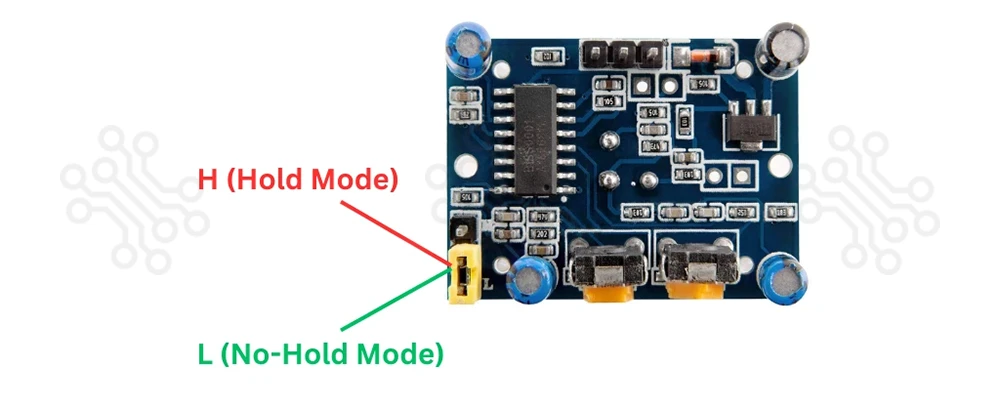

PIR-Motion-Sensor-Module-Trigger-mode

  • H Mode: Repeatable trigger; additional movement can retrigger the output.
  • L Mode: Non-repeatable trigger; the output remains active for the configured period without repeated retriggering during the same cycle.

PIR Sensor Pinout

The HC-SR501 uses a simple three-pin interface, making it easy to connect with development boards.

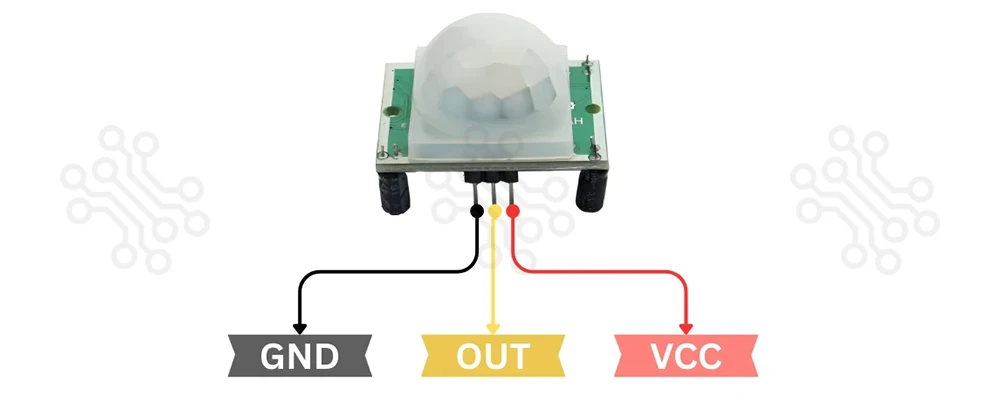

PIR-Motion-Sensor-Module-Pinout

The OUT pin is the main signal connection. When the sensor detects motion, the output changes to a HIGH state, allowing a microcontroller to respond.


PIR Sensor Arduino Wiring & Setup

For a basic Arduino connection:

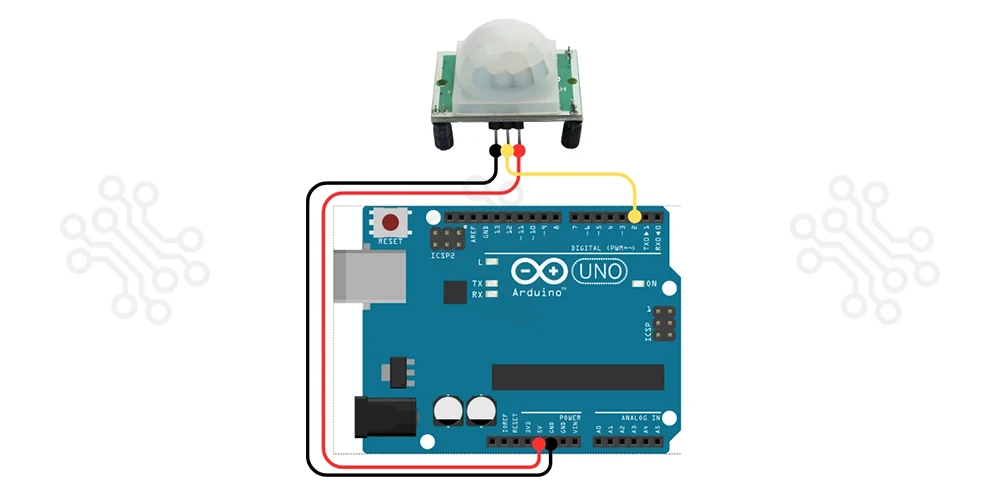

PIR-Motion-Sensor-Module-Arduino-Connection

PIR Sensor Arduino
VCC 5V
OUT Digital Pin 2
GND GND

After powering the module, allow approximately 30–60 seconds for initial stabilization before testing.


Power & Stability Tips

For reliable motion detection:

  • Use a stable power supply.
  • Keep wiring reasonably short.
  • Share a common ground with the controller.
  • Avoid direct sunlight and strong heat sources.
  • Keep the sensor away from fans or strong airflow.
  • Adjust sensitivity according to the required detection area.

Application

The HC-SR501 PIR Motion Sensor Module is suitable for:

  • Automatic lighting
  • Home security systems
  • Motion alarms
  • Smart home automation
  • Arduino & Raspberry Pi projects
  • Robotics
  • Occupancy detection
  • DIY electronics projects

Packaging Details

  • PIR Motion Sensor Module

Documentation of PIR Motion Sensor Module
