Power Inverter DC to AC 150W

Power Inverter DC to AC 150W

SKU: TOL-00380

Brand: Made in China

Warranty: N/A

Model: N/A

৳ 590.07

Add to Wishlist

Category: Power Supply

Share:

Description of Power Inverter DC to AC 150W

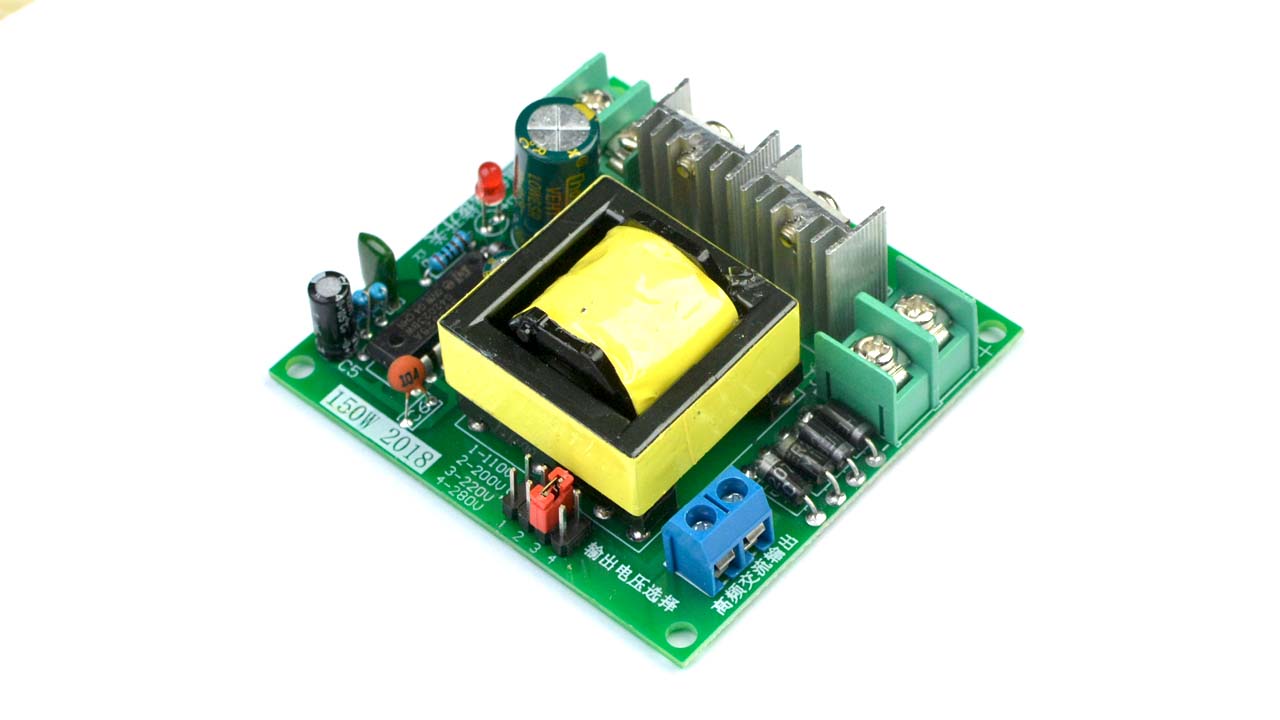

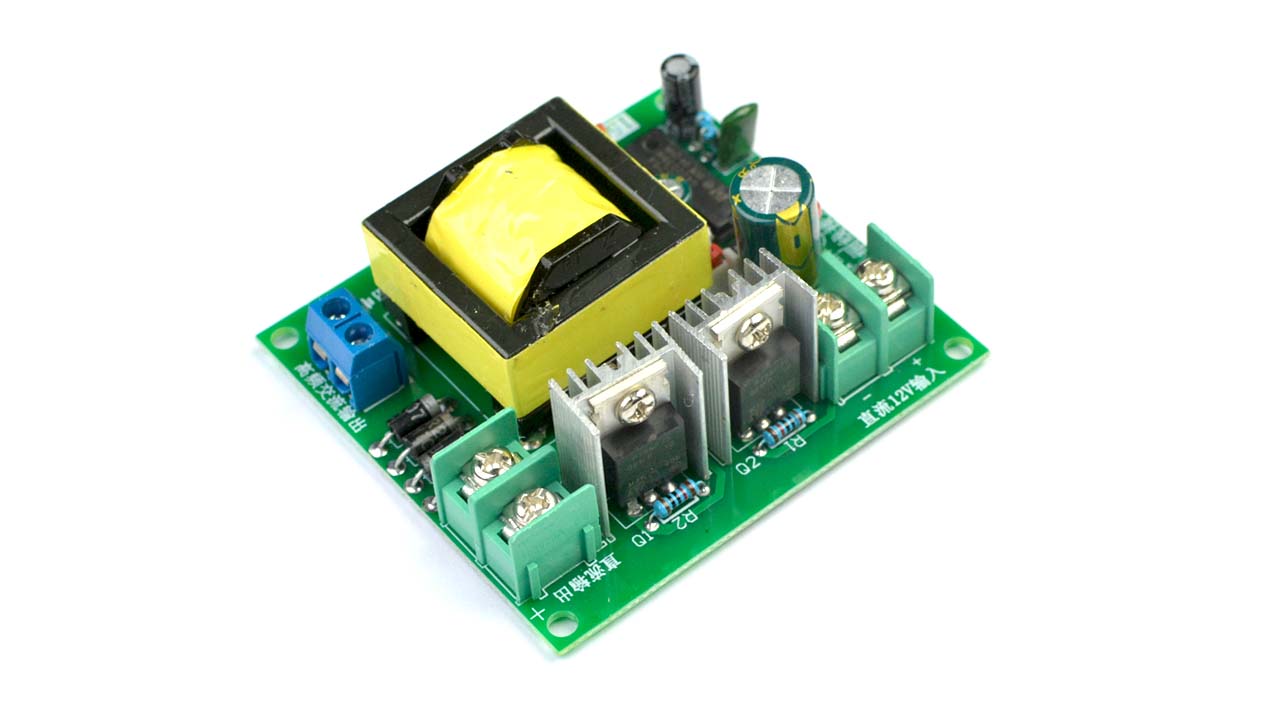

Power Inverter DC to AC 150W


This 150W inverter module converts 12V DC input into high-frequency AC or DC output with selectable voltages ranging from 110V to 280V. It is designed for powering resistive loads and is an ideal power supply solution for electronics, DIY projects, and lightweight AC applications. Featuring welding-free terminals, jumper-based voltage selection, and compact size, it offers a convenient and efficient way to step up 12V DC to high-voltage AC.

Key Feature


  • Easy, solder-free installation with 7.62mm and 301 terminals
  • Selectable output voltage via jumper: 110V, 200V, 220V, 280V
  • Supports up to 150W (200W with fan cooling)
  • Dual output: high-frequency AC and unfiltered DC
  • 27 kHz square wave for efficient power delivery
  • Stable performance with SG3525A PWM chip

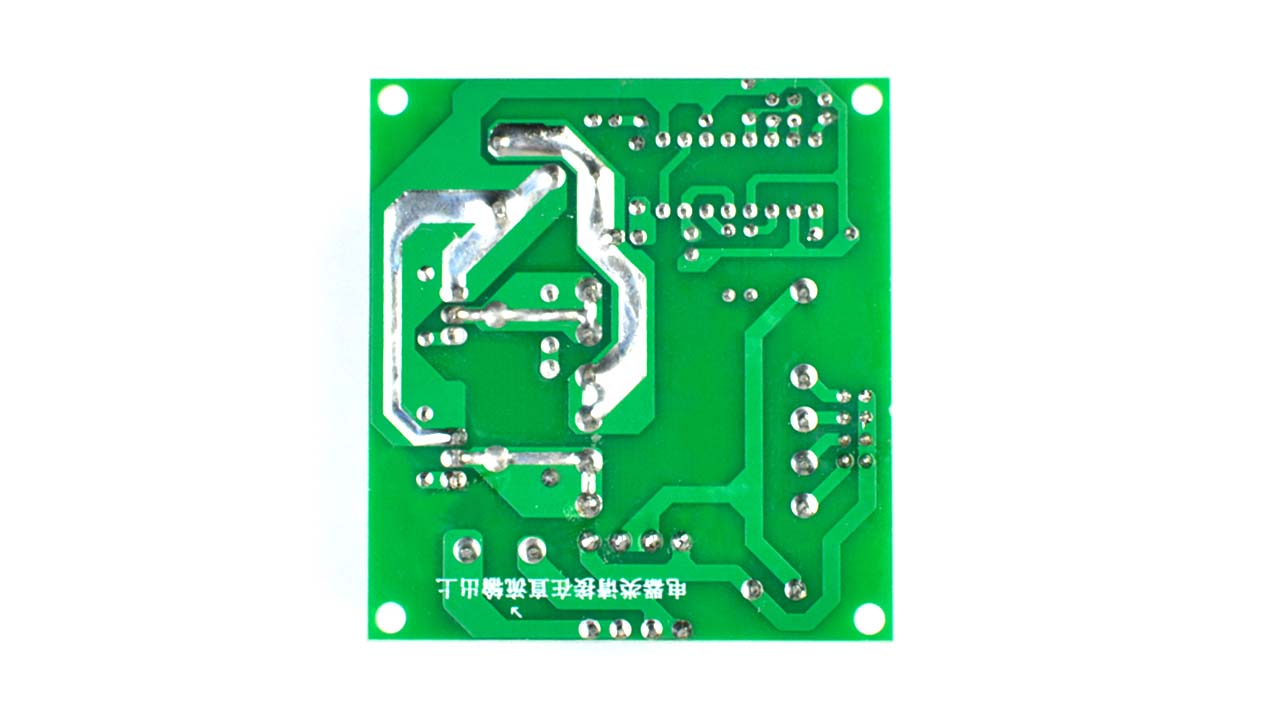

  • Double-sided PCB for better heat dissipation

Technical Specifications:


 Parameter

Specification

Input Voltage

DC 12V (8V–14.8V operating range)

Output Voltage

110V / 200V / 220V / 280V (jumper selectable)

Output Type

High-frequency AC or unfiltered DC

Waveform

High-frequency square wave (~27kHz)

Max Output Power

150W (200W with fan)

No-load Current

~250mA

Working Frequency

27kHz

Onboard Chip

SG3525A

FET

YPI7575C

Working Temp

-25°C to 85°C

Humidity Range

5%–95% RH

Protection

None (user must add external fuse/protection)

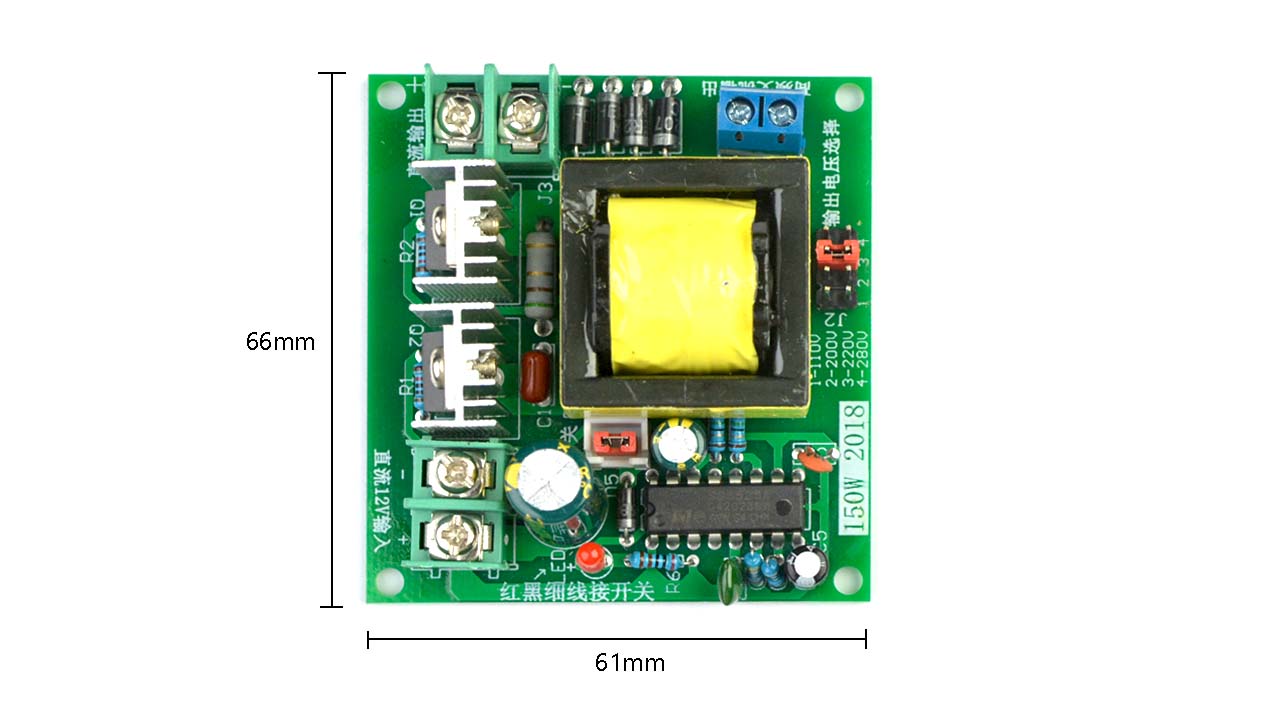

Dimensions

66 × 61 × 30 mm

Applications


  • Powering resistive loads such as incandescent bulbs and soldering irons
  • Lightweight appliances (e.g. mobile phone chargers, DVD players)
  • DIY electronics and embedded systems
  • AC-powered devices with universal input (AC 100V–240V) via DC output only

⚠️ Important Usage Notes


  • Use only with resistive loads or AC-compatible DC devices.
  • Avoid connecting inductive devices (e.g. motors, fans) to the AC output.
  • Always connect loads to the DC output when unsure — high-frequency AC may damage rectifiers.
  • Use a cooling fan when operating above 100W continuously.
  • Do not reverse polarity, and ensure your input power supply can deliver sufficient current.
  • Add an external fuse (15A recommended) for safety — no internal protection is provided.
  • Voltage measurements on AC output using standard multimeters may be inaccurate due to frequency mismatch.

Packaging Details


  • 1x Power Inverter DC to AC 150W

Why Choose This Power Inverter DC to AC 150W?


This 150W inverter delivers efficient DC to AC conversion with selectable voltage options, supports higher power output with cooling, features tool-free terminal connections, offers dual AC/DC output flexibility, and ensures stable, reliable performance with a compact, high-frequency design powered by the SG3525A controller.
