Category: RF

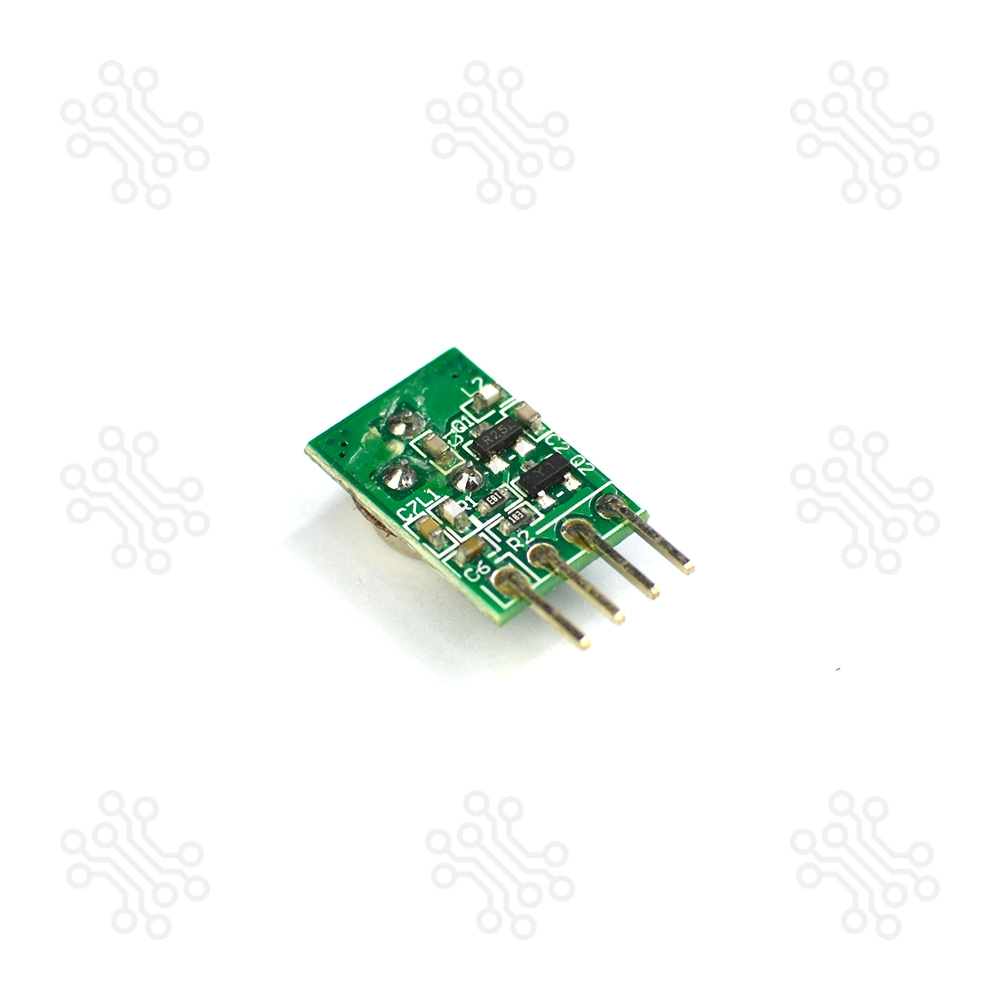

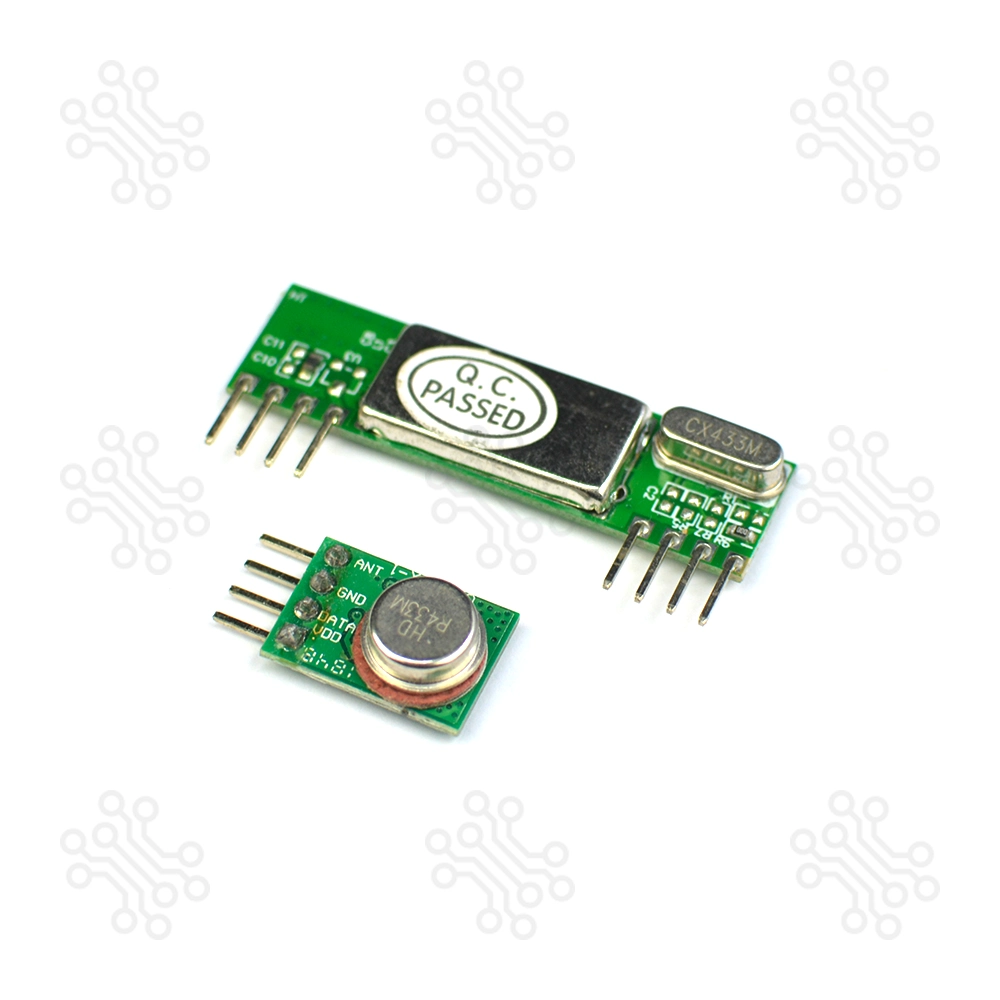

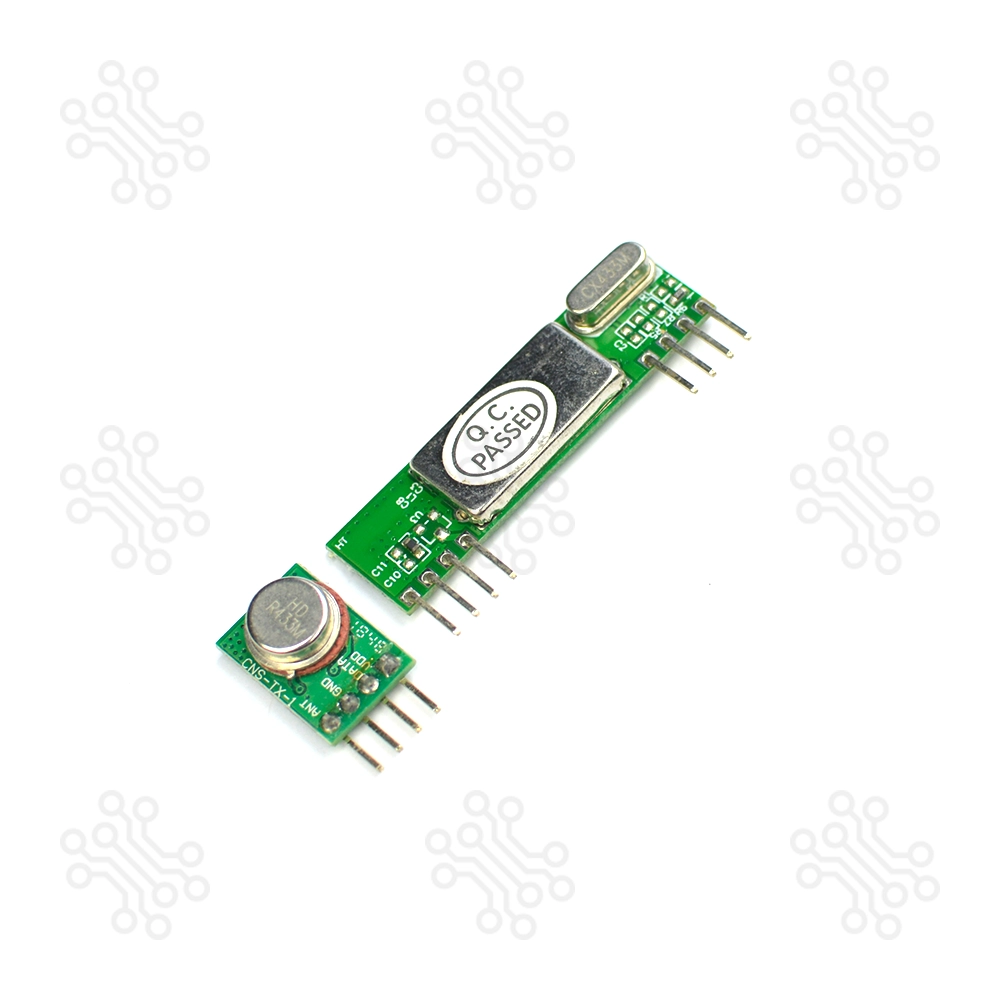

This 433 MHz RF module set includes a high-power JMR-TX1 transmitter and a low-noise RXB6 superheterodyne receiver, ideal for wireless communication in embedded systems. It supports ASK and OOK modulation and is suitable for projects like remote controls, home automation, IoT, and wireless data transmission. This pair provides superior performance over traditional FS1000A-based modules, offering longer range and better signal stability.
Parameter | Transmitter (JMR-TX1) | Receiver (RXB6) |
---|---|---|
Operating Voltage |
3V – 12V |
5.0V DC ±0.5V |
Operating Frequency |
433 MHz |
433 MHz |
Transmission Distance |
300 – 500 meters (open area) |
– |
Current Consumption |
6.7 mA |
≤ 2.5 mA |
Modulation Method |
ASK (Amplitude Shift Keying) |
OOK / ASK |
Modulation Rate |
3 Kbps |
– |
Reception Type |
– |
Superheterodyne |
Input Signal |
TTL Level |
– |
Transmission Power |
≥ 10 mW |
– |
Frequency Stability |
±75 kHz |
– |
Operating Temperature |
-20°C to +60°C |
-20°C to +60°C |
Dimensions |
11 × 16 × 5.5 mm |
– |
Number of Pins |
4 |
– |
Feature | RXB6 ( with JMR-TX1) | FS1000A |
---|---|---|
Reception Quality |
Very Good |
Moderate |
Signal Noise |
Low |
High |
Transmission Range |
300 m+ |
~100 m |
Current Consumption |
6.7 mA |
3.8 mA |
Software Compatibility |
Same |
Same |
Note: This item is non-returnable. If it arrives damaged or is not functioning properly, please don't hesitate to contact us to determine if further action is required.
Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 08:00 pm (7 days a week). You can also reach us via Live Chat or Facebook Inbox.
Frequently Asked Questions (FAQ)
What is the range of the 433 MHz RXB6 RF module?
The RXB6 433 MHz RF receiver module offers a wireless transmission range of 300 to 500 meters in open areas. Physical obstructions may reduce this range.
How do I connect the RXB6 and JMR-TX1 with Arduino?
To connect the RXB6 and JMR-TX1 with an Arduino, wire the VCC, GND, and Data pins properly and use the VirtualWire or RadioHead library. Using HT12E and HT12D encoder/decoder ICs can improve signal stability.
Is the RXB6 better than the FS1000A RF module?
Yes, the RXB6 module provides better signal reception, lower noise levels, and a longer wireless range than the FS1000A, making it more suitable for reliable RF communication.
Which encoder and decoder ICs are compatible with the RXB6 module?
The RXB6 433 MHz RF module is compatible with HT12E encoder and HT12D decoder ICs. These chips ensure secure and accurate digital signal transmission and reception.
Can I use the RXB6 RF module to transmit sensor data wirelessly?
Yes, the RXB6 RF transmitter receiver pair is ideal for wirelessly transmitting digital sensor data using microcontrollers like Arduino or by using HT12E/HT12D ICs.
Why is my RXB6 module not receiving any signal?
If your RXB6 module isn’t receiving signals, check for incorrect wiring, weak power supply, missing or incorrectly sized antenna, or RF interference in the 433 MHz band.
0 Reviews
Ratings andReviews (0)
No reviews yet. Be the first to review this product!
When It will be restocked?
By labibrahik@gmail.com on 16 Oct 2024
Shipment is one the way. This will be available soon.
By Techshop on 17 Oct 2024
Can I use it without the UART interface?
By nargisakhter on 08 May 2019
UART? This pair has nothing to do with UART.
By Techshop on 08 May 2019
433mhz violating btrc rules and regulations. Isn't it?
By imranhert on 22 Dec 2017
In short range it is not a problem. Range of this tx and rx module is 100m only.
By Techshop on 23 Dec 2017
এই ট্রান্সমিটার থেকে কিছু ট্রন্সমিট করে মোবাইল রেডিও কিংবা রেডিও তে শোনা যাবে নাকি ? আর 433 Mhz বলতে আসলে কি বুঝানো হচ্ছে। নরমালি 87-105 MHz এ এটা কাজ করবে কি ??
By meghvela on 22 May 2017
যাবে না। এটা রিমোর্ট কন্ট্রোল বানানোর জন্য। ৪৩৩ মেগাহার্জ মানে এর ট্রান্সমিটার ৪৩৩ মেগাহার্জ ক্যারিয়ার সিগন্যাল উপন্ন করে।
By Techshop on 23 May 2017
Hi are you Sure it work in 300-500meter..how long need antiner for tx & rx..
