Grove 3 Axis Digital Accelerometer ±16g

Model No: SEN-00296

TK. 1999.99

Availability: In stock

Quantity:

Category: Gyro, Accelerometer & Compass

Supplier: Seeed Studio

Grove 3 Axis Digital Accelerometer ±16g


The Grove 3-Axis Digital Accelerometer ±16g is a small, thin, ultra-low power accelerometer module based on the ADXL-345 sensor. It provides high-resolution (13-bit) measurement at up to ±16g and can measure both static acceleration for tilt sensing and dynamic acceleration from motion or shock. With robust EMI protection and multiple sensing capabilities, it is ideal for a wide range of applications, including robotics, gaming, industrial automation, and smart vehicles.

Key Features


  • Based on ADXL-345 Sensor: High-precision motion detection and orientation sensing.
  • Excellent EMI Protection: Ensures stable operation in high-interference environments.
  • 3-Axis Sensing: Supports activity/inactivity sensing, tap sensing, and freefall detection.
  • Ultra-Low Power Consumption: As low as 23μA in measurement mode and 0.1μA in standby mode.
  • Wide Measurement Range: Supports acceleration measurements up to ±16g.
  • High Sensitivity: 3.9mg/LSB @2g, enabling inclination changes of less than 1.0°.
  • Strong Shock Resistance: Can withstand up to 10,000g shock survival.
  • Multiple Interface Options: Compatible with I2C and SPI communication protocols.
  • Easy Connectivity: Utilizes a 4-pin Grove interface (3-5VDC) for seamless integration with Arduino and Seeed Stalker.

Technical Specifications


Parameter Specification

Sensor Model

ADXL-345

Acceleration Range

±2g, ±4g, ±8g, ±16g

Sensitivity

3.9mg/LSB @2g

Resolution

13-bit output data

Interface

I2C, SPI

Operating Voltage

3.3V / 5V

Power Consumption

23μA (measurement mode), 0.1μA (standby mode)

Operating Temperature

-40°C to +85°C

Shock Resistance

10,000g shock survival

Dimensions

130mm x 90mm x 10mm

Weight

9g

Applications


  • HDD shock protection
  • Vibration monitoring
  • Game controller input
  • Robotics and automation
  • Smart vehicles
  • Motion-sensing and orientation tracking

Package Contents

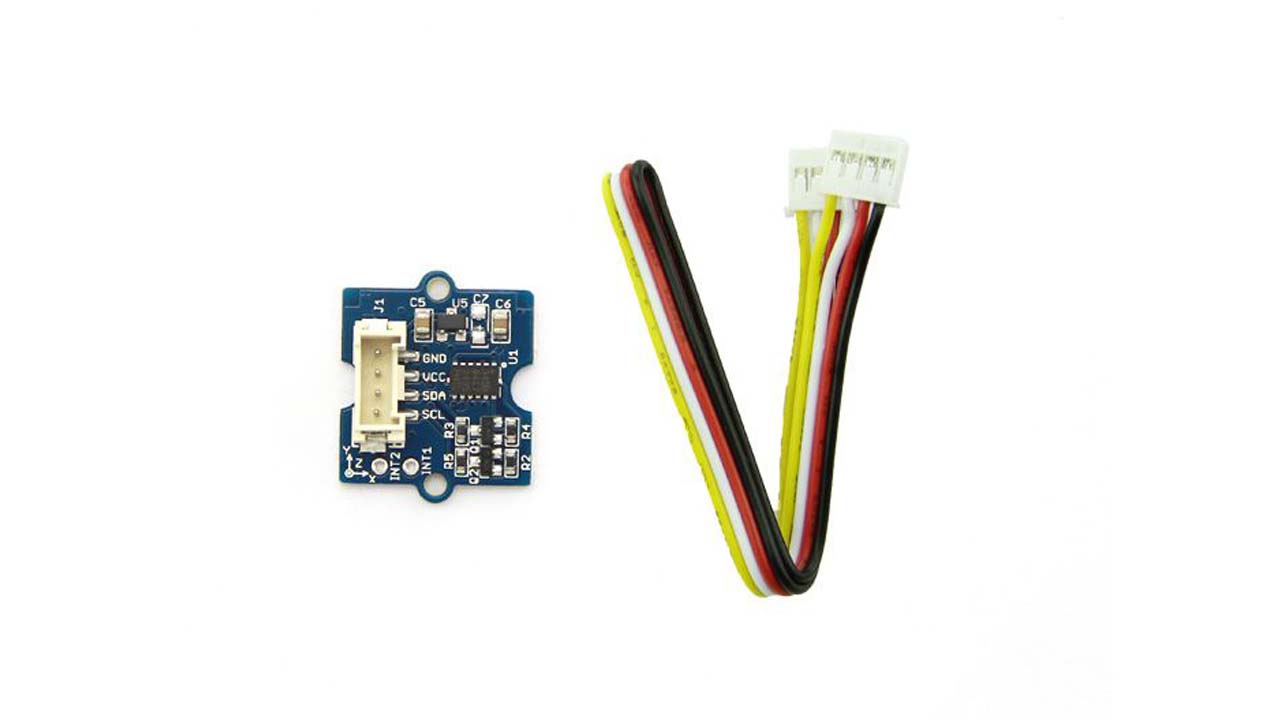

  • 1 x Grove 3 Axis Digital Accelerometer ±16g

Why Choose This Grove 3 Axis Digital Accelerometer ±16g?


This accelerometer module provides a balance of precision, power efficiency, and ease of integration. Its EMI protection, ultra-low power consumption, and multiple sensing capabilities make it a top choice for applications requiring reliable motion and orientation detection.

Attention


Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please contact us to determine if further actions may be taken.

Need Help?


Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 08:00 pm (7 days a week). You can also reach us via Live Chat or Facebook Inbox.

Where to Buy in Bangladesh?


The Grove 3 Axis Digital Accelerometer ±16g available at TechShopBD, a trusted supplier of Robotics & Electronics in Bangladesh. Visit the TechShopBD office or order online to enjoy swift delivery across the country.

Why Should You Buy Products from TechShopBD?


  There are many reasons to shop at TechShopBD

  • Reliability: We ensure that all our products are of the highest quality and come with Warranty and Replacement service
  • Easy Policies: If you encounter any issues, our quick and hassle-free replacement policy ensures your work continues without interruptions.
  • Customer Support: Our customer support team is always available to ensure you have the best shopping experience.

Buying from TechShopBD means a safe, hassle-free, and cost-effective experience!
