Mini Metal Detector Module Kit

Mini Metal Detector Module Kit

The Mini Metal Detector Module Kit is a compact and efficient module designed for detecting metal objects without physical contact. It operates by inducing currents in nearby metal objects and generating a response upon detection. Featuring an onboard buzzer for audio alerts and a potentiometer for adjustable sensitivity, this module is ideal for various applications where precise metal detection is required.

Key Features

• Onboard buzzer for metal detection alert
• Non-contact metal detection technology
• Adjustable sensitivity via potentiometer
• Easy integration with electronic projects

Technical Specifications

Functionality

• When the module approaches a metal object, it generates a sound alert.
• The device is specifically designed to detect metals using non-contact induction technology.
• Sensitivity can be adjusted using the onboard potentiometer.
• Requires soldering of power cables for proper functionality.

Applications

• Security screening systems
• Metal object detection in automated systems
• DIY and educational projects
• Industrial metal detection applications
• Hidden object detection in walls or underground

Packaging Details

• 1x 220K R
• 1x 2K2 R
• 1x 100Ω VR
• 2x 104 Ceramic Cap
• 2x 222 Ceramic Cap
• 1x 100uF 16V DIP Cap
• 1x 9018 Transistor
• 1x 9015 Transistor
• 1x 9012 Transistor
• 1x Buzzer

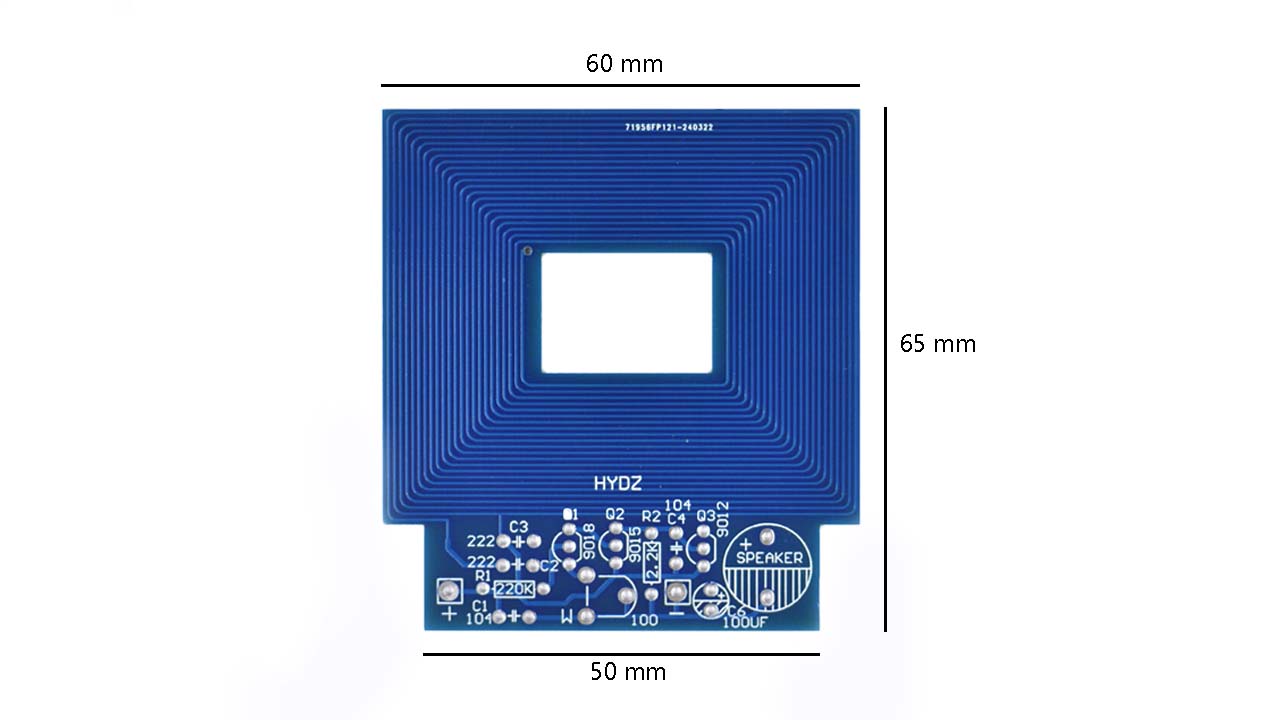

• 1x PCB With Labeled Coil

Note: This component comes without soldering on the PCB and requires manual soldering for operation.
