Model No: SEN-00330
TK. 220.05
Availability: In stock
Quantity:
Category: Current
Supplier: Made in China
The Yongfa SC-1000 is a high-performance 1000W solar inverter designed for reliable power conversion from 12V DC to 220V AC. Engineered with integrated IPS functionalities and a smart battery charger (max 10A), this inverter is ideal for homes, small offices, and emergency backup systems. With advanced protection mechanisms and aerospace-grade technology, it ensures stability, efficiency, and long-term durability.
Parameter |
Specification |
---|---|
Operating Voltage |
3.0V to 5.5V |
Bus Voltage Range |
0V to +26V |
Current Sensing Range |
±3.2A |
Current Resolution |
±0.8mA |
Shunt Resistor |
0.1Ω ±1% (2W rated) |
ADC Resolution |
12-bit |
I2C Compatibility |
I2C & SMBus compatible |
Noise Filtering |
Up to 128 samples averaged |

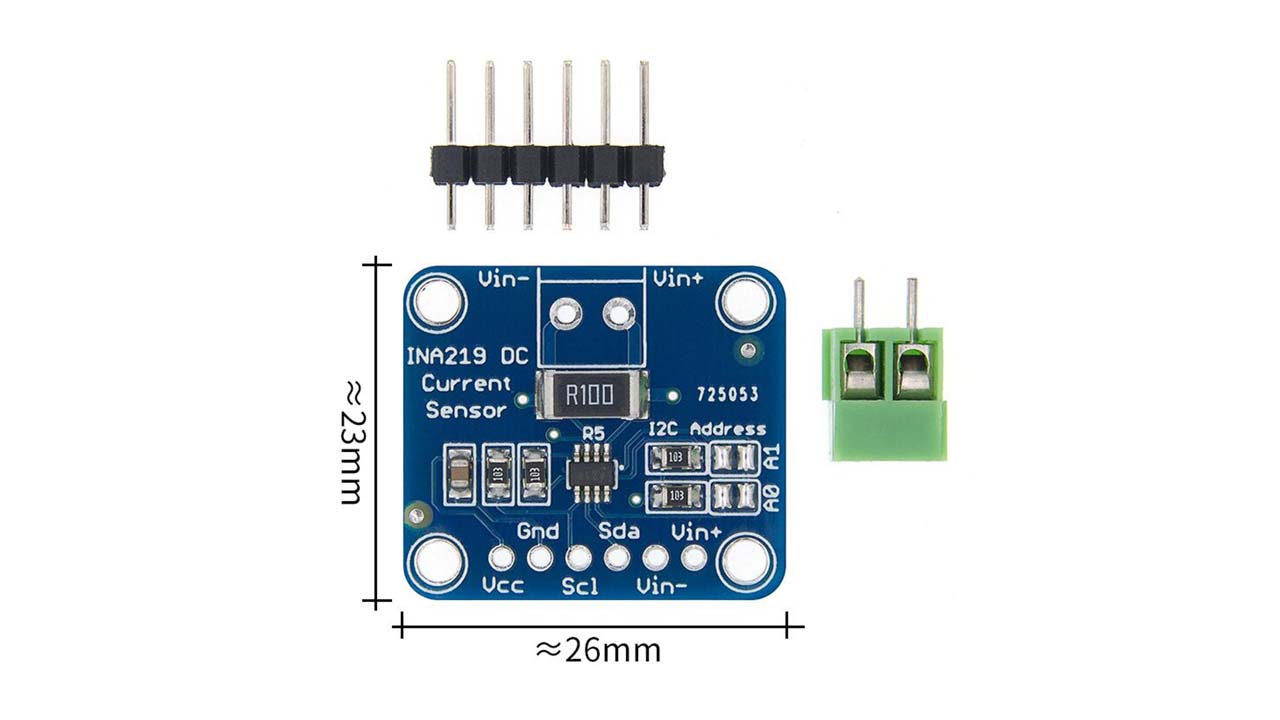

Dimensions |
0.8 x 0.9 inches (L x W) |
Pin |
Name |
Function |
Notes |
---|---|---|---|
1 |
VIN- |
Current sense input (-) |
Connect to low side of the load |
2 |
VIN+ |
Current sense input (+) |
Connect to high side of the load |
3 |
VCC |
Power supply input |
3.0V–5.5V |
4 |
GND |
Ground |
Common ground |
5 |
SCL |
I2C Clock Line |
Connect to MCU I2C SCL pin |
6 |
SDA |
I2C Data Line |
Connect to MCU I2C SDA pin |
Accurate current & voltage sensing, bidirectional support, I2C interface, supports high/low-side sensing, compact & reliable for any project.
Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please contact us to determine if further actions may be taken.
Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 08:00 pm (7 days a week). You can also reach us via Live Chat or Facebook Inbox.
This Product is available at TechShop, a trusted supplier of Robotics & Electronics in Bangladesh. Visit our office or order online to enjoy swift delivery across the country. We offer the INA219 Current Sensor Module at the best price in Bangladesh. Our product ensures reliability and quality, backed by customer support from a skilled technical team. Enjoy prompt shipping and warranty protection for a worry-free purchase.
