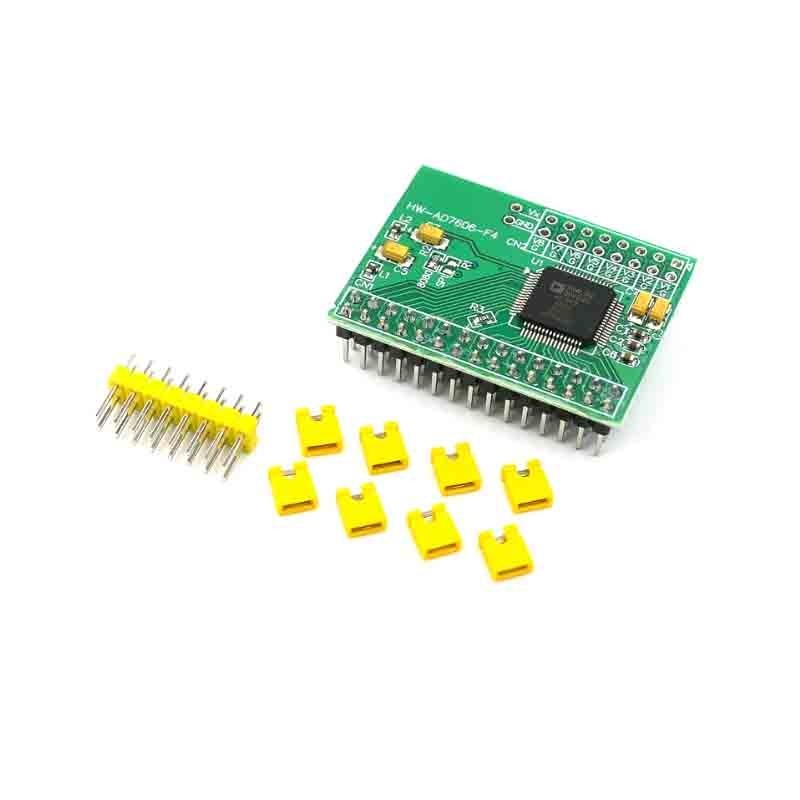

16Bits ADC 8CH Synchronization AD7606 DATA Acquisition Module 200Ksp in Bangladesh
16Bits ADC 8CH Synchronization AD7606 DATA Acquisition Module 200Ksp in Bangladesh

16Bits ADC 8CH Synchronization AD7606 DATA Acquisition Module 200Ksp

SKU: 260729005687

Brand : Made in China

Warranty : 3 Days

৳ 2050.04

Add to Wishlist

Category: Data Converter

Share:

Additional Information

Description of 16Bits ADC 8CH Synchronization AD7606 DATA Acquisition Module 200Ksp

The AD7606 16-Bit 8-Channel Data Acquisition Module is a high-precision simultaneous sampling ADC board based on the Analog Devices AD7606. It features 8 synchronized analog input channels, 16-bit resolution, and a maximum sampling rate of 200KSPS per channel, making it ideal for industrial automation, power monitoring, instrumentation, motor control, and high-speed data acquisition systems. The module integrates analog input protection, anti-aliasing filters, a precision voltage reference, and supports both SPI serial and parallel interfaces for easy integration with microcontrollers and embedded systems.

Key Features

  • Based on the Analog Devices AD7606 ADC
  • 8 simultaneous sampling analog input channels
  • 16-bit resolution
  • 200KSPS sampling rate per channel
  • True bipolar input ranges: ±5V or ±10V
  • Built-in analog input clamp protection
  • Integrated second-order anti-aliasing filter
  • On-chip precision 2.5V reference
  • Selectable oversampling (OS0, OS1, OS2)
  • SPI serial and parallel data interface
  • High input impedance (1MΩ)
  • Compatible with Arduino, STM32, ESP32, Raspberry Pi, FPGA, and DSP platforms.

Technical Specifications

Specification Details
ADC IC Analog Devices AD7606
Resolution 16-bit
Analog Input Channels 8 (Simultaneous Sampling)
Maximum Sampling Rate 200KSPS per Channel
Input Voltage Range ±5V / ±10V
Analog Input Impedance 1MΩ
Interface SPI / Parallel
Operating Voltage 5V Analog, 2.3V–5V Digital I/O
Oversampling 2×, 4×, 8×, 16×, 32×, 64×
Integrated Features Input Buffer, Anti-Aliasing Filter, Voltage Reference, Clamp Protection
Operating Temperature -40°C to +85°C

Interface Pins

  • VCC
  • GND
  • CONVST (Conversion Start)
  • BUSY
  • RESET
  • CS
  • RD
  • WR
  • SCLK
  • DOUTA / DOUTB (SPI)
  • DB0–DB15 (Parallel Data Bus)
  • OS0 / OS1 / OS2 (Oversampling Selection)
  • RANGE (±5V / ±10V Selection)

Applications

  • Industrial data acquisition systems (DAQ)
  • PLC and SCADA systems
  • Power quality monitoring
  • Three-phase energy measurement
  • Motor control and monitoring
  • Medical instrumentation
  • Test and measurement equipment
  • Signal analysis
  • Robotics
  • Embedded control systems

Compatibility

  • Arduino Uno / Mega
  • ESP32
  • STM32
  • Raspberry Pi
  • FPGA
  • DSP Platforms
  • Industrial Controllers supporting SPI or Parallel interface

Package Includes

  • 1 × AD7606 16-Bit 8-Channel ADC Module
  • 1 × Pin Header Set (varies by supplier)
