40N60FD2 IGBT Transistor 600V 80A in Bangladesh
40N60FD2 IGBT Transistor 600V 80A in Bangladesh

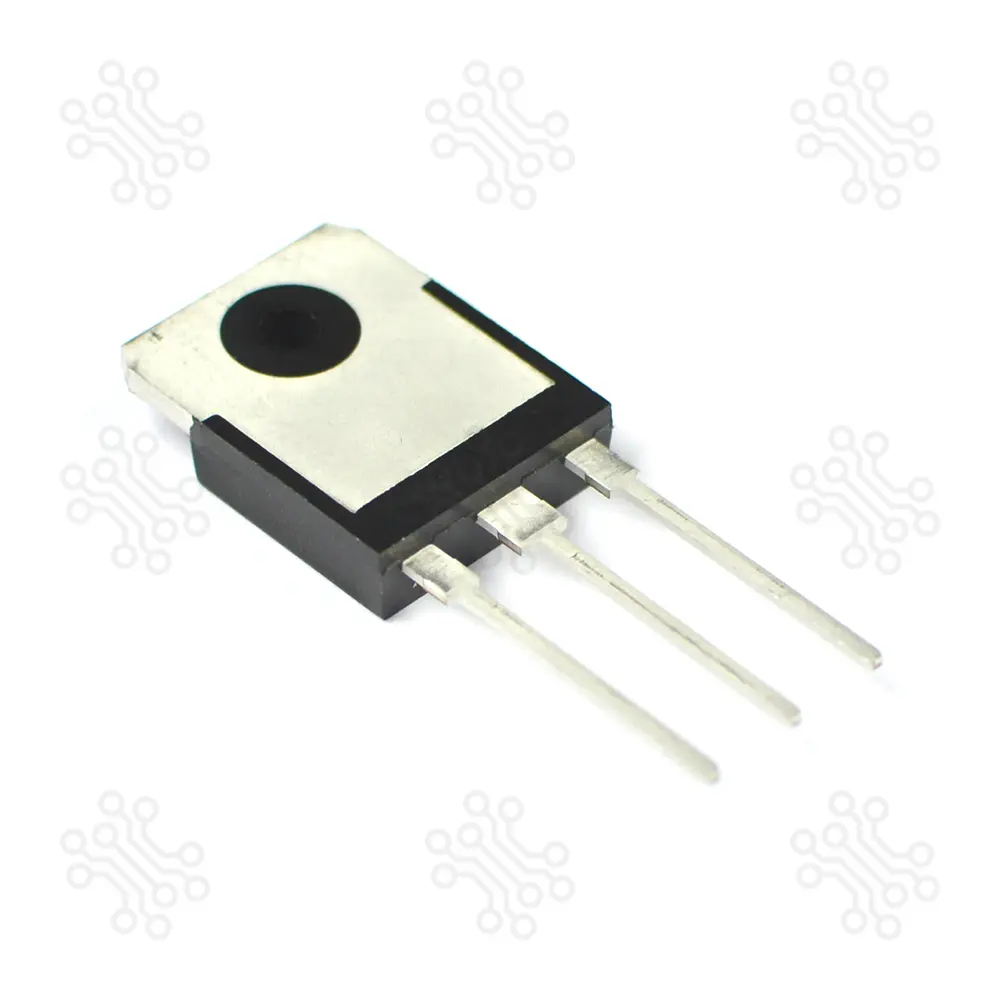

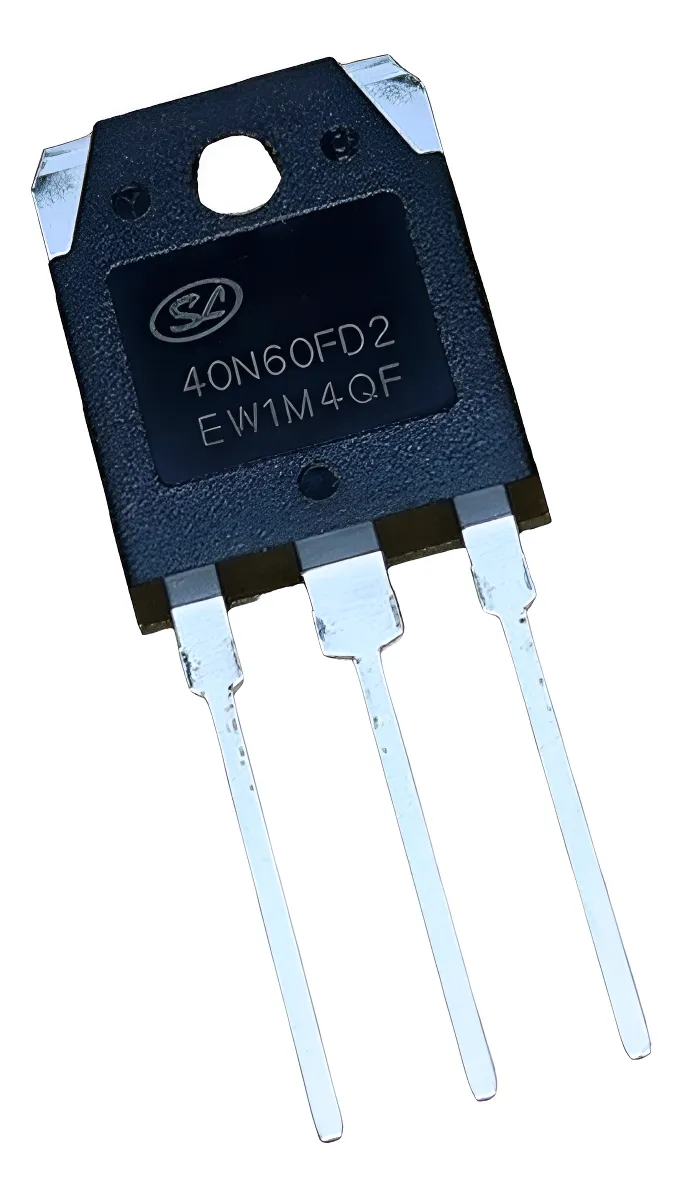

40N60FD2 IGBT Transistor 600V 80A

SKU: 260223005199

Brand: Made in China

Warranty: 3 Days

৳ 220.05

Add to Wishlist

Category: Transistor

Share:

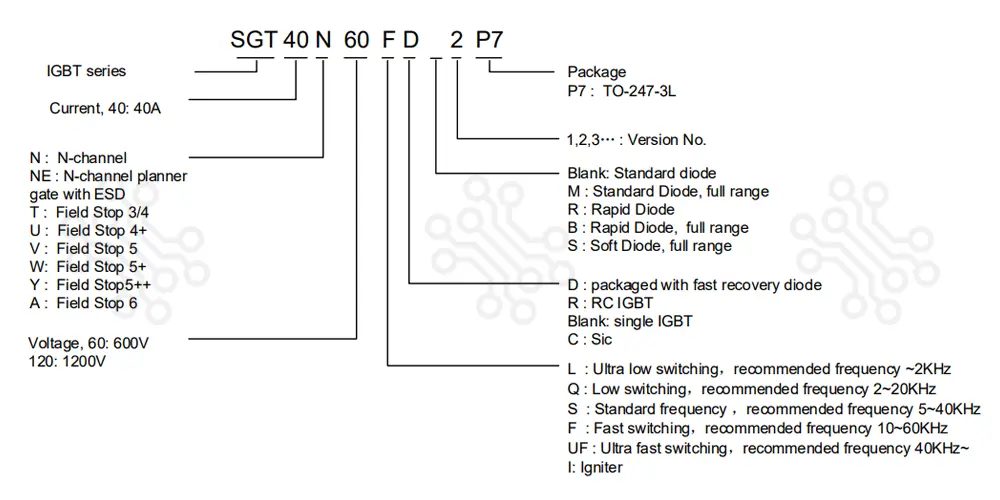

Description of 40N60FD2 IGBT Transistor 600V 80A

The 40N60FD2 from SC is a high-performance 600V IGBT designed for demanding power electronics applications. With a 40A continuous collector current rating and fast switching capability, this device ensures stable operation in high-voltage and high-current circuits.

Built using advanced field-stop technology, the 40N60FD2 offers low conduction loss, efficient thermal performance, and reliable switching under heavy load conditions. It is an ideal choice for engineers, repair technicians, and industrial power system designers.


Technical Specifications

Parameter Symbol Rating
Collector-Emitter Voltage VCES 600V
Gate-Emitter Voltage VGE ±20V
Continuous Collector Current (Tc = 25°C) IC 40A
Pulsed Collector Current ICM 80A
Power Dissipation PD Up to 300–380W
Junction Temperature Range TJ -55 to +150 °C
Note: 40A rating applies under proper heatsink and case temperature conditions.

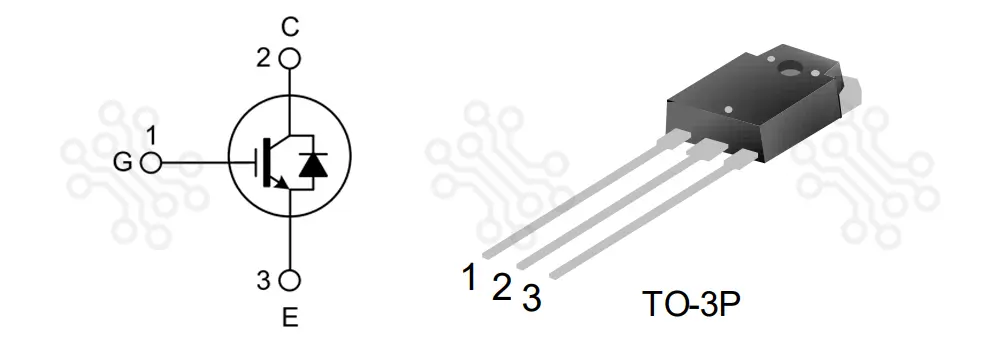

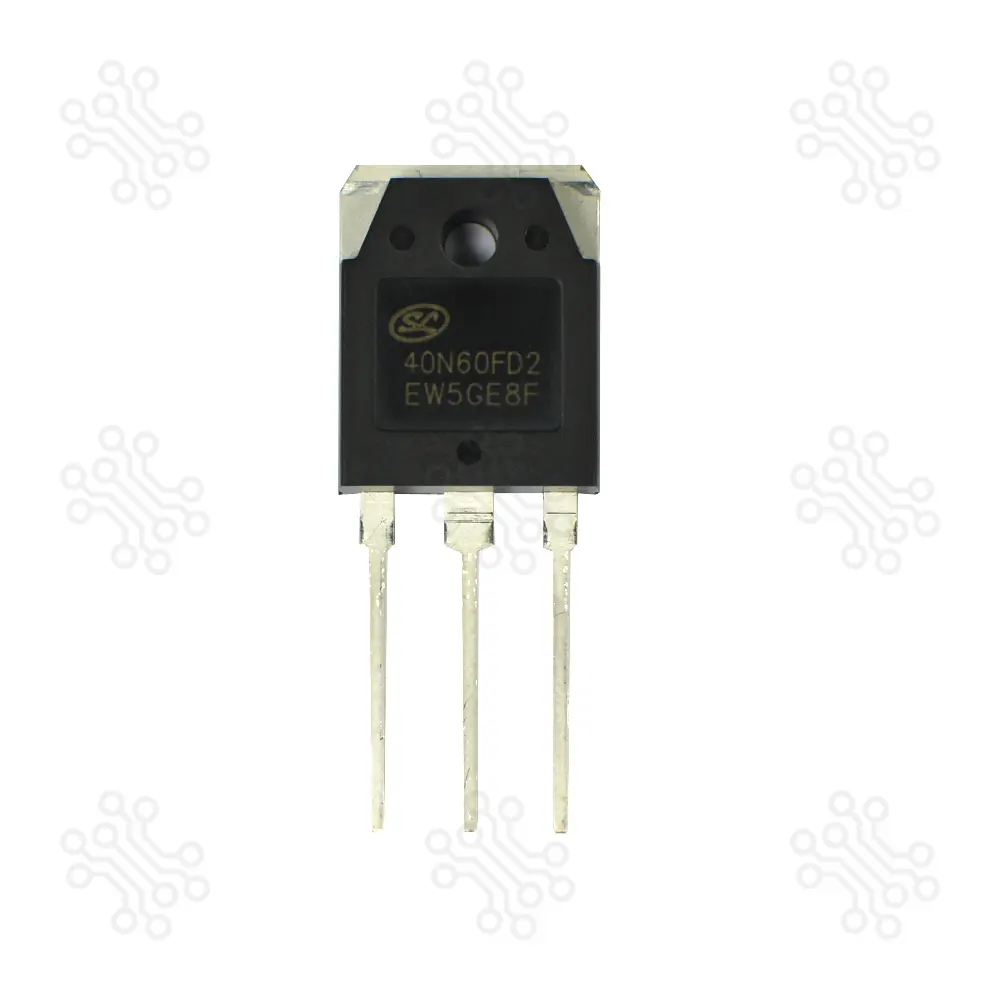

Pinout Diagram

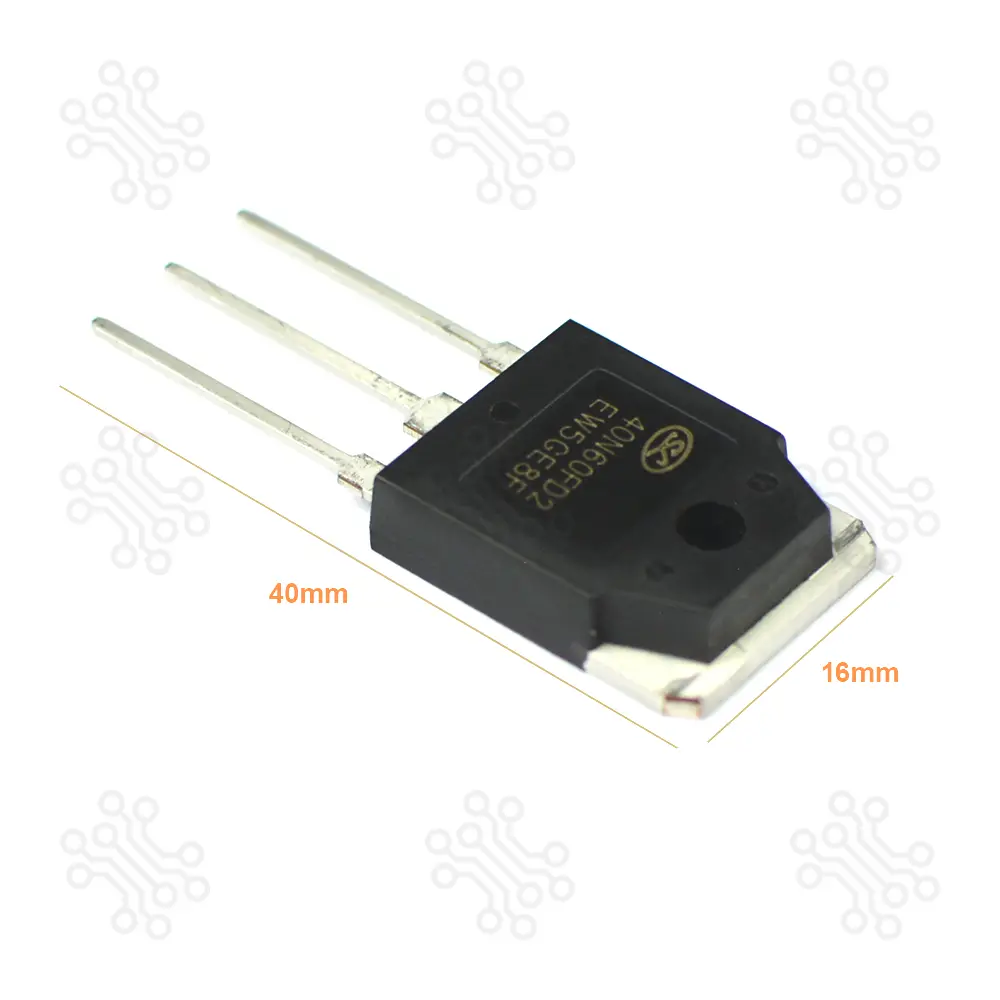

  • TO-3P/TO-247 style through-hole package
  • Standard IGBT pinout:
    • Gate
    • Collector
    • Emitter
    • (Heatsink tab = Collector)


Electrical Characteristics (Typical @ 25°C)

Parameter Symbol Typical Value
Collector-Emitter Saturation Voltage VCE(sat) 1.8–2.2V
Gate Threshold Voltage VGE(th) 4–6V
Total Gate Charge Qg 90–110nC
Input Capacitance Cies 1500–2000pF
Rise Time tr ~80ns
Fall Time tf ~100ns

Thermal Characteristics

Parameter Symbol Typical Value
Thermal Resistance (Junction to Case) RthJC ~0.4°C/W
Maximum Junction Temperature Tj(max) 150°C
Note: Proper heatsink design is required for continuous high-current operation.

Why Choose This 40N60FD2 IGBT?

The 40N60FD2 provides excellent performance in high-frequency and high-power switching environments. With proper heatsinking, it delivers stable and efficient operation, making it suitable for both industrial and DIY power electronics projects.

This transistor is a reliable and cost-effective solution for upgrading or repairing high-voltage electronic equipment.


Applications

  • High-power inverters
  • UPS systems
  • Induction heating
  • SMPS
  • Motor drive circuits
  • Welding machines

Document


Package Includes

  • 1 × 40N60FD2 IGBT Transistor 600V 40A
