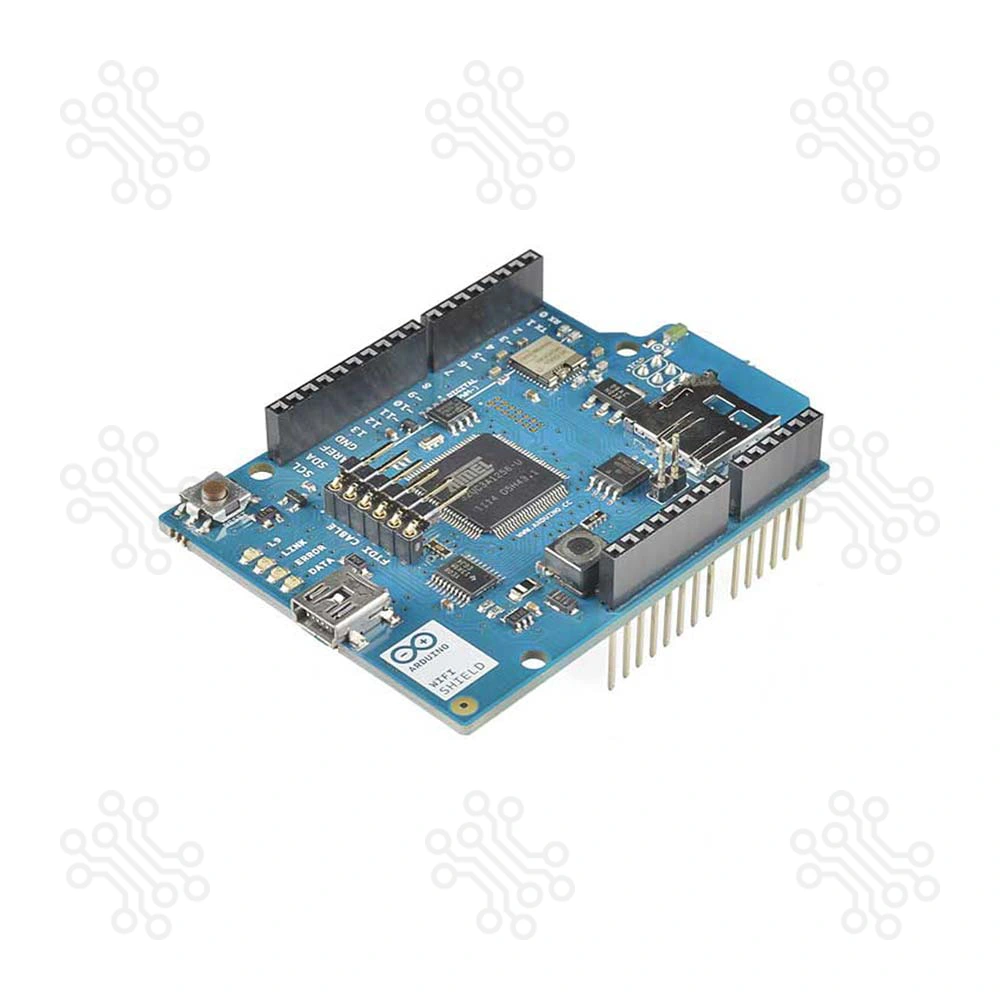

Arduino Wi Fi Shield (Original)

Arduino Wi Fi Shield (Original)

SKU: ARD-00036

Brand: SparkFun, USA

Warranty: N/A

Model: N/A

৳ 9010.35

Add to Wishlist

Category: Arduino & Accessories

Share:

Description of Arduino Wi Fi Shield (Original)

  Enjoy 4% Discount on total bill on order worth BDT 10000 or more. Enjoy 2% Discount on total bill on order worth BDT 5000 or more.


The Arduino WiFi Shield allows an Arduino board to connect to the internet using the 802.11 wireless specification (WiFi). It is based on the HDG204 Wireless LAN 802.11b/g System in-Package. An Atmega 32UC3 provides a network (IP) stack capable of both TCP and UDP. Use the WiFI library to write sketches which connect to the internet using the shield. The WiFI shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.


There is an onboard micro-SD card slot, which can be used to store files for serving over the network. It is compatible with the Arduino Uno and Mega. The onboard microSD card reader is accessible through the SD Library. When working with this library, SS is on Pin 4.

Arduino communicates with both the Wifi shield's processor and SD card using the SPI bus (through the ICSP header). This is on digital pins 11, 12, and 13 on the Uno and pins 50, 51, and 52 on the Mega. On both boards, pin 10 is used to select the HDG204 and pin 4 for the SD card. These pins cannot be used for general I/O. On the Mega, the hardware SS pin, 53, is not used to select either the HDG204 or the SD card, but it must be kept as an output or the SPI interface won't work.

Digital pin 7 is used as a handshake pin between the WiFi shield and the Arduino, and should not be used.


Note that because the HDG204 and SD card share the SPI bus, only one can be active at a time. If you are using both peripherals in your program, this should be taken care of by the corresponding libraries. If you're not using one of the peripherals in your program, however, you'll need to explicitly deselect it. To do this with the SD card, set pin 4 as an output and write a high to it. For the HDG204, set digital pin 10 as a high output.

Click here to know more about this product.

Specification of Arduino Wi Fi Shield (Original)

  • Connection via: 802.11b/g networks
  • Encryption types: WEP and WPA2 Personal
  • on-board micro SD slot
  • FTDI-style connection for serial debugging of WiFi shield
  • Micro-USB for updating the WiFi shield firmware
  • open source firmware making it possible to add new protocols directly on the shield.
  • If you are familiar with C and the AVR32 family you can even use this shield as a standalone wifi connected microcontroller.

Ratings & Reviews of Arduino Wi Fi Shield (Original)

3.00
Out of 5

1 Ratings and 1 Reviews

5 star
0.00%
4 star
0.00%
3 star
100.00%
2 star
0.00%
1 star
0.00%
Your Rating:

Reviews (1)

User
By jackfdfsfsJHJHJJ john on 03 Oct 2023
verified purchase Verified Purchase

trtrrtrt

Questions & Answers about Arduino Wi Fi Shield (Original)

Questions answered by Techshop (2)

Is there a cheaper Chinese wi-fi shield available? I want a chinese clone of the arduino wifi shield 101 featured in the www.arduino.cc website. Like the Ethernet shield 5100(Chinese) you are providing? A chinese clone of this shield will do.

By Joyanta on 23 Feb 2016

We do not have any clone of this one. You can see somewhere else.

By techshop on 23 Feb 2016

Is this gonna be available any time soon like this month or the first week of next month ?

By Hasib_Rahman on 26 May 2015

first week of next month hopefully.

By techshop on 26 May 2015
