Button Module with LED Indicator 8 Key in Bangladesh
Button Module with LED Indicator 8 Key in Bangladesh

Button Module with LED Indicator 8 Key

SKU: 260223005193

Brand: Made in China

Warranty: 3 Days

৳ 220.03

Add to Wishlist

Category: LED

Share:

Description of Button Module with LED Indicator 8 Key

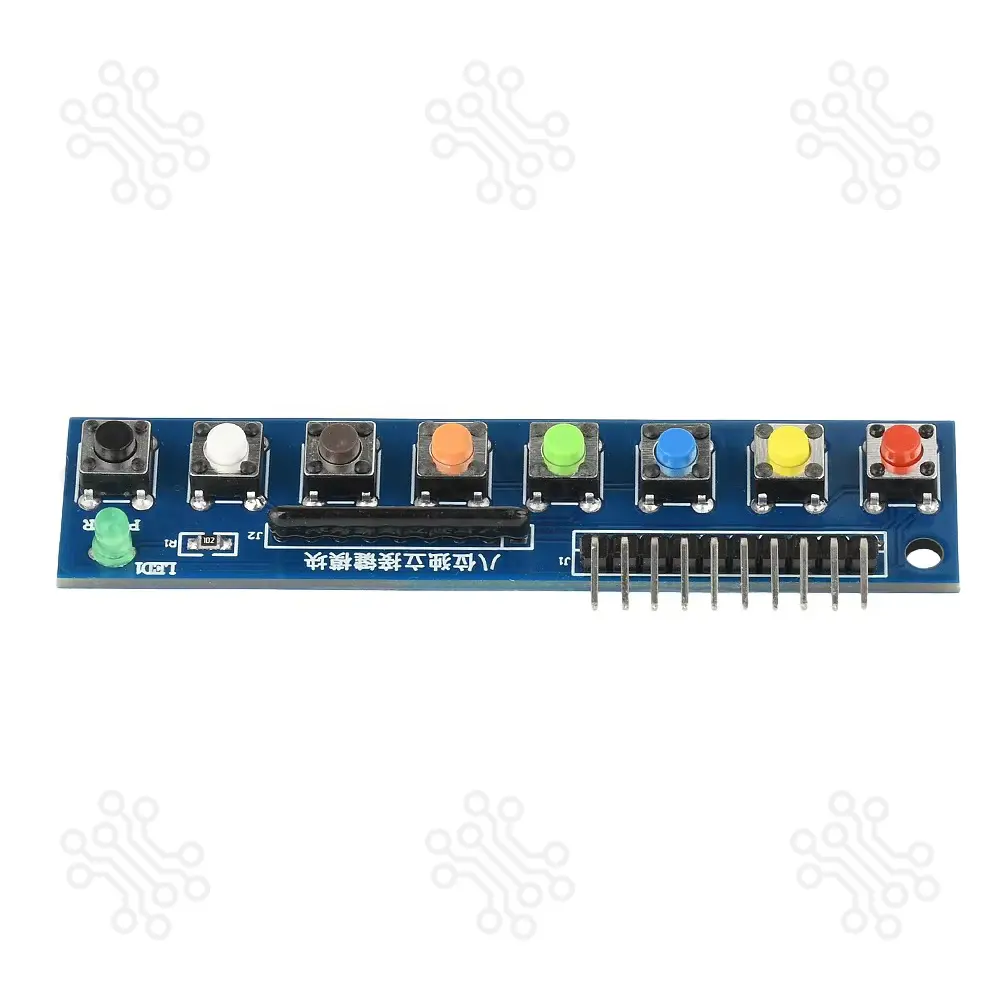

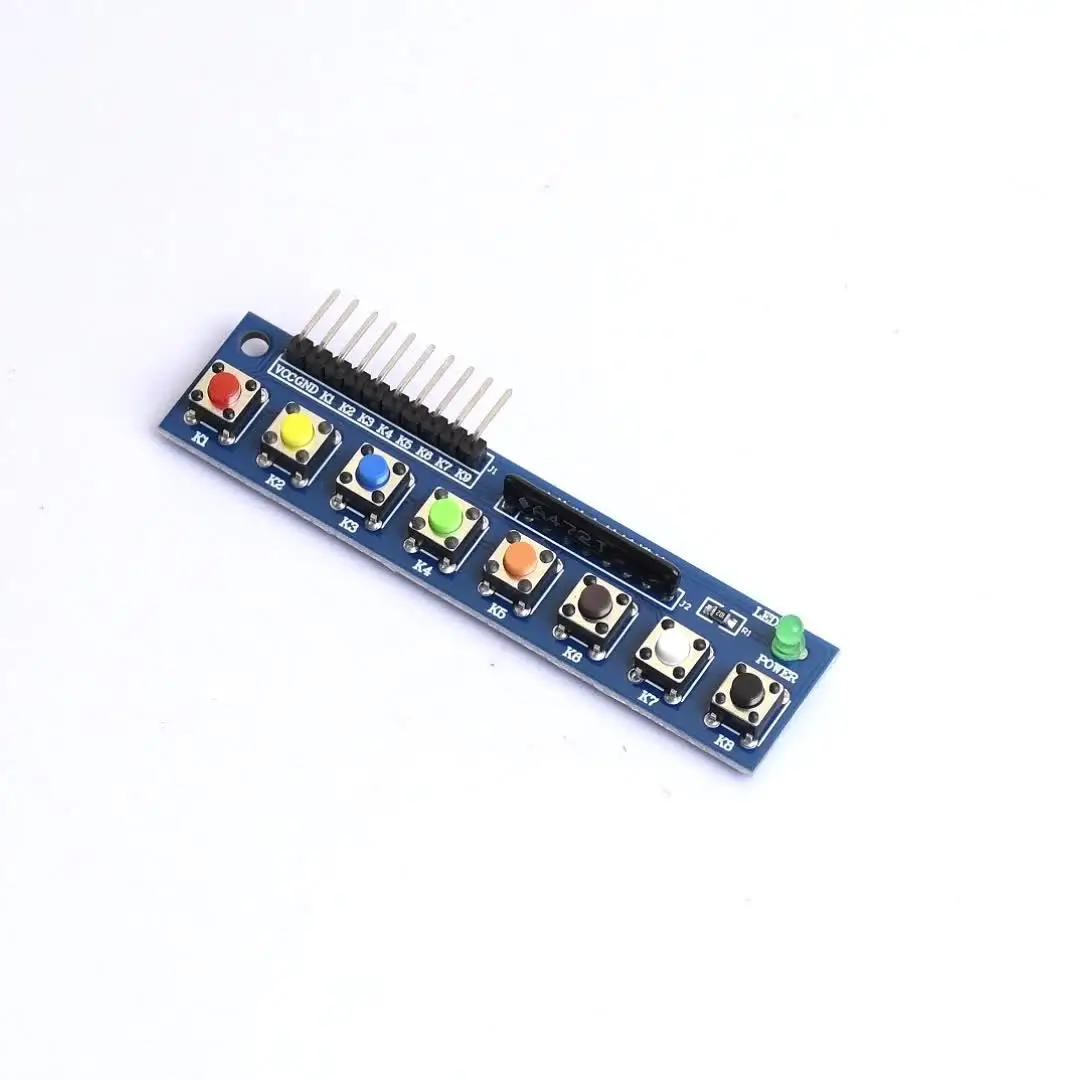

The 8-Bit Button Module is a compact input interface designed for microcontroller and embedded system development. It features eight independent tactile push buttons that provide digital signal outputs. The module includes built-in pull-up resistors and a green LED indicator to display the operating status.

This module is suitable for applications such as robotics projects, microcontroller experiments, and embedded system control interfaces. It is compatible with platforms such as single-chip microcontrollers, ARM-based systems, and Raspberry Pi.


Key Features

  • Equipped with LED Indicator
  • Digital Signal Output
  • High-Quality Button Design
  • Easy Installation and Integration
  • Built-in Pull-up Resistors

Technical Specifications

Parameter Specification
Product Name 8-Bit Button Module
Working Voltage 3.3V – 5V
Output Method Digital signal output
Signal Logic Low level when pressed, high level when released
Pull-up Resistor Built-in
Indicator Light Green LED
Manufacturing Process Plug-in / SMT
Size 77.5 × 17.9 × 6.5 mm
Mounting Hole 1 mounting hole, diameter 3 mm
Operating Platform Single-chip microcontroller, ARM, Raspberry Pi

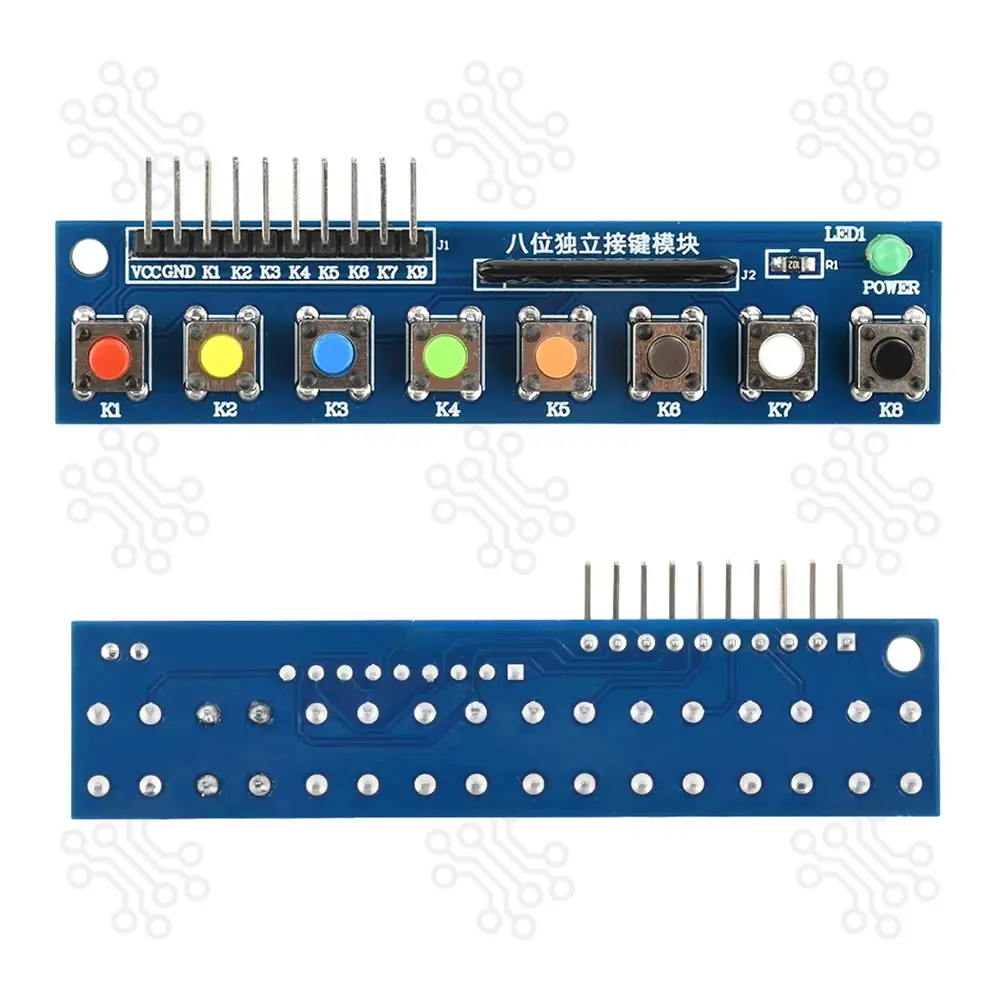

Interface Description

Parameter Specification
VCC Connect to the positive terminal of the power supply (3.3V–5V)
GND Connect to the ground (negative terminal of the power supply)
K1 – K8 Connect to the IO pins of the controller

Applications

  • Microcontroller and development board projects
  • Robotics control systems
  • Embedded system input interfaces
  • DIY electronics projects
  • Educational experiments and prototyping

Documents


Package Includes

  • 1 × Button Module with LED Indicator 8 Key
