Description of Clamp Type Digital Multimeter DMC 100 HD Color Screen FNIRSI

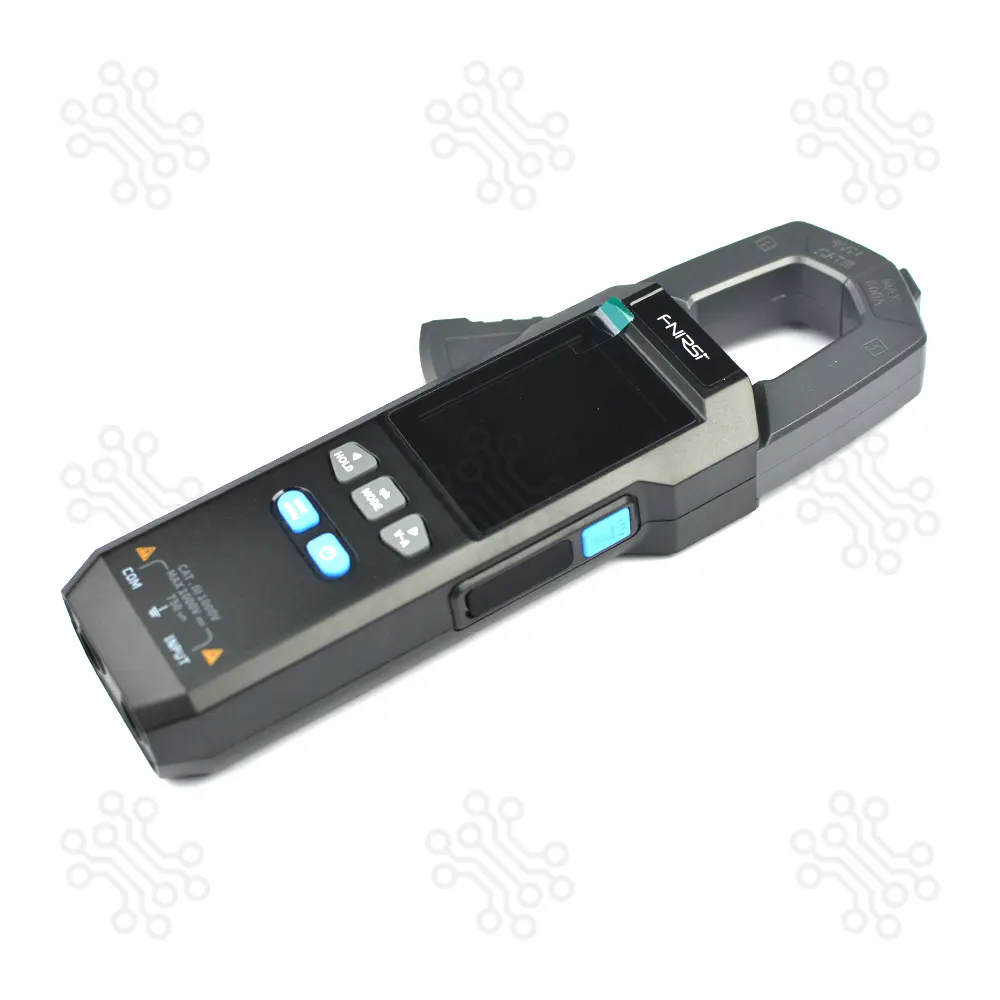

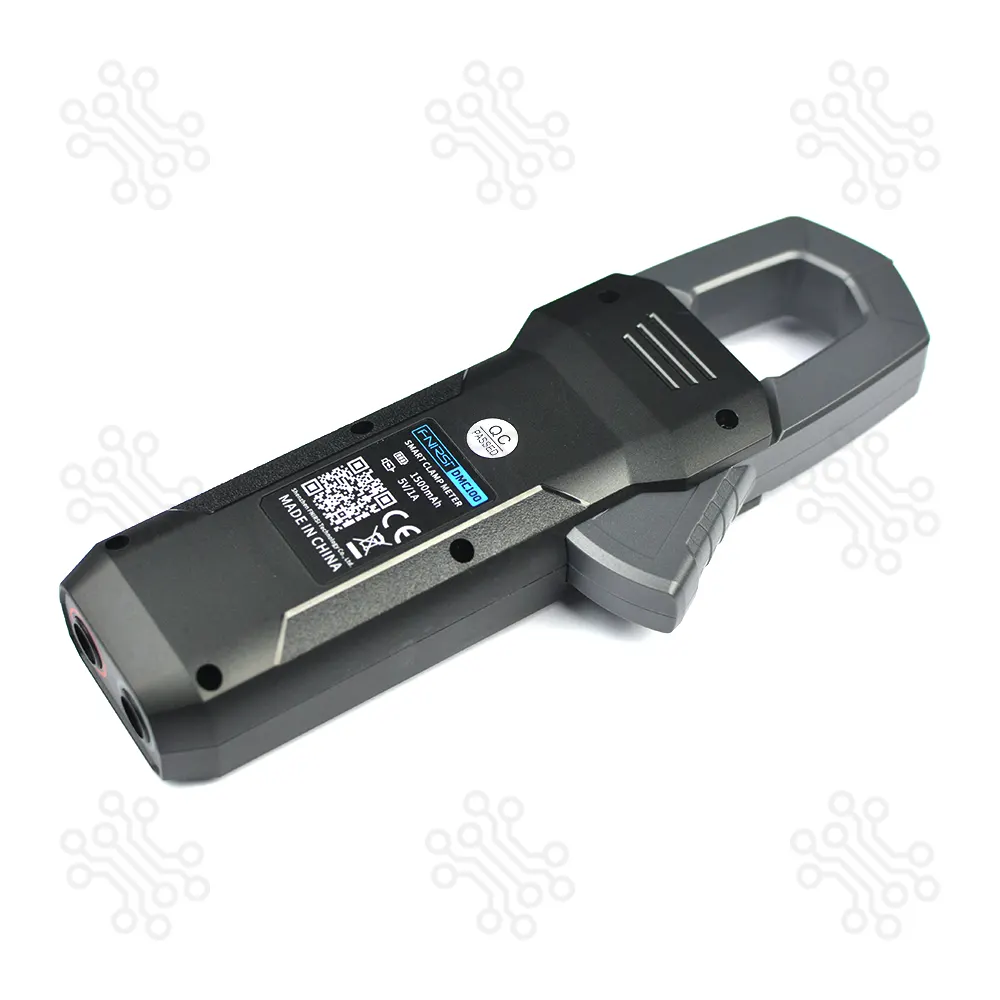

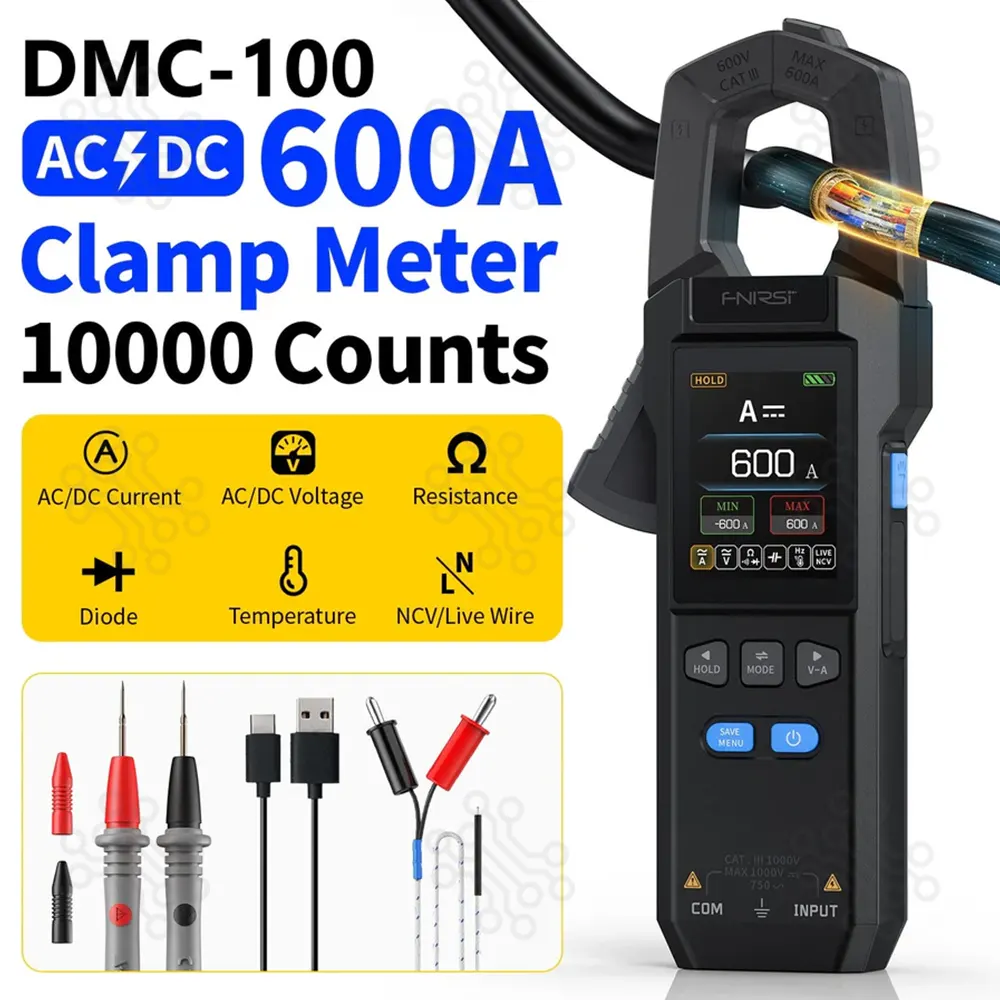

The FNIRSI DMC-100 is a professional 10,000-count True RMS clamp meter designed for accurate and wide-range measurements, supporting up to 750V voltage and 600A current. Its 2.0-inch full-color TFT display with adjustable brightness and an intuitive UI ensures clear readings, while data curve visualization provides instant insight into measurement trends. The meter also offers three modes—routine, waveform, and power—alongside NCV non-contact voltage detection and zero/fire line identification for enhanced safety.

Powered by a durable 3.7V 1500mAh lithium battery, the DMC-100 delivers long-lasting performance with intelligent auto power-off to conserve energy. Additional features such as a built-in flashlight, backlight display, and data-saving options make it a practical and dependable choice for industrial maintenance, laboratory research, automotive diagnostics, and home electrical troubleshooting.

Key Features


  • High-precision 10,000-count True RMS measurement for ultra-accurate readings.
  • Wide measurement ranges up to 750V voltage and 600A current.
  • Clear 2.0-inch full-color TFT display with 240 x 320 resolution.
  • Intuitive user interface with data curve display for real-time trend analysis.
  • Three measurement modes: general, waveform display, and power measurement.
  • Non-contact voltage detection for safe voltage measurement and zero/fire wire identification.
  • Wide temperature measurement range from -55°C to 1300°C (-67℉ to 2372℉).
  • Long-lasting 3.7V 1500mAh lithium battery with USB Type-C charging and firmware updates.
  • Built-in flashlight and adjustable screen brightness with 10 levels.
  • Data hold and storage capability for up to 30 measurement records.
  • Auto power-off function with configurable timeout settings.

Technical Specifications


Specification Details
Brand FNIRSI
Model DMC-100
Display 2.0" TFT color screen
Screen Resolution 240 x 320 pixels
Battery 3.7V, 1500mAh Lithium Battery
Charging USB Type-C, 5V/1A
Maximum Jaw Size 25 mm
Temperature Units Celsius (℃) / Fahrenheit (℉)

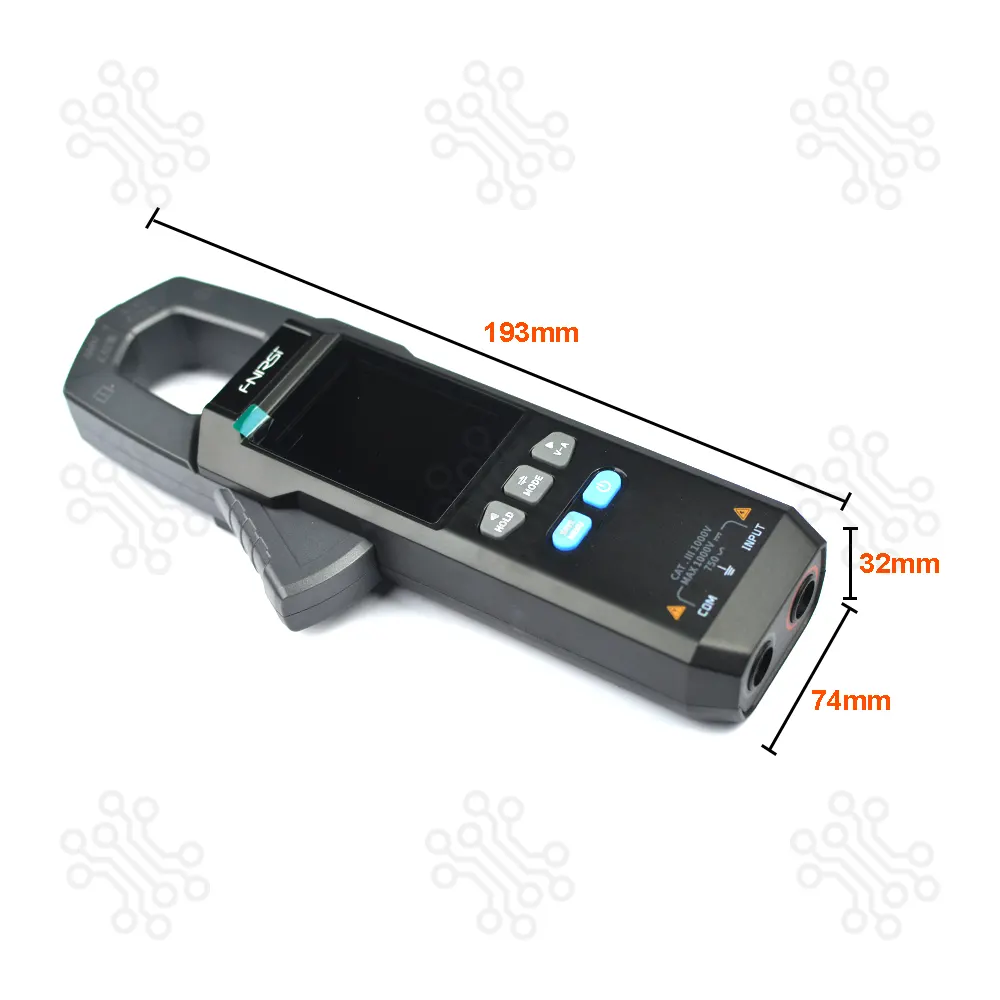

Dimensions (L x W x H) 193 x 74 x 32 mm
Weight 204.5 g

Measurement Ranges


Feature Specification
Brand FNIRSI
Model DMC-100
Display 2.0" TFT color screen
Screen Resolution 240 × 320 pixels
Battery 3.7V, 1500mAh Lithium Battery
Charging USB Type-C, 5V/1A
Maximum Jaw Size 25 mm
Temperature Units Celsius (℃) / Fahrenheit (℉)
Dimensions (L × W × H) 193 × 74 × 32 mm
Weight 194 g
DC Voltage 9.999 V / 99.99 V / 999.9 V
AC Voltage 9.999 V / 99.99 V / 750.0 V
DC & AC Current 99.99 A / 600.0 A
Resistance 999.9 Ω to 99.99 MΩ (multiple scales)
Capacitance 9.999 nF to 9.999 mF (multiple scales)
Frequency 9.999 Hz to 9.999 MHz (multiple scales)
Temperature -55°C to 1300°C (-67℉ to 2372℉)
Diode Test Yes
On/Off Test Yes
Non-Contact Voltage (NCV) Yes
Zero Fire Wire Check Yes

Multifunction Test


Measurement Modes


  • General Measurement Mode
    Standard mode for voltage, current, resistance, capacitance, and more.
  • Waveform Display Mode
    Real-time graphical visualization of signal waveforms for detailed analysis.
  • Power Measurement Mode
    Calculates and displays power metrics for electrical load assessment.

Application


  • Industrial and engineering maintenance
  • Laboratory testing and research
  • Automotive diagnostics and overhauls
  • Residential and commercial electrical troubleshooting

Additional Features


  • Manual measurement adjustment for fine-tuning readings
  • Maximum and minimum value recording for trend monitoring
  • Data hold function to freeze readings for convenience
  • Data storage capacity for up to 30 measurement records
  • Dual language support: Chinese and English
  • Adjustable screen brightness with 10-level control
  • Auto power-off configurable to OFF, 5, 15, or 30 minutes
  • Firmware upgradeable via USB Type-C connection
  • Built-in flashlight for illumination in low-light conditions

Document


Packaging Details


  • 1x DMC-100 Host
  • 2x Type-C Charging Cable
  • 3x Multimeter Pen
  • 4x Temperature Probe
  • 5x User Manual
  • 6x Packaging Box

Clamp Type Digital Multimeter DMC 100 HD Color Screen FNIRSI - Frequently Asked Questions


What is the measurement accuracy of the FNIRSI DMC-100 clamp meter?
The DMC-100 offers high-precision True RMS measurements with a 10,000-count resolution, ensuring ultra-accurate readings for both AC and DC currents and voltages.
Can the FNIRSI DMC-100 measure temperature?
Yes, it supports temperature measurement from -55°C to 1300°C (-67℉ to 2372℉), suitable for a wide range of industrial and laboratory applications.
Does the DMC-100 support non-contact voltage detection?
Yes, the clamp meter features a Non-Contact Voltage (NCV) function that allows for safe voltage detection without direct contact, making it easy to identify live wires.
What is the maximum current and voltage the DMC-100 can measure?
It can measure AC/DC currents up to 600A and voltages up to 750V, making it versatile for various electrical testing scenarios.
How is the FNIRSI DMC-100 powered and charged?
It uses a rechargeable 3.7V 1500mAh lithium battery, charged conveniently via a USB Type-C port.
Can I store measurement data on the device?
Yes, the DMC-100 allows storing up to 30 groups of measurement data for easy reference and analysis.
Is the display easy to read in low-light conditions?
It features a 2.0-inch full-color TFT screen with adjustable brightness (10 levels) and a built-in flashlight for better visibility.
What measurement modes are available on the DMC-100?
The clamp meter includes three modes: General Measurement, Waveform Display, and Power Measurement, providing flexibility for different diagnostic tasks.
Does the device support firmware upgrades?
Yes, firmware can be updated via the USB Type-C connection to ensure you have the latest features and improvements.
What safety features are included with the FNIRSI DMC-100?
Besides NCV detection, the device has a zero-fire wire check and auto power-off functionality to protect the user and conserve battery life.
