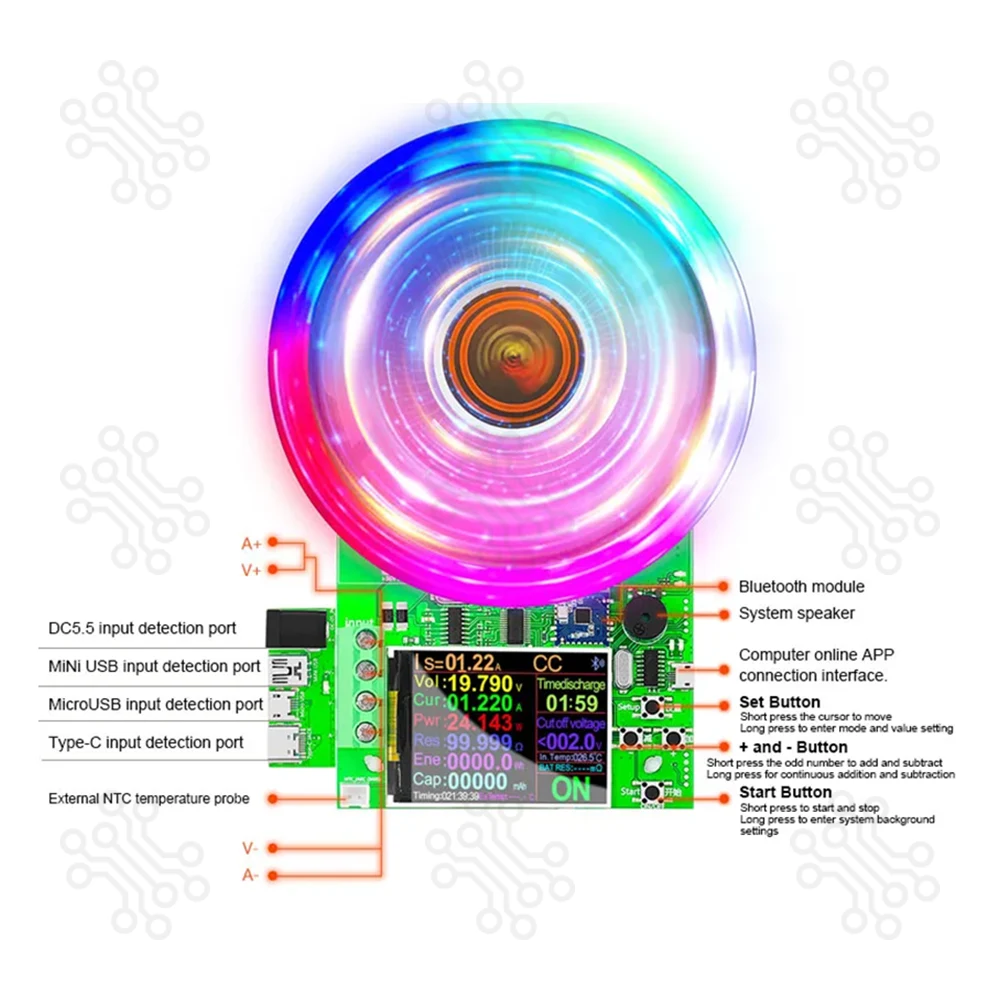

Description of Electronic Load Tester DL24P 180W Bluetooth Upgrade Release

The Electronic Load Tester is a versatile and powerful device designed for testing various batteries, DC power supplies, data lines, power banks, chargers, and AC/DC power adapters. It offers a range of functions, including measuring voltage, current, power, capacity, discharge time, internal resistance, and load capacity. With its compact size and affordable price, it is suitable for manufacturers, digital enthusiasts, engineers, and experimenters.

Key Features


  • Large Colour Screen: Equipped with a 2.4-inch HD large colour screen, the digital load meter displays information clearly and supports blue digital transmission curves for better visualization.
  • Wide Compatibility: The tester supports discharge aging tests on USB chargers, mobile power banks, batteries, battery capacity, power adapters, and more.
  • Multiple Connection Options: It supports Bluetooth wireless and wired computer connections, with four online APP options available for Android, Apple, and PC platforms.
  • Four Discharge Modes: The load tester offers four operating modes – constant current, constant power, constant resistance, and constant voltage – providing flexibility for different testing scenarios.
  • High Power and Current: With a power output of up to 150W, a wide voltage range of 2–200V, and a high current capacity of 0.2–20A, it is suitable for various discharge and aging tests.
  • Intelligent Temperature Control: The built-in temperature-controlled fan ensures efficient cooling and extended fan life.
  • Safety Protections: It features over-current, over-temperature, and over-power safety protections for reliable and secure testing.

Technical Specifications


 Feature

Specification

Test Voltage

2 – 200V

Working Current

0.2 – 20A

Constant Load Adjustment Rate

±3% + 3 bytes

DL24 Discharge Power

Voltage × Current < 150W

DL24P Discharge Power

Voltage × Current < 180W

Power Supply

DC 12V

Fan Rotation Condition

Power > 10W or Temperature > 45°C


Application


  • Battery capacity and discharge tests
  • USB charger performance analysis
  • Power adapter testing
  • Lab-grade electronic load simulation
  • DIY and professional electronics diagnostics

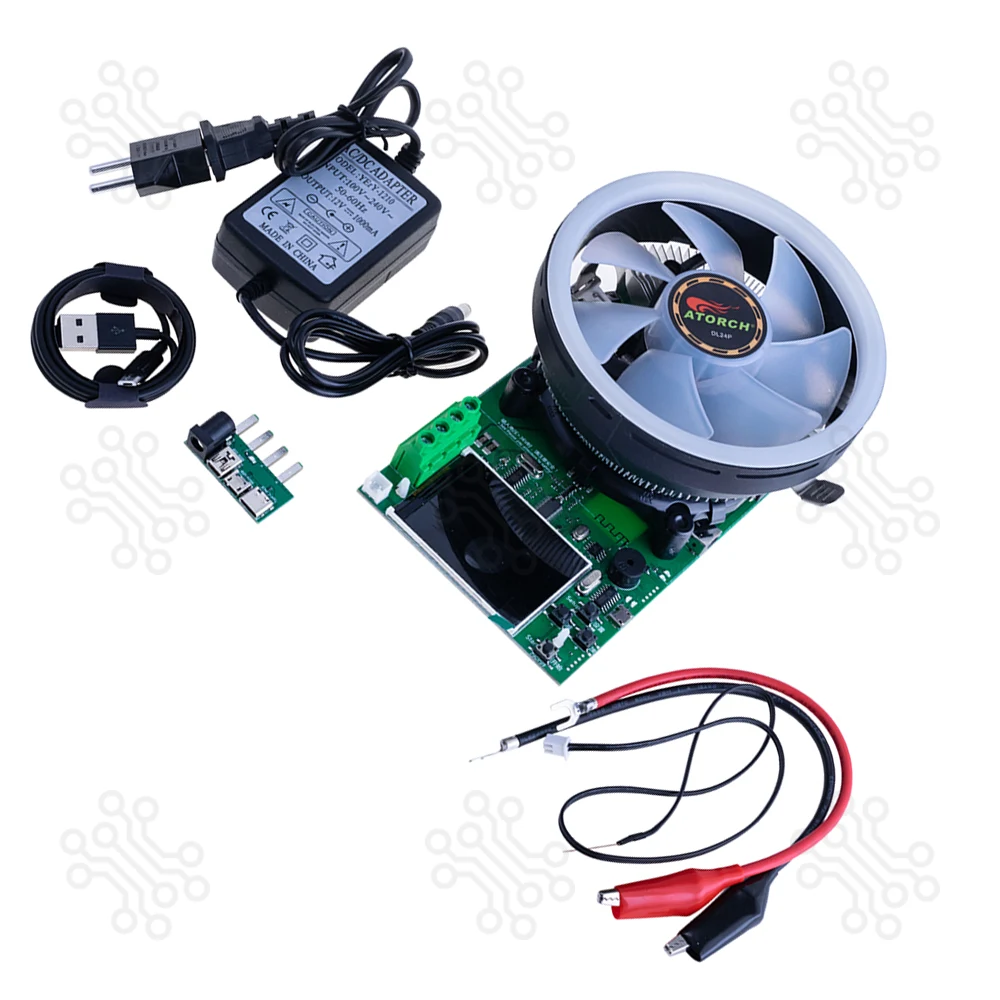

Packaging Details


  • 1 × DL24P Load Tester
  • 1 × DC 12V 1A Power Adapter
  • 1 × PC Computer Online Cable
  • 1 × Temperature Probe
  • 1 × Red and Black Single Line Crocodile Clip Cable

Electronic Load Tester DL24P 180W – Frequently Asked Questions


What is the maximum power this load tester can handle?
The DL24P model can handle up to 180W, while the standard DL24 model supports up to 150W.
What are the supported input voltage and current ranges?
It supports a voltage range of 2–200V and a current range of 0.2–20A.
What discharge modes are available?
It offers four modes:
Constant Current (CC)
Constant Power (CP)
Constant Resistance (CR)
Constant Voltage (CV)
Is the DL24P compatible with smartphones or computers?
Yes, it supports Bluetooth and wired connections. Apps are available for Android, iOS, and PC platforms.
Does it include safety features?
Yes, it has over-current, over-temperature, and over-power protection for safe operation.
Can it test USB chargers and power banks?
Absolutely. It supports USB charger aging, battery capacity testing, and power bank performance analysis.
How is the cooling managed during operation?
It uses an intelligent temperature-controlled fan that activates when power exceeds 10W or temperature rises above 45°C.
