Logic Analyzer LA1010 16 Channel 100MHz Sampling Rate in Bangladesh
Logic Analyzer LA1010 16 Channel 100MHz Sampling Rate in Bangladesh

Logic Analyzer LA1010 16 Channel 100MHz Sampling Rate

SKU: 240613004331

Brand : Made in China

Warranty : 3 Days

৳ 8560.04

Add to Wishlist

Category: Signal Analyzer

Share:

Additional Information

Description of Logic Analyzer LA1010 16 Channel 100MHz Sampling Rate

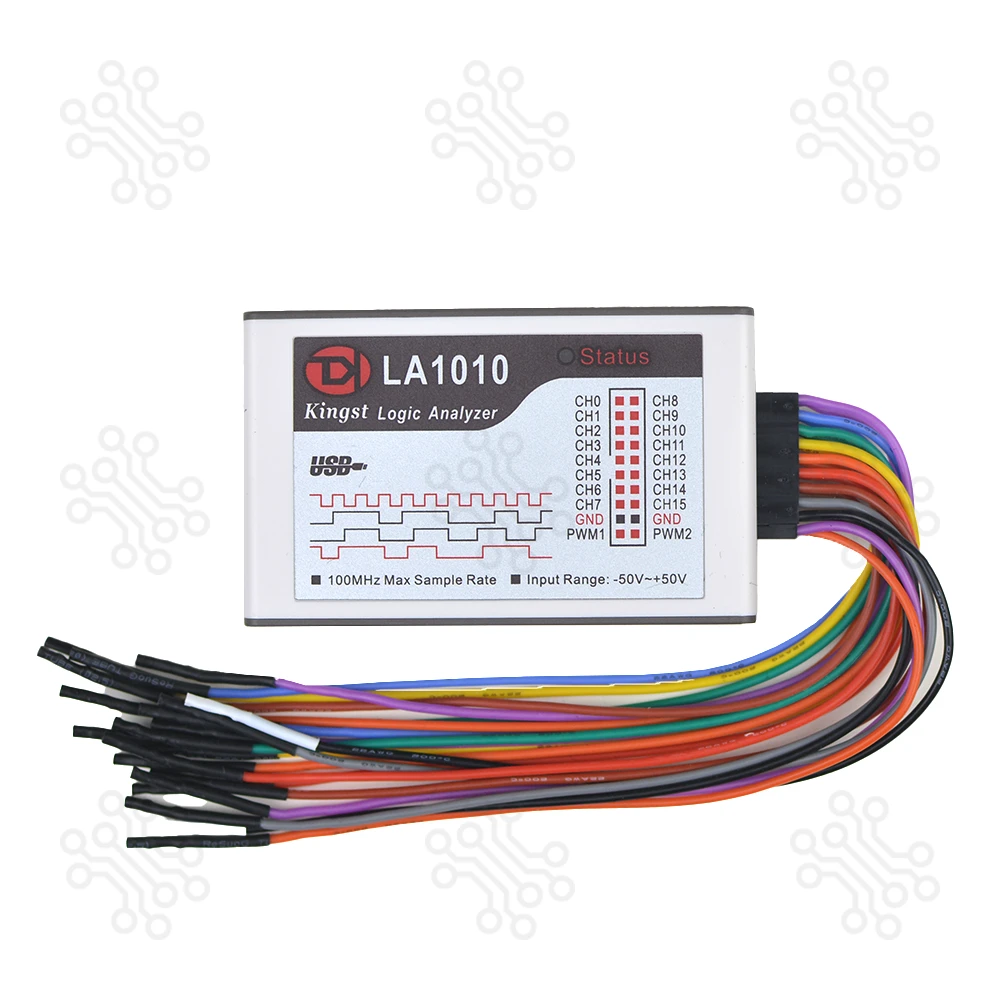

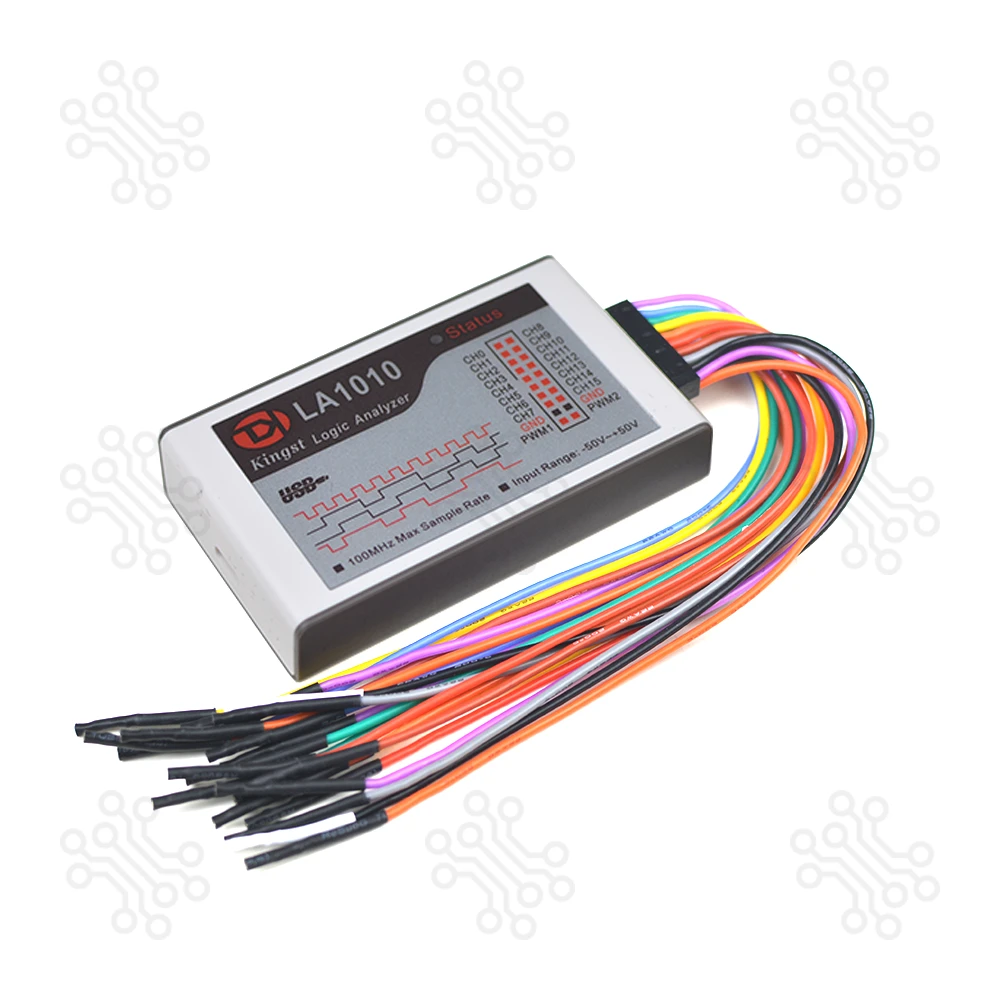

The Logic Analyzer LA1010 16 Channel 100MHz Sampling Rate is a professional digital signal analysis tool designed for capturing, monitoring, and analyzing digital signals in electronic circuits and embedded systems. With up to 100MHz sampling rate, 16 input channels, adjustable threshold voltage, and support for multiple logic levels, it provides reliable timing analysis for debugging and testing digital systems.

The LA1010 supports real-time data transfer through USB 2.0 and allows sampled data to be exported in TXT, CSV, and BIN formats. Its software provides waveform analysis and multiple data display formats, including Binary, Decimal, Hexadecimal, and ASCII. With a compact ABS housing, wide input voltage tolerance, and multiple sampling-rate/channel configurations, this logic analyzer is suitable for electronics development, embedded-system debugging, educational laboratories, and industrial testing.


Key Features

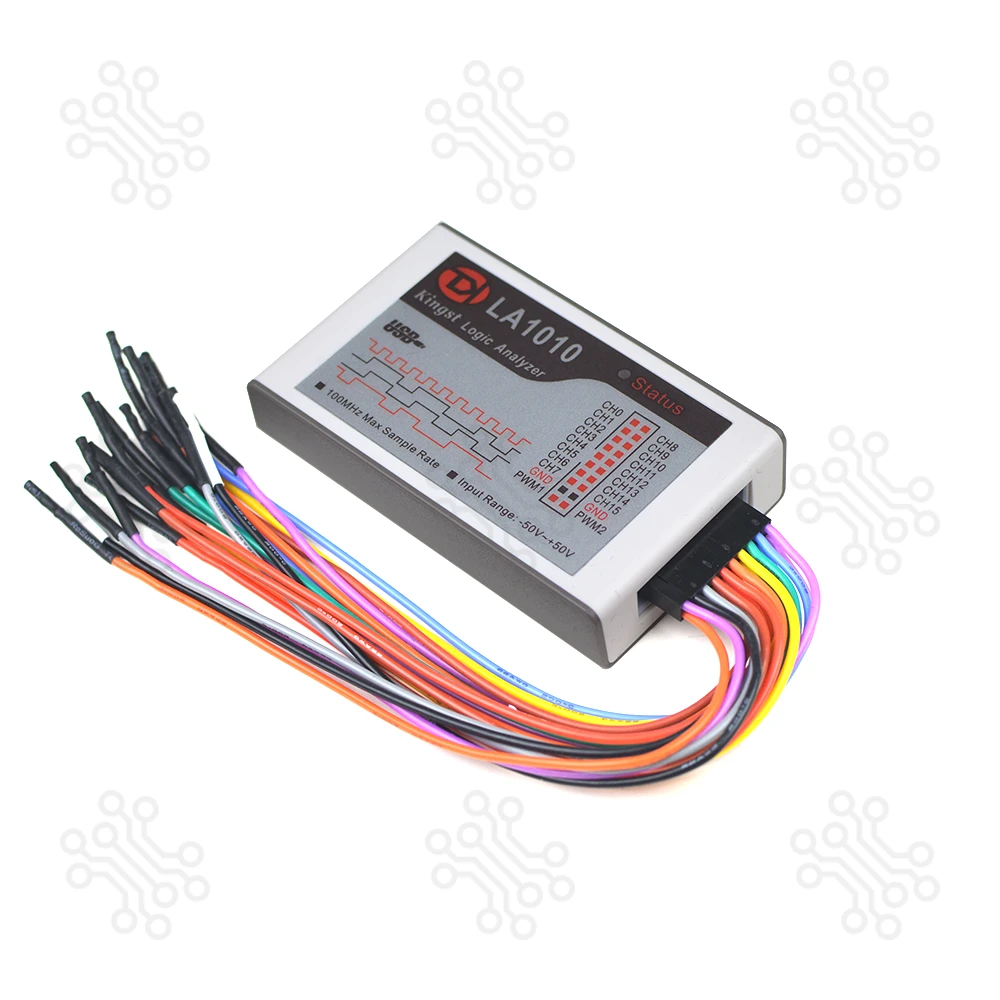

  • 16-Channel Digital Analysis: Capture and monitor multiple digital signals simultaneously.
  • Up to 100MHz Sampling Rate: Supports high-speed timing analysis for digital circuits.
  • Multiple Sampling Modes: 100MHz/3 channels, 50MHz/6 channels, 32MHz/9 channels, and 16MHz/16 channels.
  • Wide Input Voltage Range: Supports input signals from -50V to +50V.
  • Adjustable Threshold: Threshold voltage adjustable from -4V to +4V.
  • Wide Logic-Level Compatibility: Suitable for 5V TTL and various CMOS logic levels from 1.2V to 5V.
  • Multiple Data Formats: Export captured data as TXT, CSV, or BIN files.
  • Flexible Data Decoding: Supports Binary, Decimal, Hexadecimal, ASCII, and ASCII & Hexadecimal display formats.
  • Real-Time USB 2.0 Transfer: Enables convenient data communication with a computer.
  • Advanced Waveform Analysis: Links waveform data with analysis results for detailed signal evaluation.
  • Dual PWM Outputs: Provides 2 PWM output channels for testing and development.

Technical Specification

Specification Details
Model LA1010 Logic Analyzer
Channels & Sampling Rate 16 Channels, Up to 100MHz
Sampling Modes 100MHz (3CH), 50MHz (6CH), 32MHz (9CH), 16MHz (16CH)
Bandwidth & Pulse Width 20MHz, 20ns Min. Pulse Width
Input Range & Threshold -50V to +50V, Adjustable -4V to +4V
Input Impedance 220KΩ, 12pF
Data Formats TXT, CSV, BIN; Binary, Decimal, Hex, ASCII
PWM Output 2 Channels
USB Interface USB Type-C (USB 2.0)
Current Consumption 100mA Standby, 200mA Active
Material & Color ABS, Grey
Dimensions 95 × 55 × 23 mm
Package Weight 403g

What Is the Main Purpose of a Logic Analyzer?

A logic analyzer is used to capture, display, and analyze digital signals to evaluate their timing and logic states. It helps engineers and technicians identify communication errors, timing problems, incorrect logic transitions, and other issues in digital circuits and embedded systems.

Unlike an oscilloscope, which primarily displays analog waveforms, a logic analyzer focuses on digital logic states—Logic 1 and Logic 0. This makes it particularly useful for analyzing digital communication protocols and complex sequences of digital signals.


Wide Logic-Level Compatibility

The LA1010 features an adjustable threshold voltage from -4V to +4V, allowing it to work with a wide range of digital logic systems. It supports common 5V TTL signals as well as various CMOS logic levels from 1.2V to 5V, making it suitable for different microcontrollers, ICs, and embedded electronic systems.


Data Capture & Analysis

The LA1010 provides multiple options for capturing and reviewing digital signal data. Captured data can be transferred to a computer through USB 2.0 and exported in TXT, CSV, or BIN formats. The software also allows users to view decoded information in Binary, Decimal, Hexadecimal, ASCII, or combined ASCII & Hexadecimal formats.


Protocol Support List

Protocol / Function LA1010 LA2016 LA5016 LA5032
1-Wire
Atmel SWI
CAN
CAN-FD x x
DHT11/12
DMX-512
DS18B20
HDMI CEC
I2C
I2C-EEPROM
I2S/PCM
IR-NEC
IR-JVC
IR-RC5
IR-RC6
IR-Sharp
IR-SIRC
ISO7816 x x
JTAG
LCD1602/12864
LIN
Manchester
MDIO
MIDI
MIPI-DSI LP x x
Modbus
Parallel
Parallel 8080
Parallel 6800
PS/2 Keyboard
PWM
QSPI-Flash x x
RDM
RGB-WS2812
RGBW-WS2812
SDIO
SMBus
SPI
SWD
UART/RS232/485
UNI/O
USB-PD x x
USB LS/FS
Wiegand

Application

  • Digital circuit debugging and troubleshooting
  • Embedded system timing analysis
  • Microcontroller signal monitoring
  • Digital IC and logic component testing
  • Communication signal analysis
  • Electronics development and prototyping
  • Educational and laboratory experiments
  • Industrial electronic testing
  • Research and development projects

Package Contents

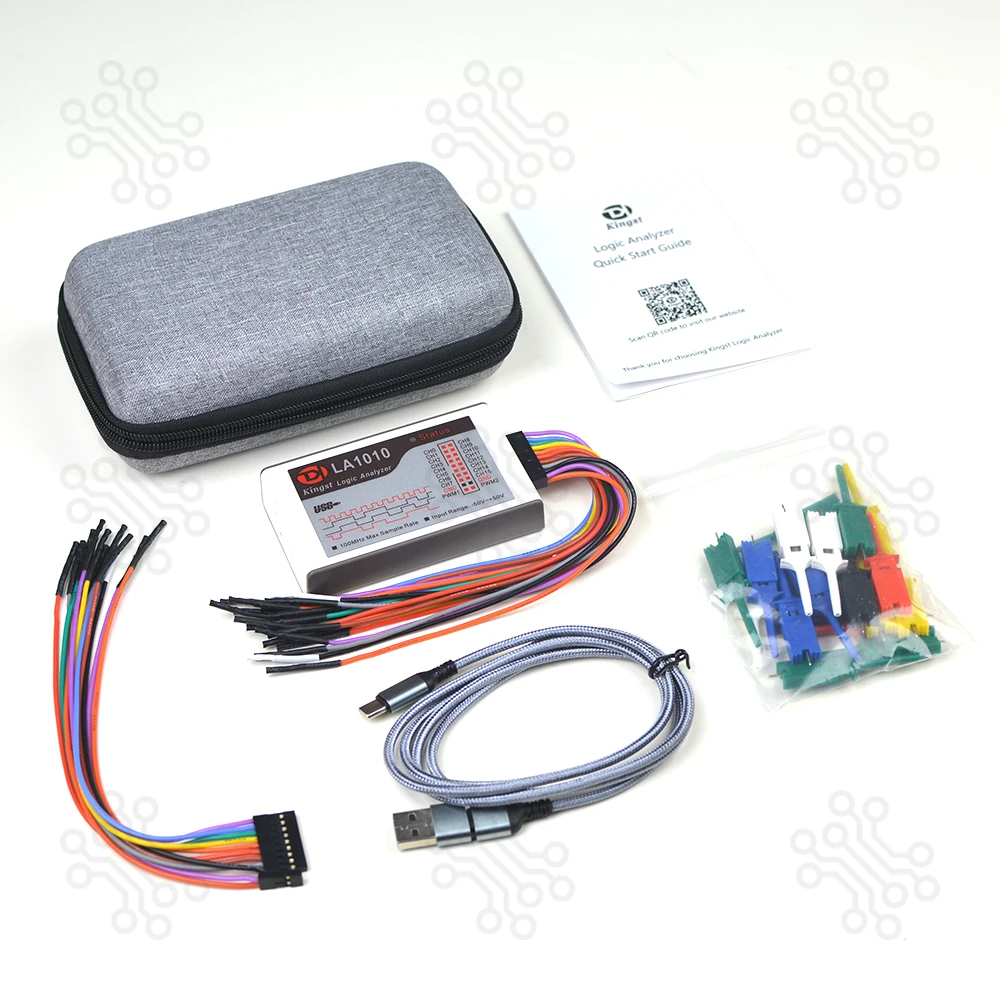

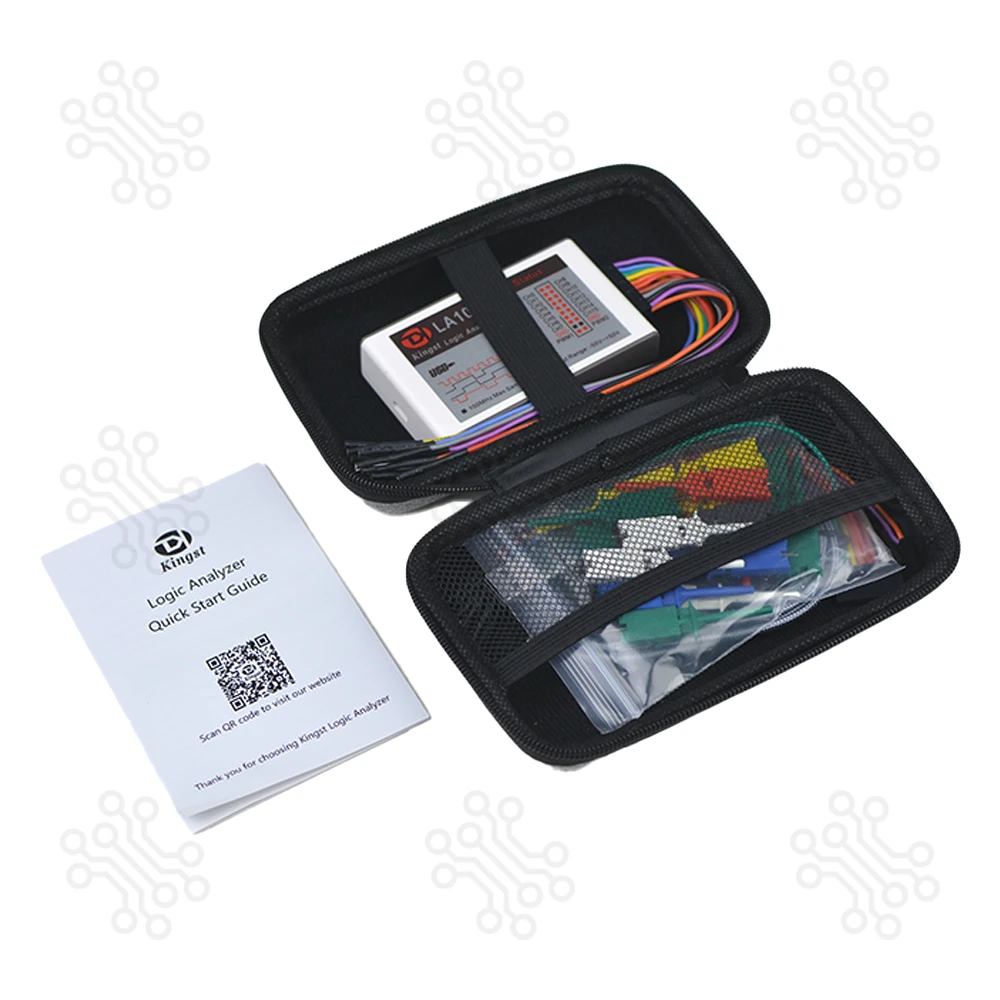

  • 1 × LA1010 Logic Analyzer with 20P Cable
  • 1 × 9P Cable
  • 1 × 2P Cable
  • 1 × USB Type-C (USB 2.0), 1.5m
  • 4 × Test Hook Clip
  • English User Manual
  • Carrying Bag

Important Safety Note

The LA1010 shares a common GND connection with the computer. Do not connect it to non-isolated equipment, high-voltage inverters, or direct 220V/380V power supplies, as this may cause serious damage to both the logic analyzer and the connected computer.


Warranty and Replacement

TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.


Attention

Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.
