ESP01 ESP8266 Serial WiFi Transceiver Module 1MB Flash in Bangladesh
ESP01 ESP8266 Serial WiFi Transceiver Module 1MB Flash in Bangladesh

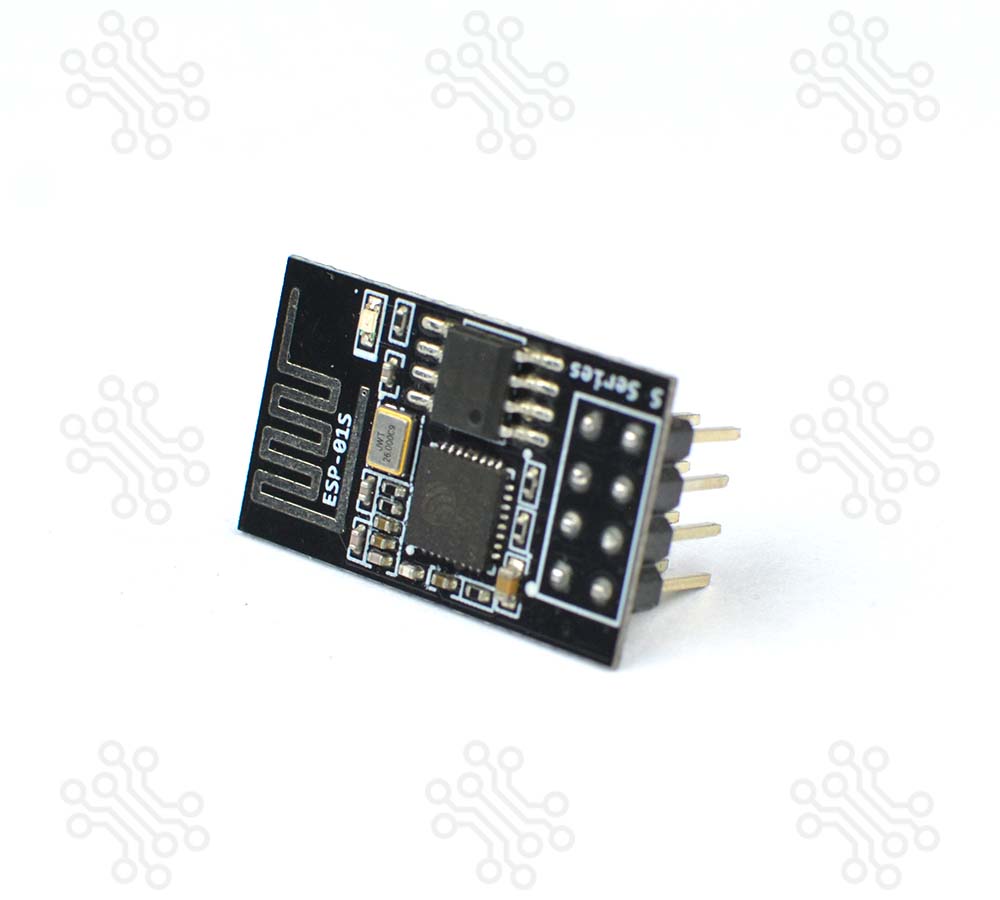

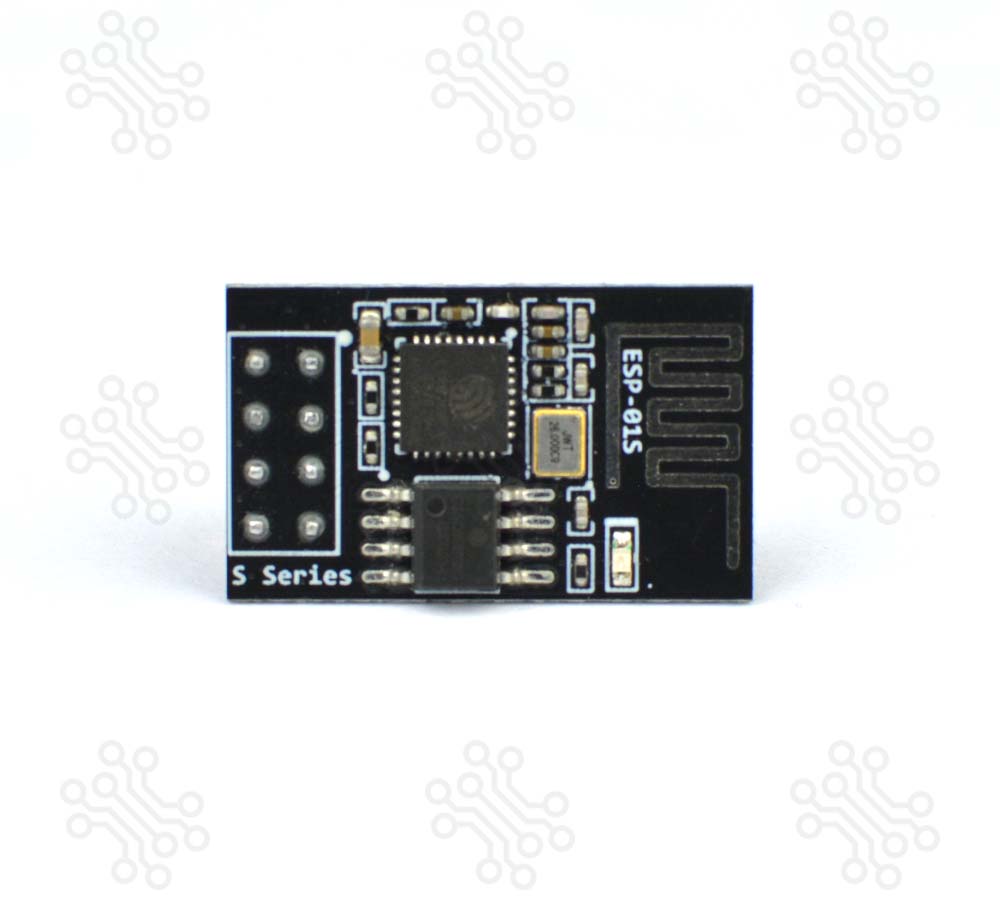

ESP01 ESP8266 Serial WiFi Transceiver Module 1MB Flash

SKU: 161214002583

Brand: Made in China

Warranty: 3 Days

৳ 195.06

Add to Wishlist

Category: ESP8266

Share:

Description of ESP01 ESP8266 Serial WiFi Transceiver Module 1MB Flash

The ESP8266 ESP-01 is a Wi-Fi module that allows a microcontroller to easily connect to a Wi-Fi network. This module is a self-contained SoC (System on a Chip); it can provide internet access to a microcontroller, just like using a Wi-Fi shield with an Arduino, or it can be directly programmed to connect to a Wi-Fi network and also perform microcontroller tasks. On the ESP-01 board, only four GPIO pins are exposed.

With built-in TCP/IP support, AT command firmware, onboard LED, and low-power operation, the ESP-01 is ideal for IoT prototyping, home automation, sensor networks, and serial-to-Wi-Fi communication systems.

As a result, the ESP8266 is highly versatile and helps reduce both the cost and size of your projects.

Do Not Use: This module is not 5V tolerant. Applying a direct 5V input may result in immediate and irreversible damage!!!

Technical Specification

Parameter Details
CPU 32-bit RISC Tensilica Xtensa LX106 @ 80 MHz
Instruction RAM 64 KB
Program RAM 96 KB
Flash Memory 1 MB
Wi-Fi Standard IEEE 802.11 b/g/n
GPIO 4 pins
Operating Voltage 3.3V
Typical TX Current 170 mA
Typical RX Current 56 mA
Deep Sleep Current ~10 µA

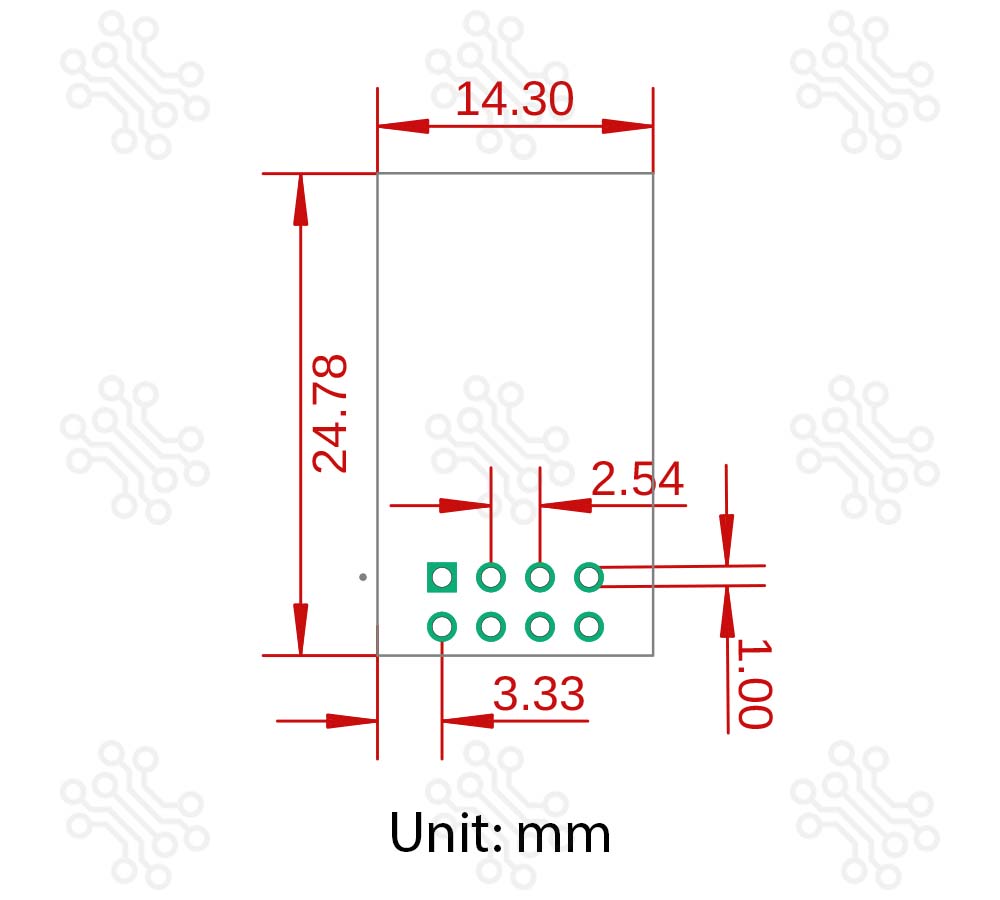

Dimensions 24.80 × 14.30 mm

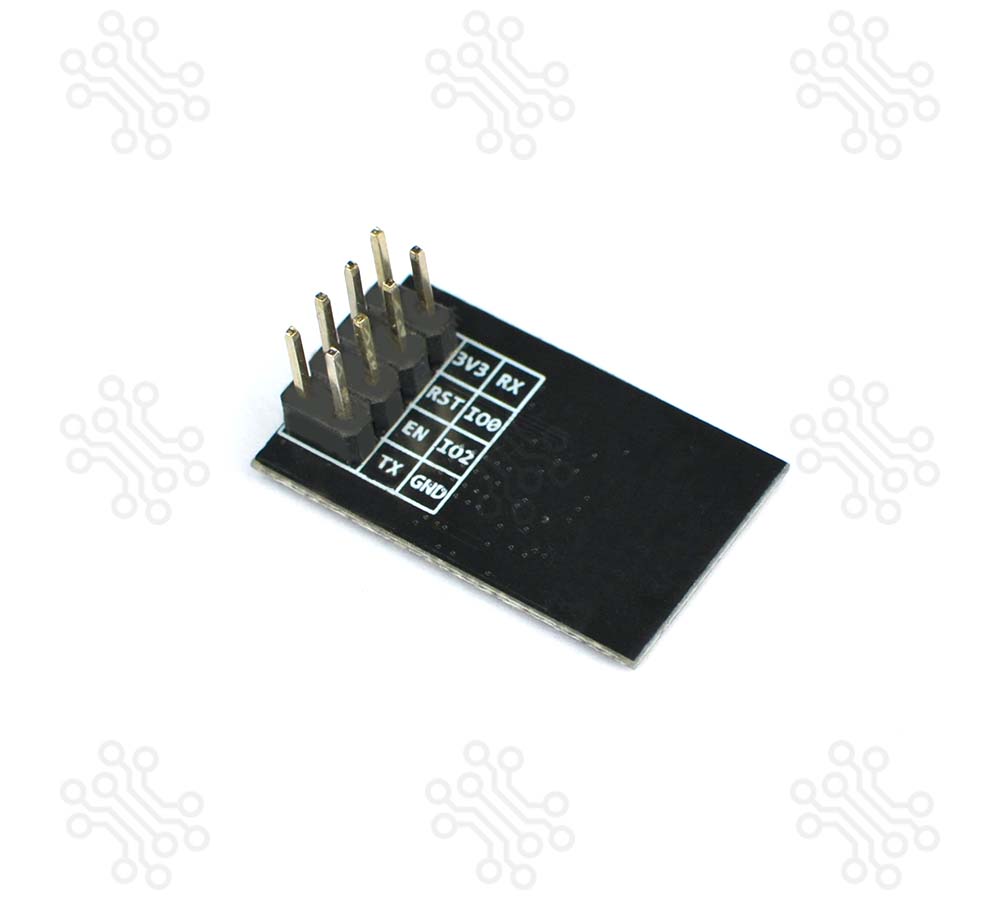

ESP01 ESP8266 Serial WiFi Transceiver Module Pinouts

Pin Name Safe to Use? Notes / Boot Behavior / Warnings
1 GND ✔️ Ground reference.
2 GPIO2 ✔️ Safe Usable as normal GPIO. Must be HIGH during boot. Avoid pull-down sensors. Works with LEDs, digital sensors, I²C pull-ups, etc.
3 GPIO0 ⚠️ Usable with restriction Must be HIGH to boot normally. LOW forces flash mode. Safe if device does not pull LOW during reset.
4 RX (GPIO3) ⚠️ Usable but risky Default UART RX. Receives boot messages. Can cause boot failure if pulled LOW by a sensor.
5 TX (GPIO1) ⚠️ Usable but risky Default UART TX. Sends boot logs. Usable as output after disabling UART. Must not be pulled LOW at boot.
6 CH_PD / EN ❌ Not GPIO Must stay HIGH for ESP to run. Never use as GPIO.
7 RST ❌ Not GPIO Active LOW reset. Keep pulled HIGH. Do not use as GPIO.
8 VCC (3.3V) ✔️ Requires a stable 3.3V supply with 200–250 mA capability.

Power Requirement

  • Operating voltage: 3.3V only
  • Peak current during Wi-Fi transmission: up to 200 mA
  • Not 5V tolerant — direct 5V connection will damage the module
  • When using a 5V MCU (Arduino Uno, Mega, etc.):
    • Use a voltage divider on the MCU TX → ESP01 RX line
    • ESP01 TX → MCU RX can be connected directly (3.3V logic is read as HIGH)

For stable operation, a dedicated 3.3V power supply is recommended unless using an ESP01 adapter board with onboard regulator and level shifting.


How to Program?

1. Using AT Firmware (Default)

The module comes with AT commands pre-installed, allowing direct configuration through any serial terminal at 115200 baud (Both NL & CR).

Example:

  • AT → Response: OK
  • AT+CWMODE=1 → Station (STA) mode
  • AT+CWLAP → Scan available Wi-Fi networks

2. Using Custom Firmware

To upload custom code (Arduino IDE, ESP8266 SDK, or Lua):

A quick search on Google will yield numerous online tutorials covering these platforms. Some notable examples include:


Application

The ESP01 ESP8266 module is ideal for:

  • IoT automation
  • Smart home devices
  • Wireless sensor networks
  • Wi-Fi-enabled relays and switches
  • Remote data logging
  • Serial-to-Wi-Fi communication
  • Cloud-connected monitoring systems
  • MQTT, HTTP, and TCP/IP applications

Packaging Detail

  • 1 × ESP01 ESP8266 Serial WiFi Transceiver Module 1MB Flash
