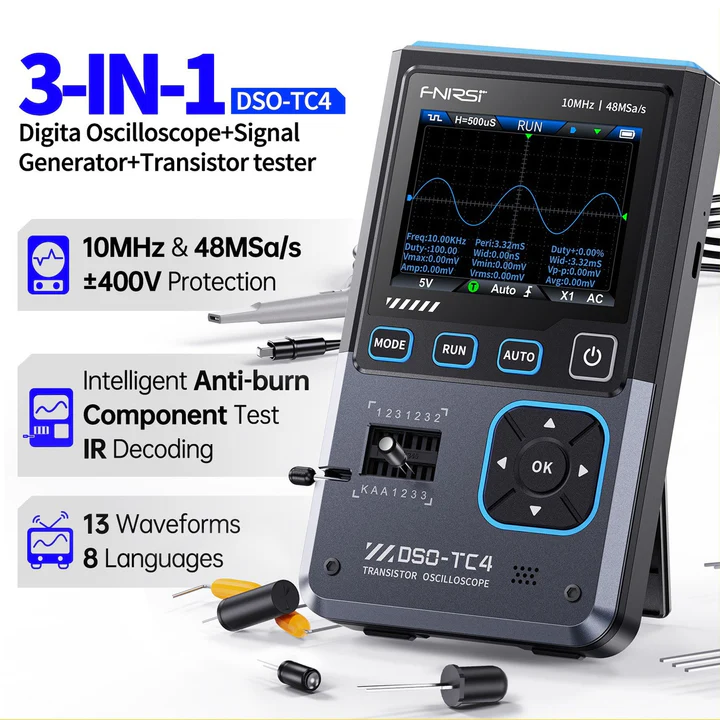

FNIRSI Digital Oscilloscope Transistor Tester Signal Generator DSO TC4 3 IN 1 in Bangladesh
FNIRSI Digital Oscilloscope Transistor Tester Signal Generator DSO TC4 3 IN 1 in Bangladesh

FNIRSI Digital Oscilloscope Transistor Tester Signal Generator DSO TC4 3 IN 1

SKU: 260419005380

Brand : FNIRSI

Warranty : 7 Days

৳ 8450.04

Add to Wishlist

Category: Measurement

Share:

Description of FNIRSI Digital Oscilloscope Transistor Tester Signal Generator DSO TC4 3 IN 1

DSO-TC4 is a multifunctional transistor oscilloscope launched by FNIRSI, which is comprehensive and practical, and is designed for the maintenance and R&D industries. It integrates an oscilloscope, a signal generator, and a transistor.



Features:

  • It integrates an oscilloscope, a signal generator, and a transistor tester
  • Oscilloscope functions: Sampling rate: 48MSa/s; Analog bandwidth: 10MHz; Voltage protection: ±400V
  • Waveform storage: supports screenshot saving and viewing, which is convenient for data analysis
  • Signal generator function: Supports 13 waveform outputs, frequency range 0-50KHz, output voltage adjustable 0-3V
  • Output parameters (frequency, amplitude, duty cycle) are adjustable, flexible to meet various needs
  • Transistor function: Automatically identify the type and pin arrangement of the tested component, simplify the operation process, and improve test efficiency
  • Diverse categories: Detect and analyze the performance and characteristics of semiconductor components such as transistors, diodes, triodes, field effect (FET), etc
  • Equipped with a 2.8-inch TFT color screen, the picture is clear and intuitive
  • Built-in high-capacity rechargeable lithium battery (1500mAh), standby time 4 hours
  • Small and light, suitable for mobile use

Specification:

  • Brand: FNIRSI
  • Model: DSO-TC4
  • Screen: 2.8-inch TFT Color Screen
  • Backlight: Brightness Adjustable
  • Power Supply: Type-C(5V/1A)
  • Battery: 3.7V/1500mAh
  • Languages: 中文、English、Deutsch、Português、にほんご、Español、한국인、Pyccкий
  • Size: 90*142*27.5mm
  • Product Weight: 186g

Oscilloscope:

  • Real-Time Sampling Rate: 48MSa/s
  • Analog Bandwidth: 10MHz
  • Input Impedance: 1MΩ
  • Coupling Mode: AC/DC
  • Test Voltage Range: 1:1 Probe: 80Vpp (+40V); 10:1 Probe: 800Vpp (+400V)
  • Vertical Sensitivity: 10mV/div~10V/div (X1 range)
  • Vertical Displacement: Adjustable with indication
  • Time Base Range: 50ns~20s
  • Trigger Mode: Auto/Normal/Single
  • Trigger Type: Rising edge, Falling edge
  • Trigger Level: Adjustable with indication
  • Waveform Freeze: Yes (HOLD function)
  • Automatic Measurement: Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle

Component Testing:

  • Transistor: Amplification factor “hfe”; Base-Emitter voltage “Ube”, Ic/Ie, Collector-Emitter reverse leakage current “Iceo”, Ices, Forward voltage drop of protection diode “Uf”
  • Diode: Forward voltage drop <5V (Forward voltage drop, Junction capacitance, Reverse leakage current)
  • Zener Diode: 0.01~4.5V (1-2-3 test zone) Forward voltage drop
  • JFET: Gate capacitance “Cg”, Drain current Id under “Vgs”, Forward voltage drop of protection diode “Uf”
  • IGBT: Drain current Id under Vgs, Forward voltage drop of protection diode Uf
  • MIOSTET: Threshold voltage “Vt”, Gate capacitance “Cg”, Drain-Source resistance “Rds”, Forward voltage drop of protection diode “Uf”
  • Unidirectional SCR: Trigger voltage <5V, Gate level
  • Bidirectional SCR: Trigger current <6mA
  • Capacitor: 25pF~1000μF, Loss factor “Vloss”
  • Resistor: 0.01Ω~50MΩ
  • Inductor: 10μH~1000μH, DC resistance
  • DS18B20: Temperature sensor, Pins: GND, DQ, VDD
  • DHT11: Temperature and humidity sensor, Pins: VDD, DATA, GND

Signal Generator:

  • Output Waveform: Supports 13 waveform outputs
  • Waveform Frequency: 0~50KHz
  • Square Wave Duty Cycle: 0~100%
  • Waveform Amplitude: 0.1V~3.0V



Package includes:

  • 1 x Host
  • 1 x P6100 High Voltage Probe
  • 1 x Adapter
  • 1 x Type-C Charging Cable
  • 3 x Test Hook
  • 1 x Ordinary Probe
