FNIRSI IPS3608 AC DC Intelligent Digital Control Power Supply in Bangladesh
FNIRSI IPS3608 AC DC Intelligent Digital Control Power Supply in Bangladesh

FNIRSI IPS3608 AC DC Intelligent Digital Control Power Supply

SKU: 250917005031

Brand: FNIRSI

Warranty: 15 Days

Model: N/A

৳ 18200.03

Add to Wishlist

Category: Measurement

Share:

Description of FNIRSI IPS3608 AC DC Intelligent Digital Control Power Supply

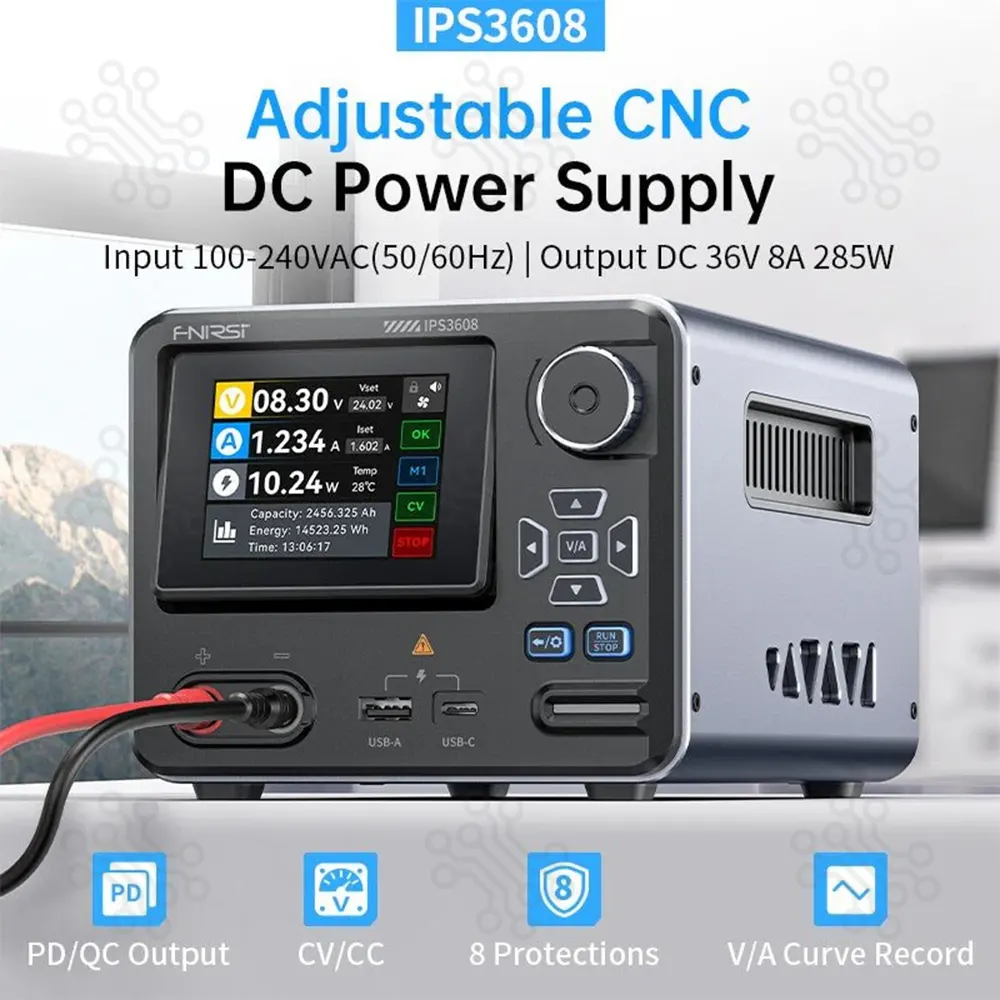

The IPS3608 is an advanced AC-DC intelligent digital control power supply that combines efficiency, precision, and safety. Unlike traditional power supplies, it adopts digital control technology for fast response, accurate parameter adjustment, and enhanced protection mechanisms. With a 2.8-inch color display, user-friendly interface, and multiple fast-charging protocols, the IPS3608 is ideal for professional electronics testing, research, development, and repair applications.


Key Features

  • Intelligent digital control technology for precise parameter adjustment and high stability.
  • Wide input voltage range (100–240V AC, 50/60Hz) suitable for global use.
  • 2.8-inch color display with adjustable backlight and multi-language support (中文 / English).
  • High accuracy: voltage resolution 0.01V, current resolution 0.001A.

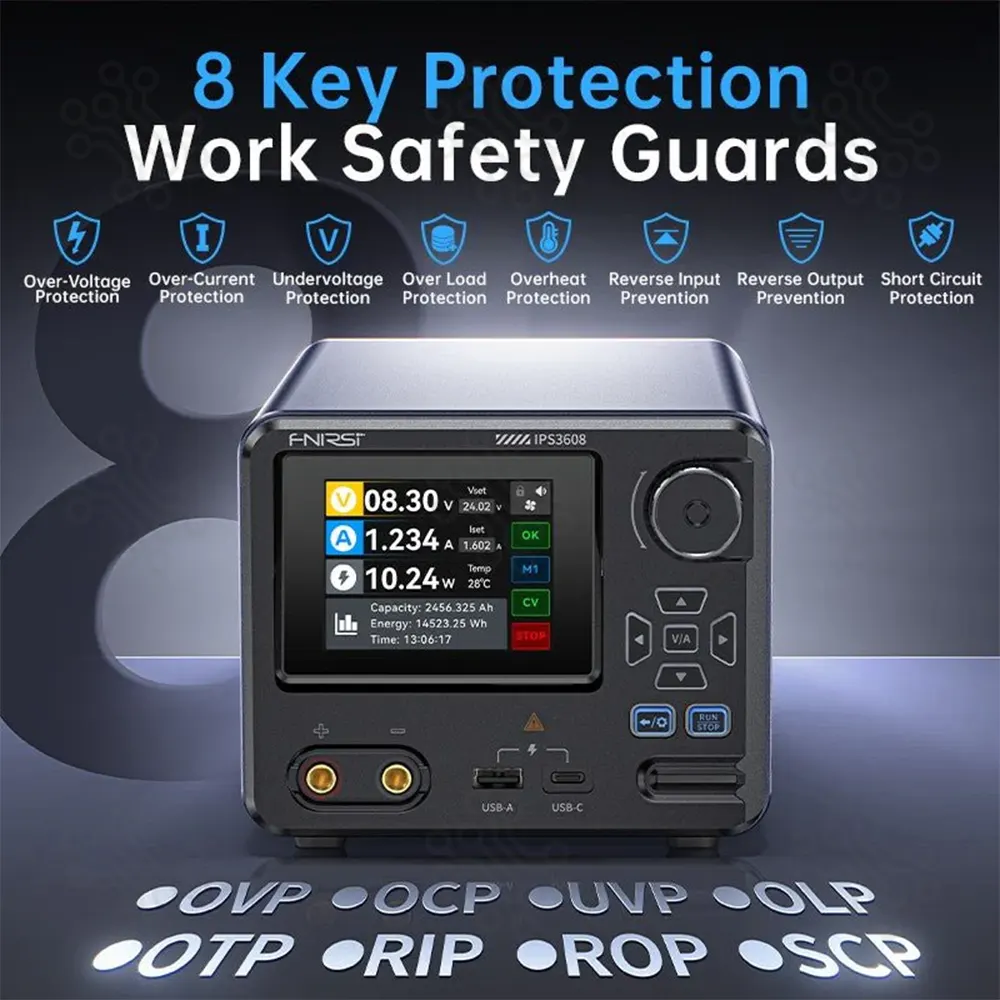

  • Multiple protection mechanisms: overvoltage, overcurrent, overpower, overtemperature, undervoltage, short circuit, input reverse, and output reverse injection protection.
  • Fast dynamic response with excellent load regulation performance.

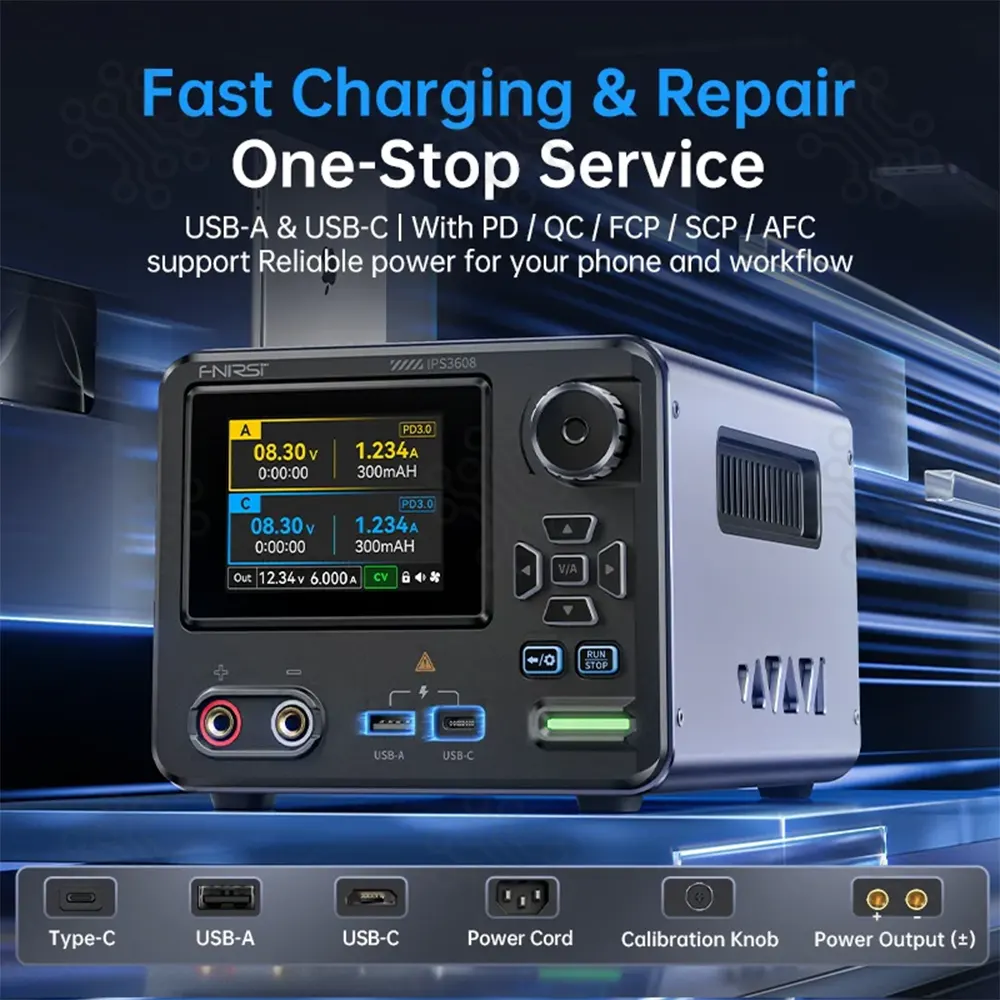

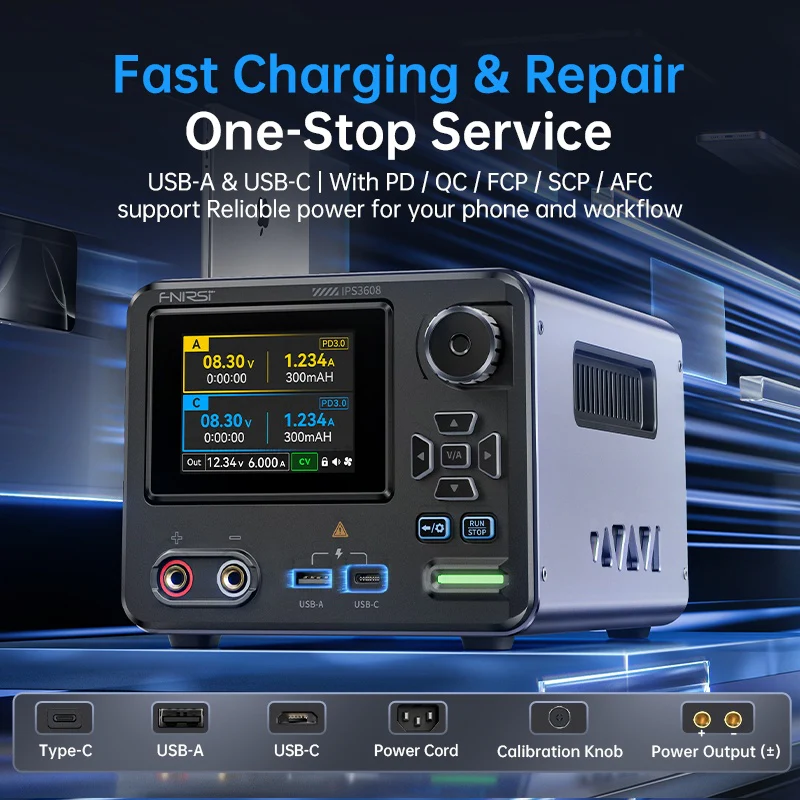

  • USB fast-charging protocols (USB-C PD3.0, USB-A QC2.0/3.0, Huawei FCP/SCP, AFC).
  • Compact and robust design, portable, and suitable for lab and field applications.

Specification

Basic Parameters

Parameter Details
Model IPS3608
Screen Material 2.8-inch color screen
Backlight Adjustable brightness
Language 中文, English
Product Size ≈138×214×115mm
Product Weight ≈1539g

Battery & Power Parameters

Parameter Details
Input Voltage Range 100–240V AC (50/60Hz)
Setting Resolution Voltage: 0.01V / Current: 0.001A
Readback Accuracy Voltage: ±(0.3% + 3 digits)
Current: ±(0.15% + 5 digits)
Output Voltage DC 0–36V
Output Current 0–8A
Output Power 0–285W
Load Regulation ±(0.2% + 2 digits)
Operating Environment -10℃~40℃, 0–75%RH
Protection Mechanisms Overvoltage, Overcurrent, Overpower, Overtemperature, Undervoltage, Short Circuit, Input Reverse, Output Reverse Injection

Fast-Charging Protocols

Port Supported Protocols
USB-C PD3.0
USB-A Huawei FCP, Huawei SCP, AFC, QC2.0, QC3.0

Applications

  • Laboratory testing and measurement
  • Electronics R&D and prototyping
  • Powering and testing electronic circuits and devices
  • Repair and maintenance of electronic equipment
  • DIY electronics projects

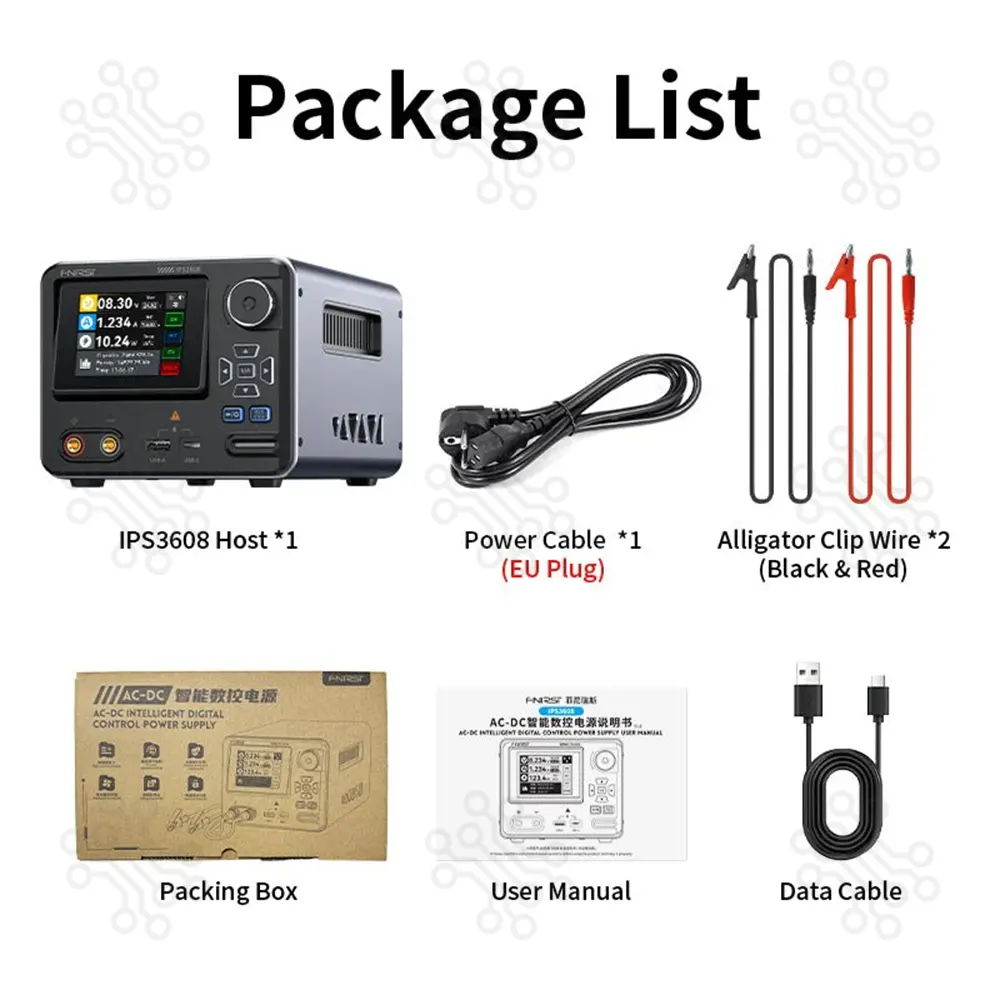

Packaging Details

  • IPS3608 Intelligent Digital Control Power Supply × 1
  • Power Cable × 1 (EU Plug)
  • Alligator Clip Wires × 2 (Black & Red)
  • Data Cable × 1
  • User Manual × 1
  • Packing Box × 1

Document


FNIRSI IPS3608 Intelligent Digital Control Power Supply - Frequently Asked Questions

What is the IPS3608 Intelligent Digital Control Power Supply used for?
The IPS3608 is designed for laboratory testing, electronics R&D, circuit prototyping, equipment repair, and DIY electronics projects. It provides precise DC voltage and current output with digital control.

What is the maximum output of the IPS3608 power supply?
The IPS3608 provides an output of 0–36V DC, 0–8A current, and up to 285W power.

How accurate is the IPS3608 in voltage and current output?
It offers a resolution of 0.01V for voltage and 0.001A for current. The readback accuracy is ±(0.3% + 3 digits) for voltage and ±(0.15% + 5 digits) for current.

Does the IPS3608 support fast charging for devices?
Yes, it supports multiple fast-charging protocols including USB-C PD3.0, QC2.0, QC3.0, Huawei FCP, Huawei SCP, and AFC.

What protection features does the IPS3608 power supply include?
It comes with multiple protections: overvoltage, overcurrent, overpower, overtemperature, undervoltage, short circuit, input reverse connection, and output reverse injection.

What type of screen does the IPS3608 have?
It has a 2.8-inch color screen with adjustable backlight brightness and multi-language support (Chinese/English).

Is the IPS3608 portable?
Yes, with dimensions of 138×214×115mm and a weight of ≈1539g, it is compact and portable.
