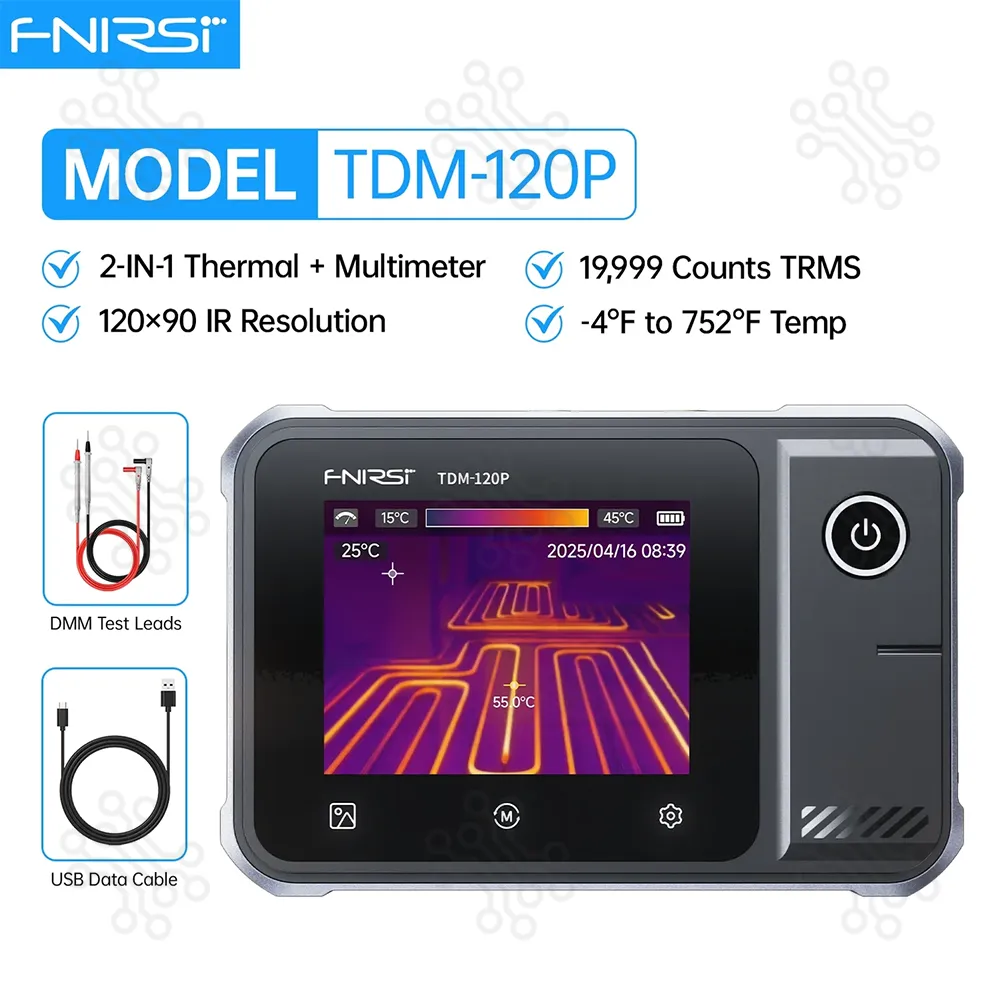

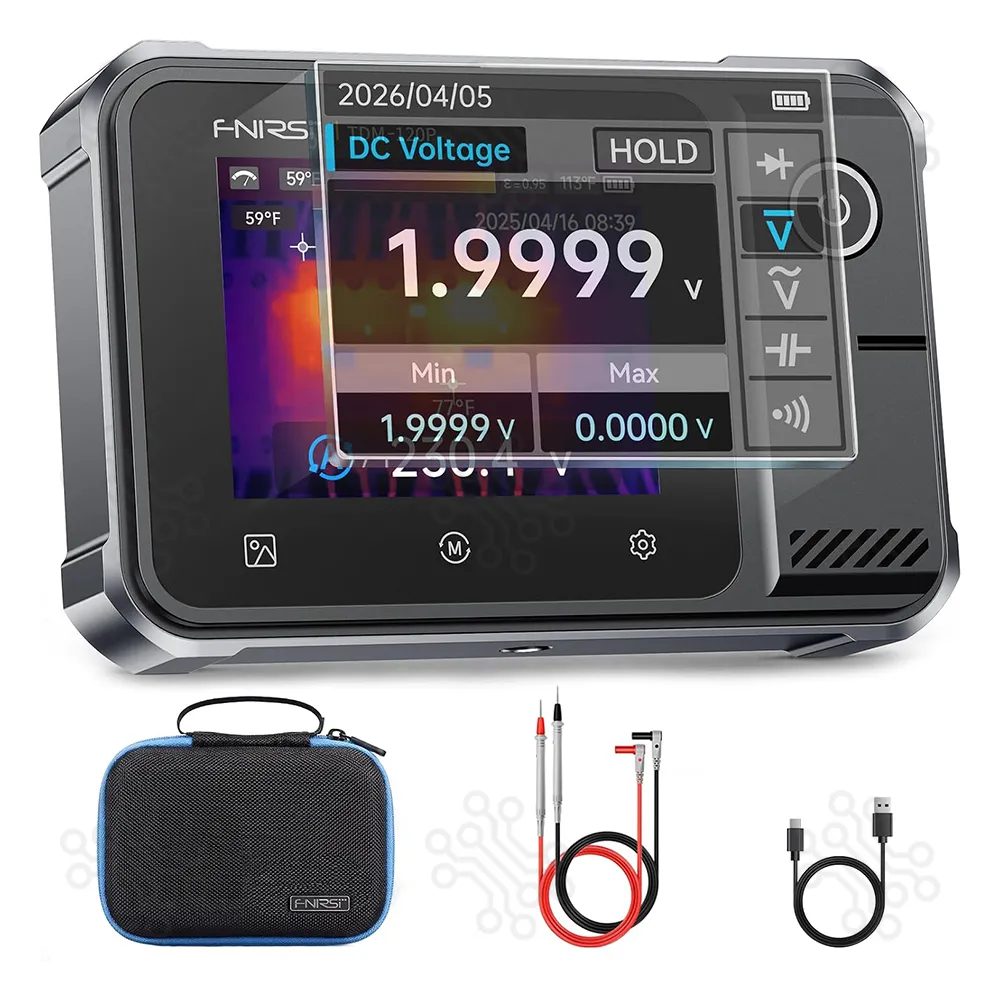

The FNIRSI® TDM-120P Thermal Imaging Multimeter is a professional 2-in-1 testing instrument that combines a 120×90 infrared thermal imaging camera with a 19999-count True RMS digital multimeter. Designed for electrical troubleshooting, industrial maintenance, HVAC inspection, automotive diagnostics, and equipment maintenance, it provides fast thermal visualization alongside accurate electrical measurements.
With a 2.8-inch touchscreen display, adjustable emissivity, automatic hot/cold spot tracking, and comprehensive multimeter functions, the TDM-120P enables technicians to locate faults quickly and perform reliable electrical testing using a single portable device.

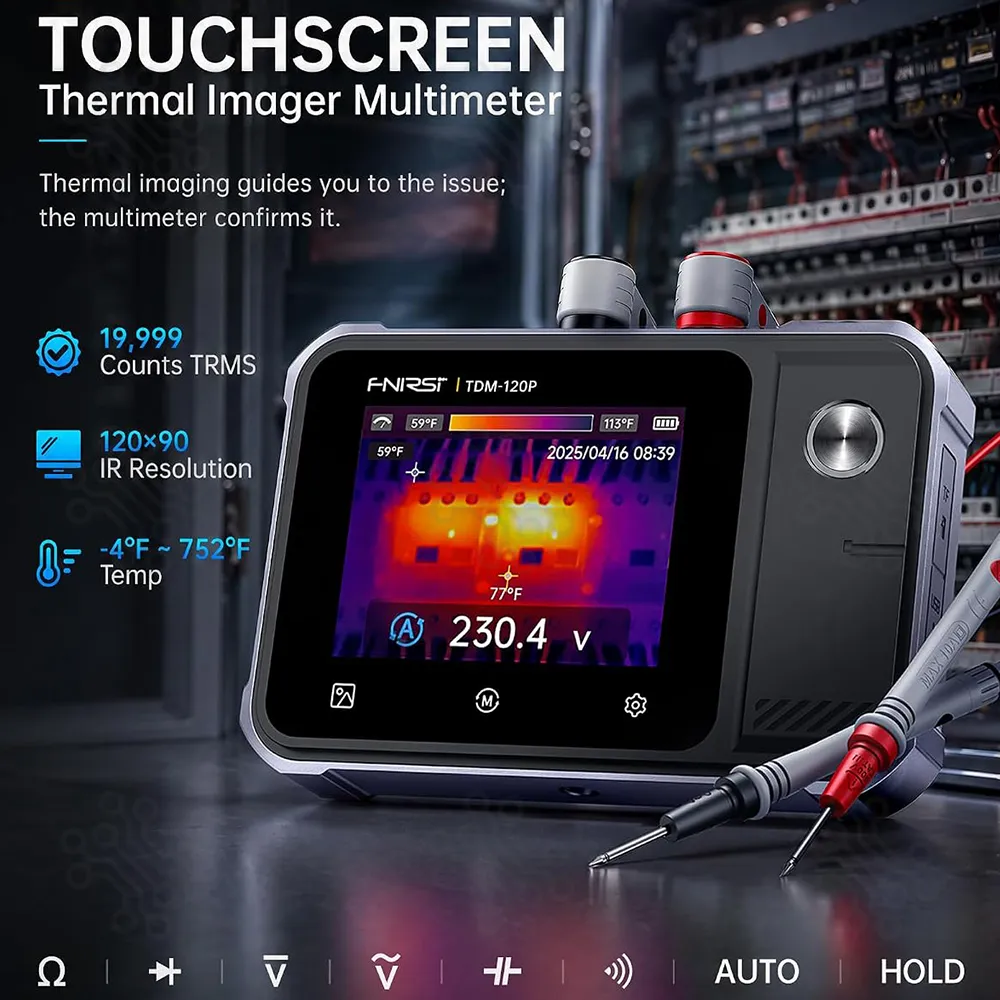

The FNIRSI TDM-120P combines a professional thermal imaging camera with a True RMS digital multimeter in one compact device. It allows technicians to detect heat-related faults while performing accurate electrical measurements, reducing the need for multiple tools.

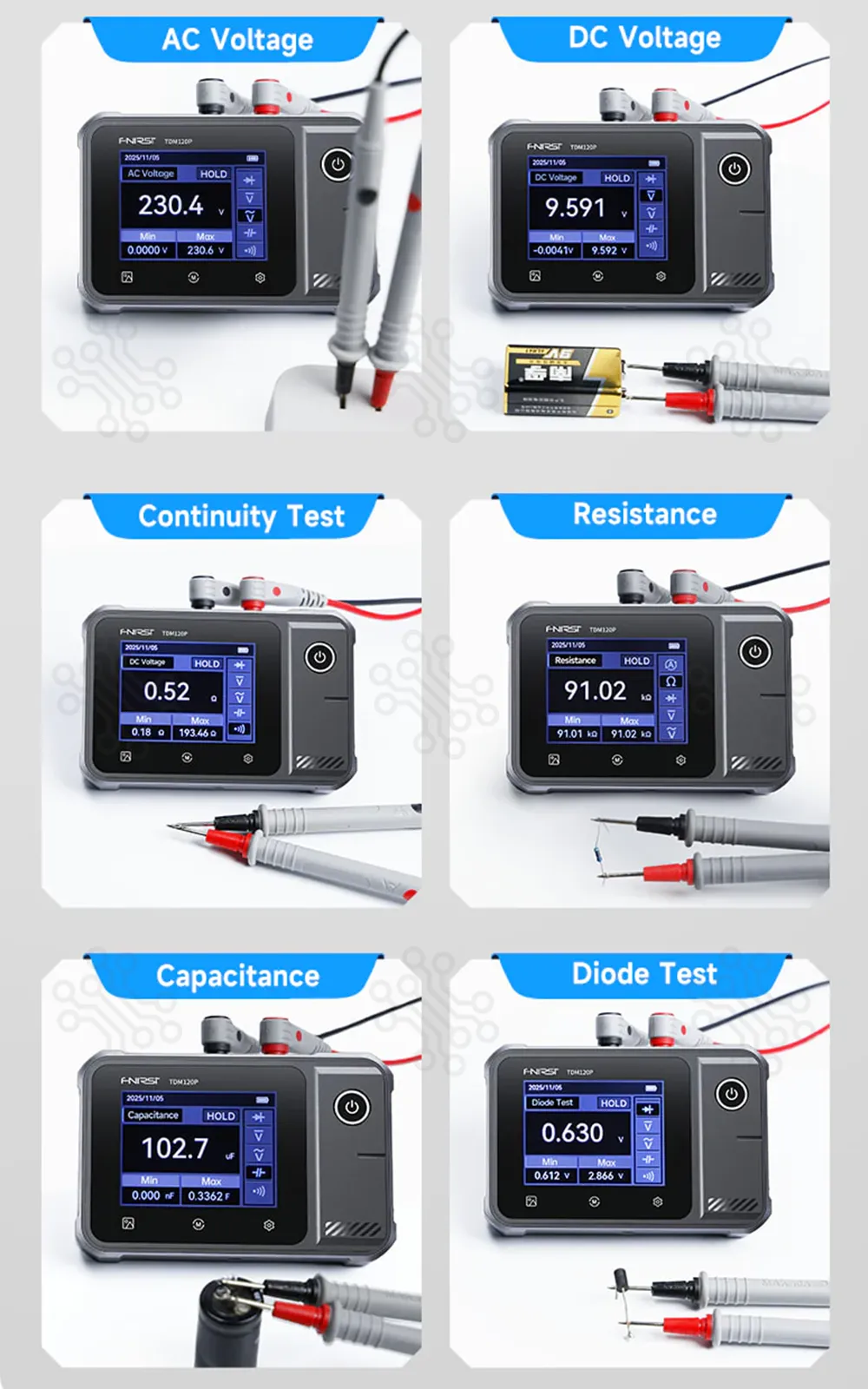

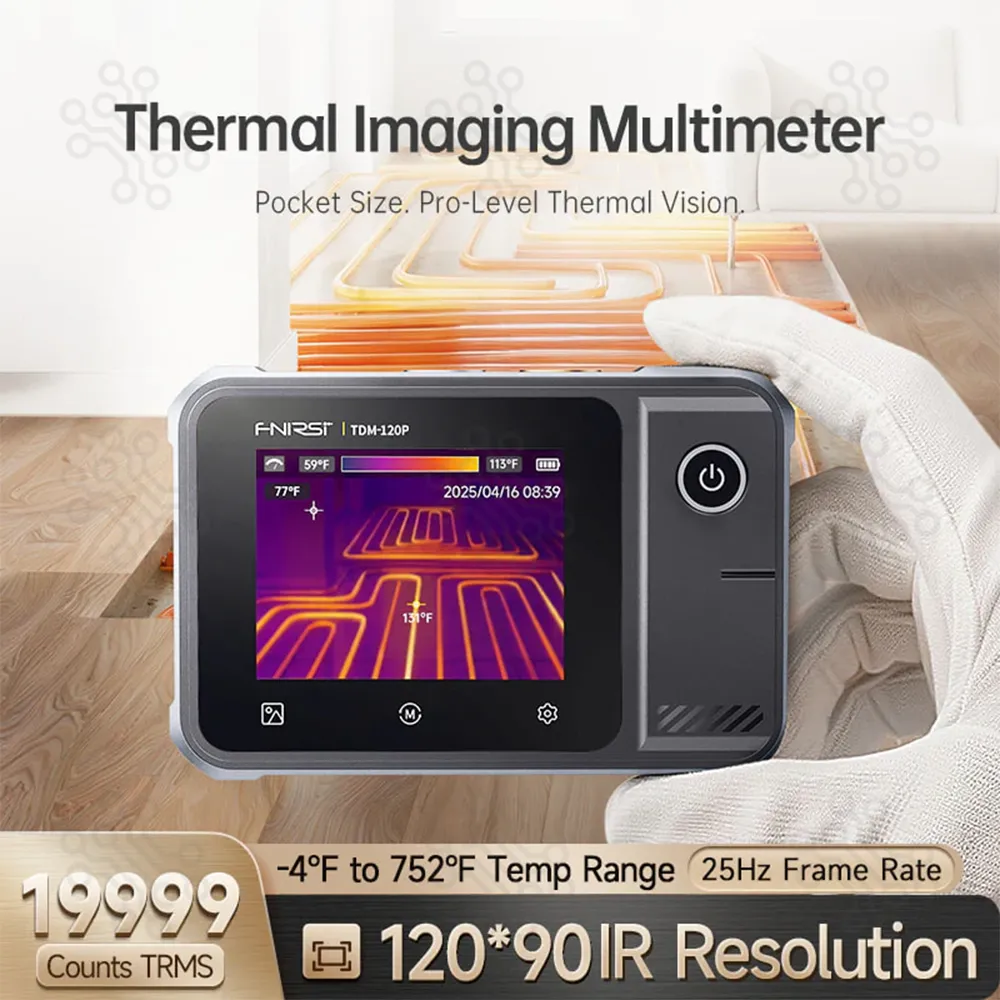

Equipped with a 120 × 90 infrared detector, the TDM-120P captures detailed thermal images for fast fault detection. It helps identify overheating components, loose electrical connections, insulation problems, and hidden temperature anomalies. The built-in 19999-count True RMS multimeter accurately measures AC/DC voltage, resistance, capacitance, diode, and continuity. It delivers reliable readings even when testing non-linear electrical loads.

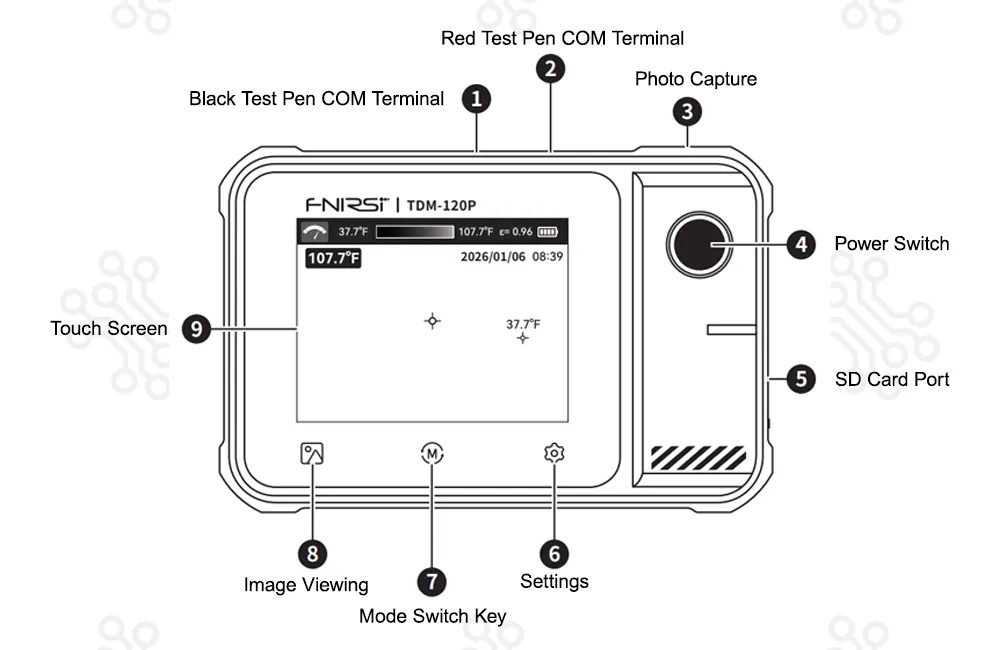

The large touchscreen provides a clear view of thermal images and measurement data while making navigation quick and intuitive. The responsive interface improves efficiency during field inspections.

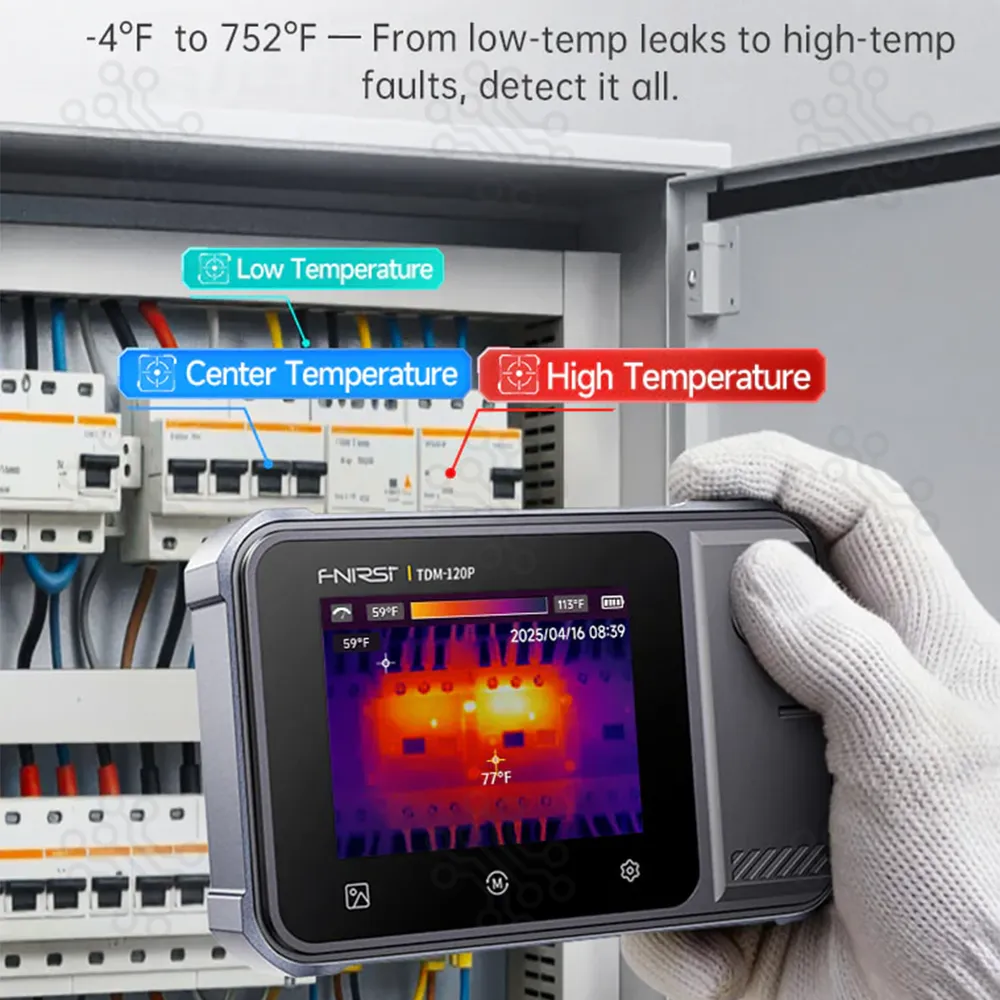

The FNIRSI TDM-120P features a -20°C to 400°C temperature measurement range with automatic hot and cold spot tracking, allowing users to quickly identify abnormal temperature variations without manual analysis. This combination makes inspections faster, more accurate, and ideal for electrical maintenance, industrial equipment, HVAC systems, automotive diagnostics, and building inspections.

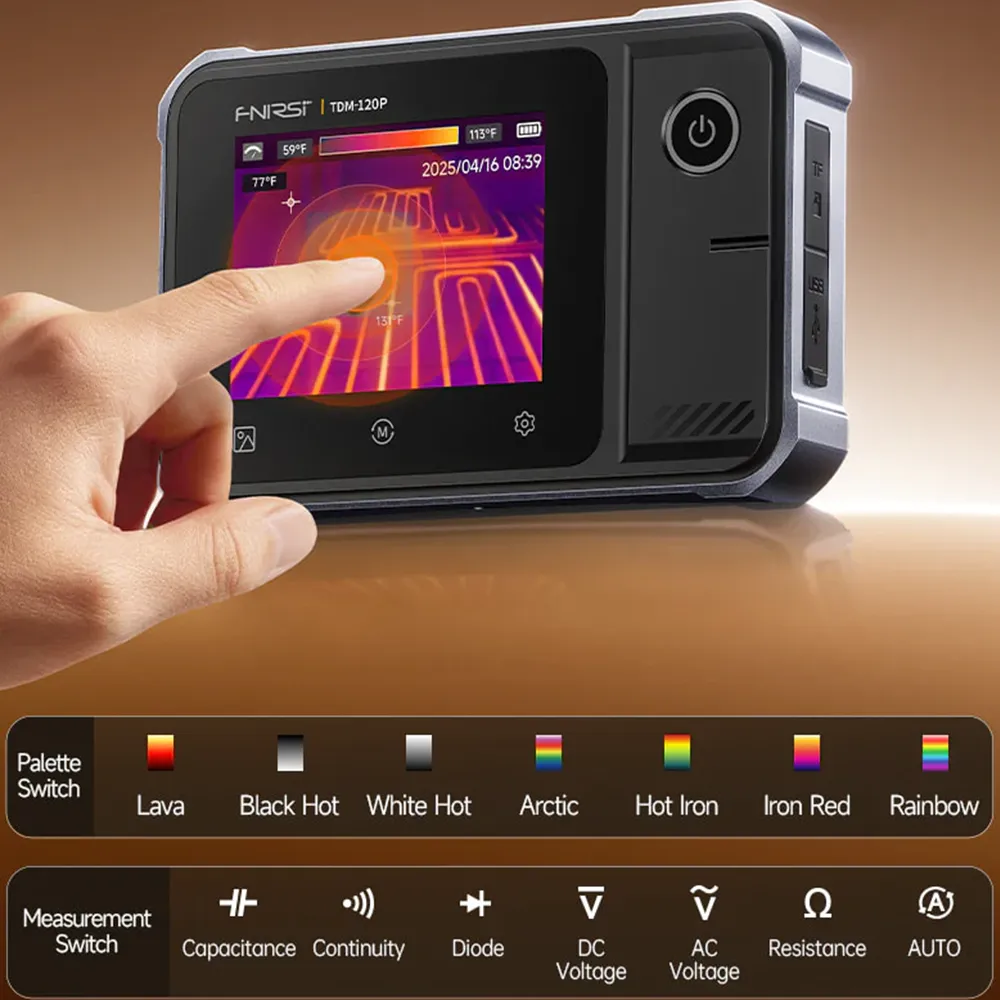

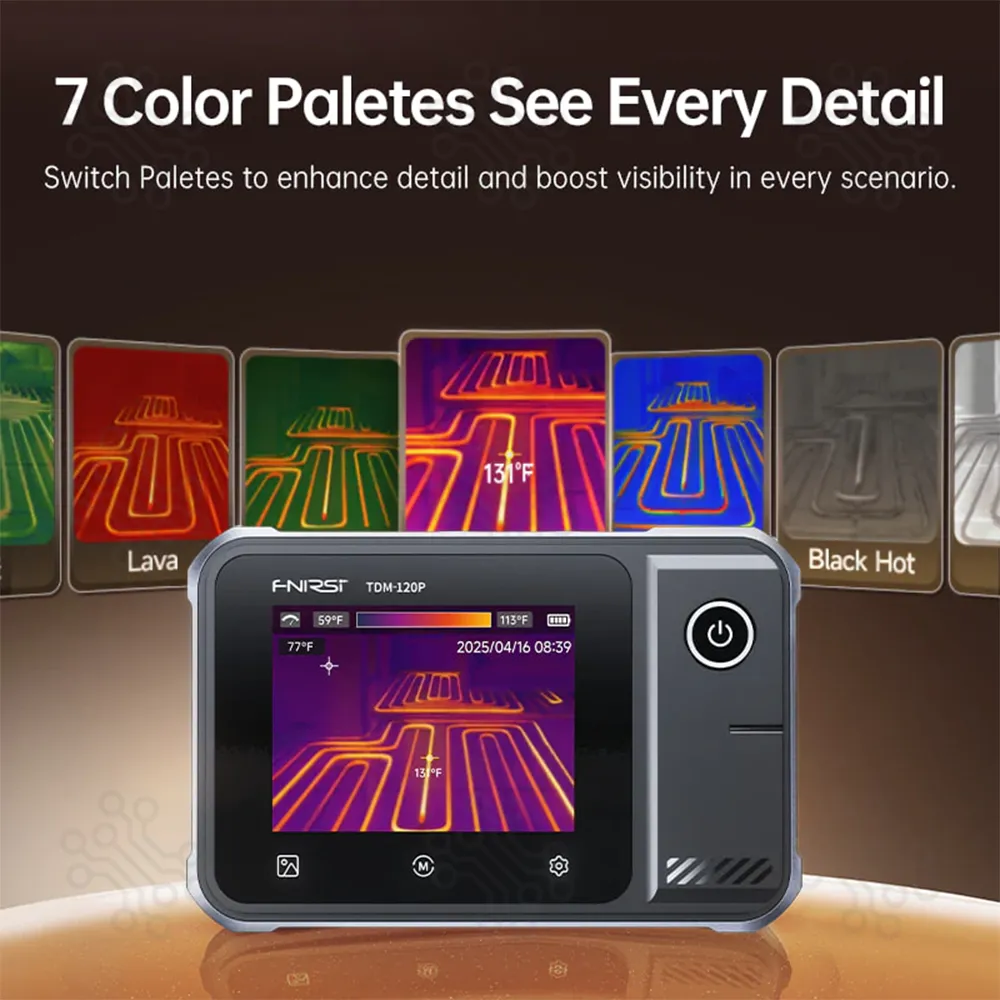

Featuring adjustable emissivity from 0.01 to 1.00 and seven professional color palettes, the TDM-120P delivers more accurate thermal analysis across different surface materials and inspection environments.

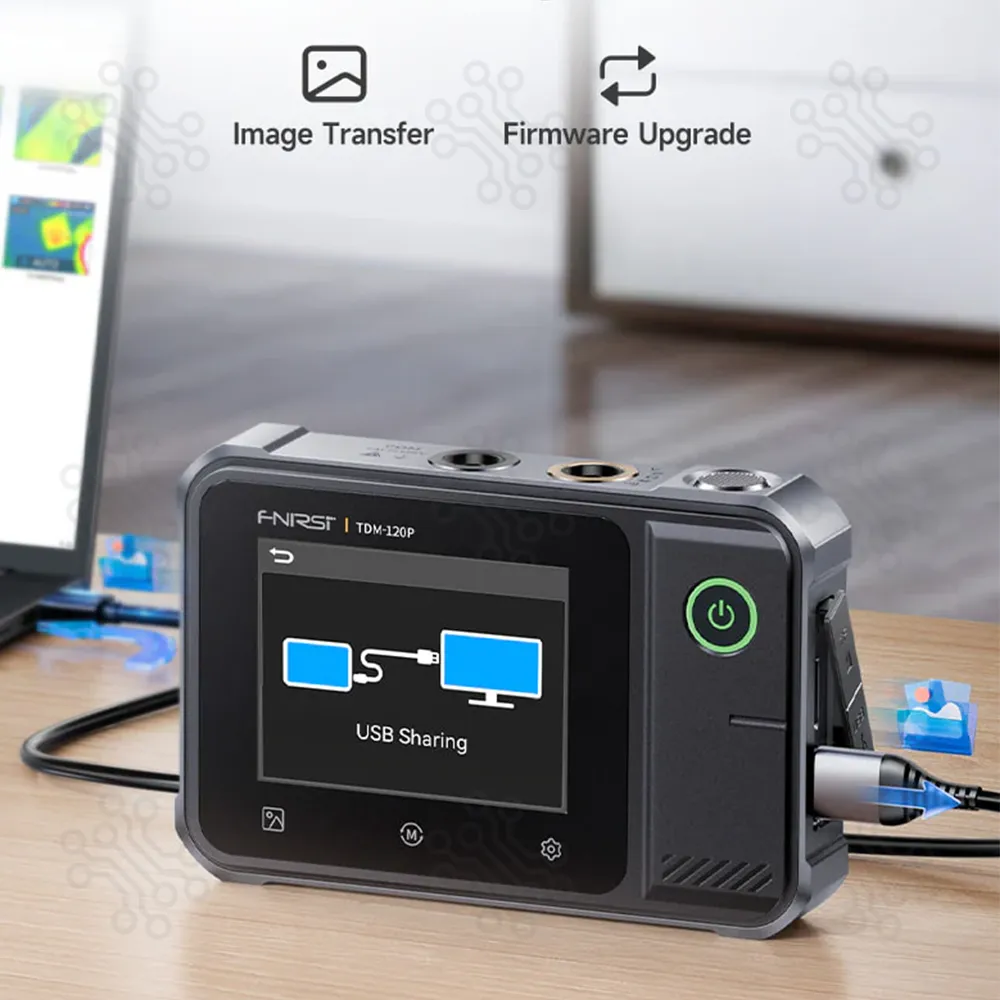

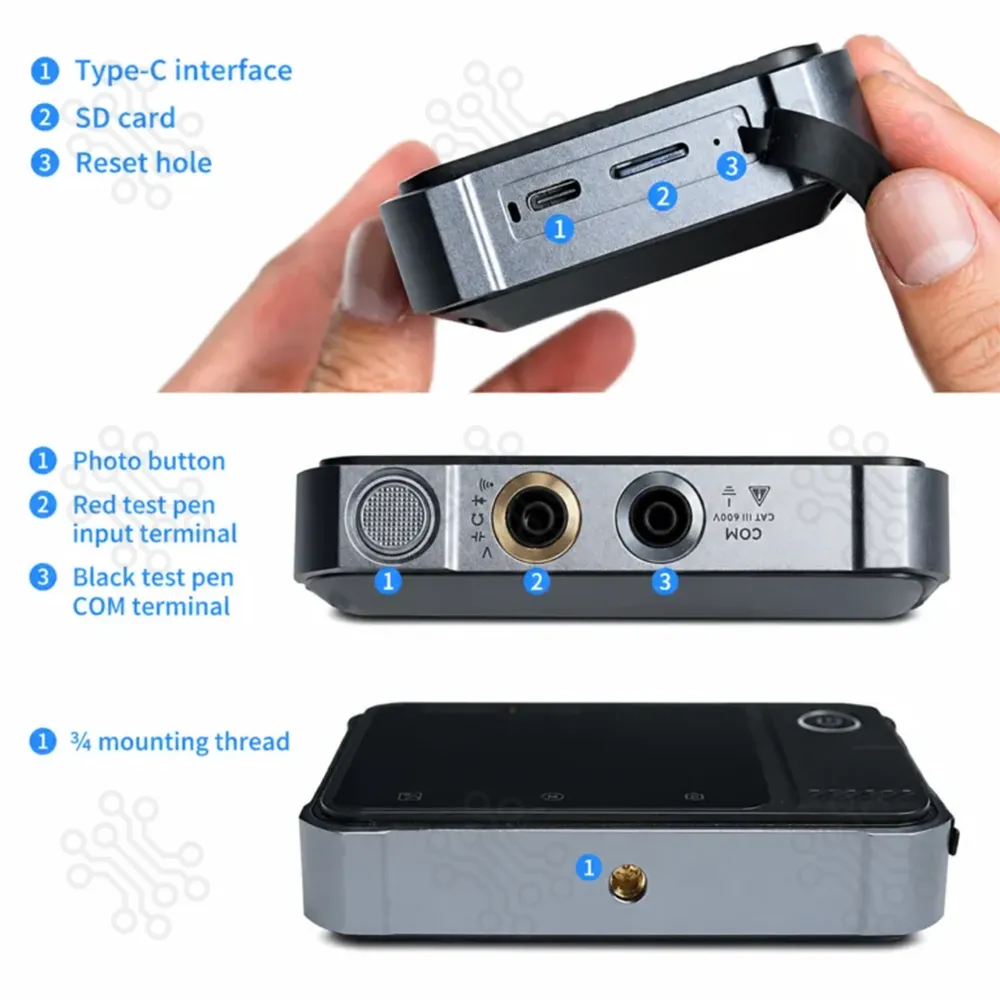

Capture inspection images with a single touch and transfer them to a computer via USB Type-C. This makes documentation, reporting, and maintenance records easier and more efficient.
| Specification | Details |
|---|---|
| Model | TDM-120P |
| Infrared Resolution | 120 × 90 Pixels |
| Detector Type | Vanadium Oxide |
| Display | 2.8-inch LCD Touchscreen |
| Field of View | 50° |
| Frame Rate | ≤25Hz |
| Thermal Sensitivity | <60mK |
| Temperature Range | -20°C to 400°C (-4°F to 752°F) |
| Accuracy | ±2°C or ±2% of Reading (Maximum Value) |
| Temperature Unit | °C / °F |
| Emissivity | Adjustable (0.01–1.00) |
| Temperature Display | Center Point + Automatic High/Low Temperature Tracking |
| High/Low Temperature Alarm | Supported |
| Color Palettes | 7 |
| Language | Chinese / English |
| Category | Parameter | Specification |
|---|---|---|
| DC Voltage | Measurement Range | 1.9999V / 19.999V / 199.99V / 1000V |
| Accuracy | ±(0.5% + 3) | |
| AC Voltage | Measurement Range | 1.9999V / 19.999V / 199.99V / 750.0V |
| Accuracy | ±(1% + 3) | |
| Resistance | Range | 19.999MΩ / 1.9999MΩ / 199.99kΩ / 19.999kΩ |
| Accuracy | ±(0.5% + 3) | |
| Range | 1.9999kΩ / 199.99Ω | |
| Accuracy | ±(2.0% + 3) | |
| Capacitance | Range | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF |
| Accuracy | ±(2.0% + 5) | |
| Range | 9.999mF / 99.99mF | |
| Accuracy | ±(5.0% + 20) | |
| Additional Multimeter Functions | True RMS | Yes |
| Diode Test | Yes | |
| Continuity Test | Yes | |
| Data Hold | Yes | |
| MAX/MIN Measurement | Yes | |
| Display & User Interface | Screen | 2.8-inch LCD Touchscreen |
| Color Palettes | 7 Modes | |
| Image Saving | Supported | |
| USB Data Export | Supported | |
| Brightness Adjustment | Supported | |
| Auto Power Off | 5 / 10 / 20 Minutes / OFF |
The FNIRSI TDM120P features a 19,999-count True RMS digital multimeter for accurate electrical testing. It supports essential measurement functions, including AC/DC voltage, resistance, capacitance, diode testing, and continuity testing, making it a reliable tool for electrical troubleshooting, maintenance, and professional diagnostics.
The FNIRSI TDM-120P combines professional thermal imaging with accurate True RMS multimeter capabilities in one compact handheld device. Its high-resolution infrared imaging, touchscreen operation, automatic hot and cold spot tracking, wide temperature measurement range, and comprehensive electrical testing functions make it an excellent solution for engineers, electricians, maintenance technicians, HVAC professionals, and industrial inspectors who require efficient fault detection and reliable diagnostic performance.
