The NEO-M8N GPS module is one of the most popular GPS receivers used with microcontrollers in navigation and tracking projects. It can get data about latitude, longitude, altitude, and time. Overcoming the limitations of traditional GPS modules, it simultaneously receives signals from major global satellite systems such as GPS, GLONASS, and Galileo.
Inside this module lies a powerful 72-channel engine capable of updating its location 10 times per second. This extraordinary speed makes it far more reliable and ensures smoother tracking compared to any previous versions. For sensitive projects like drones, robotics, or autonomous vehicles that demand peak precision and global performance, the NEO-M8N is the ultimate solution.
The module includes a backup battery, built-in EEPROM, and an LED indicator that blinks when a position fix is achieved. People you'll be glad to know that, the NEO-M8N and NEO-M8J include an internal flash that allows future firmware updates.
| Parameter | Details |
|---|---|
| Model | Ublox NEO-M8N |
| Receiver Type | 72-channel u-blox M8 engine |
| Time Pulse Accuracy | RMS 99% (30–60 ns) |
| Frequency Range | 2.4 GHz – 2.5 GHz |
| Dynamics Limit | ≤ 4g |
| Operational Altitude | 50,000 m |
| Velocity Limit | 500 m/s |
| Input Supply Voltage | 5V DC |
| Accuracy | GPS: 2.5m / GLONASS: 4m / BeiDou: 3m / Galileo: 3m |
| Main Chip | u-blox NEO-M8N |
| Default Baud Rate | 9600 |
| Sensitivity (dBm) | Tracking: -167 / Reacquisition: -160 / Cold Start: -148 / Hot Start: -157 |
| Navigation Update Rate | 10 Hz |

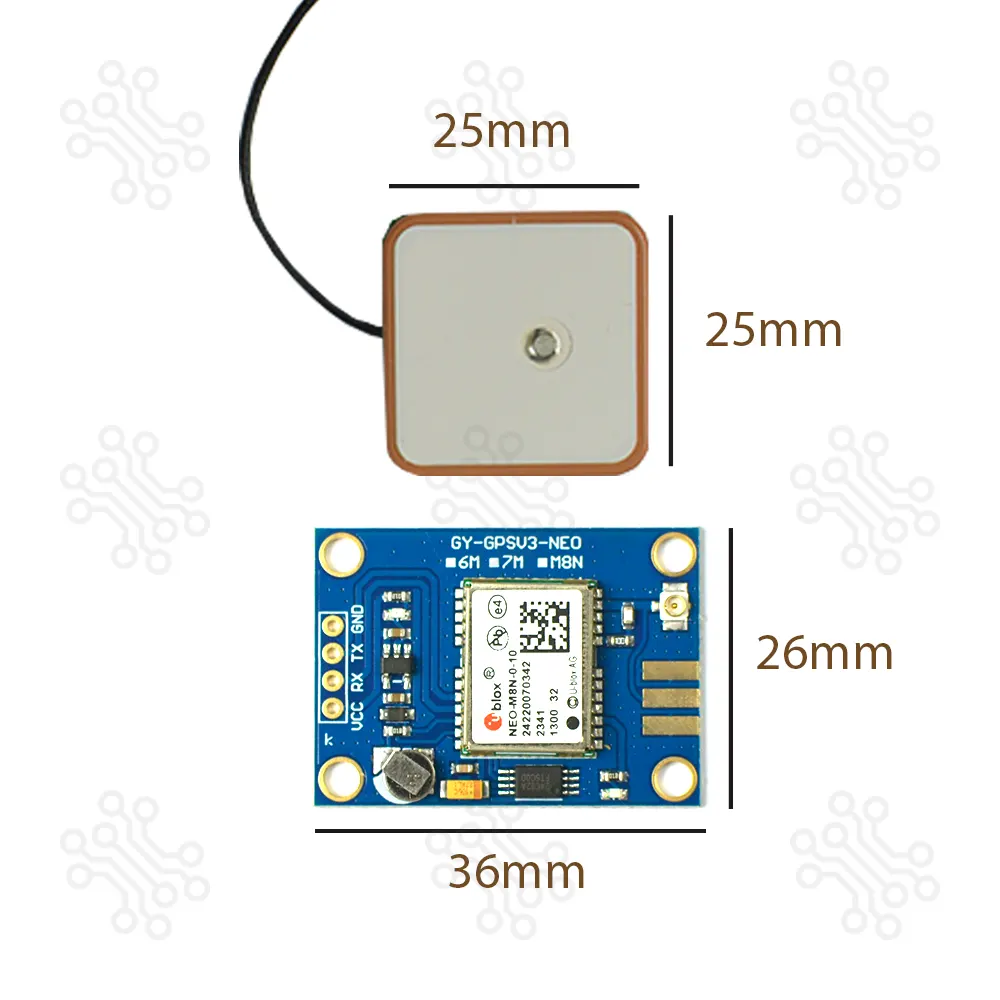

| Dimensions | Antenna: 25×25×9 mm / Module: 26×36×4 mm |
| Weight | 18 g |
Power Supply
The NEO-8M chip needs between 2.7 and 3.6 volts to operate. Fortunately, the module includes a Ultra-Low Dropout 3.3V regulator. Even better, the logic pins on the module are 5V-tolerant, which means you can connect it directly to an Arduino or any other 5V microcontroller without needing a level shifter.
The module uses about 45mA of current during normal operation. However, it also has a feature called Power Save Mode (PSM), which lets it turn off parts of the chip when they’re not needed. In PSM, it can use as little as 11mA, making it perfect for battery-powered devices like GPS watches or trackers.

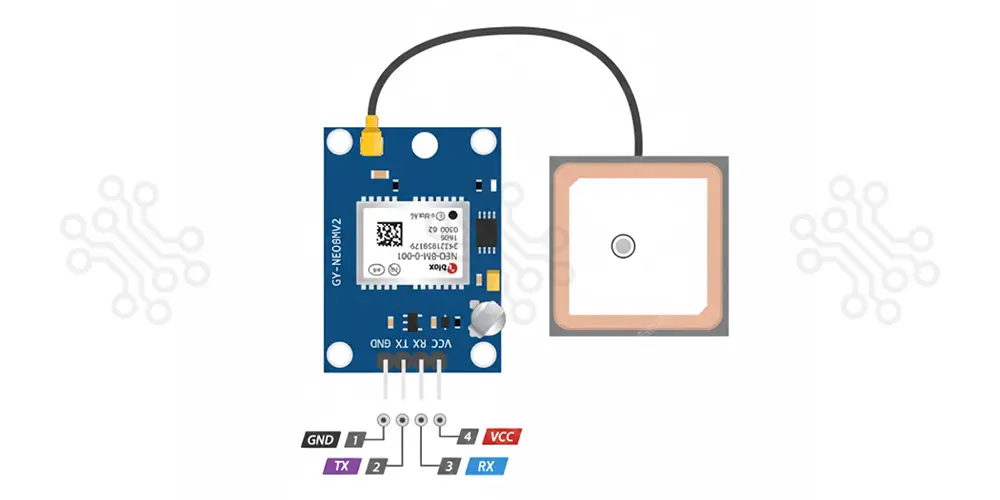

The NEO-8M GPS module has four pins:

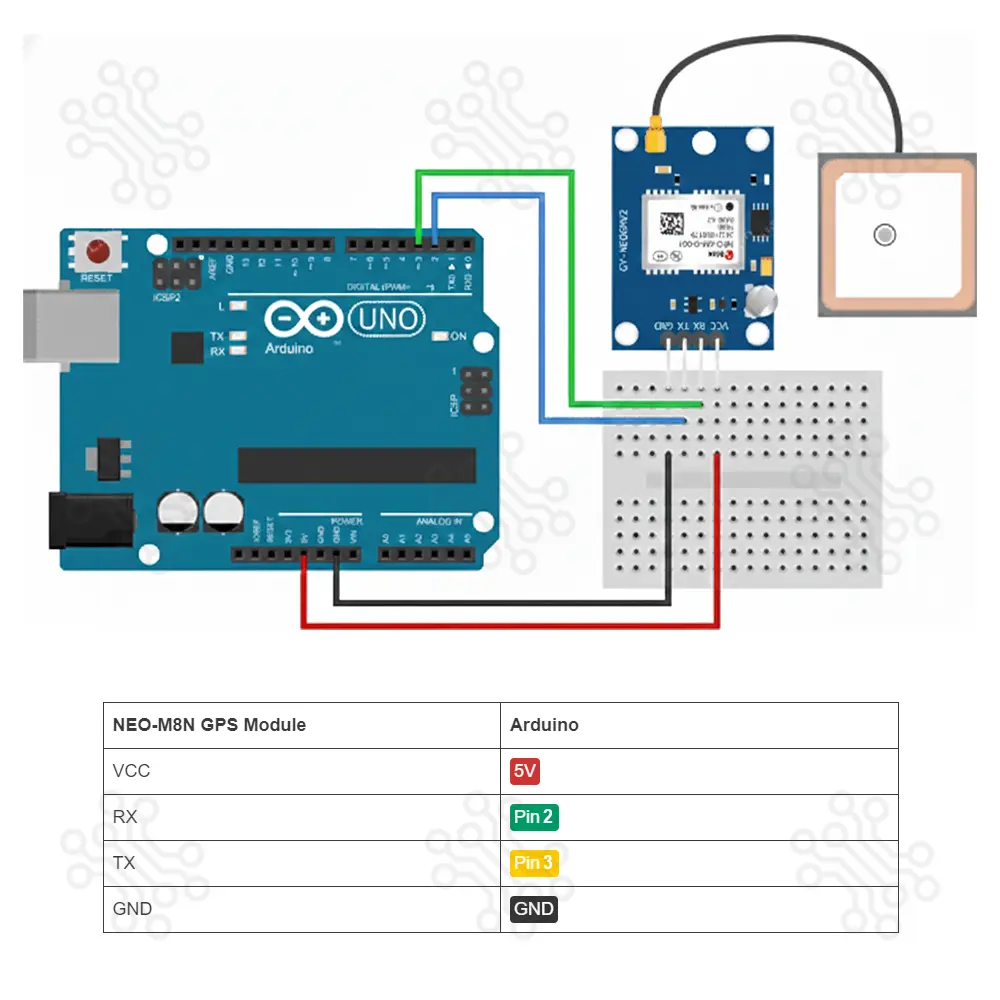

Setting up your NEO-8M GPS module is quick and easy. Follow these simple steps to get started:
Pro Tip: Always use the module outdoors or near a window for the fastest satellite lock!
