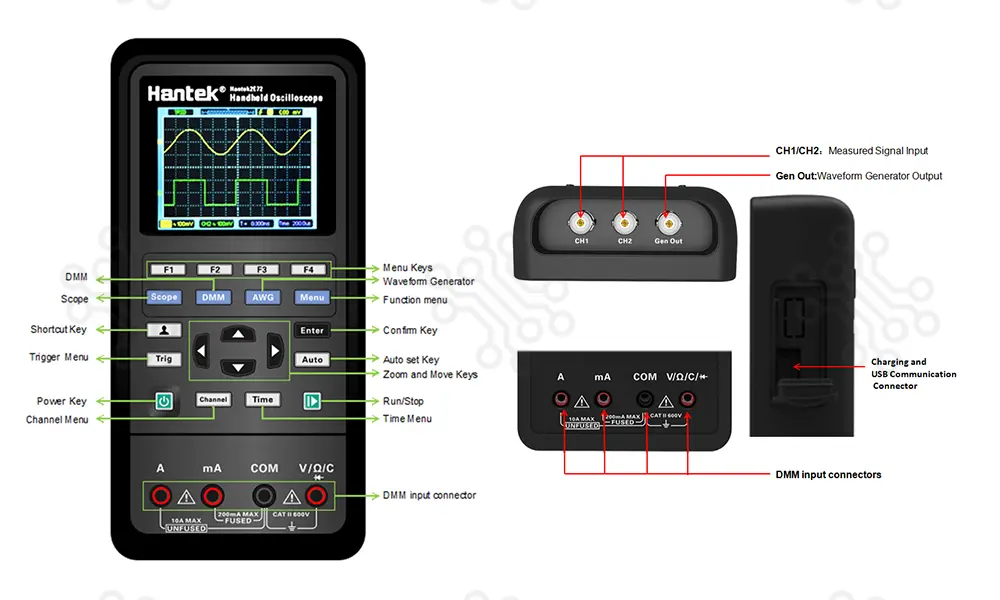

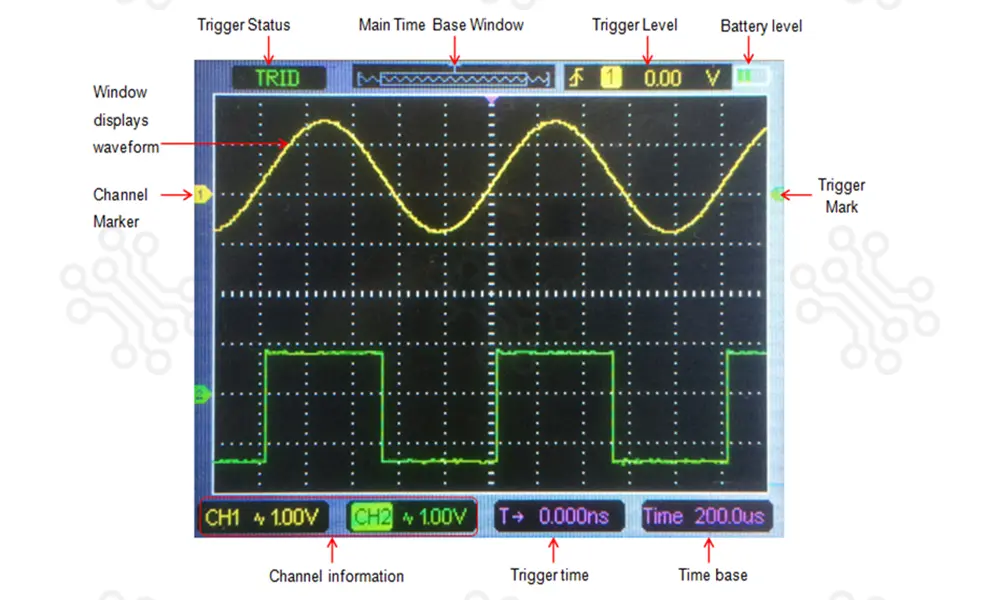

The Hantek 2D72 is a versatile 3-in-1 handheld tester that combines a 70MHz dual-channel oscilloscope, an arbitrary waveform generator, and a high-precision digital multimeter. Its minimalist keyboard and 320x240 TFT color screen make signal analysis intuitive and clear, serving as an essential "right-hand" tool for both professional engineers and beginners.

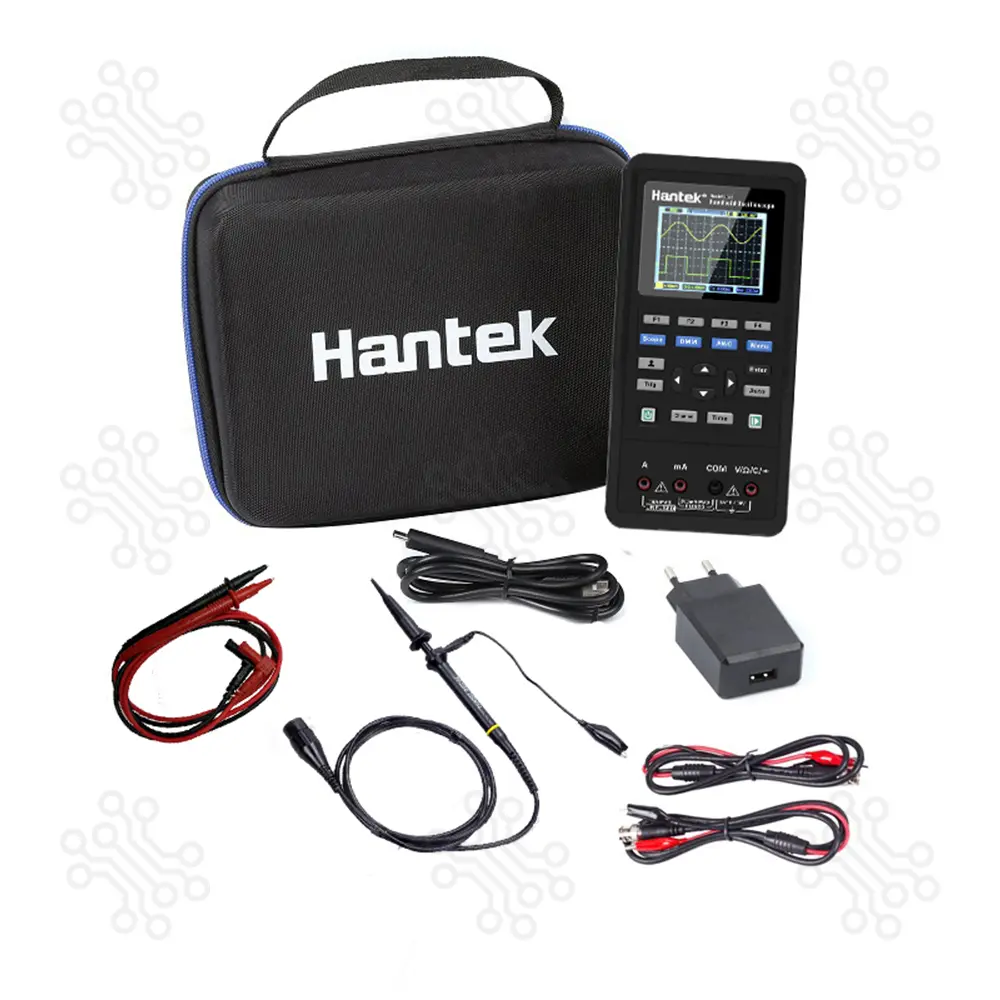

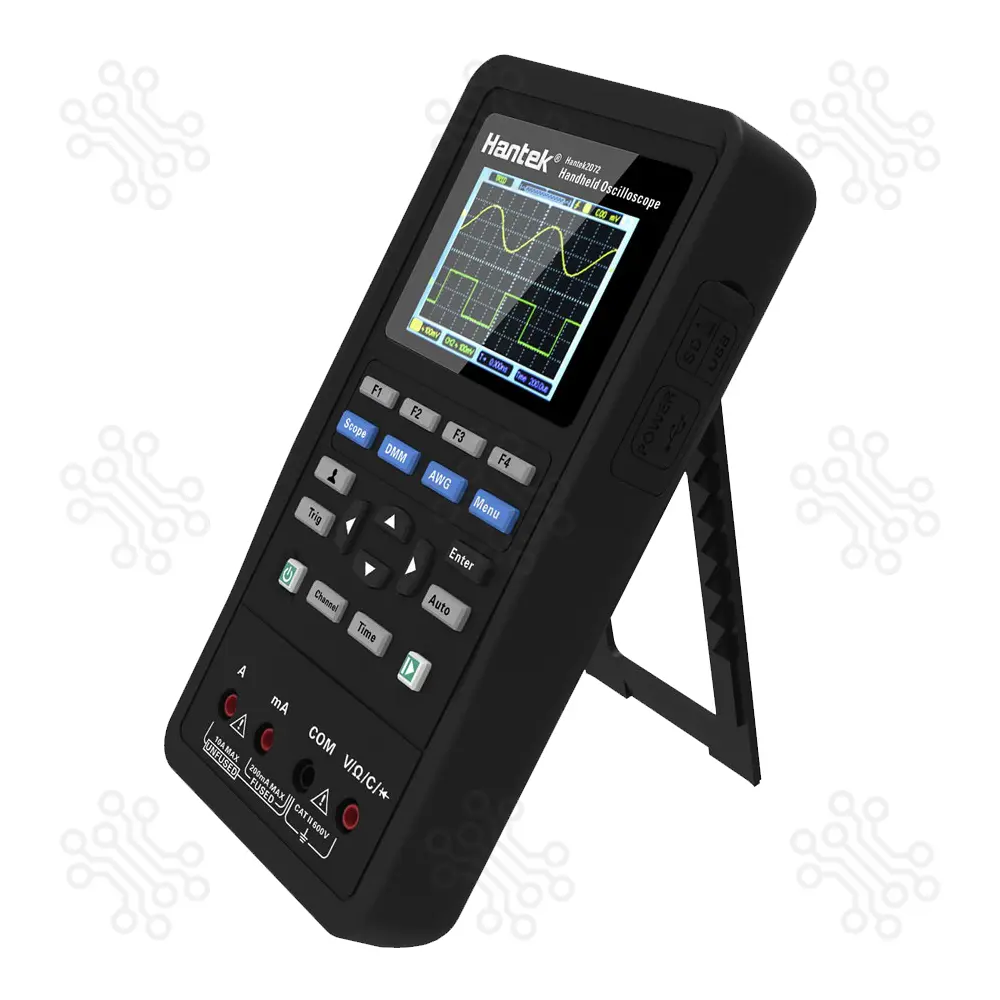

Designed for portability, its compact unibody casing allows for comfortable one-handed operation and features an integrated 45-degree adjustable stand for flexible viewing. The device includes an auto-scale function for quick testing and comes fully equipped with two oscilloscope probes and two BNC-to-alligator clip lead sets, ensuring you are ready for fieldwork immediately.
Equipped with a high-capacity 5200mAh lithium battery, the unit offers an impressive 24-hour cruising ability and up to two months of standby on a single 2-hour Type-C charge. This ultra-low-power design, combined with PC software connectivity and a replaceable 18650 battery system, delivers a professional-grade testing station in a rugged, pocket-sized format.
This 3-in-1 multi-purpose device combines an Oscilloscope, Waveform Generator, and Digital Multimeter in a single compact unit. It eliminates the need for separate instruments, providing engineers and technicians with a complete, portable testing solution.

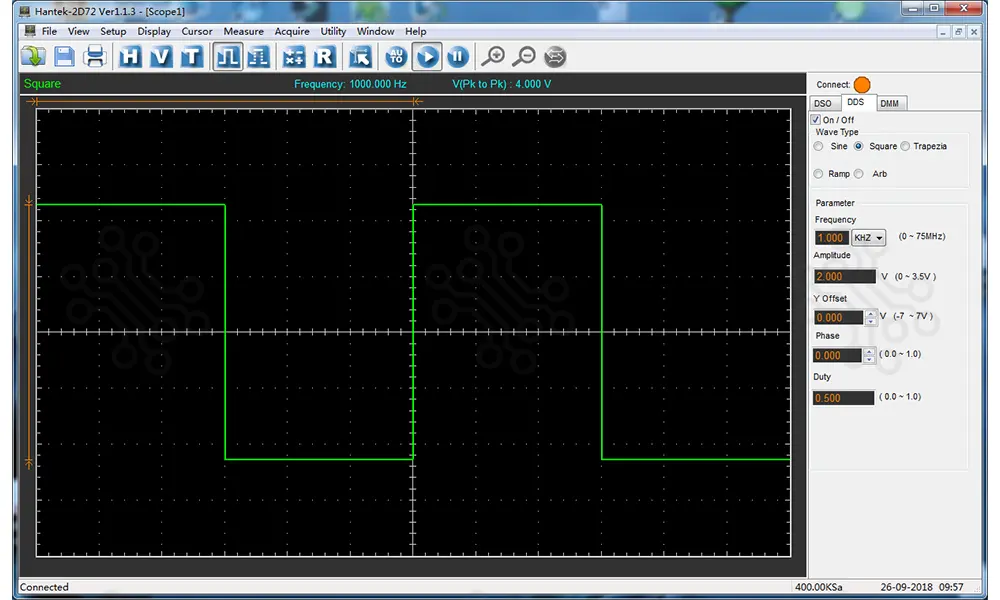

The built-in Waveform Generator delivers fast and accurate signal generation, supporting multiple standard waveforms and arbitrary waveform output through PC software. This makes circuit testing and development faster and more efficient.
The integrated Digital Multimeter offers high sensitivity and precise measurements, with a clear display and strong anti-overload protection. The device also features Intelligent Charging Control, supporting 5V/2A fast charging via USB and allowing measurements while charging.

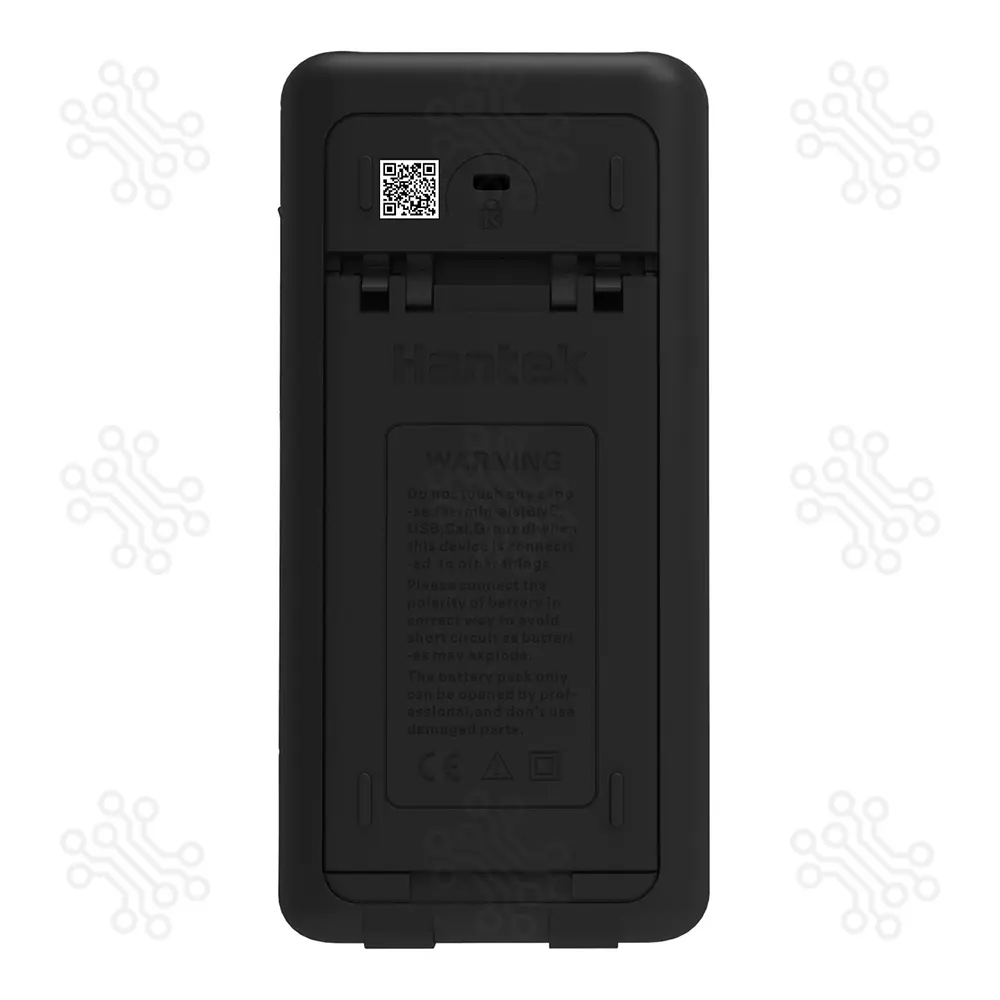

Powered by a replaceable 18650 lithium battery with ultra-low power consumption, the device can run continuously for a full day after just 2 hours of charging. The Type-C interface supports both charging and data transfer, the multi-angle adjustable stand enables hands-free operation, and PC software adds automatic measurements, waveform printing, Math functions, and data recording for analysis.
| Specification | Details |
|---|---|
| Model | Hantek2D72 |
| Oscilloscope Bandwidth | 70MHz |
| Channels | 2CH + DMM + AWG |
| Sample Rate | 250MSa/s (Single-channel), 125MSa/s (Dual-channel) |
| Waveform Interpolation | (sin x)/x |
| Record Length | Max. 6K (Single-channel); 3K per channel (Dual-channel) |
| SEC/DIV Range | 5ns/div ~ 500s/div (1, 2, 5 sequence) |
| A/D Resolution | 8-bit (Simultaneous sampling) |
| VOLTS/DIV Range | 10mV/div ~ 10V/div |
| Bandwidth Limit | 20MHz |
| Low Frequency Response (-3dB) | ≤10Hz |
| Rise Time | ≤5ns |
| DC Gain Accuracy | ±3% |
| Probe Attenuation | 1X, 10X (Supports 1X, 10X, 100X, 1000X) |
| Max Input Voltage (Scope) | 150VRMS |
| Trigger Type | Edge |
| Trigger Modes | Auto, Normal, Single |
| Trigger Slope | Rising, Falling, Rising & Falling |
| Trigger Source | CH1 / CH2 |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1MΩ ±2%, 25pF ±3pF |
| Cursor Measurement | △V, △T |
| Auto Measurements | Frequency, Amplitude |
| Specification | Details |
|---|---|
| Waveforms | Sine, Square, Ramp, EXP |
| Sine Frequency | 1Hz ~ 25MHz |
| Square Frequency | 1Hz ~ 10MHz |
| Ramp Frequency | 1Hz ~ 1MHz |
| EXP Frequency | 1Hz ~ 5MHz |
| Sampling Rate | 250MSa/s |
| Amplitude | 2.5Vpp (50Ω), 5Vpp (High impedance) |
| Frequency Resolution | 0.10% |
| Output Channel | 1CH |
| Waveform Depth | 512Sa |
| Vertical Resolution | 12-bit |
| Output Impedance | 50Ω |
| Specification | Details |
|---|---|
| Maximum Resolution | 4000 Counts |
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode, Continuity |
| Max Input Voltage | AC 600V / DC 600V |
| Max Input Current | AC 10A / DC 10A |
| Input Impedance | 10MΩ |
| Specification | Details |
|---|---|
| Display | 2.8 inch 64K Color TFT |
| Resolution | 320 × 240 pixels |
| Power Supply | 100–240VAC, 50–60Hz / 5V DC, 2A |
| Power Consumption | <2.5W |
| Battery | 2600mA × 2 |
| Fuse | T, 3A |
| Specification | Details |
|---|---|
| Dimension | 199 × 98 × 40 mm |
| Weight | 624g |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -40°C ~ +71°C |
| Operating Altitude | Up to 3,000m |
| Cooling Method | Convection |
