Inverter Boost Module Board DC 12V to AC 220V 150W in Bangladesh
Inverter Boost Module Board DC 12V to AC 220V 150W in Bangladesh

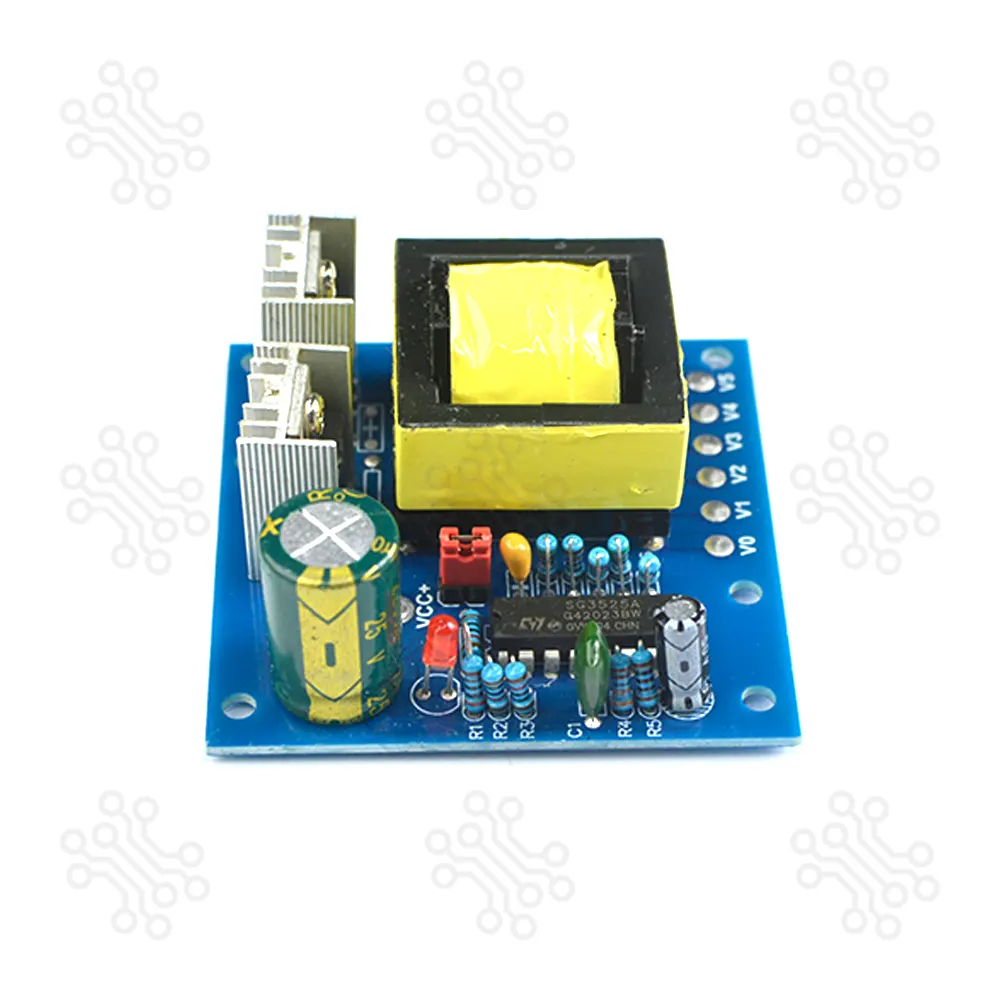

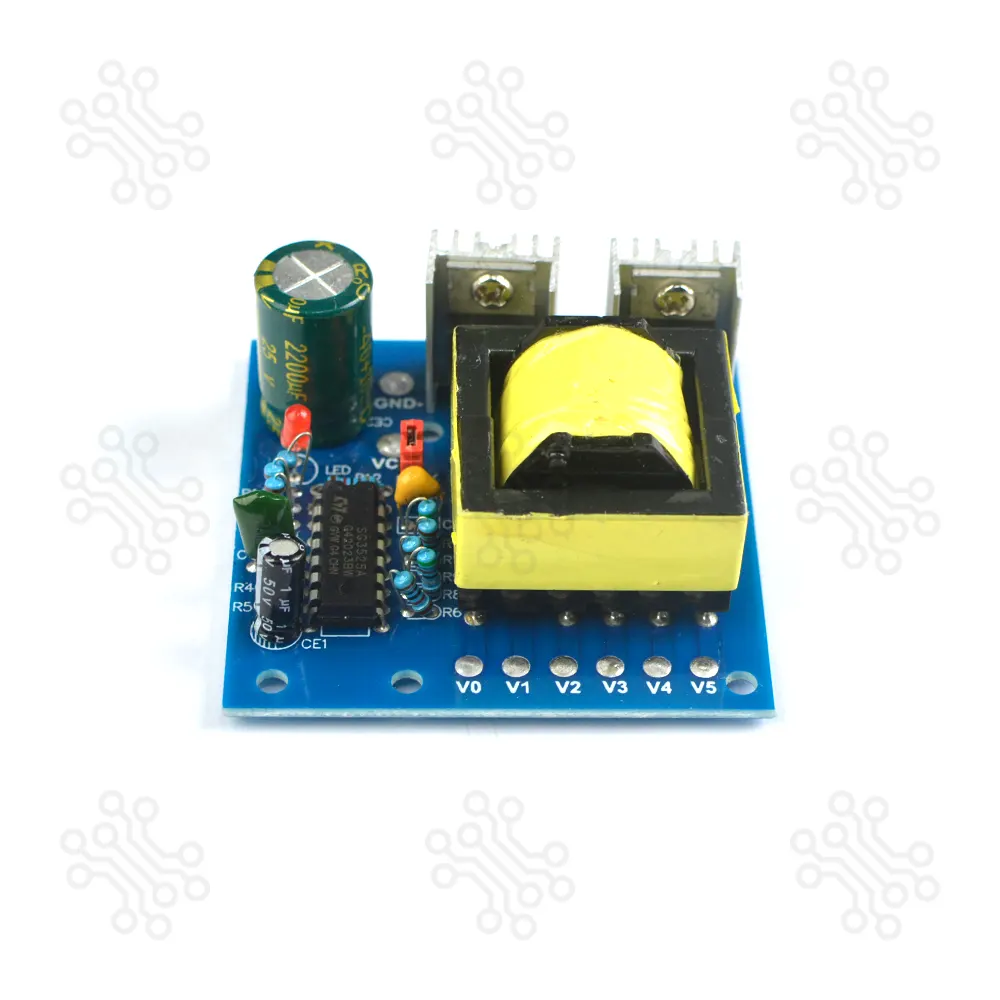

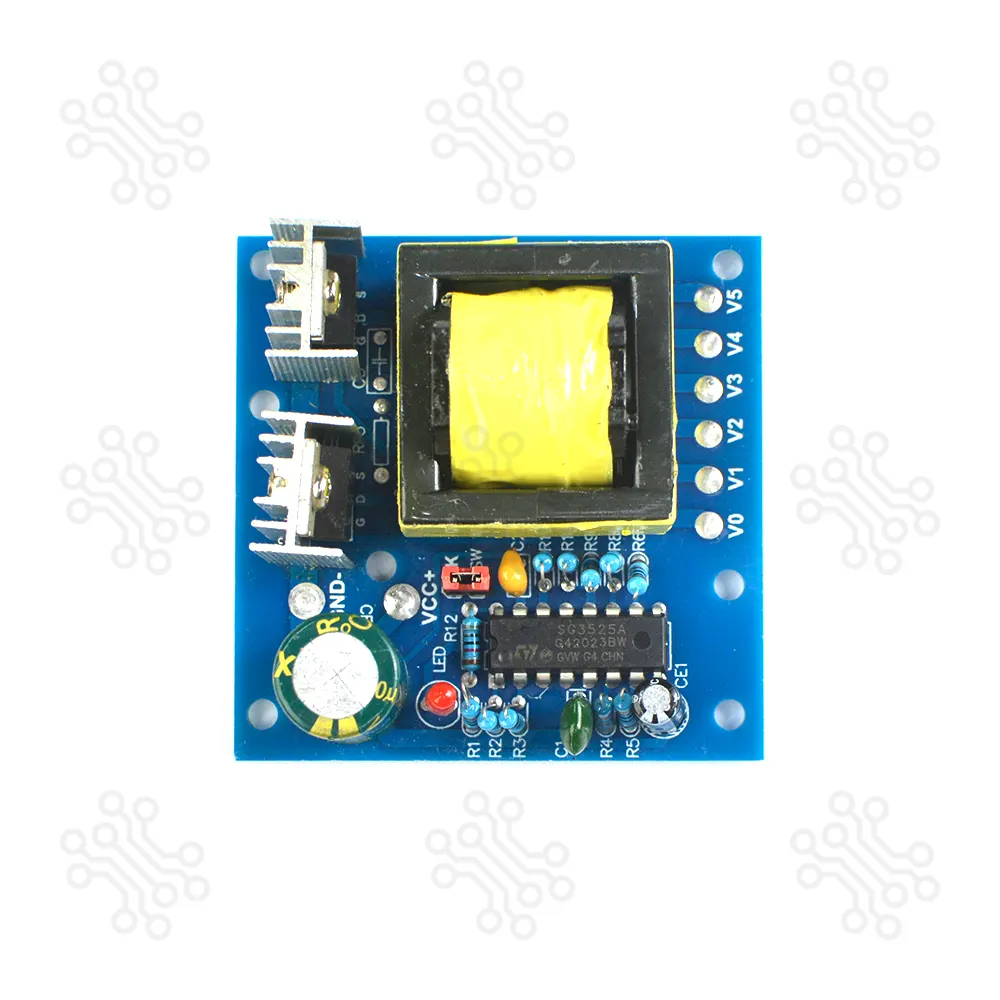

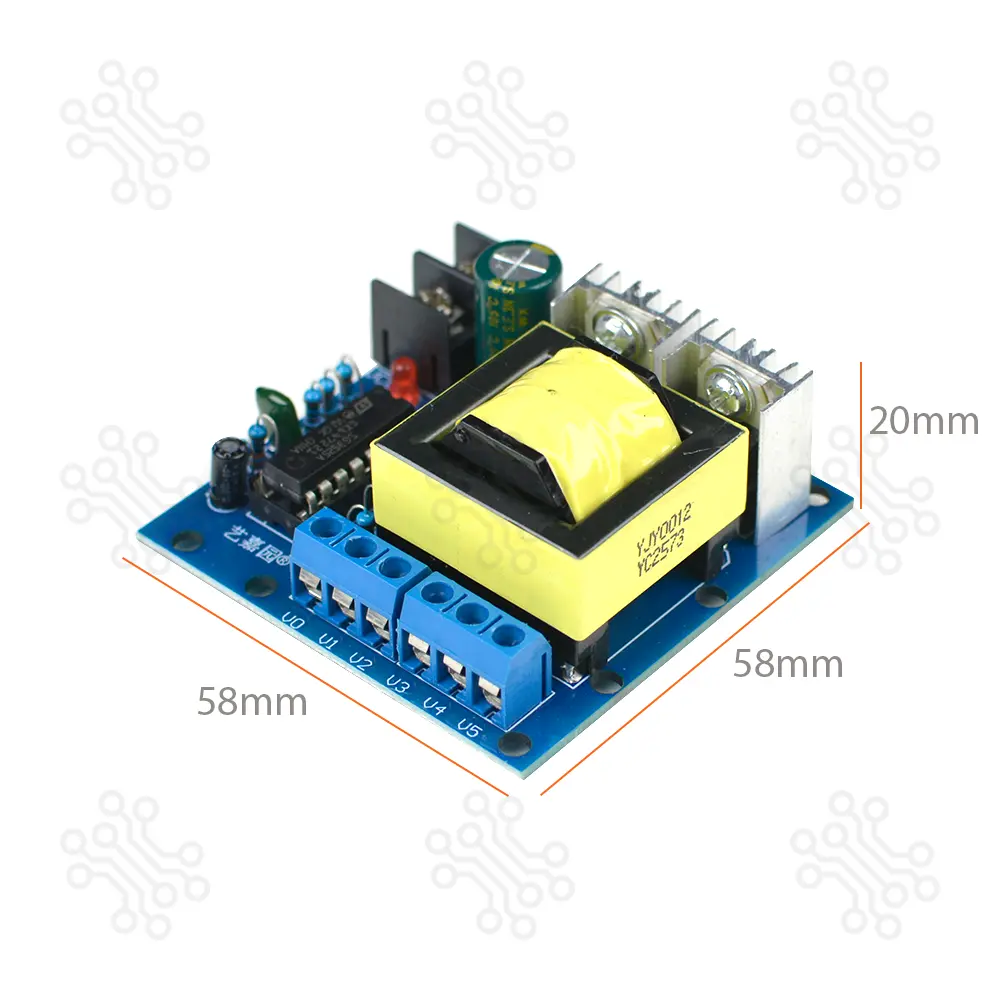

Inverter Boost Module Board DC 12V to AC 220V 150W

SKU: TOL-00382

Brand: Made in China

Warranty: 3 Days

Model: N/A

৳ 520.03

Add to Wishlist

Category: Power Supply

Share:

Description of Inverter Boost Module Board DC 12V to AC 220V 150W

The Inverter Boost Module is a high-performance DC 12V to AC 220V inverter board engineered for power, reliability, and versatility. Built as a 150W inverter circuit board with advanced design, it efficiently converts low-voltage DC into stable high-voltage AC, making it the perfect high-voltage inverter module for DIY projects, field applications, and portable energy systems.

With its DC to AC step-up transformer board technology, this module is ideal for pure resistive load inverters, powering lamps, heaters, and other high-voltage testing equipment with ease. Featuring quick jumper-based voltage selection, secure terminal connections, and durable PCB construction, it’s the go-to choice for anyone seeking a compact yet powerful portable power conversion board.

Key Features


  • Converts DC 12V to selectable AC outputs: 110V / 200V / 220V / 280V.
  • 150W output power
  • Output waveform: High-frequency square wave or DC (unfiltered).

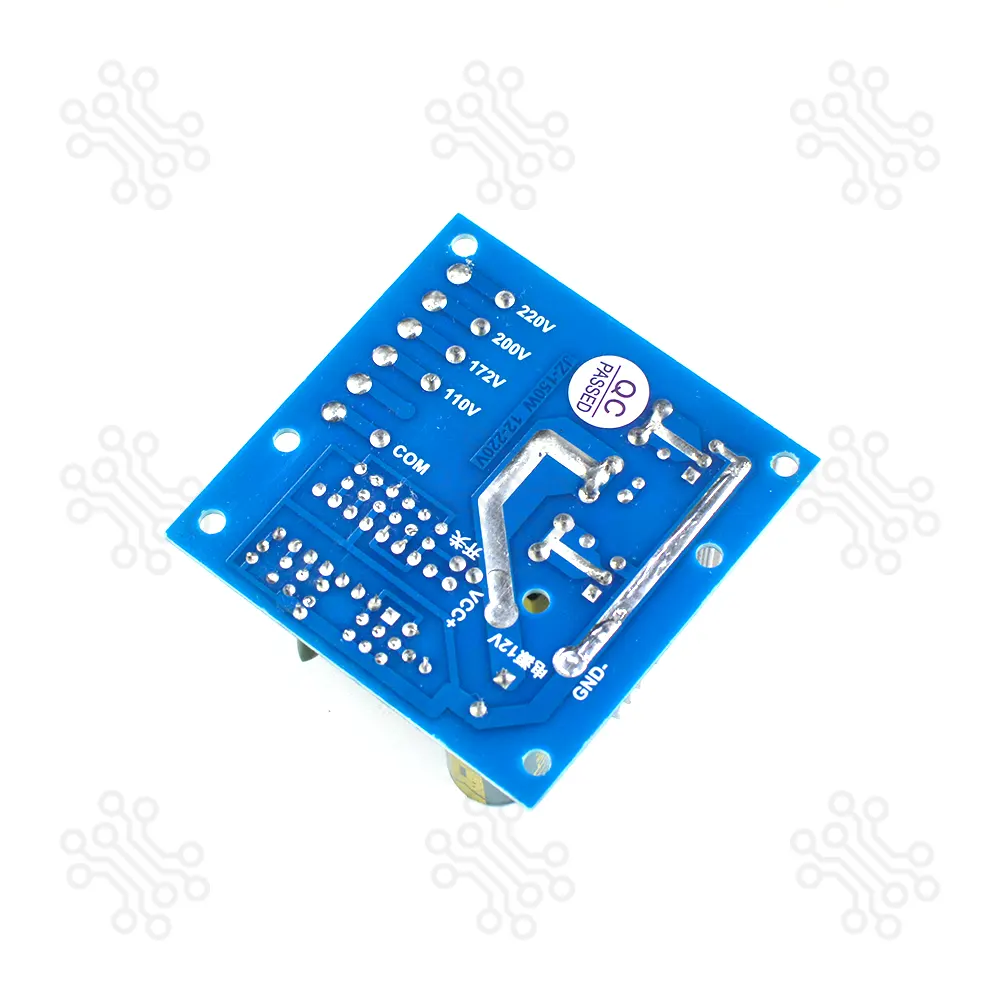

  • Voltage selection via jumper caps – no soldering required.

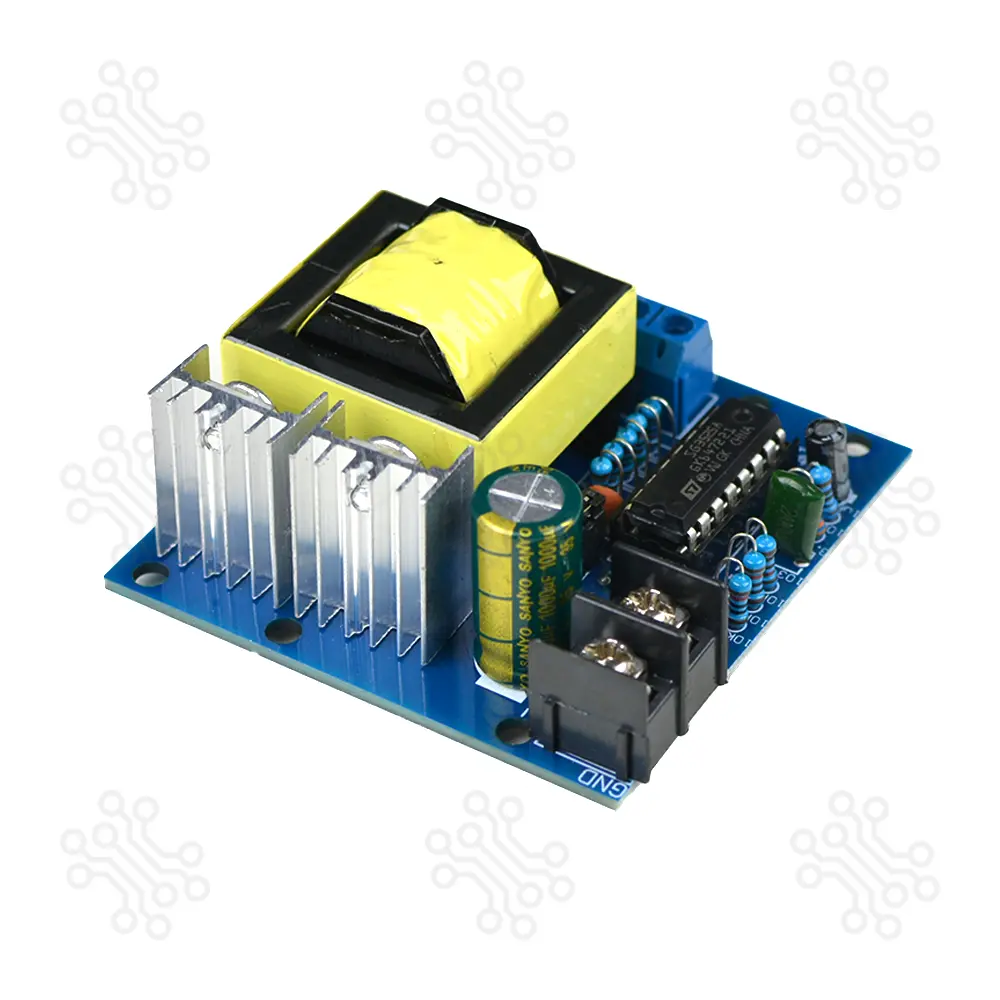

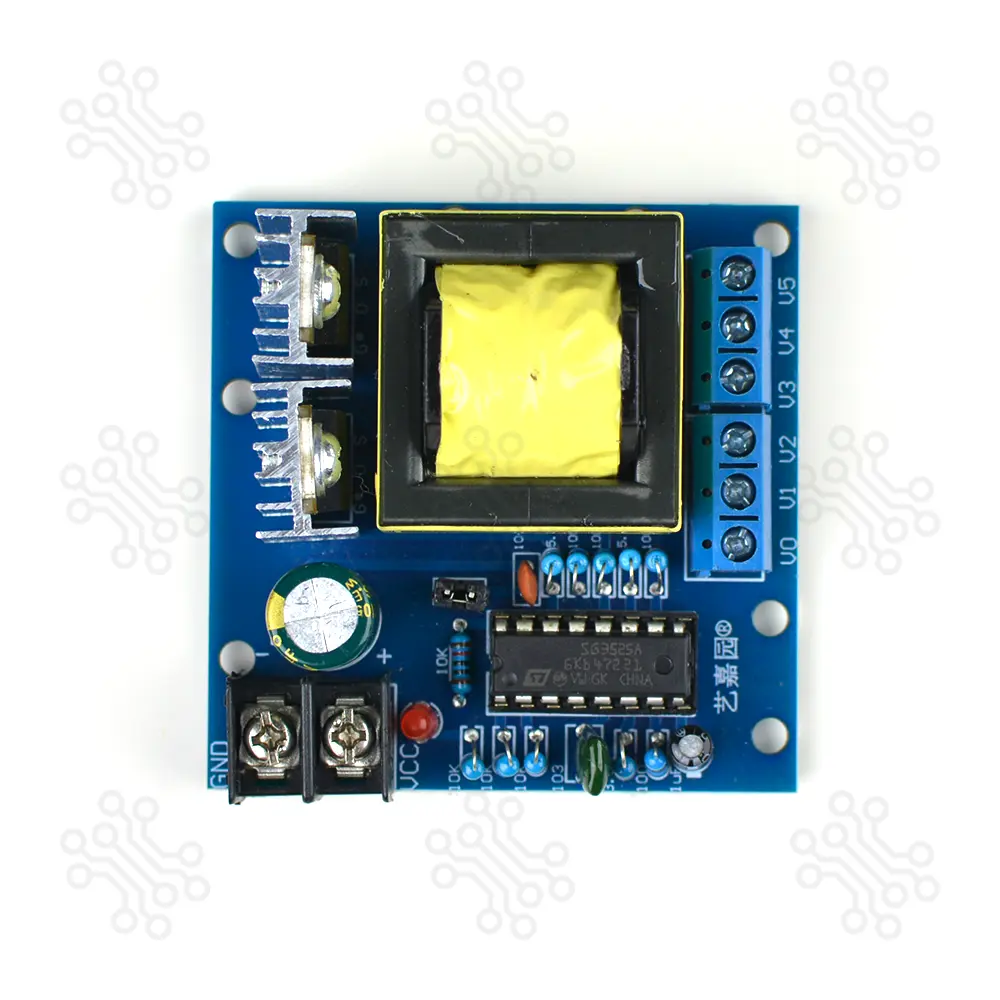

  • Quick wiring with screw-type terminal blocks.

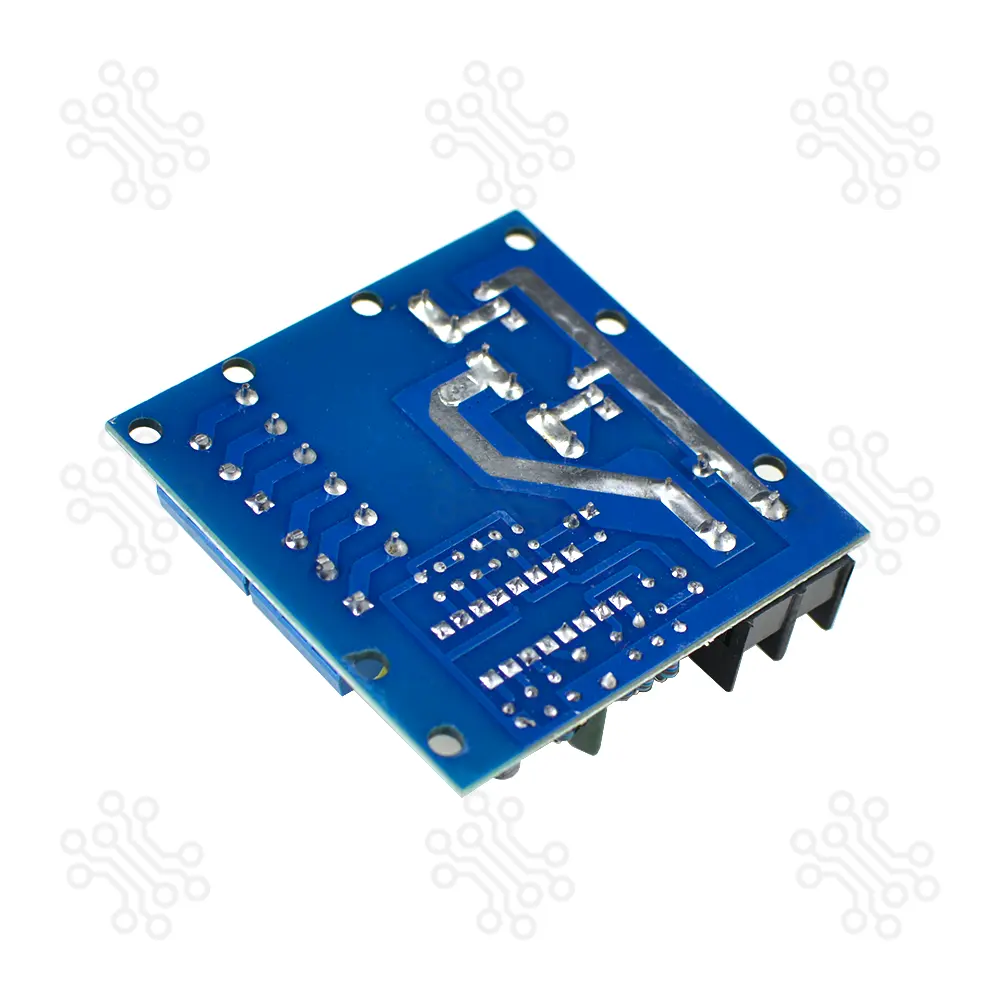

  • Double-sided PCB design for better heat dissipation and stability.
  • Ideal for pure resistive loads.

Technical Specifications


Feature

Specification

Input Voltage

12V DC

Input Current (No-load)

58mA

Recommended Fuse

15A (external)

Output Voltage Options

110V / 200V / 220V

Output Power

150W

Waveform

High-frequency square wave / DC

Frequency

20kHz

Load Type

Pure resistive loads

Protection

No built-in protection – external fuse required

Cooling Requirement

Fan recommended above 100W load

Switch Control

Red/black wire controls high voltage output

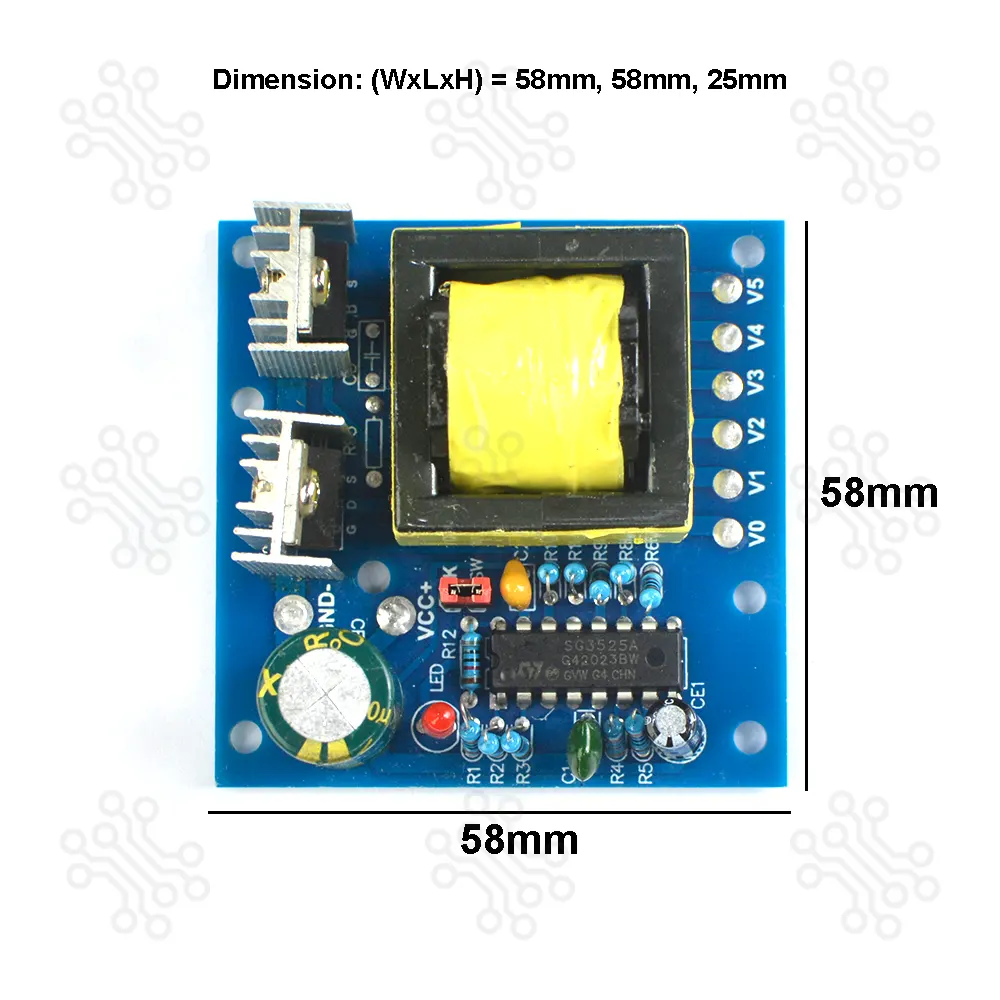

Board Design

Double-sided PCB with screw terminals

Application


  • DIY power inverter projects
  • Battery-powered high-voltage supplies
  • Driving pure resistive loads (lamps, heaters)
  • High-voltage testing equipment
  • Educational electronics experiments
  • Multiplier rectifier circuits
  • Portable power conversion setups

Important Safety Instructions


  • Always install a 15A fuse on the input for safety.
  • Ensure the power source can supply sufficient current.
  • Use fan cooling for loads over 100W.
  • Not suitable for inductive or capacitive loads without additional filtering.
  • Connect the DC input with the correct polarity to prevent damage.

Packaging Details


  • 1 × Inverter Boost Module Board DC 12V to AC 220V 150W


Inverter Boost Module Board DC 12V to AC 220V 150W – Frequently Asked Questions


What is an inverter boost module board?
It is an electronic circuit that converts a DC 12V input into higher AC voltages, such as 110V, 200V, 220V, for powering pure resistive loads.
What is the maximum power output of this inverter board?
It can deliver up to 150W continuously, and up to 200W with proper fan cooling.
Can I use this inverter module for inductive loads like motors or fans?
No, it is designed for pure resistive loads only. Inductive or capacitive loads may damage the circuit.
What are the input voltage limits for this module?
The input should be between 8V and 12V DC, with 12V as the recommended operating voltage.
Does this inverter output pure sine wave AC?
No, it outputs a high-frequency square wave or DC (unfiltered), depending on configuration.
How do I select the output voltage?
You can select between 110V, 200V, 220V, and 280V using the included jumper caps without soldering.
Does the board have built-in protection?
No, there is no built-in protection. You must add an external 15A fuse to prevent overload or short circuit.
What type of power source can I use?
You can use a 12V battery (lead-acid or lithium) or a suitable DC power supply capable of providing enough current.
Do I need a fan for this inverter board?
A fan is not necessary for loads under 100W, but is recommended for loads above 100W to prevent overheating.
What is the no-load current consumption?
The board consumes approximately 58mA at no load when powered at 12V.
