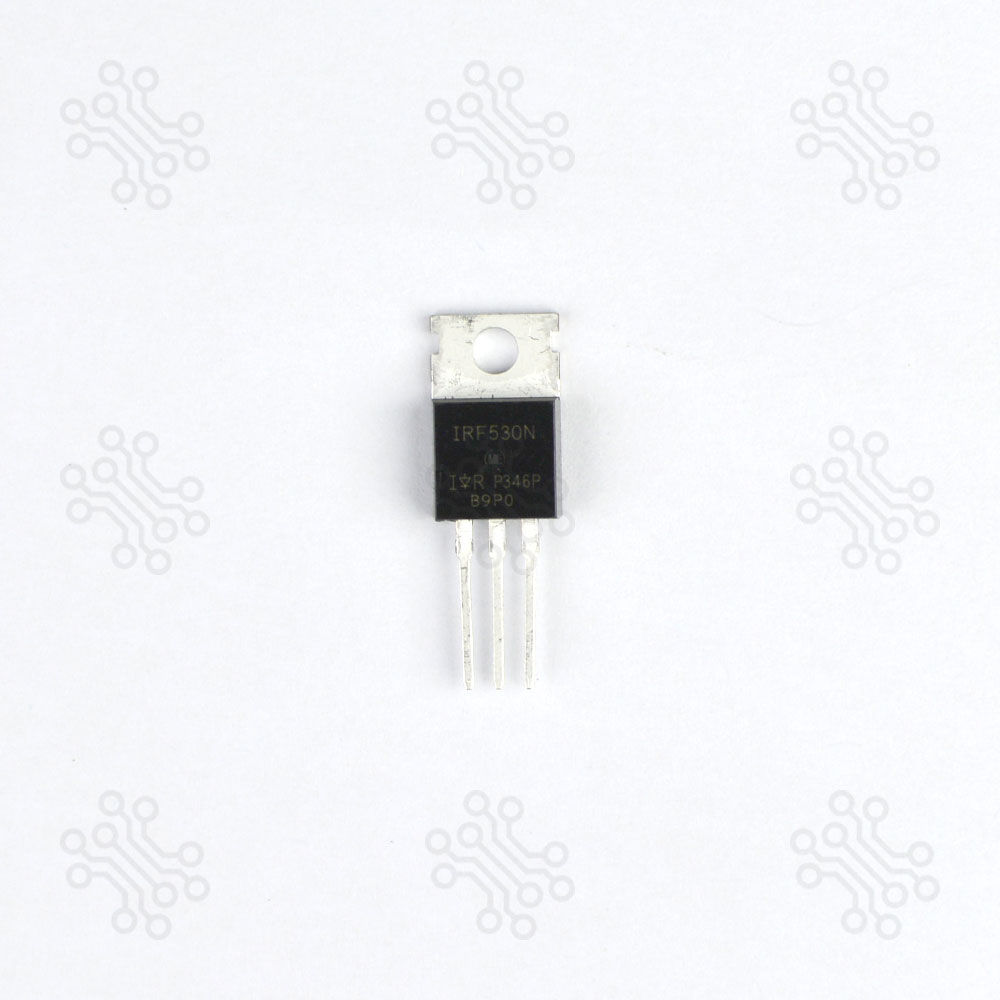

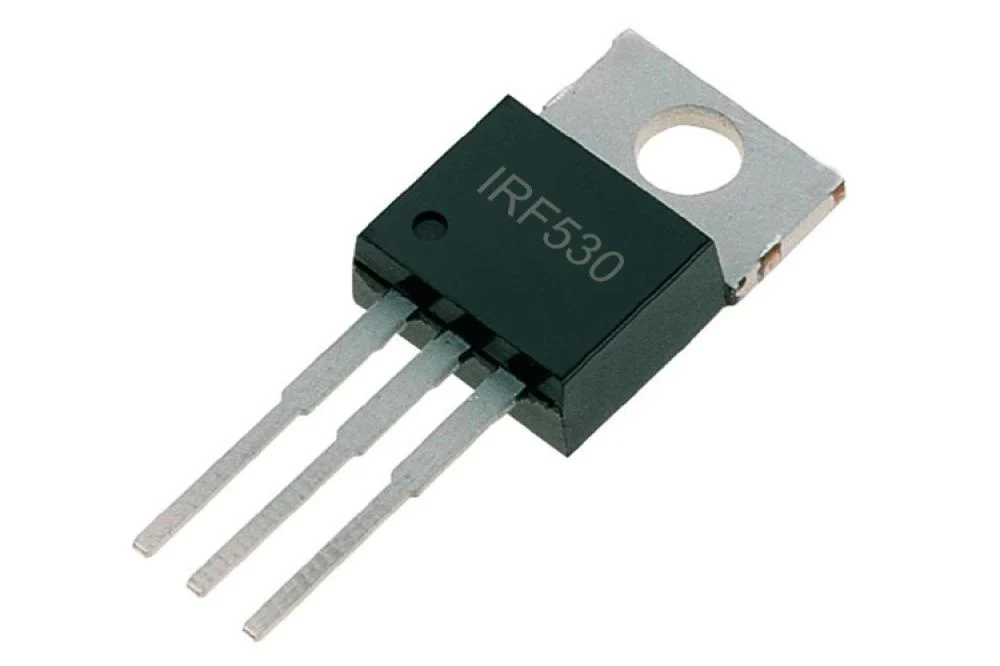

IRF530 N Channel Power MOSFET in Bangladesh
IRF530 N Channel Power MOSFET in Bangladesh

IRF530 N Channel Power MOSFET

SKU: 251210005125

Brand: Made in China

Warranty: 3 Days

৳ 65.04

Add to Wishlist

Category: MOSFET

Share:

Description of IRF530 N Channel Power MOSFET

The IRF530 is a third-generation N-channel power MOSFET produced by Vishay Siliconix. With its fast switching capability, durable construction, low on-resistance, and budget-friendly design, it is a strong choice for various industrial and commercial power solutions. Its TO-220AB packaging makes it a preferred option for a broad range of commercial and industrial applications handling power dissipation up to about 50 W.

Key Features

The IRF530 offers several important features that boost its performance and reliability in power management circuits:

  • Dynamic “dv/dt” rating
  • N-Channel MOSFET
  • Repetitive avalanche rated
  • Fast switching
  • Ease of paralleling
  • Simple drive requirements
  • 175 °C operating temperature

Technical Specifications

Parameter Details
Part Number: IRF530
Type: N-Channel Power MOSFET
Drain-Source Voltage (VDS): 100 V
Drain-Source on-state resistance: 0.16Ω
Continuous Drain Current (ID): 14 A @ 25 °C
Continuous Drain Current (ID): 10 A @ 100 °C
Gate-source threshold voltage (VGS(th)): 2.0 V to 4.0 V
Package Type: TO-220AB
Maximum power dissipation: 88W
Operating junction and storage temperature range: -55 ˚C to +175 ˚C
Total Gate Charge: 26 nC
Pulsed drain current: 56A
Peak diode recovery dv/dt: 5.5V/ns

Pinout Diagram

The TO-220AB package consists of three standard leads -

  • Pin 1: Gate (G)
  • Pin 2: Drain (D)
  • Pin 3: Source (S)

Applications

  • Battery management system
  • DC-DC and DC-AC Converters
  • Solar power supply applications
  • Motor drives
  • UPS
  • Audio amplifier
  • Regulators
  • Solenoid and relay drivers

Documents / Resources

You can access the necessary resource files and related documents directly from Vishay:

Package Includes

  • 1 × IRF530 N-Channel Power MOSFET
