SKU: MIS-00746
Brand: Hantek
Warranty: N/A
Model: N/A
৳ 11200.06
Category: Power Supply
HDP135V6 power supply is a high quality, cost-effectiveDC power supply. It has four-digit LED voltage and current display. It also has over voltage protection (OVP), over current protection (OCP), over temperature protection (OTP) and USB quick charging functions
Features:
1.Four-digit display voltage and current, resolution up to 10mV/1mA;
2.Standard USB fast charging function, 5-12V output, supporting a variety of fast charging protocols;
3.10 groups of data storage/retrieval functions;
4.AC 230/115V input voltage switch, universal;
5.Fully isolated serial port, software supports multiple power supply control, easy to install measurement and control or aging system;
6.Over voltage, over current, overload, over temperature, short circuit protection functions;
7.Low noise, silent and durable temperature control fan;
8.35V/6A output is stable and pure; On/off output control, one-key panel lock function to prevent misoperation;
9.Constant Voltage (CV) / Constant Current (CC) mode automatic switch, effectively protect the circuit;
10.Two-stage tuning topology, no load impact when power is on;
11.Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.
Specification:
Model:HDP135V6A
Channel:1Channel
Storage:10 groups of data
Output voltage/curren:35V/6A
Input voltage:230 VAC ± 10%, 50/60Hz
Maximum output power:210W
Communications Interface:Any
Tension:
Load regulation:≤0.1%+5mv
Linear regulation:≤0.01%+5mv
Set resolution:10mV
Overall Accuracy:≤ 0.1% + 1 digits
Read the resolution:10mV
Read Accuracy:≤ 0.1% + 1 digits
Ripple:10mVrms
Fluent:
Load regulation:≤0.2%+3mA
Linear regulation:≤0.2%+3mA
Set resolution:1mA
Overall Accuracy:≤0.2%+3mA
Read the resolution:1mA
Read Accuracy:≤ 0.2% + 3 digits
Ripple:5 ≤ 3marms
Over Voltage Protection (OVP):0~35V ±0.2%FS
Maximum voltage:35V±0.2%
Over Current Protection (OCP):0~6A ±0.2%FS
Maximum current:6A ±0.2%
Quick Charge:
Output voltage range:5V~12V
output power:Max: 18W
Fast charging protocol supported:DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei FCP Quick Charge Protocol, Samsung AFC Quick Charge Protocol
Main Features:
Working conditions:Temperature -10°C to 40°C, relative humidity ≤ 80%
Storage conditions:Temperature -20°C to 60°C, relative humidity ≤ 80%
Cooling:Air cooling
Weight:2Kg

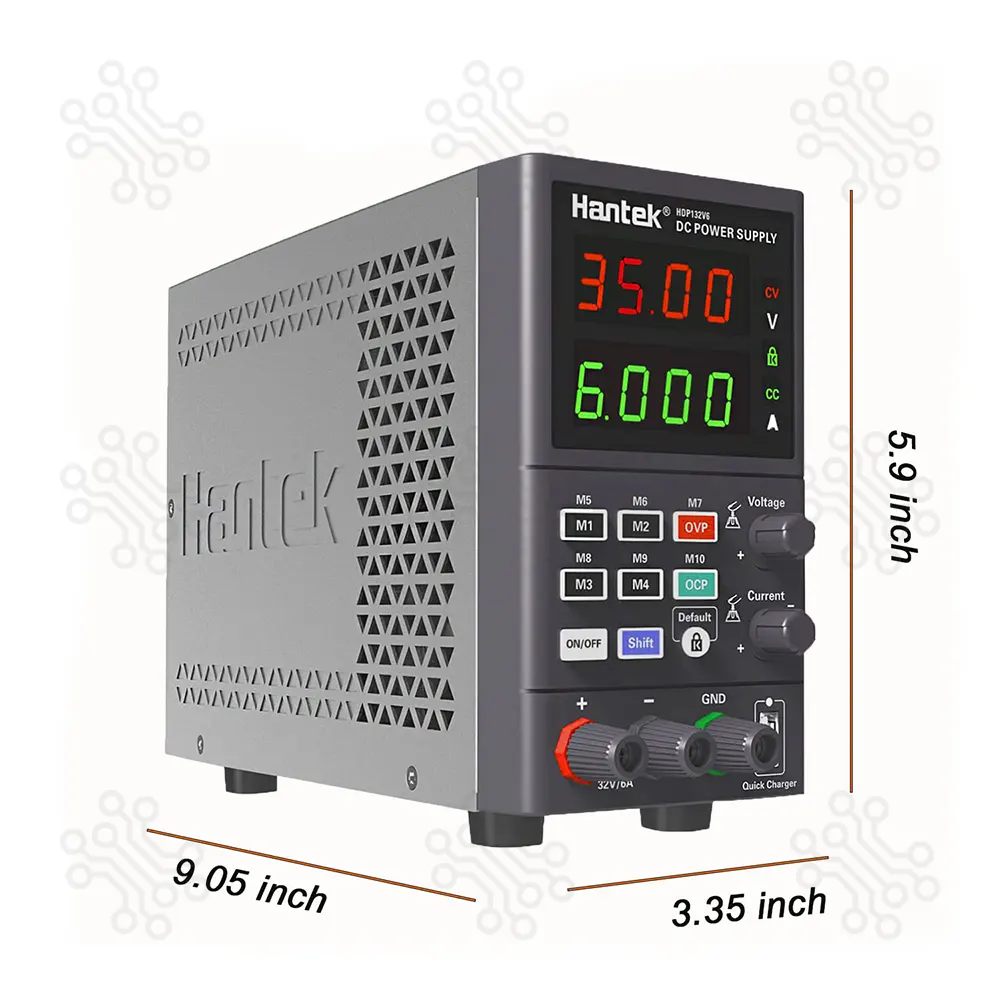

Cut:85*160*260(mm)
Package Include:
► 1 Pcs Hantek HDP135V6A 35V 6A 4-Digit 1CH DC Power Supply
► 1 Pcs Power Cable
► 1 Pcs USB Communication Cable
Document:-
Click here to Download
