LED Traffic Light Module 4 Position in Bangladesh

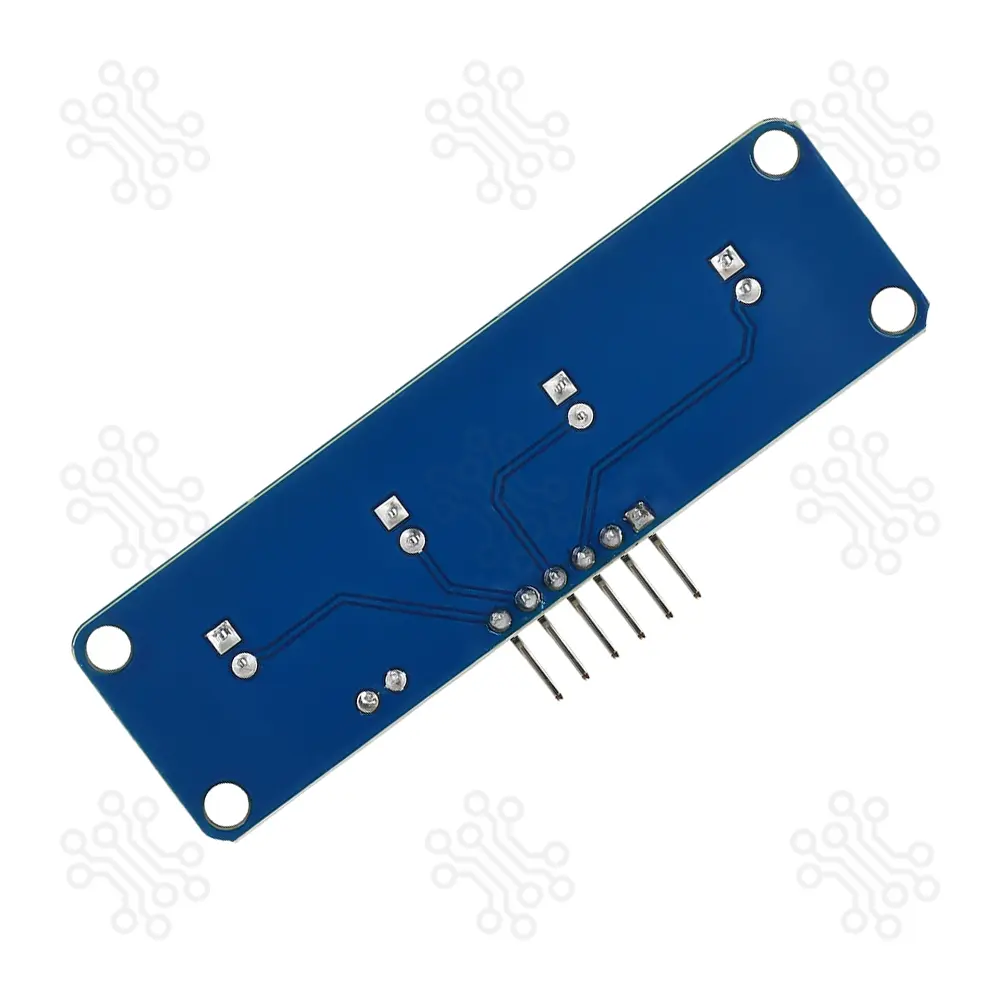

LED Traffic Light Module 4 Position in Bangladesh

LED Traffic Light Module 4 Position

SKU: 260223005194

Brand: Made in China

Warranty: 3 Days

৳ 220.04

Add to Wishlist

Category: LED

Share:

Description of LED Traffic Light Module 4 Position

The 4 Position LED Traffic Light Module provides clear and colorful visual status indications for electronic and embedded systems. It features four LEDs in red, yellow, blue, and green, mounted on a durable double-layer PCB, ensuring reliable performance.

The module supports low-level triggering and operates across a wide voltage range of DC 3.3V to 5V, making it compatible with microcontrollers, ARM development boards, and various control platforms.


Key Features

  • Red, yellow, blue, and green LEDs for clear, multi-color signals.
  • Supports plug-in and SMT processes for flexible assembly.
  • Low-level triggering for easy controller connection.
  • Built-in current limiting resistors to protect LEDs.
  • Works with DC 3.3V–5V, compatible with most control platforms.
  • Durable 1.6 mm double-layer PCB for stable performance.
  • Four 3 mm mounting holes for easy installation.

Technical Specifications

Parameter Description
Product Name Four-Digit LED Module
Material Double-layer PCB board
PCB Thickness 1.6 mm
Working Voltage DC 3.3V – 5V
LED Colors Red, Yellow, Blue, Green (mixed)
LED Size 10 mm
PCB Size 19 mm × 65 mm
Manufacturing Process Plug-in / SMT
Current Limiting Resistor Built-in
Power Indicator None
Installation Hole Diameter 3 mm
Number of Mounting Holes 4

Interface Description

Pin Description
VCC Connects to the positive power supply (3.3V–5V)
D1 Control pin for LED 1
D2 Control pin for LED 2
D3 Control pin for LED 3
D4 Control pin for LED 4

Operating Principle

The module uses low-level triggering for LED activation. When a control pin (D1–D4) receives a low-level signal or is connected to ground, the corresponding LED will illuminate. This configuration simplifies integration with various digital controllers.


Compatible Platforms

The module can be used with a wide range of control platforms, including:

  • Microcontrollers (MCU)
  • ARM-based development boards
  • Embedded control systems
  • Custom digital logic controllers

Installation

The PCB includes four mounting holes with a diameter of 3 mm, allowing the module to be securely installed using screws or standoffs in electronic enclosures or development setups.


Applications

  • Status indication in embedded systems
  • Robotics and automation projects
  • Microcontroller learning and development
  • Signal monitoring circuits
  • Electronic DIY projects and prototyping

Package Includes

  • 1 × LED Traffic Light Module 4 Position
