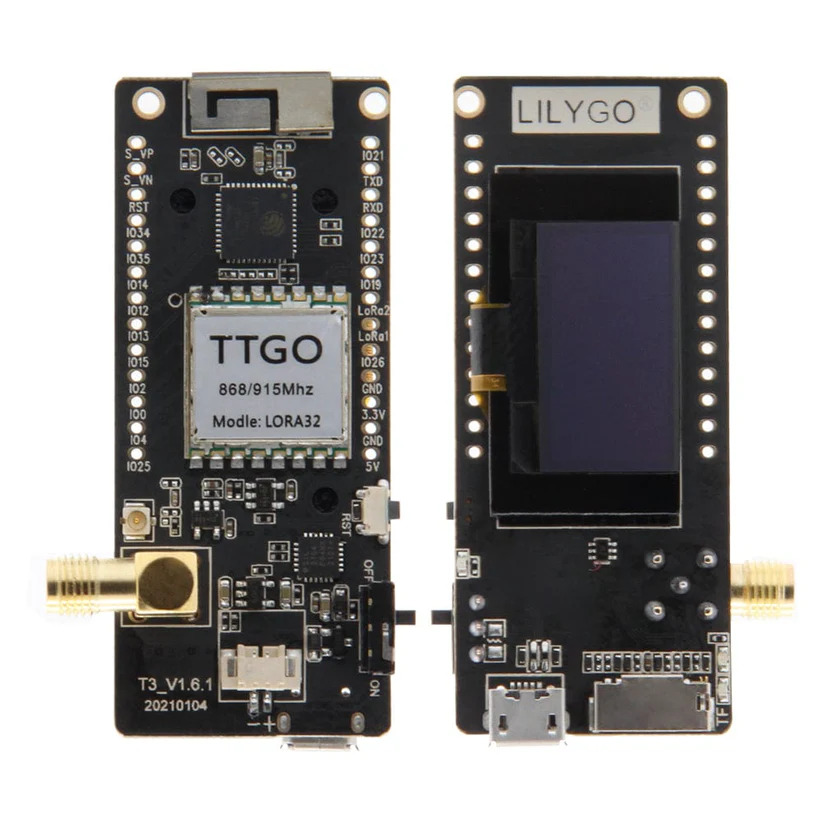

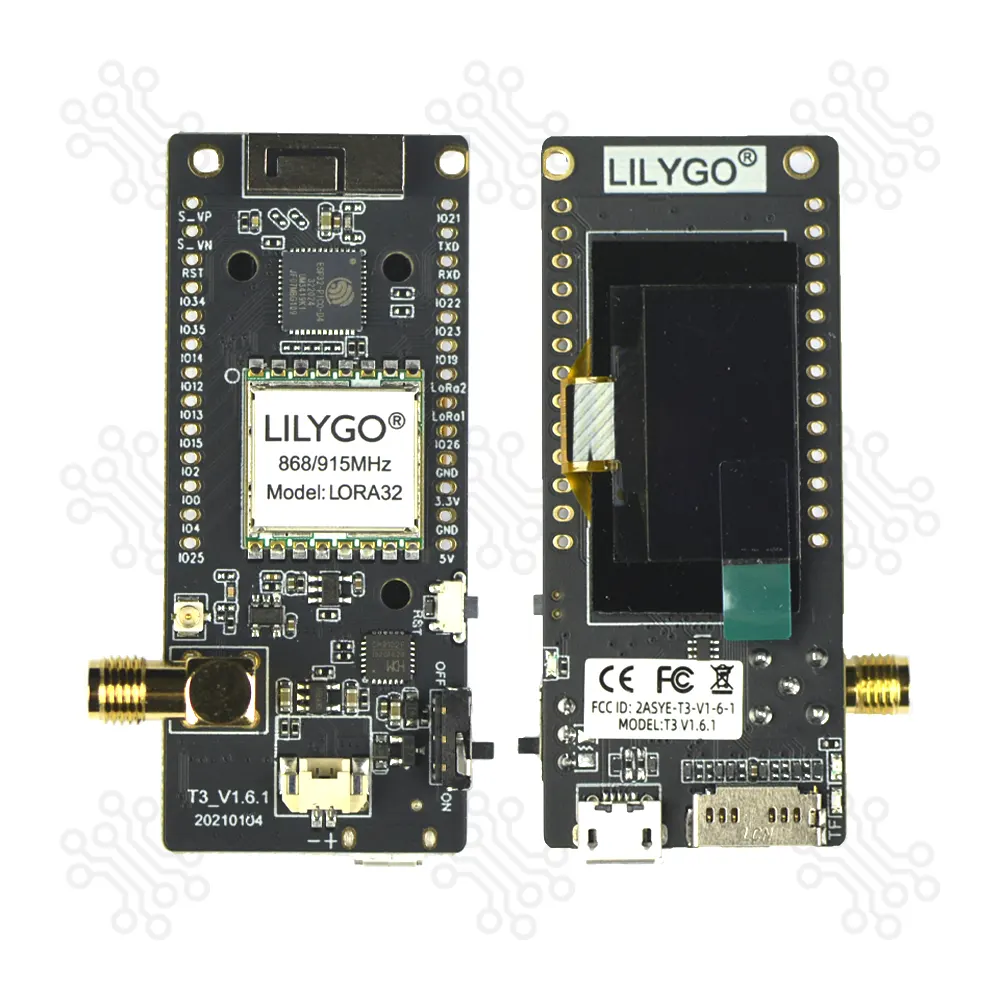

LILYGO TTGO LoRa32 V2.1 ESP32 868MHz 915Mhz OLED SD Card Bluetooth WIFI Wireless Module in Bangladesh
LILYGO TTGO LoRa32 V2.1 ESP32 868MHz 915Mhz OLED SD Card Bluetooth WIFI Wireless Module in Bangladesh

LILYGO TTGO LoRa32 V2.1 ESP32 868MHz 915Mhz OLED SD Card Bluetooth WIFI Wireless Module

SKU: 250916005028

Brand: Made in China

Warranty: 3 Days

Model: N/A

৳ 4250.06

Add to Wishlist

Category: ESP Development Board

Share:

Description of LILYGO TTGO LoRa32 V2.1 ESP32 868MHz 915Mhz OLED SD Card Bluetooth WIFI Wireless Module

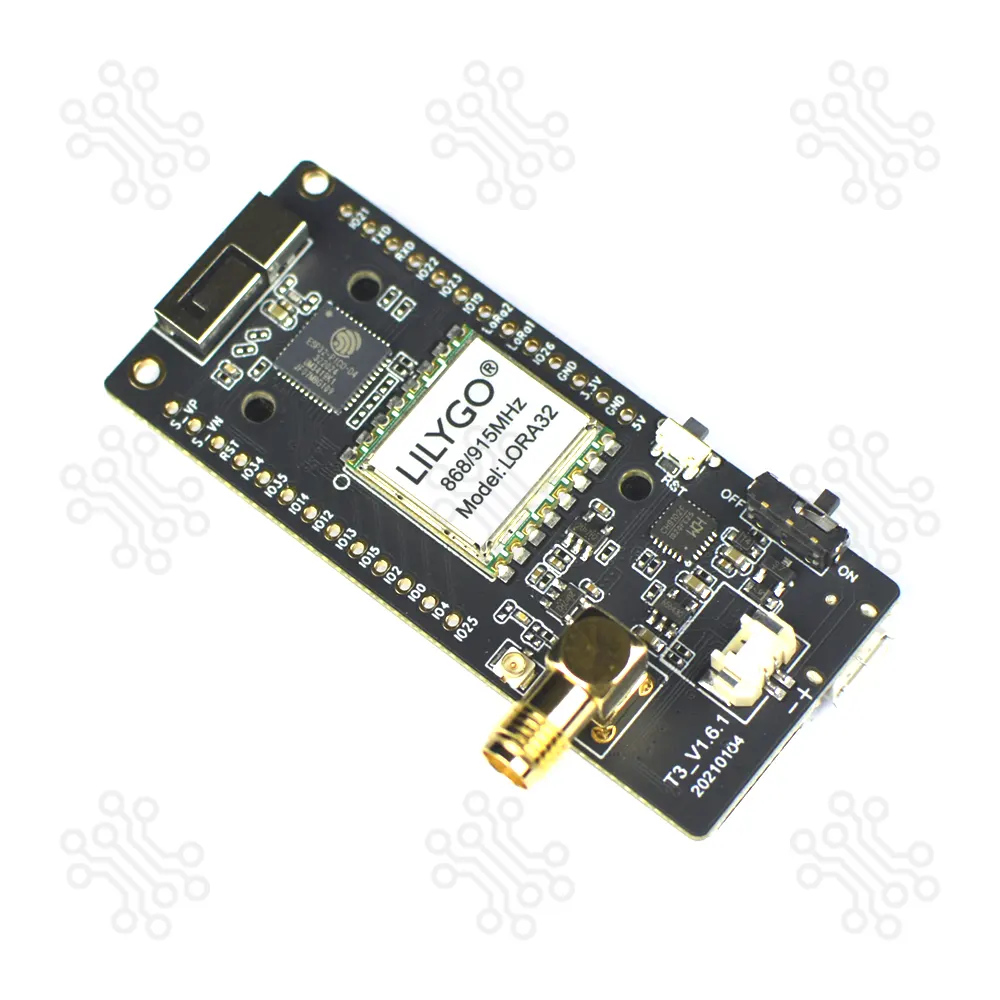

The LILYGO TTGO LoRa32 V2.1 ESP32 Module is a powerful IoT development board designed for long-range wireless communication using LoRa technology. It integrates the ESP32 MCU with Wi-Fi and Bluetooth 4.2 connectivity, an onboard 0.96-inch OLED display, and an SD card slot, making it ideal for IoT projects, disaster-radio networks, and sensor data logging.

This versatile module supports dual power supply via USB or Li-Po battery, features both LoRa and Wi-Fi antennas, and includes onboard reset and power switches for easy control. With high sensitivity, low power consumption, and long communication range, it is widely used in applications such as environmental monitoring, smart agriculture, disaster recovery communication, and passenger flow metering.


Key Features

  • Integrated ESP32 MCU with Wi-Fi + Bluetooth 4.2 support.

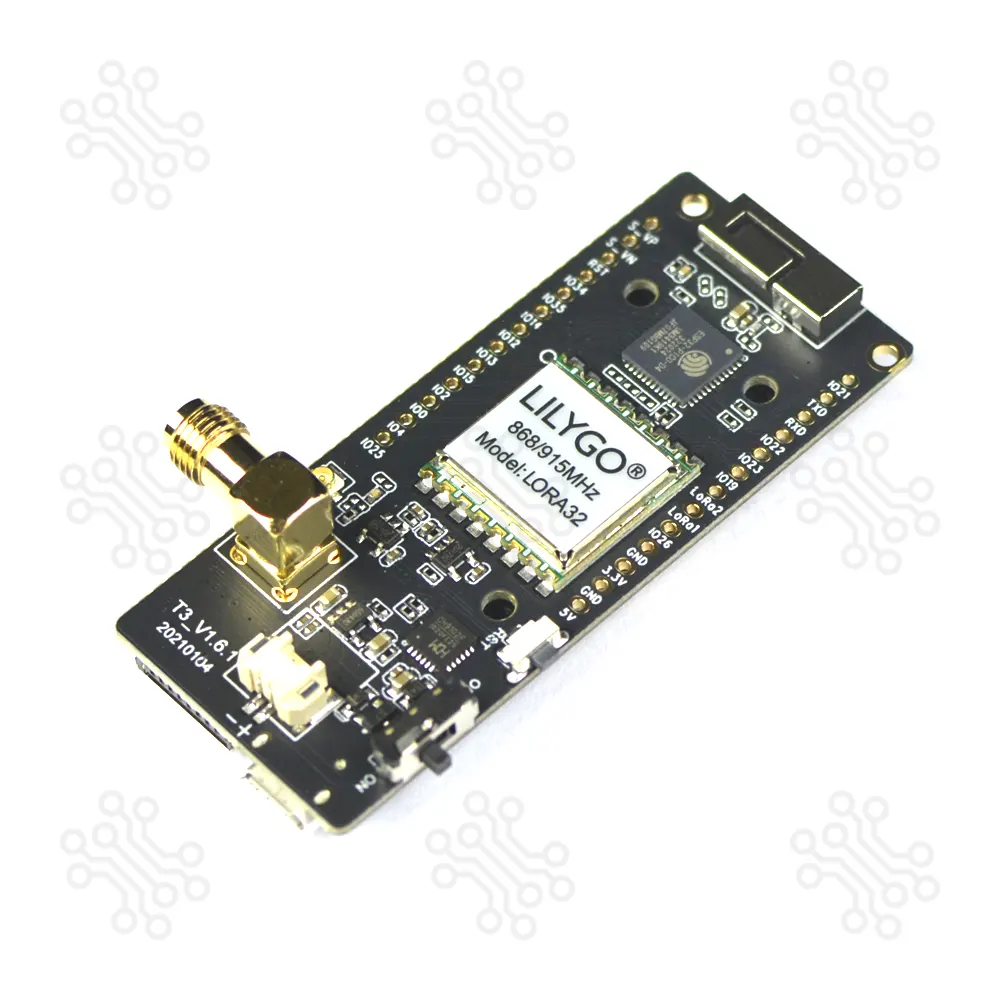

  • Long-range, low-power LoRa transceiver (SX1276/1278).
  • High sensitivity receiver (down to –148 dBm).
  • Data rate up to 300 kbps with fast wake-up and frequency hopping.
  • Digital RSSI function, automatic frequency correction, and gain control.
  • 0.96-inch OLED display for real-time data monitoring.
  • TF card slot for data storage and logging.
  • Onboard reset button and power switch for convenience.
  • Supports USB Micro / Li-Po dual power supply with charging function.
  • SMA antenna connector and onboard 3D Wi-Fi antenna (IPEX external antenna optional).
  • Compact design suitable for portable IoT solutions.

Specification

Parameter Details

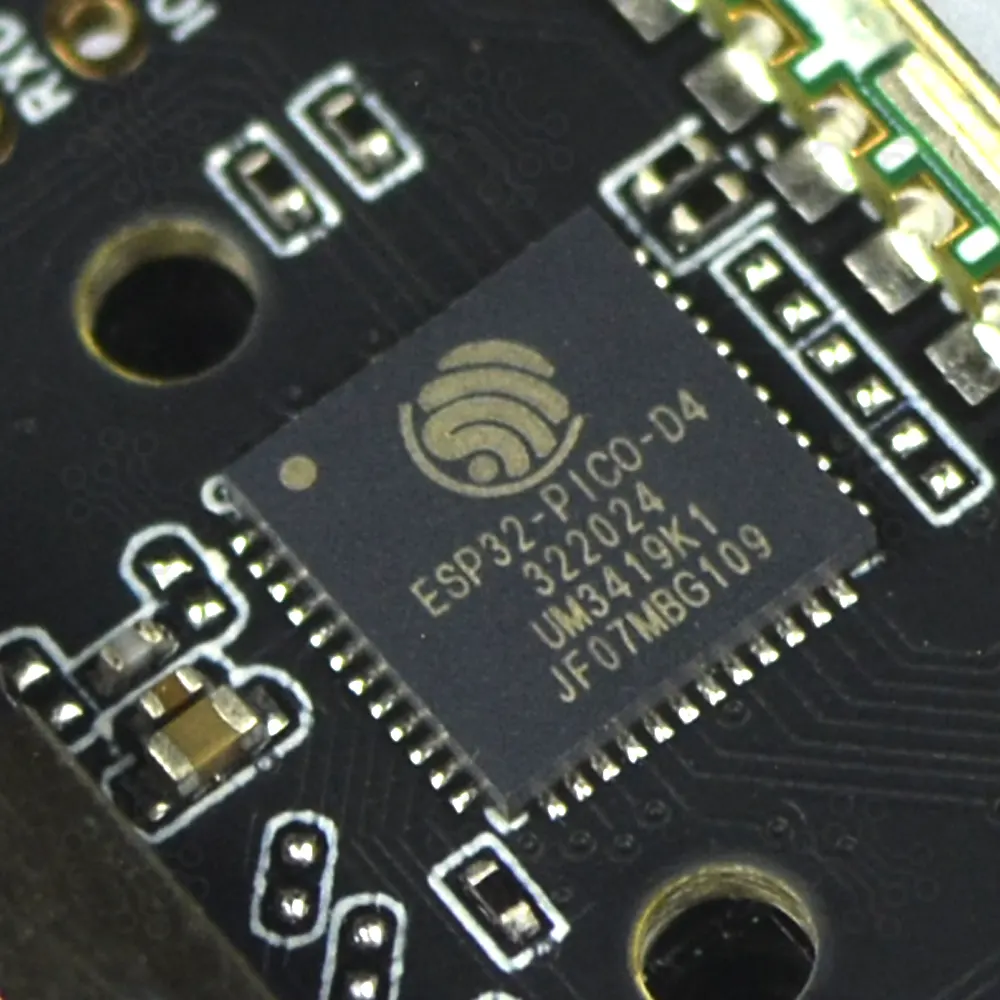

MCU ESP32
Flash Memory 4 MB
Serial Chip CH9102
Wireless Protocols Wi-Fi + Bluetooth 4.2
LoRa Chipset SX1278 (433 MHz) / SX1276 (868/915 MHz)
Receiver Sensitivity –148 dBm
Data Rate Up to 300 kbps
Display 0.96-inch OLED
Storage TF card slot
Onboard Functions Reset button, Power switch
Antenna 3D Wi-Fi antenna (default) / Wi-Fi IPEX external antenna (optional)
SMA LoRa antenna connector
Power Supply USB Micro / Li-Po battery (JST GH 2-pin 1.25 mm)
A battery charger can charge the Li-Po battery

Applications

  • Long-range IoT communication
  • Smart agriculture & remote sensing
  • Disaster-radio mesh networks
  • Environmental monitoring systems
  • Wireless metering & passenger flow counting
  • Industrial automation and remote telemetry

Packaging Details

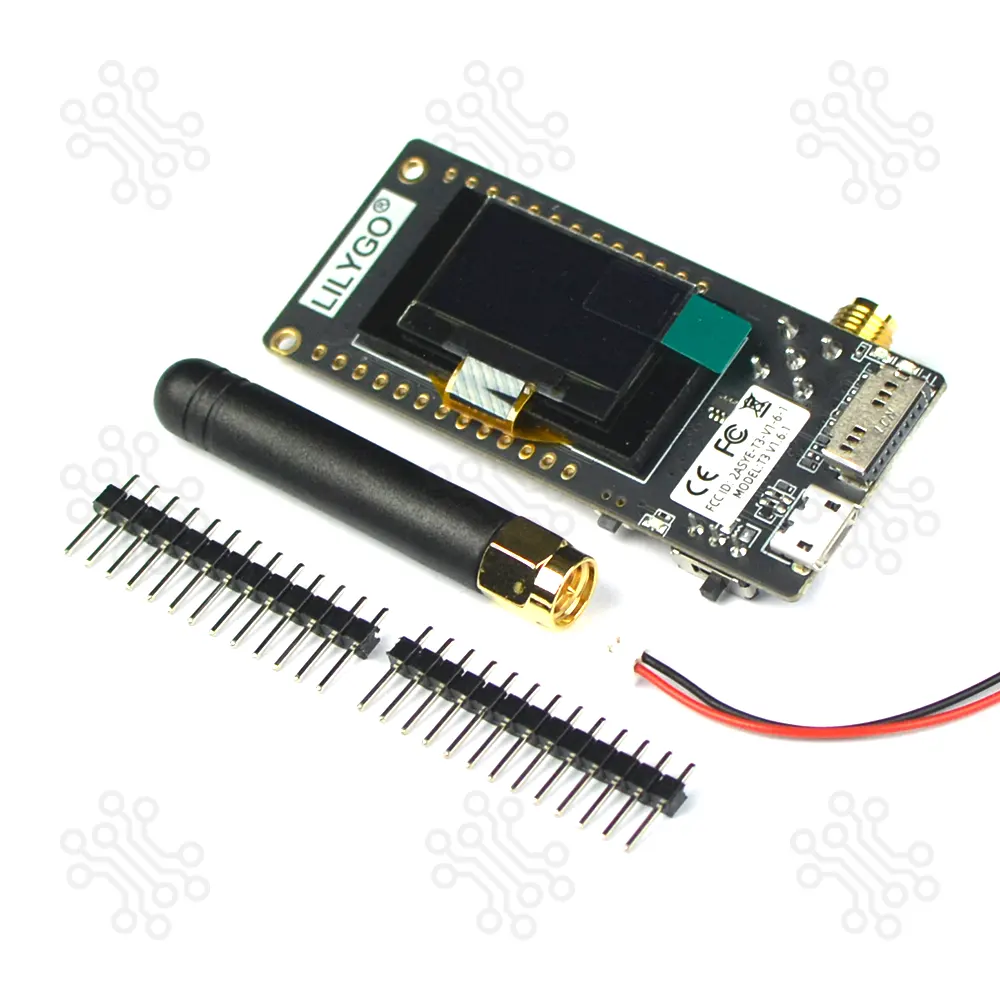

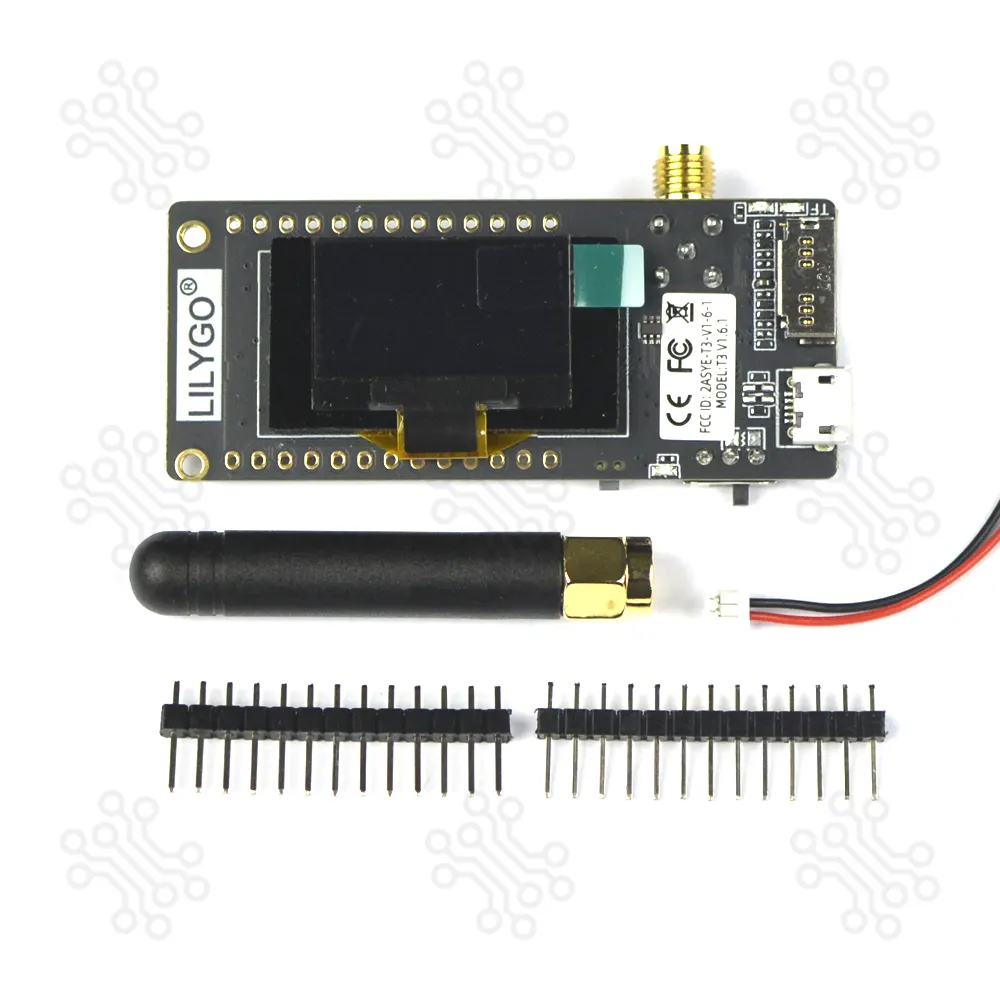

  • 1 × LILYGO TTGO LoRa32 V2.1 ESP32 Module
  • 1 × SMA LoRa Antenna
  • 1 × User Guide / Quick Start Manual

LILYGO TTGO LoRa32 V2.1 ESP32 868MHz 915Mhz OLED WIFI Wireless Module - Frequently Asked Questions

What is the LILYGO TTGO LoRa32 V2.1 ESP32 Module used for?
The module is designed for long-range IoT applications such as environmental monitoring, smart agriculture, disaster radio communication, passenger flow counting, and wireless metering.

Does the LILYGO TTGO LoRa32 V2.1 support both Wi-Fi and LoRa simultaneously?
Yes, it integrates Wi-Fi, Bluetooth 4.2, and LoRa capabilities, allowing you to build hybrid IoT systems with multiple communication options.

What LoRa frequencies are supported?
The module supports SX1278 (433 MHz) and SX1276 (868/915 MHz) versions. Be sure to select the frequency band that complies with your region’s regulations.

Can I power the module with a battery?
Yes. It supports dual power supply – USB Micro and Li-Po battery (via JST GH 2-pin connector). The USB port can also charge the Li-Po battery.

Is an antenna included with the module?
Yes, the module includes an SMA LoRa antenna. It also has an onboard 3D Wi-Fi antenna, with optional support for an external IPEX Wi-Fi antenna.

Does the LILYGO TTGO LoRa32 V2.1 have data storage capability?
Yes. It has a TF card slot for data logging and storage, making it useful for offline IoT and sensor data collection.

What kind of display is included?
It comes with a 0.96-inch OLED display, which shows real-time data and module status.

Is it suitable for portable IoT projects?
Yes, thanks to its compact design, battery support, and onboard display, it is widely used in portable IoT and field applications.
