LM35 Temperature Sensor Module Board in Bangladesh
LM35 Temperature Sensor Module Board in Bangladesh

LM35 Temperature Sensor Module Board

SKU: 260624005548

Brand : Made in China

Warranty : 3 Days

৳ 220.02

Add to Wishlist

Category: Temperature

Share:

Additional Information

Description of LM35 Temperature Sensor Module Board

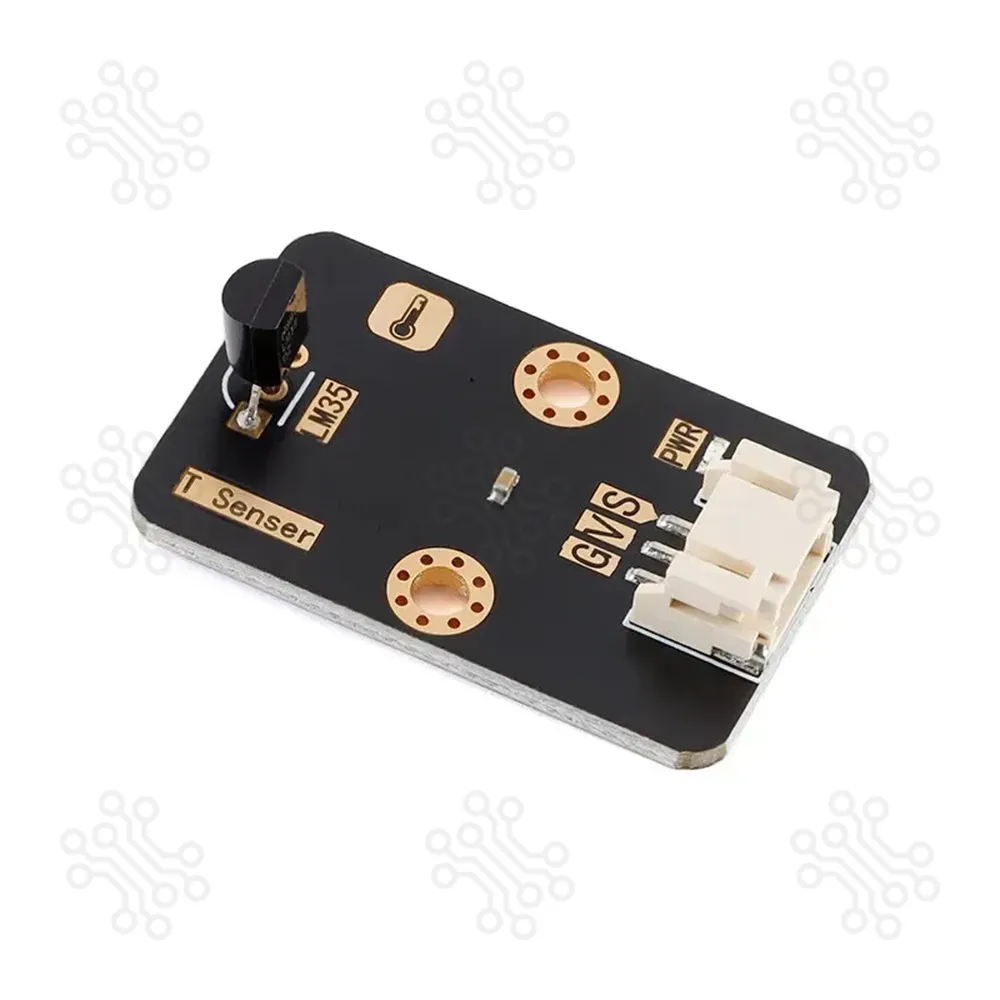

The LM35 Temperature Sensor Module is an integrated breakout board designed around the highly precise, low-cost National Semiconductor LM35 linear temperature sensor. The module outputs an analog voltage signal that is directly proportional to the ambient temperature in degrees Celsius (°C). This eliminates the need for external calibration or complex lookup tables.

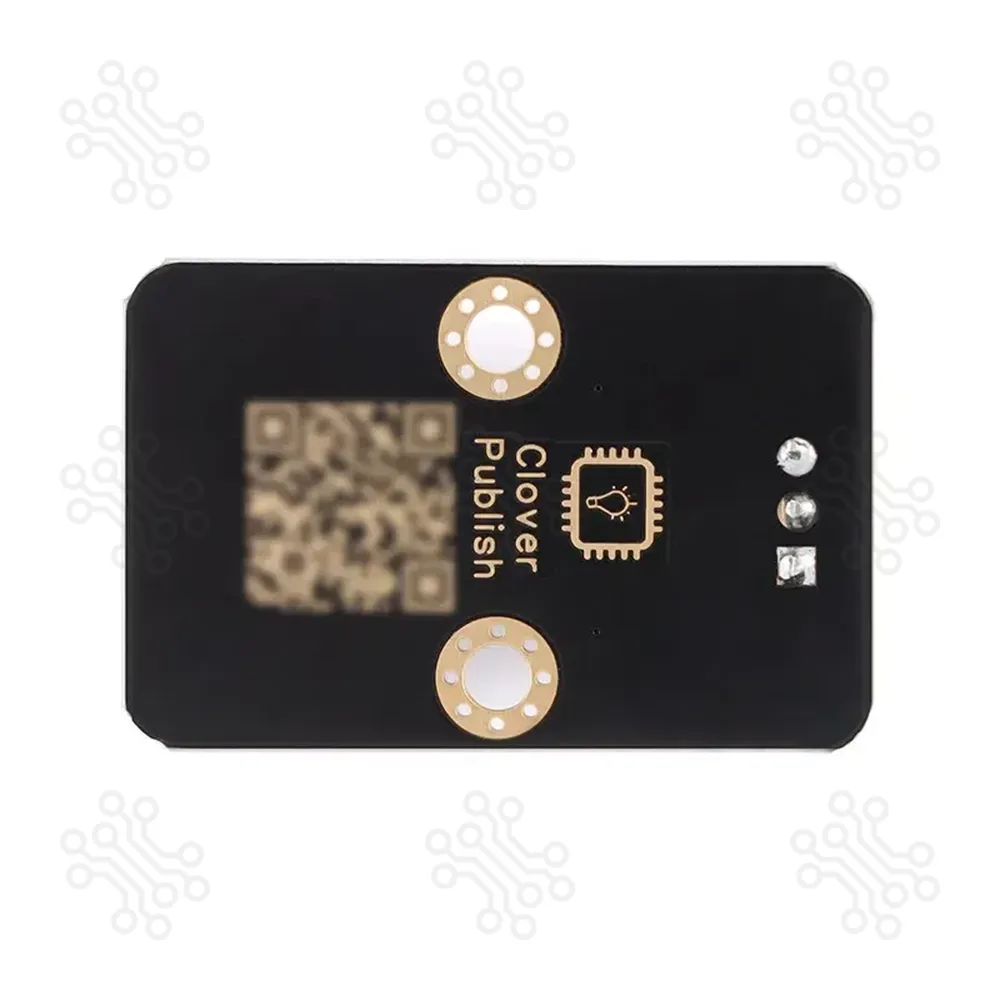

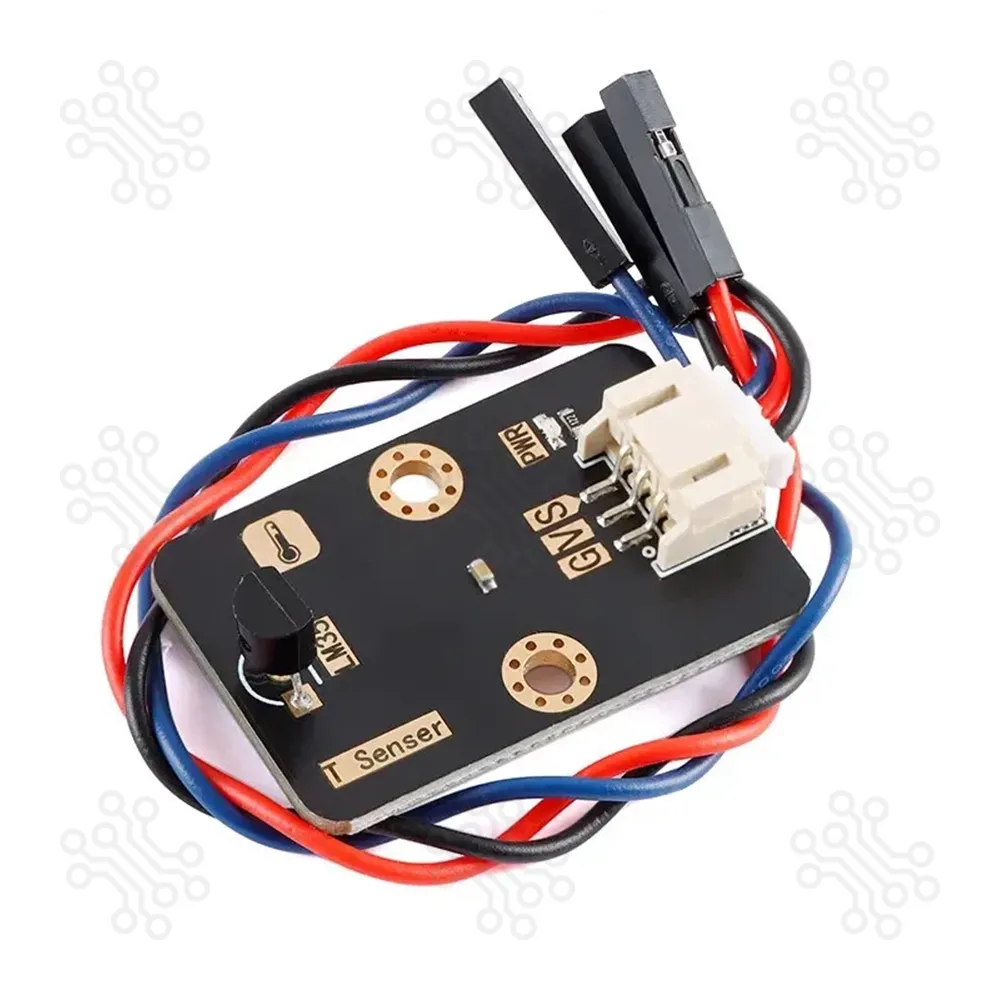

The onboard circuitry features a standard 3-pin interface labeled GVS (Ground, Voltage, Signal) for seamless plug-and-play connection with modern microcontroller systems, such as Arduino, Raspberry Pi, and ESP32 expansion shields. Two integrated mechanical mounting holes ensure rigid mounting onto custom chassis or robotics setups.


Key Feature

  • Calibrated Directly in Celsius: Linear output scaling removes complex conversion overhead.
  • High Precision: Rated for ±0.5°C accuracy at room temperature +25°C.
  • Low Self-Heating: Draws less than < 60μA, minimizing environmental thermal distortion.
  • Onboard Breakout Solution: Pre-assembled decoupling capacitors stabilize output signals against power rail noise.
  • Universal 3-Pin GVS Connector: Simplifies wiring setups to prevent reversed-polarity damage.

Technical Specification

Parameter Value / Range Unit
Operating Voltage (VCC) 5V V
Sensor Core TLM35 -
Temperature Measurement Range 0°C to +100°C °C
Accuracy ±0.5°C (at +25°C), ±0.75°C (full range) °C
Linear Scale Factor +10.0 mV/°C
Quiescent Current < 60  μA
Output Type Analog Voltage -

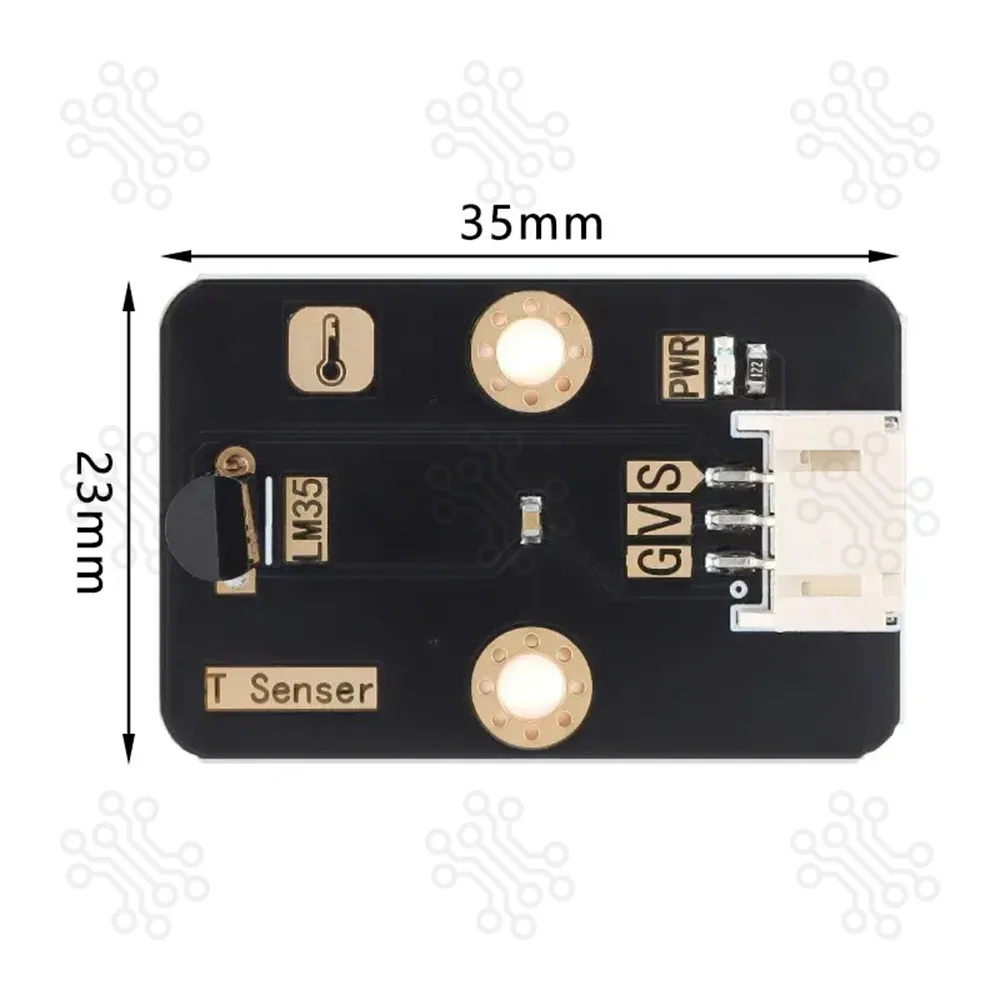

Mounting Hole Diameter 3.0 mm

Pinout Configuration

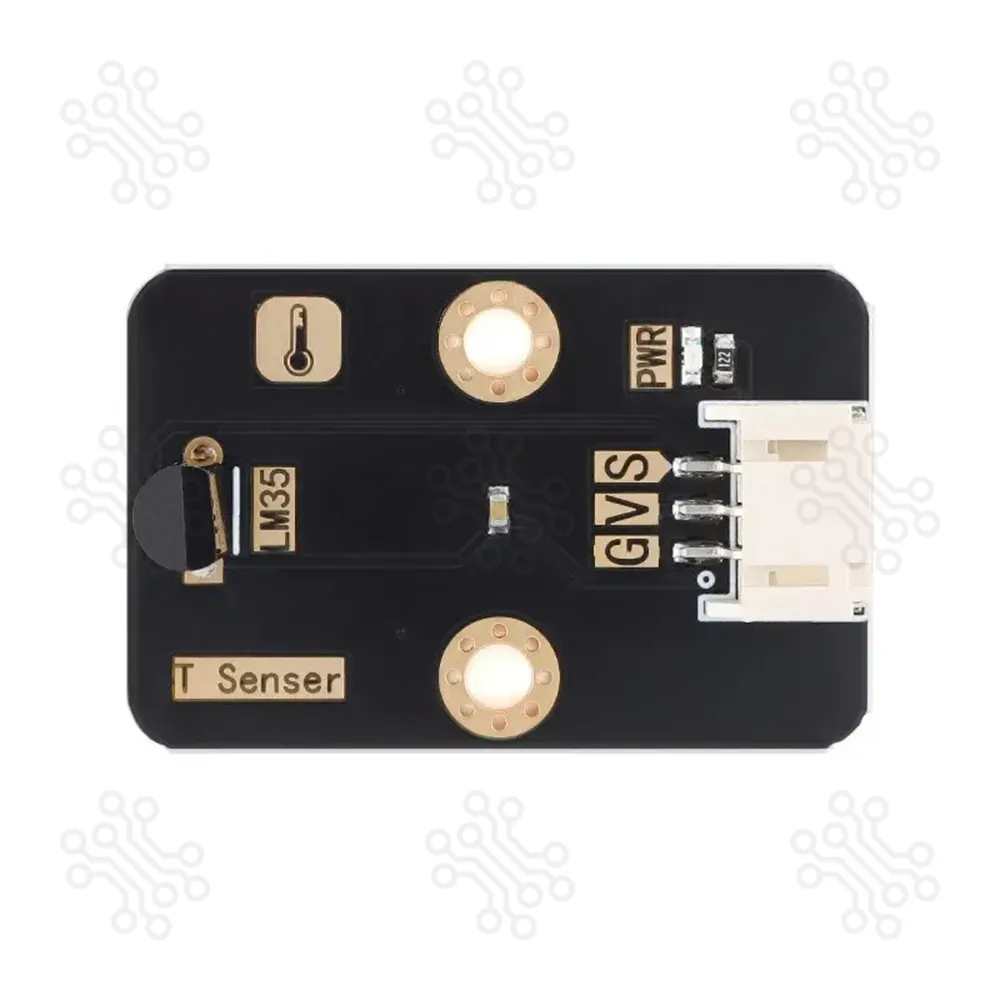

The module features a 3-pin white polarized header with standard 2.54mm pitch spacing, clearly labeled on the PCB surface silk-screen as G V S:

Pin Label Type Description Microcontroller Connection
G Power Ground reference point GND
V Power Positive Power Supply Input 5V
S Analog Out Linear analog voltage output signal Analog Input (e.g., A0)

Application

  • Temperature Monitoring
  • Home Automation Systems
  • Weather & Environmental Monitoring
  • Industrial Control Systems
  • Data Logging Projects
  • Robotics & Embedded Systems
  • Arduino and Educational Projects
  • HVAC Applications
  • Laboratory Equipment
  • IoT-Based Monitoring Solutions

Package Includes

  • 1 × LM35 Temperature Sensor Module
