MCCP4725 I2C DAC Breakout Module in Bangladesh
MCCP4725 I2C DAC Breakout Module in Bangladesh

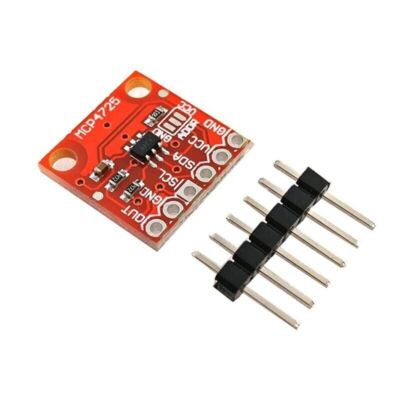

MCCP4725 I2C DAC Breakout Module

SKU: 250910005018

Brand: Made in China

Warranty: 3 Days

Model: N/A

৳ 260.07

Add to Wishlist

Category: Converter

Share:

Description of MCCP4725 I2C DAC Breakout Module

The MCP4725 is a 12-bit Digital-to-Analog Converter (DAC) with an I²C interface, designed to convert digital signals into smooth analog output. It is widely used in audio generation, waveform synthesis, voltage control, and instrumentation.

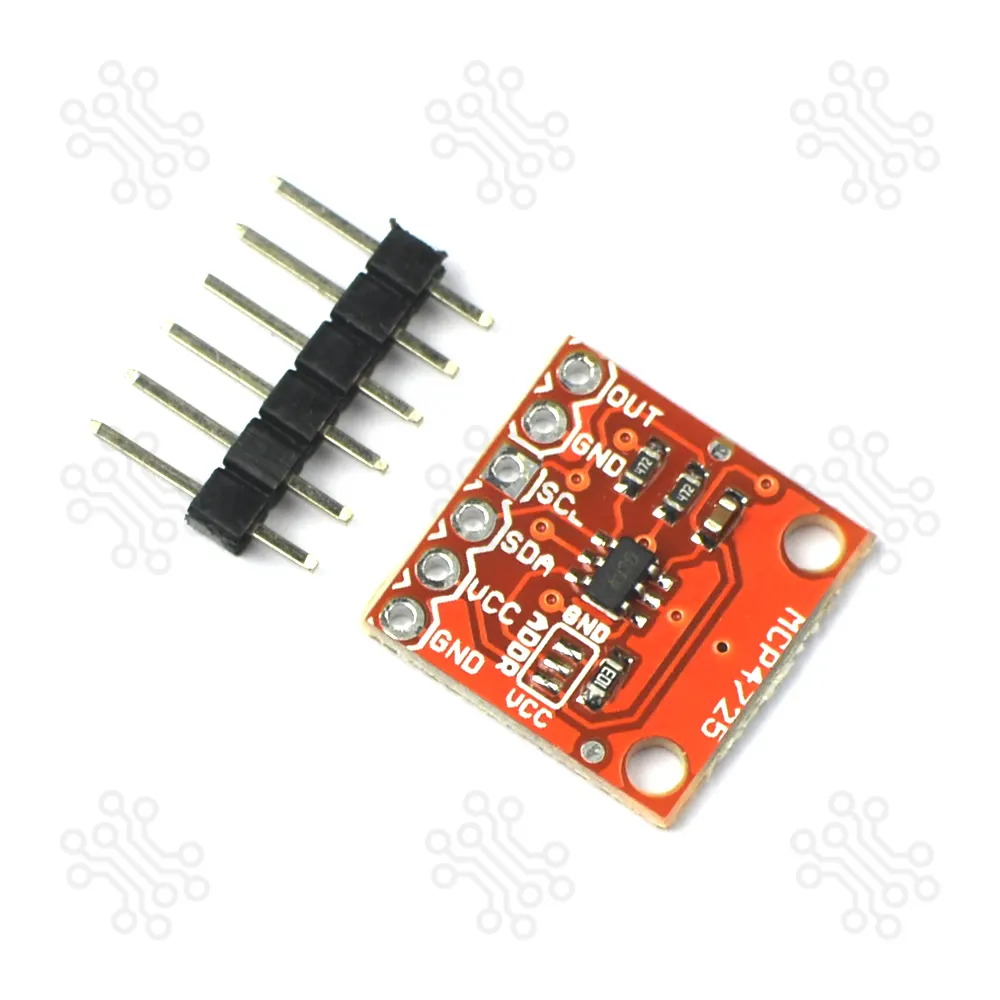

This breakout board features all the essential pins—OUT, SDA, SCL, VCC, and GND—for easy integration with microcontrollers such as Arduino, ESP32, or Raspberry Pi. It also includes onboard EEPROM for storing DAC settings, ensuring your output configurations are retained even after power cycles. With its compact size and pull-up resistor configuration, it can be easily used in multi-device I²C bus systems.


Key Features

  • 12-bit resolution for high-accuracy analog output.
  • Operates on a wide voltage range (2.7V – 5.5V).
  • Supports Standard, Fast, and High-Speed I²C protocols.
  • Onboard EEPROM stores DAC output values permanently.

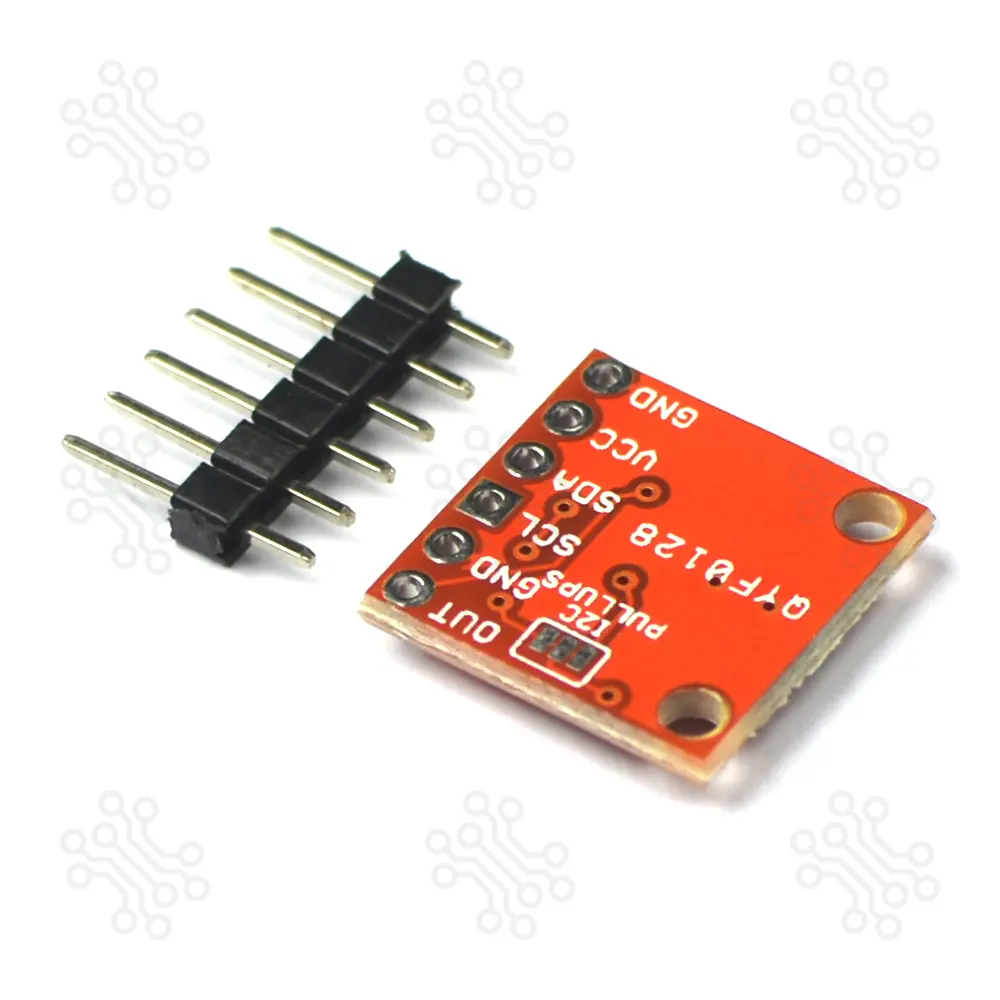

  • Compact breakout board with pull-up resistor disable option for multi-device setups.

Specification

Parameter Value
Resolution 12-bit DAC
Interface I²C (Standard, Fast, High-Speed)
Supply Voltage 2.7V – 5.5V
Output Analog voltage
Onboard Memory Internal EEPROM
Compatibility Arduino, ESP32, Raspberry Pi, STM32

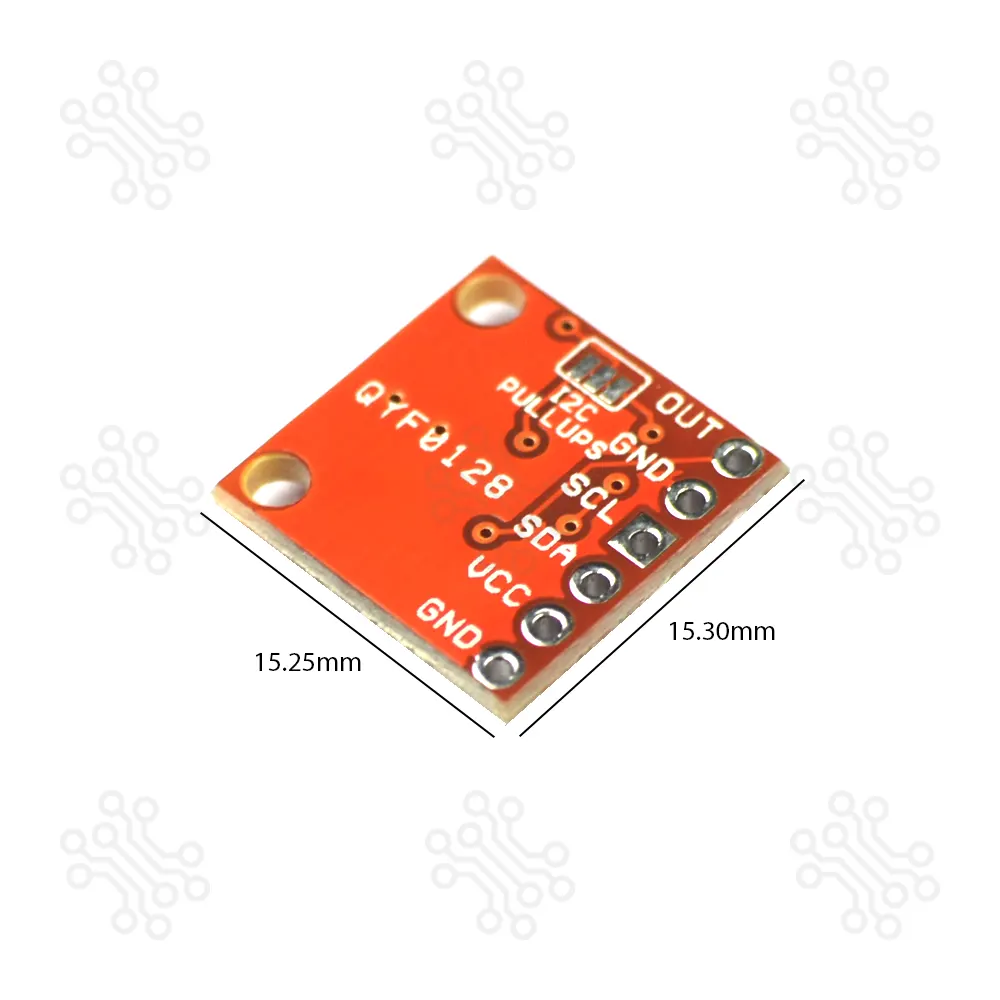

Dimensions 15.20 x 15.30 mm

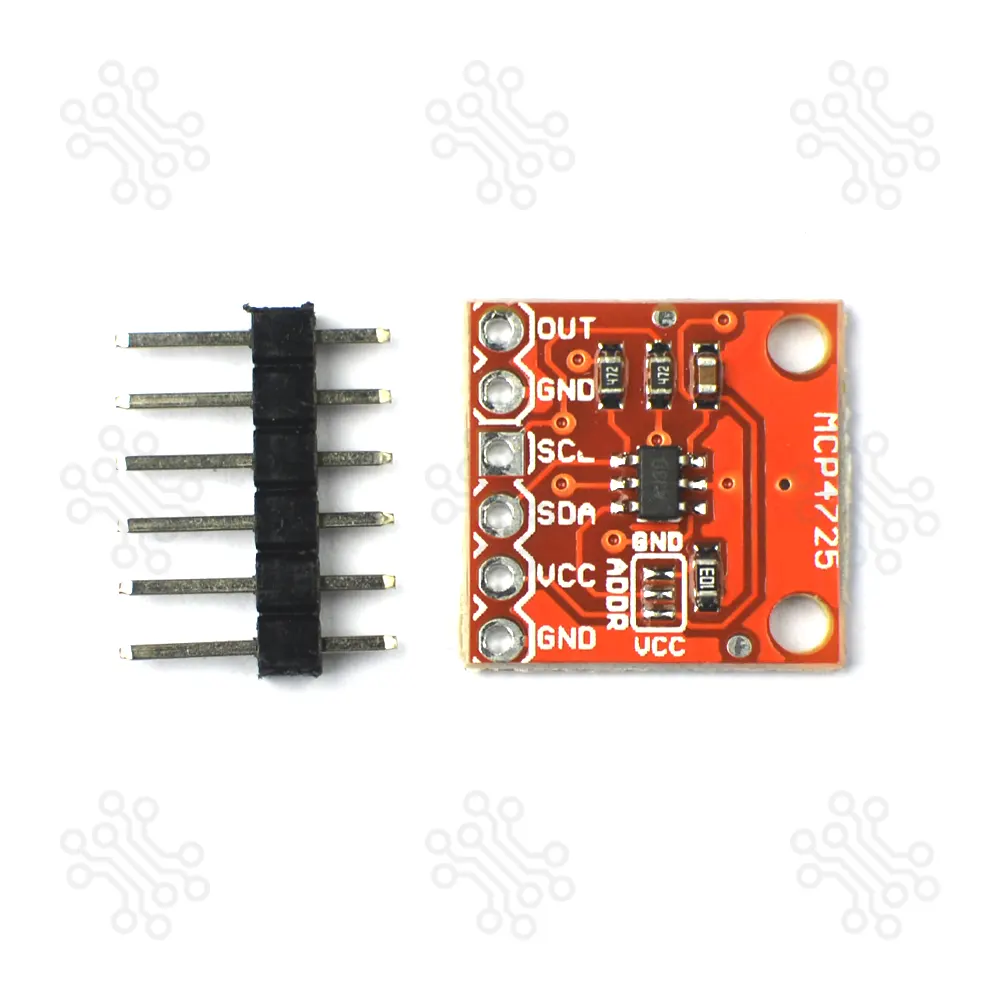

Pinout

  • OUT – Analog output
  • SDA – I²C data line
  • SCL – I²C clock line
  • VCC – Power supply (2.7V – 5.5V)
  • GND – Ground

Applications

  • Audio and waveform generation
  • Digital music instruments
  • Voltage reference and control systems
  • Signal processing and test equipment
  • Data acquisition systems

Packaging Details

  •  1 × MCCP4725 I2C DAC Breakout Module

MCCP4725 I2C DAC Breakout Module - Frequently Asked Questions

What is the MCP4725 module used for?
The MCP4725 is a 12-bit I²C DAC breakout module used to convert digital signals into analog output for applications like audio generation, waveform synthesis, and voltage control.

Can the MCP4725 store output settings after powering off?
Yes, it has an onboard EEPROM that retains the DAC settings even after power is turned off.

Which microcontrollers are compatible with the MCP4725 module?
It works with Arduino, ESP32, Raspberry Pi, STM32, and other controllers that support the I²C protocol.

What is the operating voltage range of the MCP4725 module?
It can operate between 2.7V and 5.5V DC.

Can multiple MCP4725 modules be used on the same I²C bus?
Yes, the module supports multi-device setups, and the pull-up resistors can be disabled if required.
