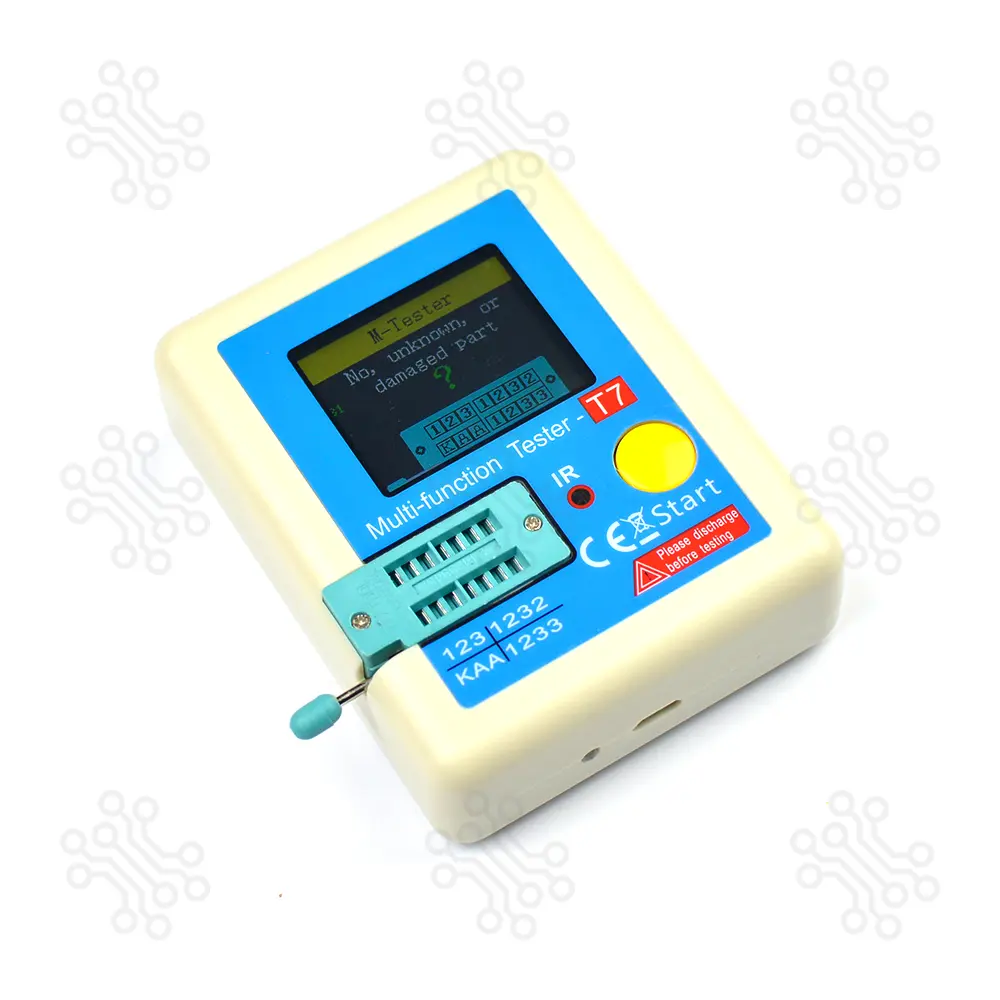

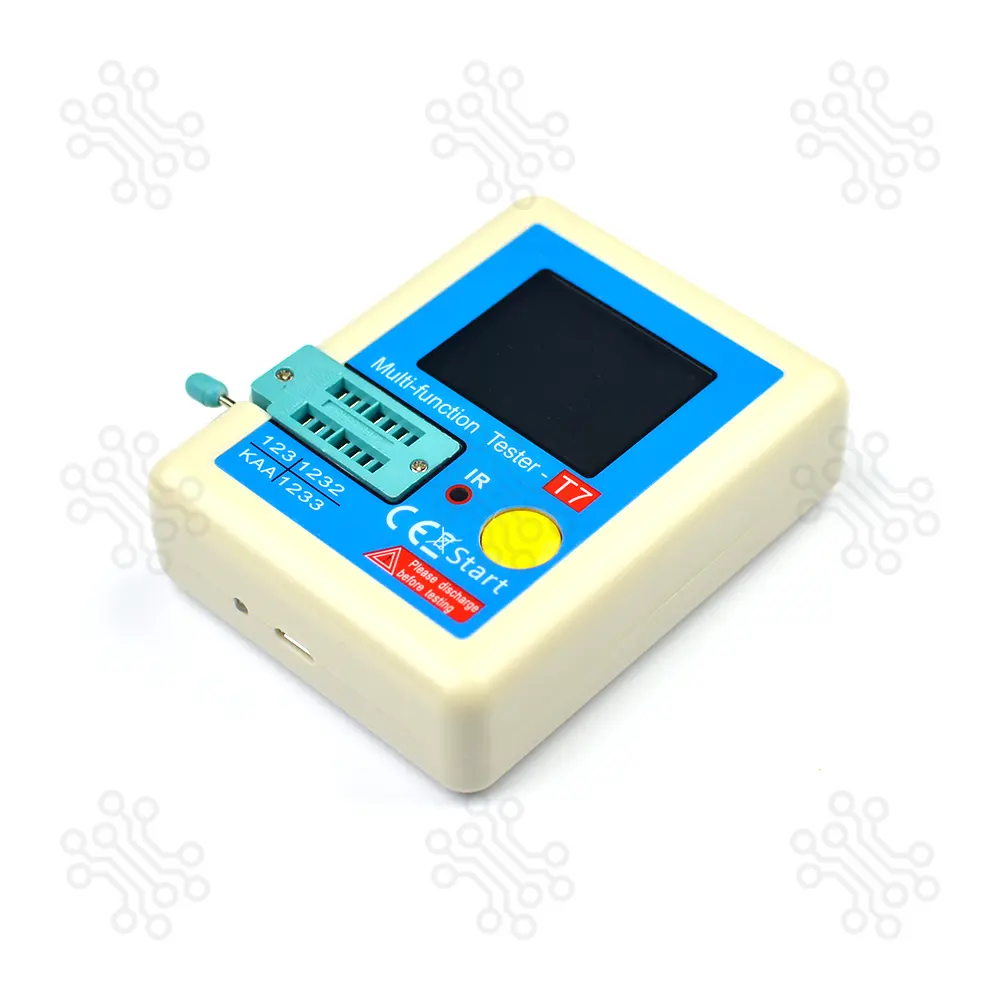

This LCR meter offers a wide range of functions at a low price. The LCR meter can measure capacitance, resistance, and inductance among other things. In addition, it can automatically recognize components, for example, it can distinguish between different types of transistors, such as NPN or PNP transistors. The device is particularly easy to operate, as all measurements are started at the touch of a single button.
Powered by an integrated 350 mAh battery, the device enables measurements to be carried out on the go. The battery is charged using a 5V power supply unit (available separately) through the included micro-USB cable.
In addition, this measuring device can decode infrared signals and show them as a waveform on the display.
When you start the measuring device for the first time, you should first perform a self-test of the device. For this purpose, you must short-circuit the slots 1, 2 and 3. You do this as follows:
Now press Start to perform the self-test. You will be asked by the device at approx. 22% to remove the component so that the self-test can be completed successfully. Now you can start measuring your components. You start the measuring process with the Start button.
A 3.7 V battery with 350 mAh is built into the multifunction tester. You can charge it with microUSB and a 5 V power supply. The LED shows the status of the battery. That means it shines red when the battery is charging and green when the battery is fully charged.
The battery of this measuring device is also measured during each component measurement. Therefore, the residual voltage of the battery is also displayed during each measurement. This residual voltage is displayed with Vbat = …V.
The device will also tell you when the battery needs to be charged again.
This device switches off automatically after 20 seconds of inactivity. You can also turn it off manually by pressing and holding the Start button.
Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!
| Feature | Specification |
|---|---|
| Measurable Components | Resistor, capacitor, inductor, thyristor, triac, double diode, Z-diode, field effect transistor, bipolar transistor, infrared decoder |
| Supported IR Protocol | NEC (used by many manufacturers) |
| Display Type | 1.8″ TFT LCD (160 × 128 pixels) |
| Special Features | Automatic calibration, one-key operation |
| Built-in Battery | Lithium-ion rechargeable battery, 3.7 V, 350 mAh |

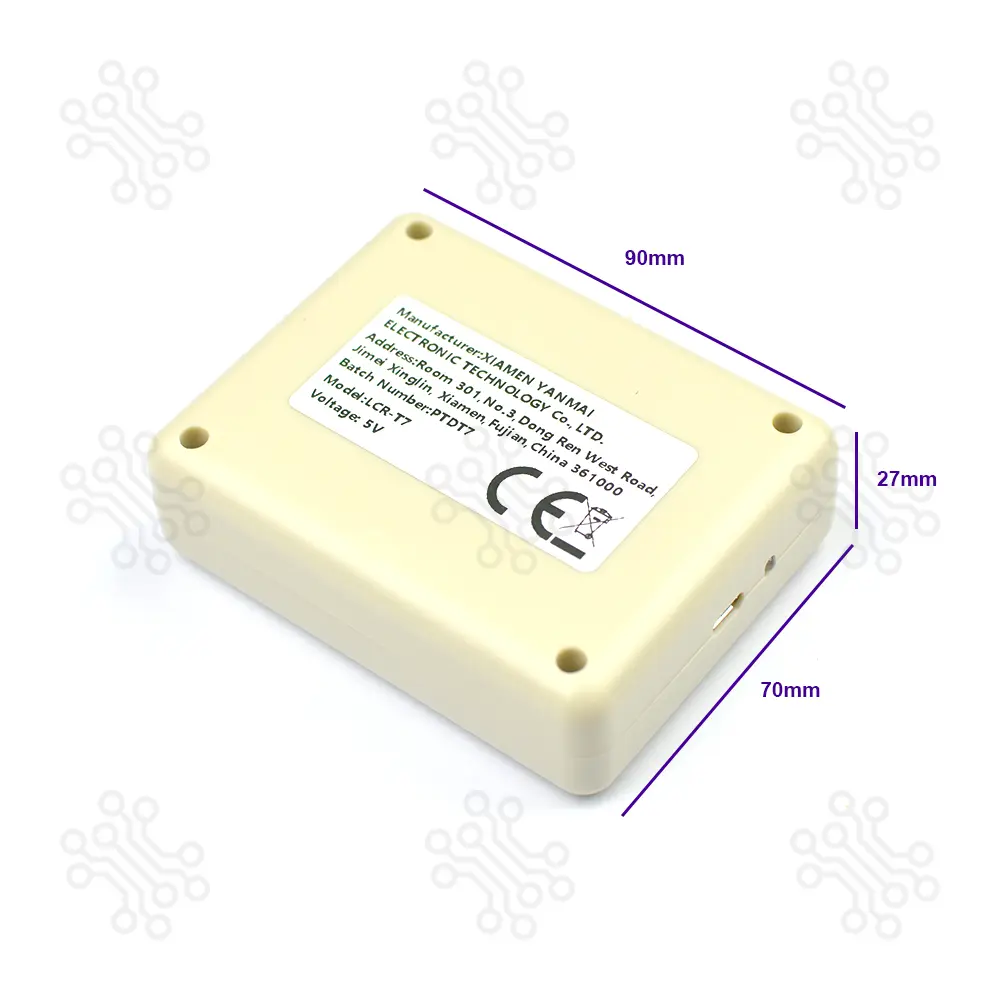

| Size | 90 × 70 × 27 mm |

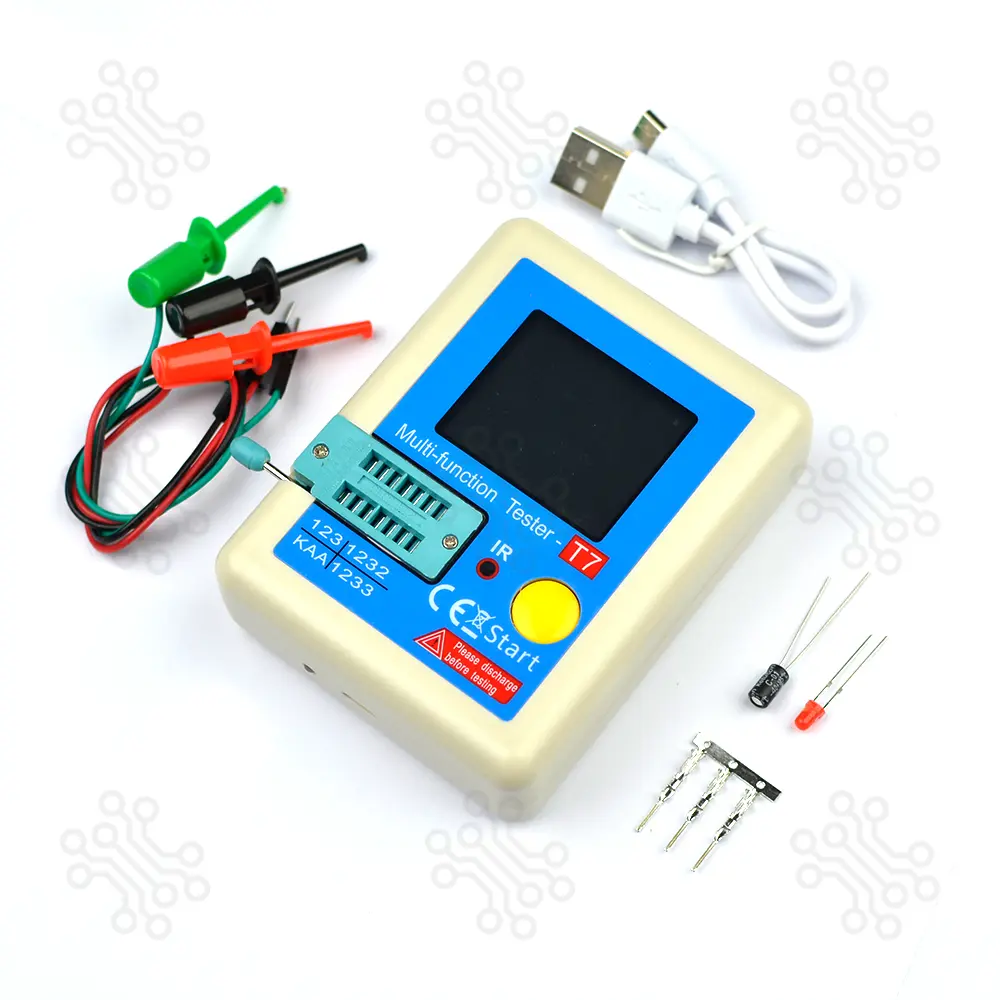

| Items Delivered | Tester, USB cable, test clip, LED, capacitor |
| Parameter | Measuring Range |
|---|---|
| Capacitance | 25 pF – 100 mF |
| Resistance | 0.01 Ω – 50 MΩ |
| Inductance | 0.01 mH – 20 H |
| Battery | 0.1 V – 4.5 V, 300 mAh |
| Z-Diode Breakdown Voltage | 0.01 V – 30 V |
| Z-Diode | 0.01 V – 4.5 V |
| Diode | UF < 4.5 V |
| Thyristor / Triac | IGT < 6 mA |
