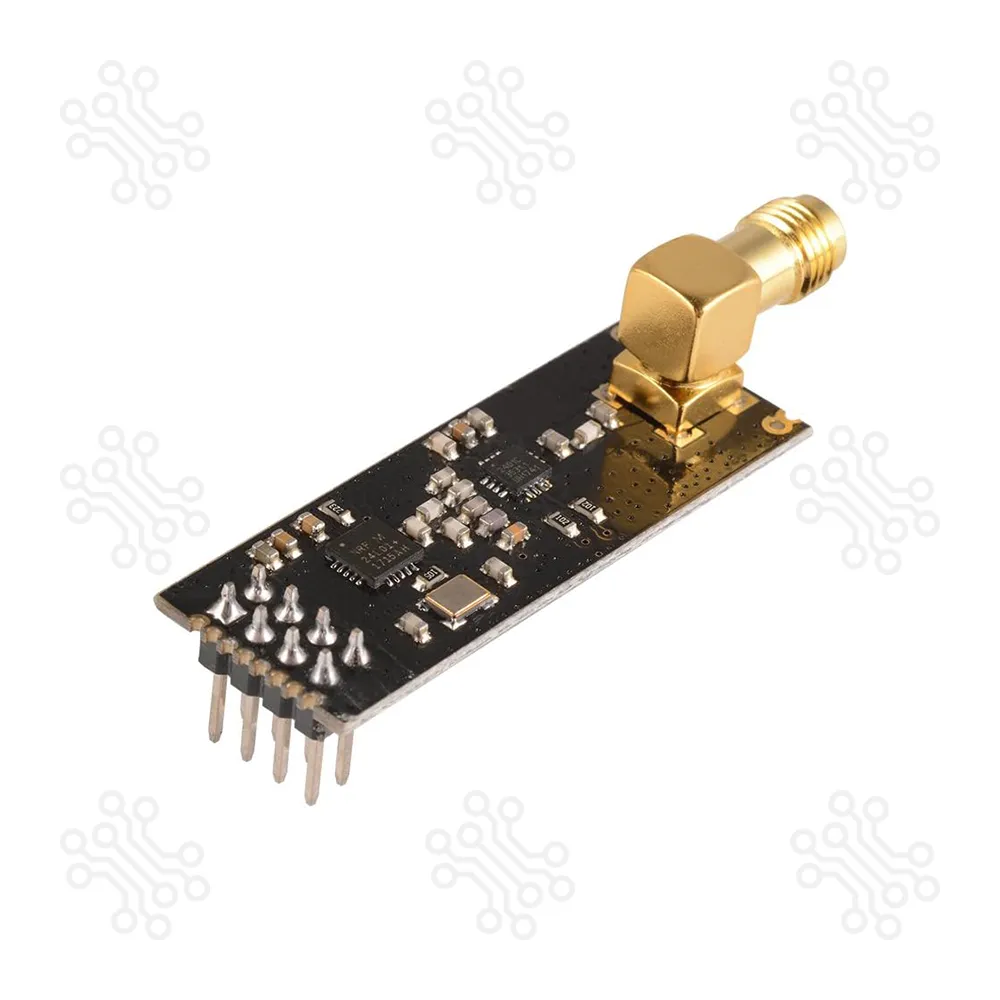

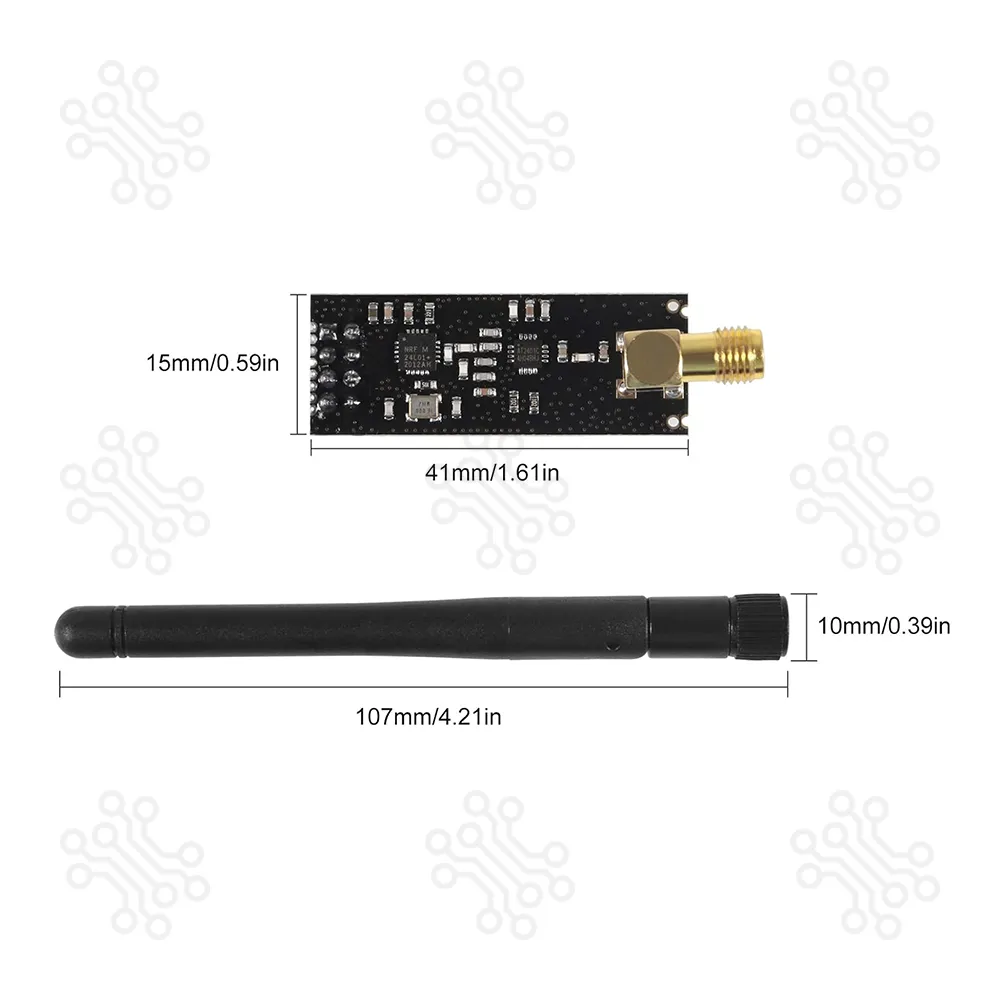

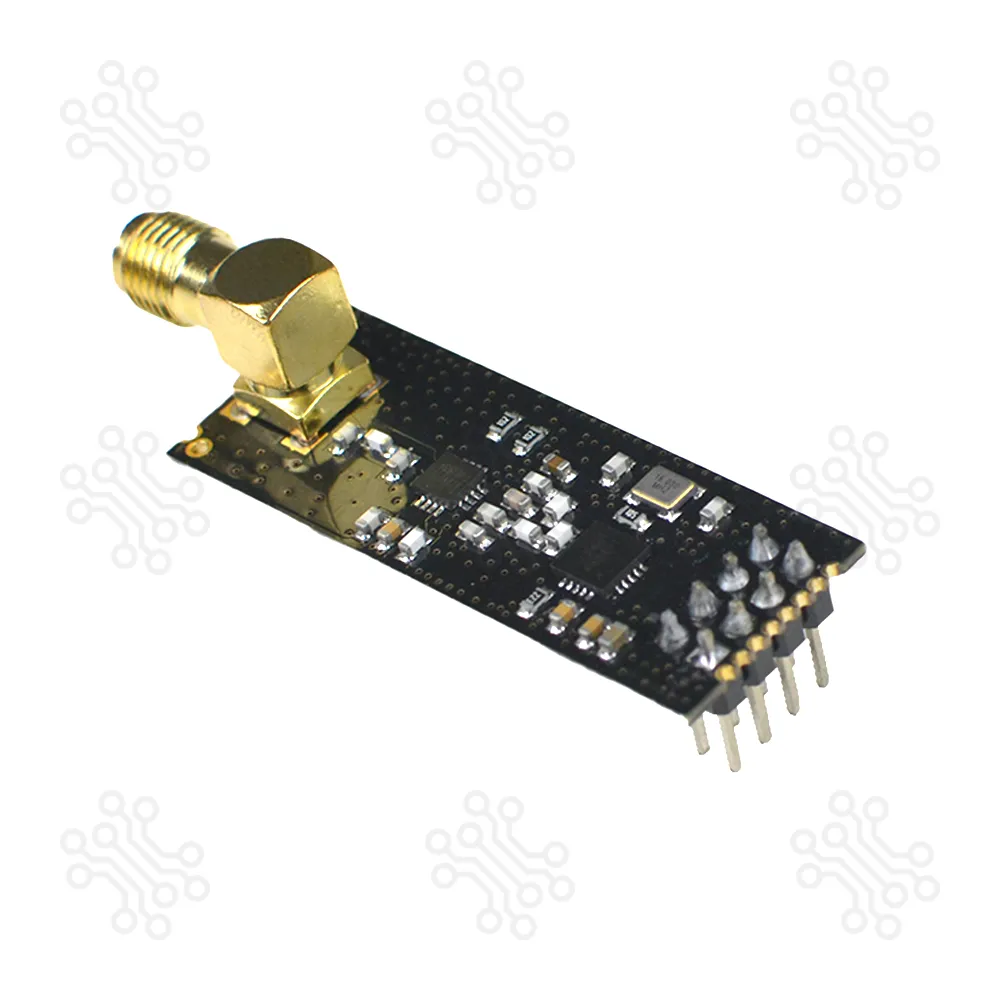

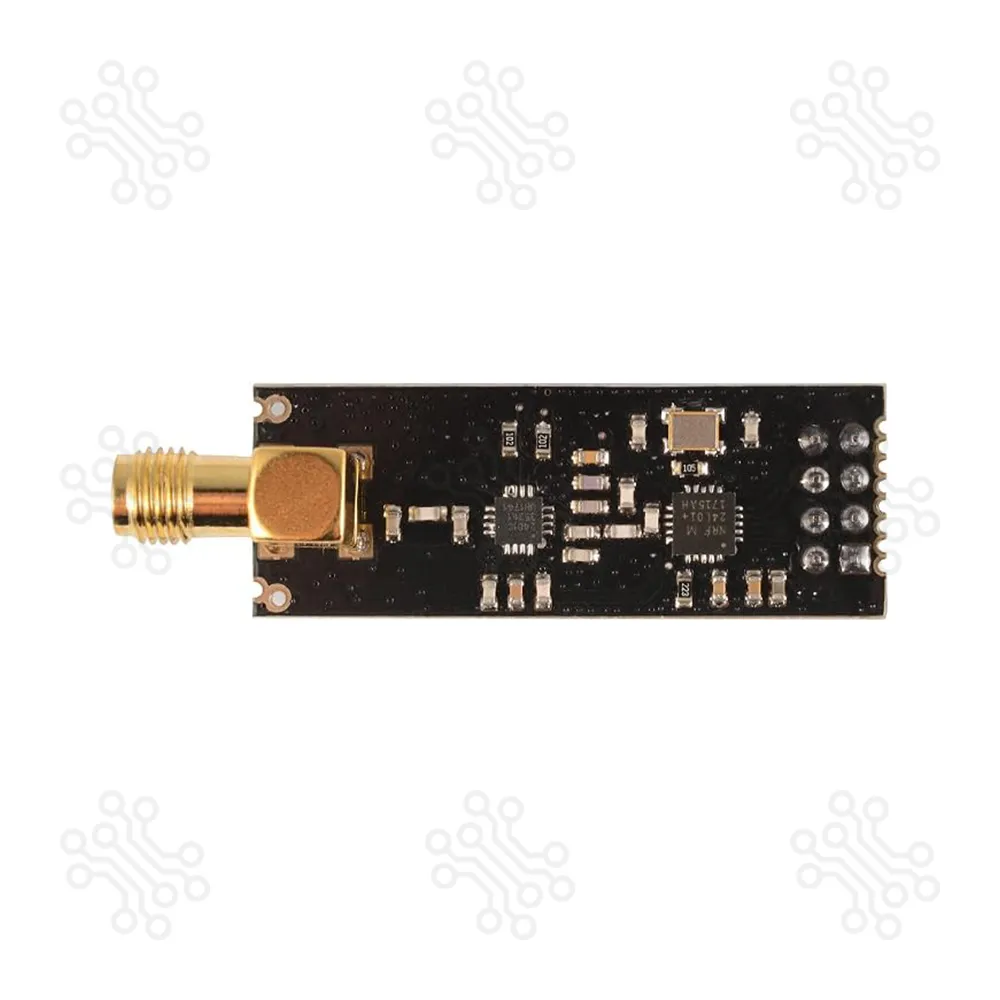

The NRF24L01+ PA+LNA Wireless Transceiver Module is a long-range 2.4GHz RF communication module based on the Nordic NRF24L01+ transceiver IC. It operates in the license-free 2.4GHz ISM band and supports data rates of 250kbps, 1Mbps, and 2Mbps.

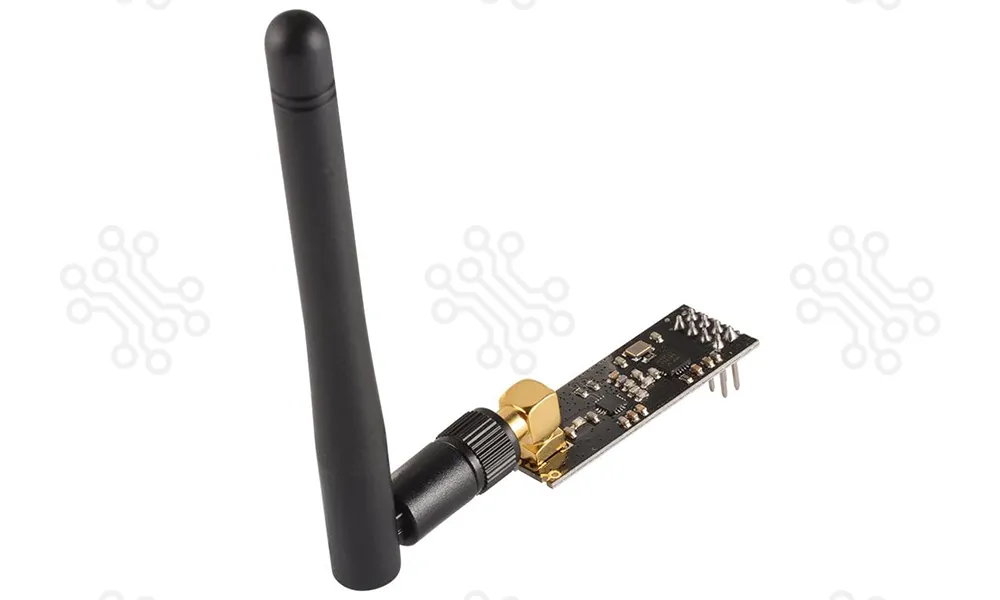

Featuring an integrated Power Amplifier (PA), Low Noise Amplifier (LNA), and an external SMA antenna, the module offers significantly improved communication range and signal stability compared to standard NRF24L01 modules.
With its SPI interface, low power consumption, and reliable wireless performance, the module is ideal for Arduino, ESP32, STM32, Raspberry Pi, IoT projects, wireless sensor networks, robotics, and home automation applications.
| Parameter | Specification |
|---|---|
| Frequency Range | 2.4GHz – 2.525GHz |
| RF Power Output | Up to ~20dBm |
| Receiver Sensitivity | ~ -95dBm |
| Data Rates | 250kbps, 1Mbps, 2Mbps |
| Operating Voltage | 1.9V – 3.6V DC |
| Crystal Oscillator | 16MHz ±60ppm |
| Antenna Type | External SMA Antenna |
| Communication Interface | SPI |
| Logic Level | 5V tolerant inputs |
| Communication Range | 1000+ meters (line of sight) |
Note:
⚠️ Do not connect to 5V, as the module works only on 3.3V and higher voltage may damage it.
PA (Power Amplifier)
The Power Amplifier strengthens the outgoing RF signal before transmission. A stronger signal allows data to travel greater distances while maintaining communication stability.
LNA (Low Noise Amplifier)
The Low Noise Amplifier enhances weak incoming RF signals while introducing minimal noise. This improves receiver sensitivity and allows the module to detect weaker signals over longer distances.
Together, PA and LNA significantly improve the communication range and reliability of the module.
The NRF24L01+ PA+LNA module communicates using the 2.4GHz ISM frequency band and employs GFSK (Gaussian Frequency Shift Keying) modulation for wireless data transmission.
The module uses Nordic's Enhanced ShockBurst™ protocol, which provides:
These built-in features reduce the workload on the host microcontroller while improving overall communication reliability.

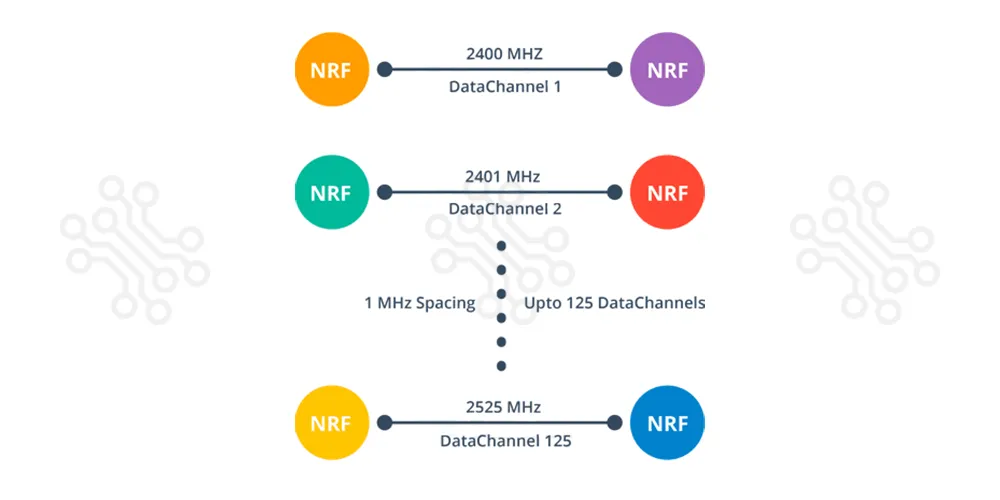

The module operates between 2.400GHz and 2.525GHz and provides up to 125 selectable RF channels.
Each channel occupies approximately 1MHz bandwidth, allowing multiple wireless networks to operate simultaneously with minimal interference.

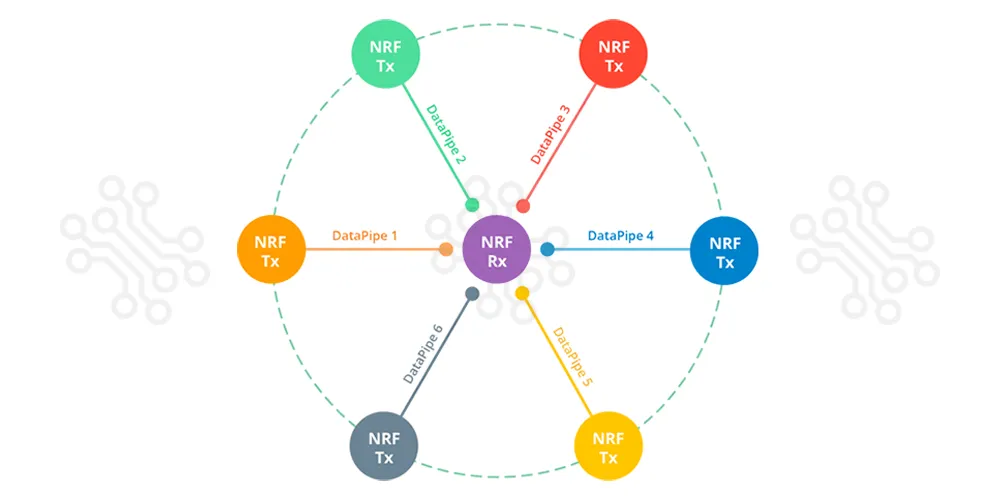

One of the unique features of the NRF24L01+ is its Multiceiver capability.
Benefits include:
This enables the creation of star-topology wireless communication systems with minimal hardware complexity.

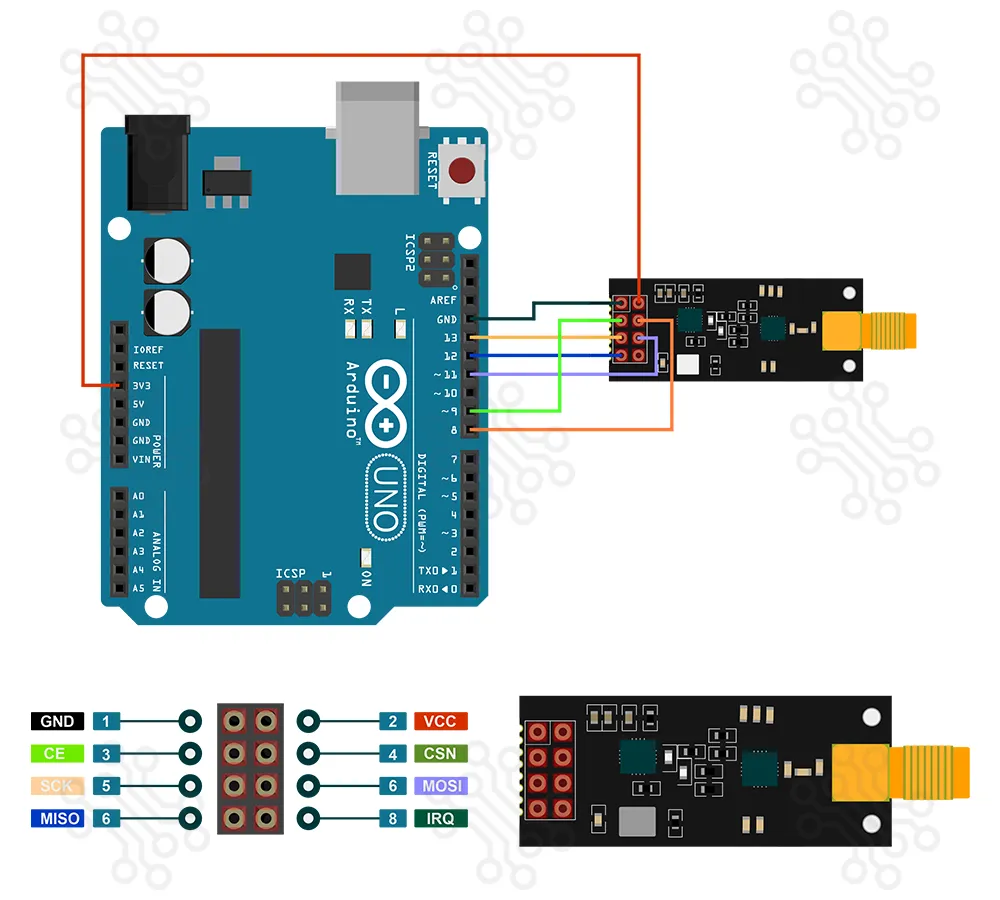

First, connect the module’s VCC pin to Arduino’s 3.3V and the GND pin to Arduino’s ground. Important: Do not connect it to 5V, as this module operates at 3.3V and could get damaged by higher voltage.
The CSN and CE pins can be connected to any digital pin on your Arduino – in our example, we’ll use digital pin #8 for CSN and digital pin #9 for CE.
Next, we’ll connect the pins used for SPI communication. Since the nRF24L01+ module needs to transfer data quickly, it works best when connected to the hardware SPI pins on your Arduino. For Arduino boards like the UNO or Nano V3.0, these pins are: digital 13 (SCK), 12 (MISO), 11 (MOSI), and 10 (CS).
If you’re using a different Arduino board, make sure to check the official Arduino documentation to find the correct hardware SPI pins for your specific board.
To make it easier to understand, here is a table summarizing the pin connections:
| Pin No. | Name | Description |
|---|---|---|
| 1 | GND | System Ground reference |
| 2 | VCC | Power Input (3.3V Only) |
| 3 | CE | Chip Enable (TX/RX mode) |
| 4 | CSN | SPI Chip Select Not (Active Low) |
| 5 | SCK | SPI Clock Input |
| 6 | MOSI | SPI Master Out Slave In |
| 7 | MISO | SPI Master In Slave Out |
| 8 | IRQ | Interrupt Request (Active Low) |
| Feature | Standard NRF24L01+ | NRF24L01+ PA/LNA |
|---|---|---|
| Antenna Type | PCB Antenna | External SMA Antenna |
| Communication Range | 50–100m | Up to 1000m |
| Power Amplifier | No | Yes |
| Low Noise Amplifier | No | Yes |
| Signal Sensitivity | Standard | Enhanced |
| Long-Range Communication | Limited | Excellent |
TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.
Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.
Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox
Ratings and 0 Reviews
Reviews (0)
No reviews yet. Be the first to review this product!
Is both transmitter and receiver circuit included?
By radowan8880 on 10 Jun 2026
Yes Sir NRF24L01 module is a transceiver, so each module can work as both transmitter and receiver.
By TechShopBD on 13 Jun 2026
