Open Smart Arduino Auto Bootloader Programmer in Bangladesh
Open Smart Arduino Auto Bootloader Programmer in Bangladesh

Open Smart Arduino Auto Bootloader Programmer

SKU: 260223005191

Brand: Made in China

Warranty: 3 Days

৳ 460.04

Add to Wishlist

Category: Arduino & Accessories

Share:

Description of Open Smart Arduino Auto Bootloader Programmer

The Open Smart Arduino Auto Bootloader Programmer is designed for quickly burning bootloaders on development boards that use ATmega328P. It connects through the ICSP header, allowing users to install or re-burn the bootloader easily without connecting the board directly to a computer.

The programmer starts working automatically once power is supplied to the target board. It can also be used to program new chips, but the microcontroller must be functioning properly. During the programming process, all previous data stored on the chip will be erased.

Two onboard LEDs provide clear status indication. The red and green LEDs flash alternately while the bootloader is uploading, the green LED stays ON when the process completes successfully, and the red LED remains ON if an error occurs.


Technical Specifications

Parameter Specification
Working Voltage 3.1V – 5.3V
Working Current 10mA (Max)
Compatible Boards 328P Board R3
Supported Microcontrollers ATmega328P / ATmega328PB
Programming Interface ICSP
Indicator LEDs Green and Red Status LEDs

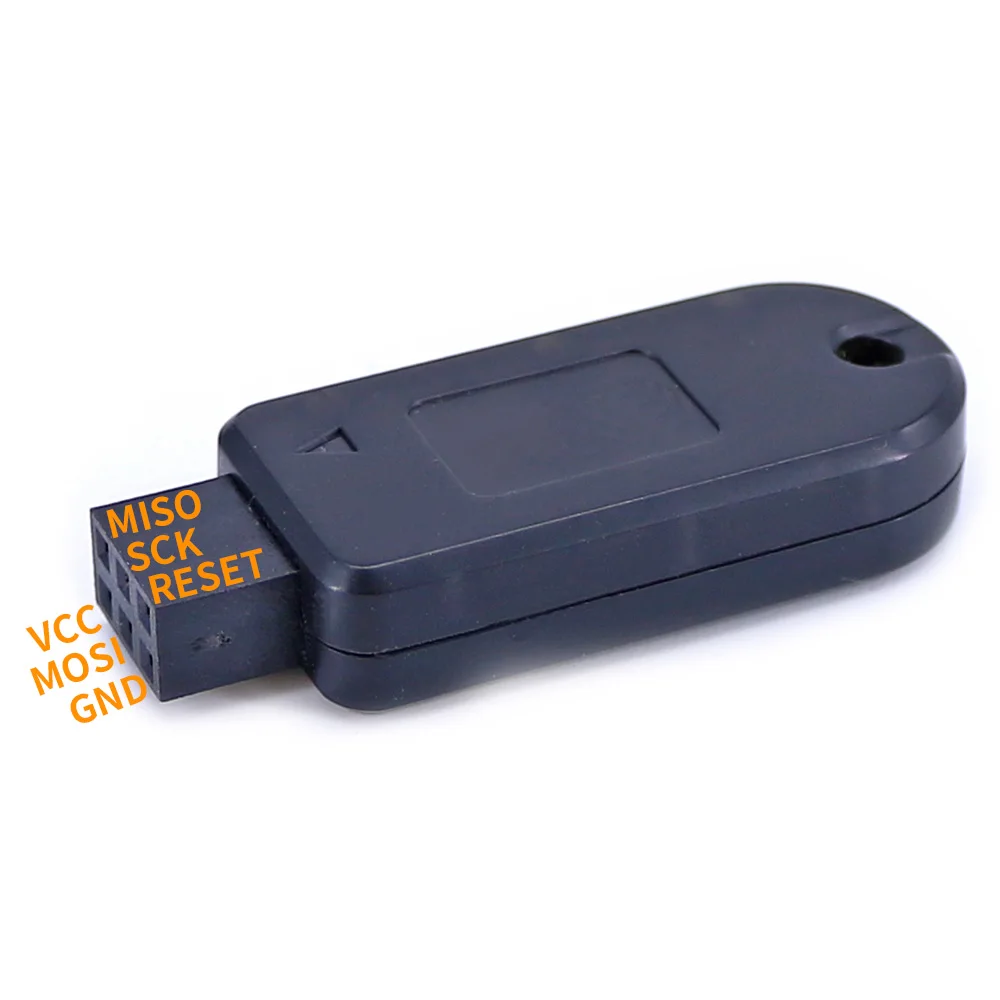

Pin Name (ICSP Interface)

The programmer communicates with the target board through the ICSP header. The ICSP interface uses standard SPI signals to burn the bootloader into the ATmega328P.

Parameter Specification
VCC Power supply input
MOSI Master Out Slave In – data sent from programmer to microcontroller
GND Ground reference
MISO Master In Slave Out – data sent from microcontroller to programmer
SCK Serial Clock signal for SPI communication
RESET Resets the target microcontroller during programming

Applications

  • Bootloader recovery for ATmega328P based boards
  • Programming new microcontroller chips
  • Batch bootloader burning in manufacturing
  • Arduino compatible development and testing
  • Educational electronics labs and microcontroller training

 Important Notes

  • The target board must be powered externally before programming.
  • Burning the bootloader will erase all existing data on the chip.
  • Ensure the ICSP interface is connected correctly before starting the process

Package Content

  • 1 × Open Smart Arduino Auto Bootloader Programmer
