PL200 Smart 4G Personal Tracker in Bangladesh
PL200 Smart 4G Personal Tracker in Bangladesh

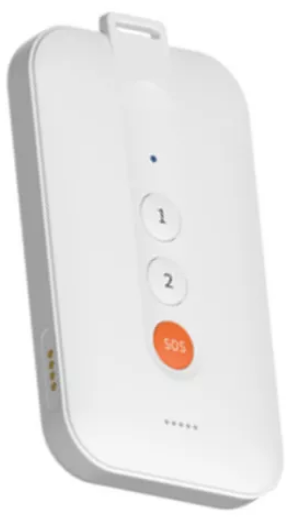

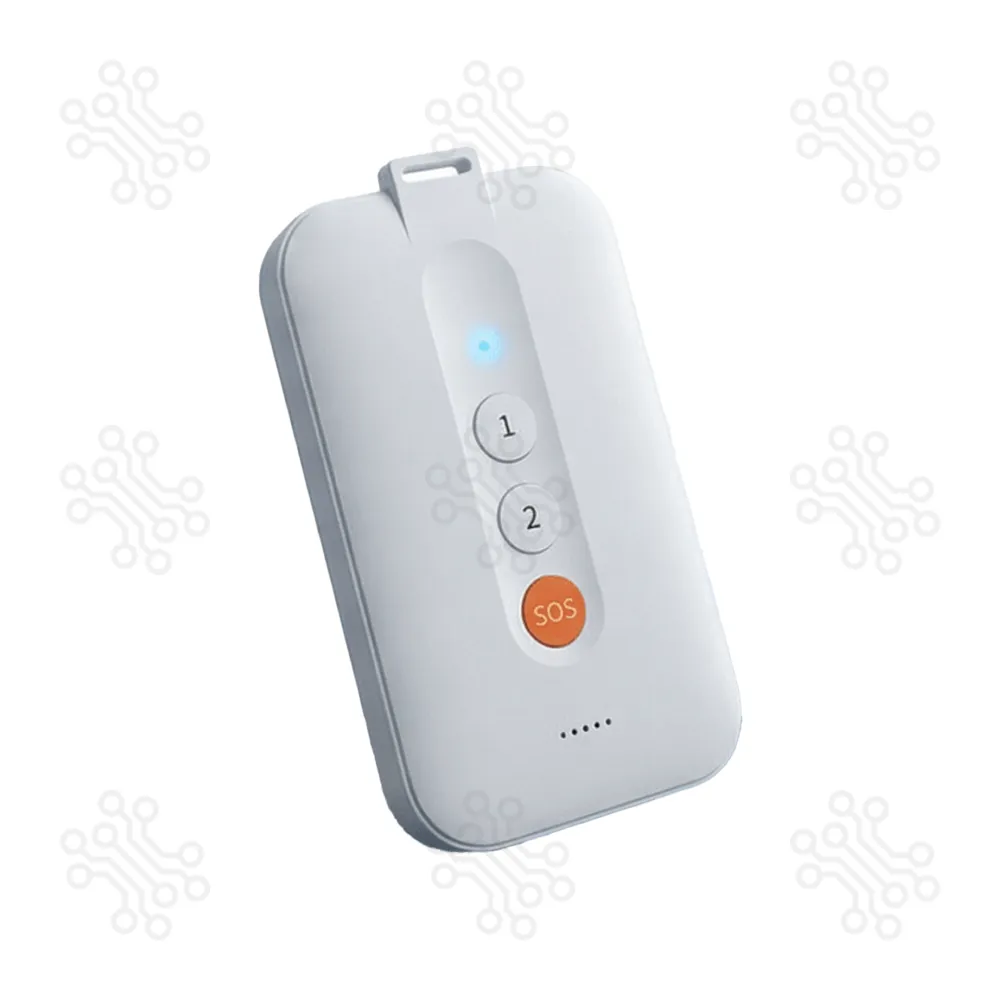

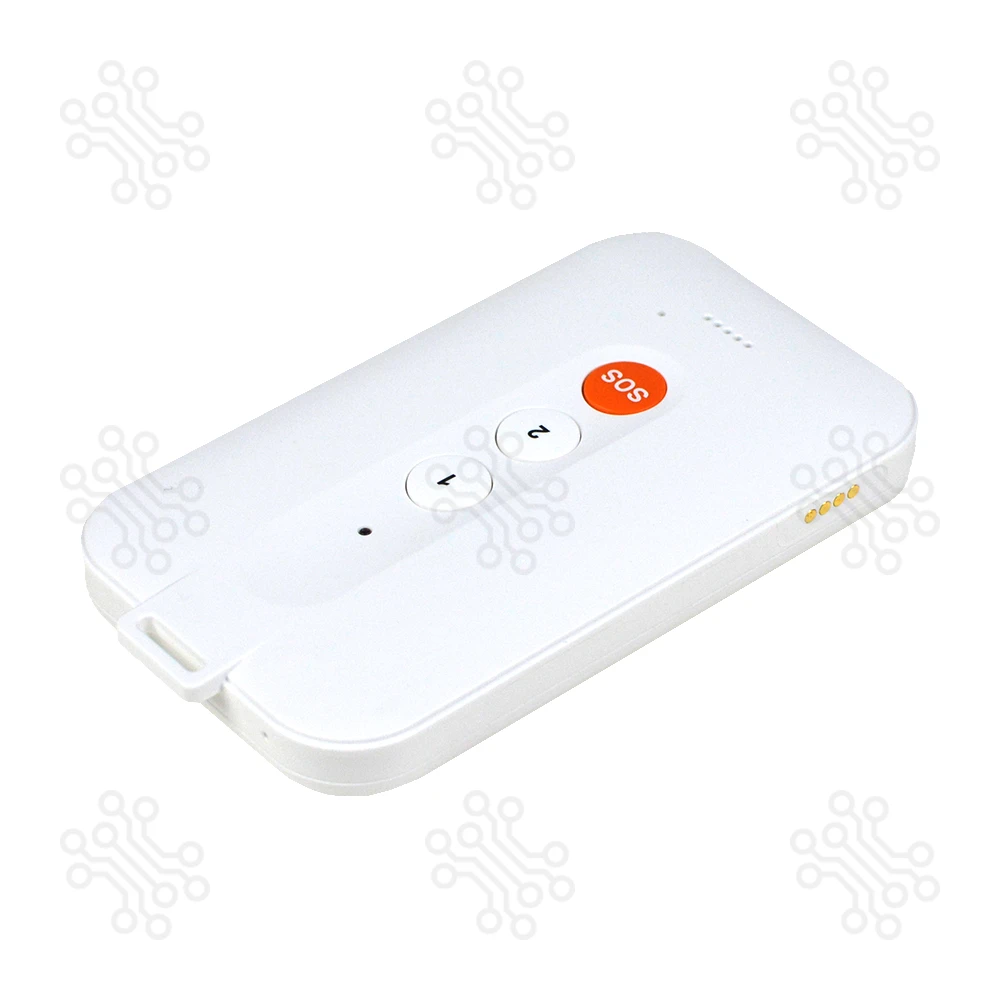

PL200 Smart 4G Personal Tracker

SKU: 260428005423

Brand : Made in China

Warranty : 3 Days

৳ 5450.04

Add to Wishlist

Category: GSM, GPS & GPRS

Share:

Description of PL200 Smart 4G Personal Tracker

The PL200 Smart 4G Personal Tracker is a compact and lightweight personal tracking device designed for workforce management and lone-worker safety applications. It provides real-time positioning, two-way communication, and emergency alert features in a durable IP65-rated housing, making it suitable for demanding outdoor environments.

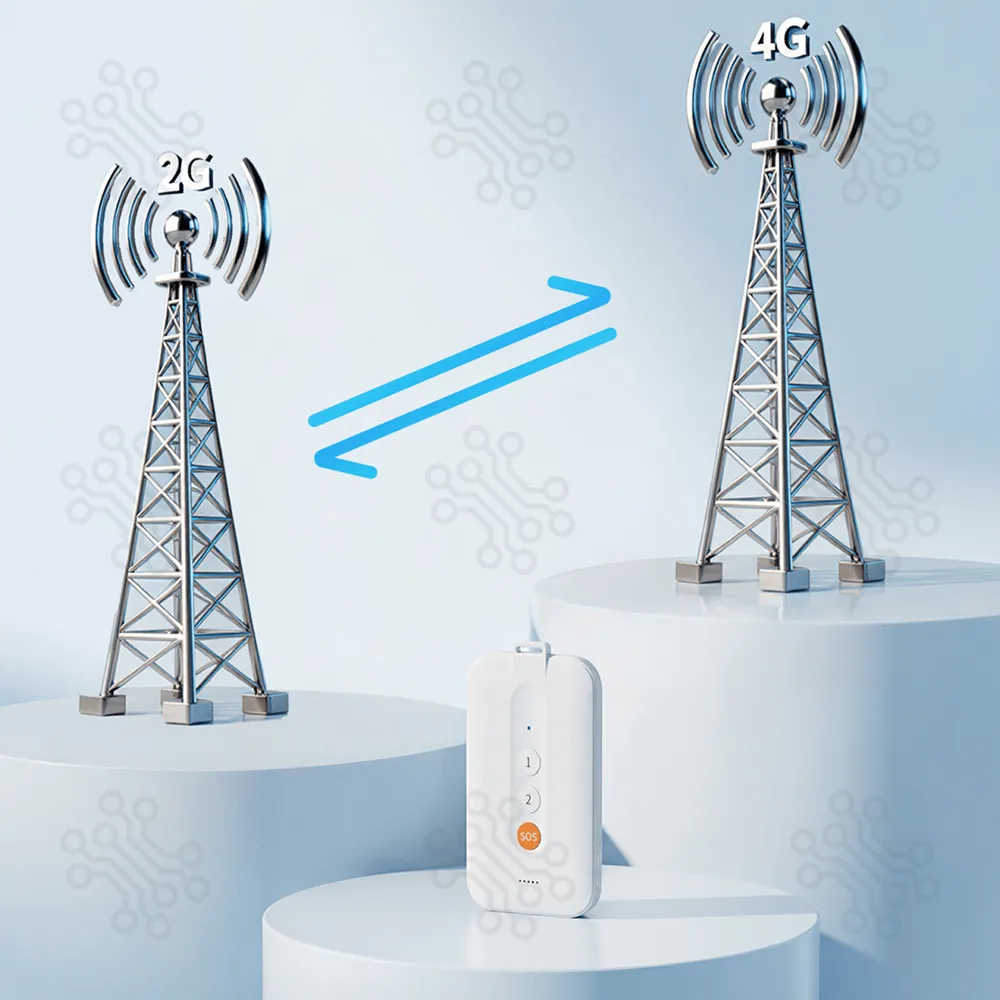

With multi-constellation positioning (GPS, BDS, and GLONASS) and multiple connectivity options including 4G LTE and GSM fallback, the PL200 ensures continuous tracking and reliable communication for field personnel.

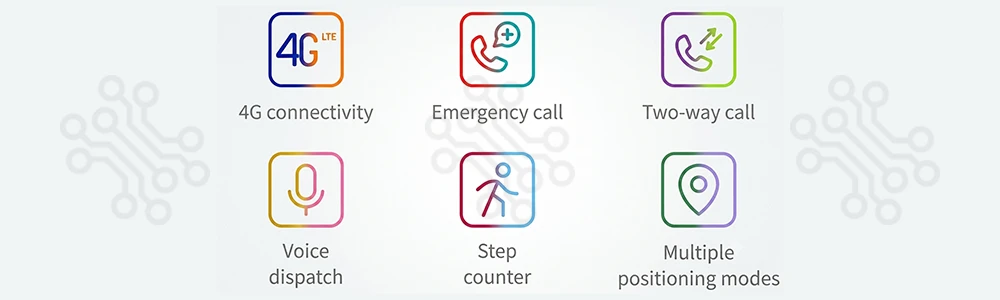

Key Feature


Why You Need the PL200 Smart 4G Personal Tracker?

  • Keep track of your team in real time.
  • Get instant help with the SOS emergency button.
  • Stay connected with two-way voice calling.
  • Improve the safety of lone and field workers.
  • Receive alerts for emergencies, low battery, and geo-fence events.
  • Find the device location anytime using GPS tracking.
  • Long battery life for reliable daily use.
  • Built for outdoor use with an IP65-rated design.
  • Easy to carry with its lightweight and compact design.
  • Ideal for employee safety and workforce management.
Note: This device requires a compatible tracking platform and an active SIM card with a data plan. Platform setup and service availability may vary depending on the supplier or service provider.

How It Work

The PL200 continuously collects location data through GPS, BDS, Wi-Fi, BLE, and LBS technologies and transmits the information over 4G LTE or GSM networks. Supervisors can monitor personnel locations, receive alerts, and communicate directly with workers through the device. In emergency situations, users can activate the SOS button to instantly send alerts to designated contacts or monitoring platforms.


Technical Specification

Category Parameter Specification
Positioning & Location Positioning Technology GPS, BDS, LBS, BLE, Wi-Fi
Positioning Accuracy < 2.5m CEP
Tracking Sensitivity -165dBm
Acquisition Sensitivity -148dBm
Hot Start TTFF ≤ 1 Second
Cold Start TTFF ≤ 32 Seconds
Cellular Network Network Technology 4G Cat 1, GSM
PL200 (L) Bands FDD: B1/B2/B3/B4/B5/B7/B28, GSM: B2/B3/B5/B8
PL200 (E) Bands FDD: B1/B3/B7/B8/B20/B28, TDD: B38/B40/B41, GSM: B2/B3/B5/B8
Power Battery 2000mAh, 3.7V Li-Polymer
Working Modes Step-Based Mode, Timing Mode
Battery Life Up to 5 Days
Hardware & Interface SIM Type Nano-SIM
Memory Capacity 1000 GPS Records
Buttons 2 Function Buttons, 1 SOS Button
USB Port Magnetic Charging
LED Indicators Power (Red), Notice (Green)
GNSS Antenna Internal
Bluetooth Antenna Internal
Connectivity & Features Bluetooth BLE 5.0
Sensor Accelerometer
Speaker Supported
Microphone Supported
Configuration SMS, Online Command
Certification FCC, CE

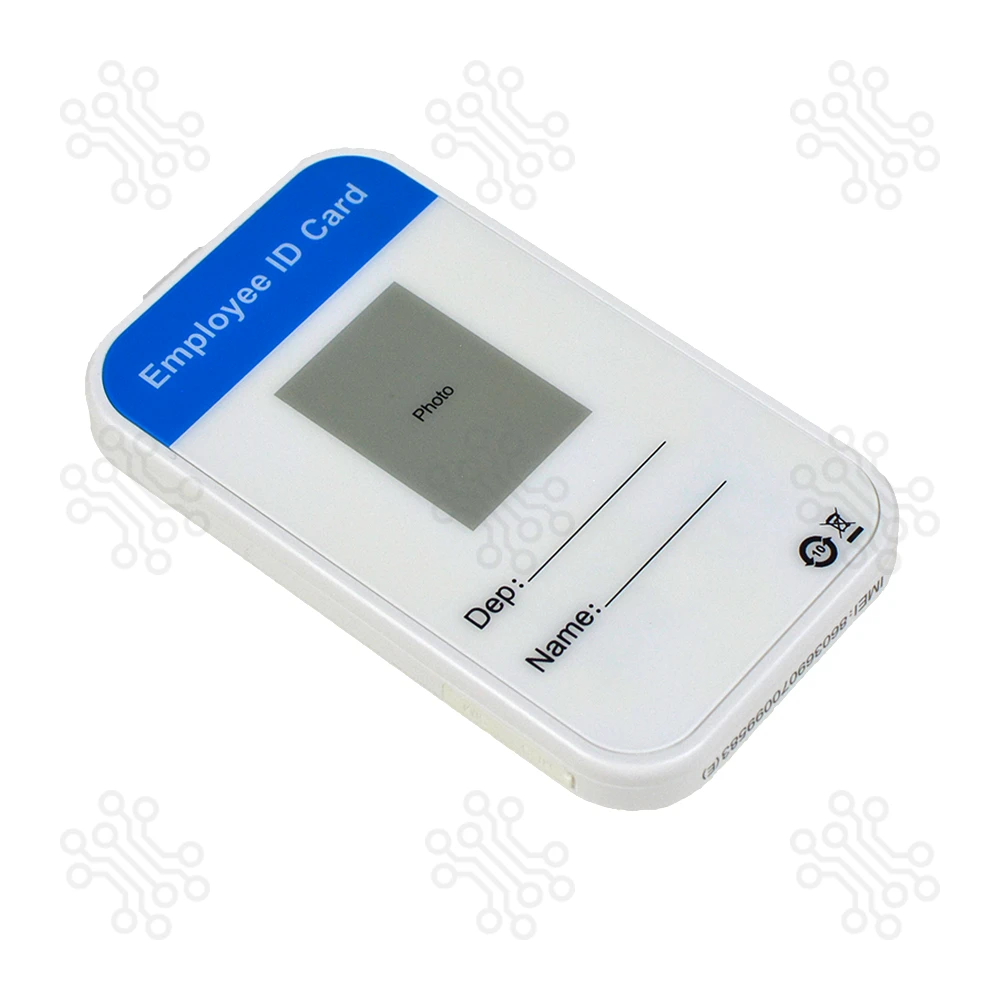

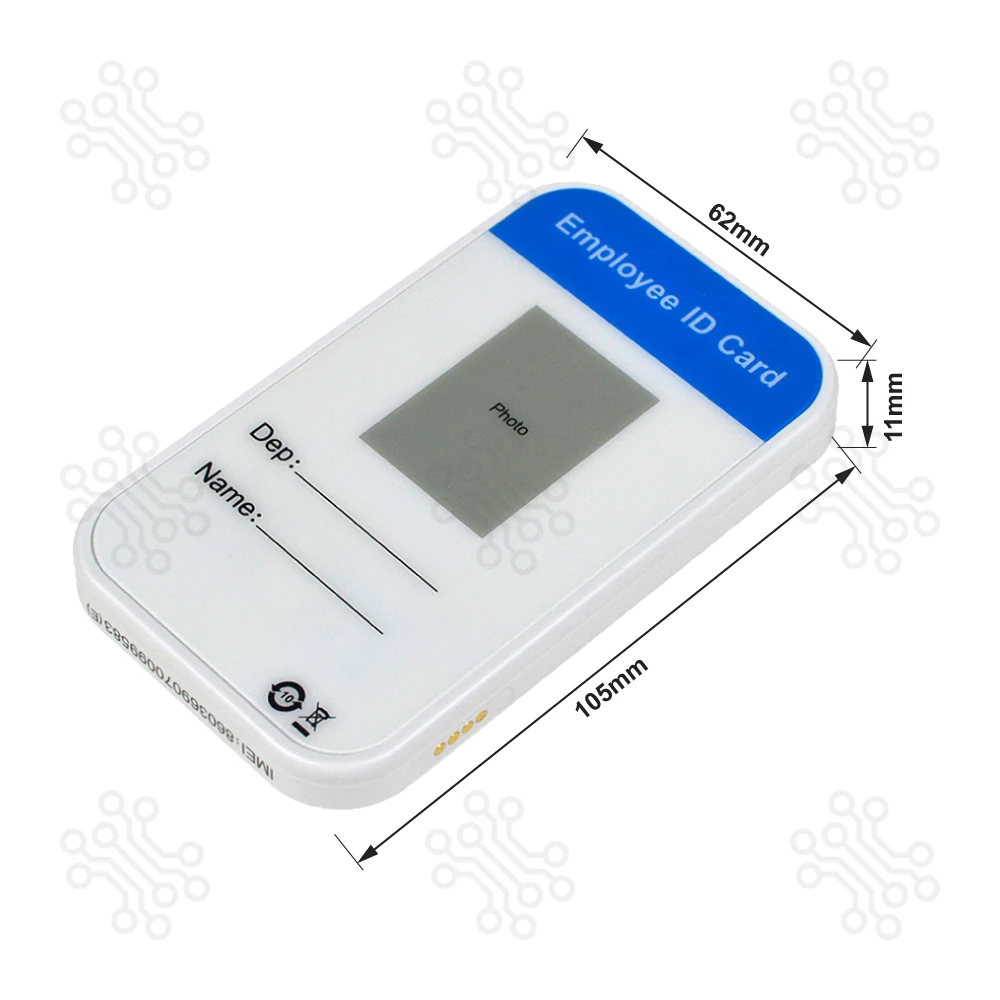

Appearance of machine



Getting started is quick and simple. Follow the step-by-step instructions in the User Manual to charge the device, install the SIM card (if required), power it on, and complete the initial setup. Once configured, the device is ready for use.




Product Usage Instructions

SIM Card Attachment

Step 1. Prepare a 4G Nano SIM with caller ID, data package, and VoLTE service.

Step 2. Attach the SIM card:

  1. Open the protective rubber cover.
  2. Insert the SIM card correctly.
  3. Mount the cover back.

Power-On and -Off

  • Turn on: Press the panic button (SOS) for 2 seconds to emit a startup tone.
  • Shut down: Press the panic button (SOS) for 5 seconds to emit a shutdown tone. To force shutdown, press the RESET hole for 2 seconds.
Note: If the device fails to be turned on, please check the followings: has the device been attached with an SIM card or does the device has enough battery. Please note that the device requires an SIM card and enough power to turn on.

Charging

When charging, the LED will light up. The red LED indicates charging, and the green LED indicates charging is complete.

Note:
  • If the battery is exhausted, the charging will take about 2.5 hours to full. It is normal that the device will heat up slightly during charging
  • The charger is an optional accessory, which is available to be purchased separately. You can also use a charger with 5V DC output to charge the device.
  • Use an FCC-certified power adapter or computer USB port for device charging to ensure the safety of your family and properties. Purchase a power adapter from an authorized channel to protect against fire or explosion during charging.

Function

  • Voice Call: Once work phone numbers are set, you can short press the IN or OUT button twice to respectively initiate a call to work phone #1 or #2.
  • Emergency Call: Once the emergency numbers are set (up to 3 are allowed), you can short press the SOS button twice to send an emergency message to the mobile app and web client. In the meantime, the device will initiate calls to all preset emergency numbers once.
  • Geo-Fence: You can set circular or rectangular geo-fences via the mobile app and web client. If the device has its GPS and geo-fence alert feature enabled, it will send alert messages to the mobile app or web client if the device enters or leaves any geo fence.

Alert Function

  • Power-On Alert
  • Shutdown Alert
  • Low Battery Alert
  • SOS Alert
  • SIM Card Change Alert
  • Geo-Fence Entry Alert
  • Geo-Fence Exit Alert

LED Indication

LED Indicator Description
Red A solid red LED indicates that the device is charging.
Press any button: The red LED will flash for 5 times if the SoC of the battery is lower than 20%.
Green The Green LED lights up for 3 seconds upon device power-on.
The green LED flashes slowly for 10 times when the device receives a new message.
The green LED remains lit during a call (and turns off when the call is ended).
The green LED flashes slowly for 3 times when the device receives set commands from the server. (SoC > 20%)
Press any button.
Communication healthy: The green LED lights up for 3 seconds. Communication error (no SIM card, no network or disconnection from server): The green LED flashes for 5 times.

Buttons

Button Standby State Call State
IN ① Double-press this button to initiate a call to Work Phone #1.
② Press this button to hear the battery percentage.
③ Press this button to answer a call (receiver mode by default).
④ Press and hold for 3 seconds to clock in.
① Increase the volume.
② Press and hold for 2 seconds to enable speaker mode.
OUT ① Double-press this button to initiate a call to Work Phone #2.
② Press this button to answer a call.
③ Press and hold for 3 seconds to clock out.
① Decrease the volume.
② Press and hold for 2 seconds to enable receiver mode.
SOS ① When the device is powered off, press for 2 seconds to start the device.
② Press and hold for 5 seconds to power off the device.
③ Double-press this button to call preset emergency numbers.
④ Press this button to reject an incoming call.
⑤ If no SIM card is detected, press this button to hear a voice notification.
① Press this button to end a call.

Application

  • Sanitation Workers
  • Street Cleaners
  • Security Guards
  • Facility Maintenance Staff
  • Utility Workers
  • Lone Workers
  • Patrol & Inspection Personnel

Document

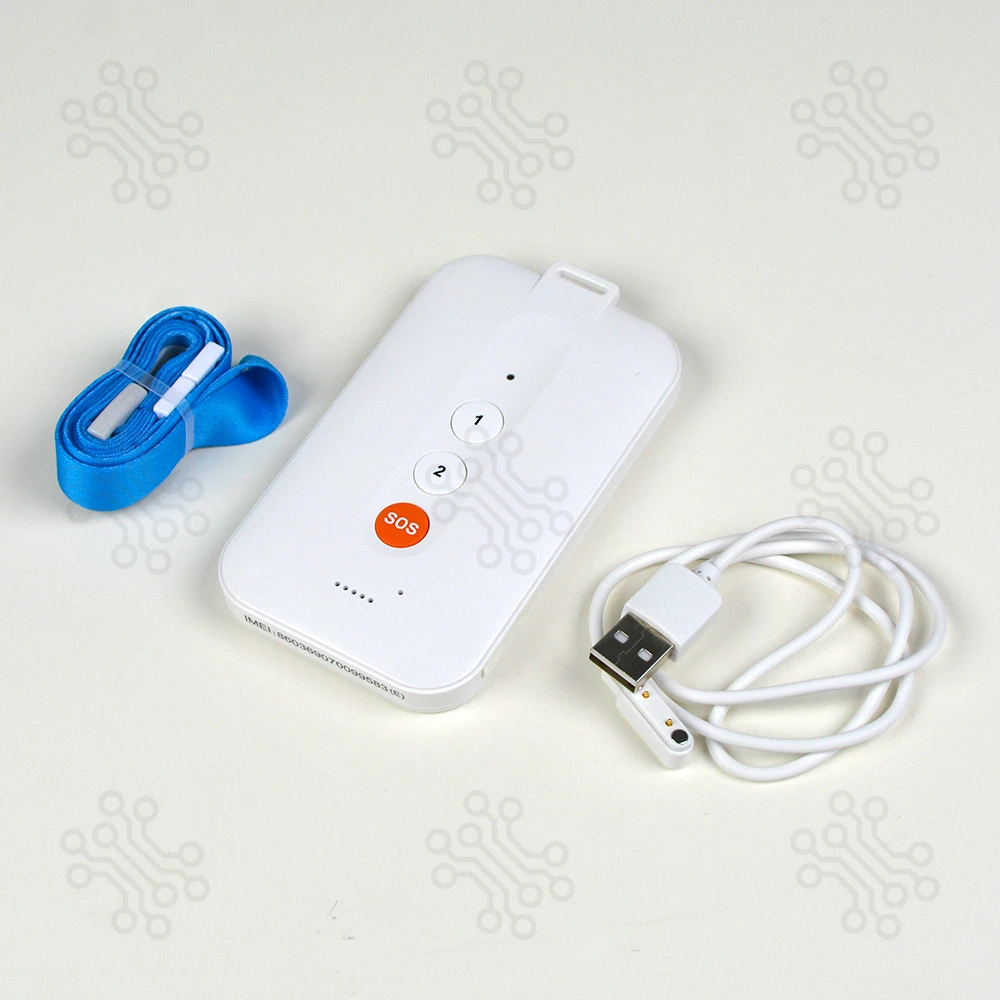

Package Content

  • 1 × PL200 Smart 4G Personal Tracker
  • 1 × Neck Lanyard
  • 1 × USB Magnetic Charging Cable

Why Choose PL200?

The PL200 combines accurate positioning, reliable communication, emergency alert functionality, and extended battery life in a compact and durable design. Its versatile tracking technologies and worker-focused safety features make it an ideal solution for organizations seeking a dependable personnel tracking system.


FAQ

What SIM card requirements are needed for the PL200?
The SIM card must have caller ID, data package, and VoLTE service for high-definition calls.
How do I turn on the device?
Press the panic button (SOS) for 2 seconds to turn on the device.
How do I know when the device is fully charged?
The LED will turn green when the device is fully charged.

Warranty and Replacement

TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.


Attention

Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.


Need Help?

Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox
