Ratings | 0 Answered Questions
SKU: 260205005182
Brand: SINOTIMER
Warranty: 7 Days
৳ 2980.07
Category: Automatic Switch
Additional Information

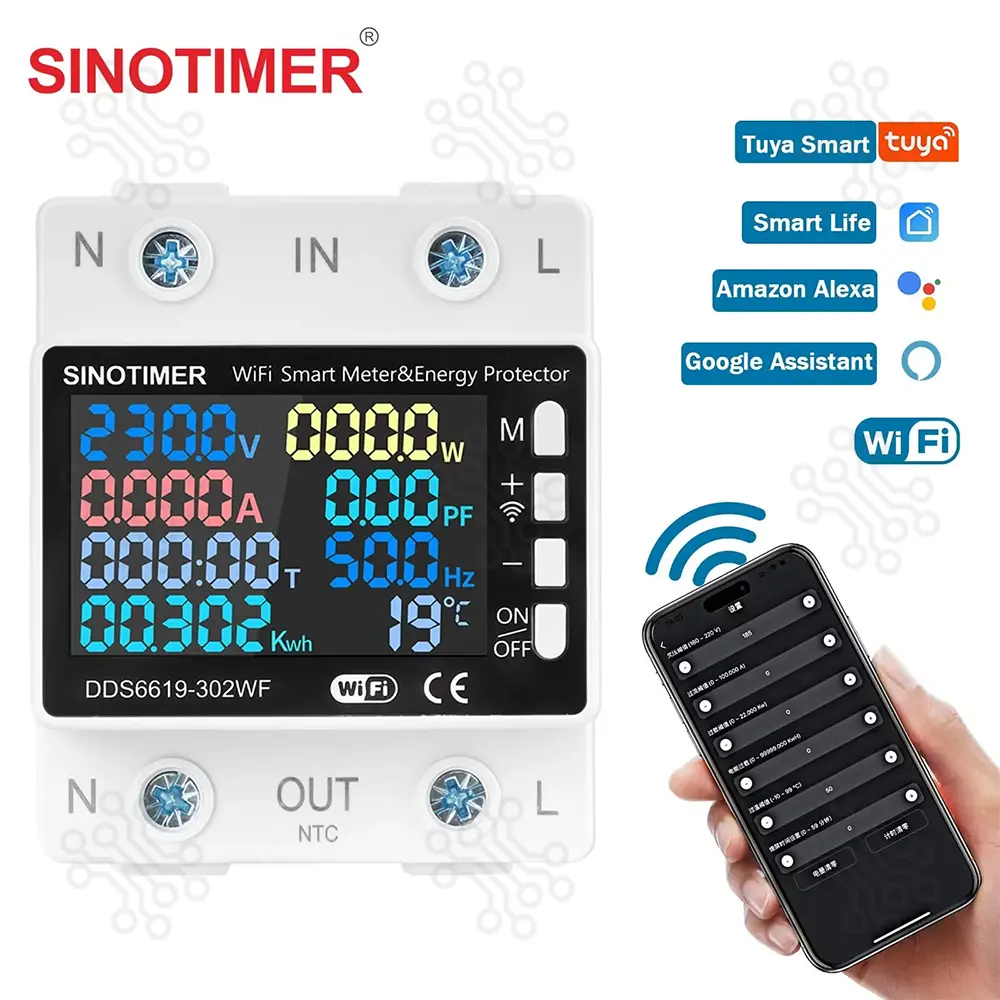

The SINOTIMER DDS6619-302WF is a high-performance single-phase Wi-Fi smart energy meter and power protector designed for modern energy management and electrical safety. It serves as an all-in-one solution for real-time energy monitoring, providing robust circuit protection against electrical irregularities for residential, commercial, and industrial appliances.
It features Wi-Fi connectivity for remote access via Tuya or Smart Life apps, displaying key parameters such as voltage, current, power, energy (in kWh), temperature, frequency, power factor, and timing on a vibrant LCD screen. This compact DIN-rail-mounted unit safeguards appliances against electrical faults while enabling precise energy management.
Beyond simple metering, this power meter device acts as a comprehensive energy protector. It allows users to set customized thresholds for voltage and current, ensuring that the power supply is automatically disconnected during over-voltage, under-voltage, or over-current situations. Its compact DIN-rail mounting design makes it easy to install in standard distribution boards, providing a sleek and efficient way to upgrade any traditional electrical system into a smart one.
| Parameter | Specification |
|---|---|
| Model | DDS6619-302WF |
| Material | ABS+PC |
| Voltage Measurement Range | 170 - 270V |
| Current Measurement Range | 0 - 63A (Adjustable) |
| Power Measurement Range | 0 - 17KW |
| Timing Range | 0 - 999 Hours |
| Electric Energy Range | 0 - 9999KWh |
| Temperature Range | -20°C to 150°C |
| Frequency Range | 50 - 60Hz |
| Power Source | AC |
| Power Factor | 0.00 - 1.00 PF |
| Power Off Memory | Yes |
| Undervoltage Protection | Yes |
| Overvoltage Protection | Yes |
| WiFi | Yes |
| Dimensions | 77 × 61 × 61 mm |
| Accuracy Class | Class A |
| Installation | DIN Rail |
The SINOTIMER DDS6619-302WF is widely used for:
| Parameter | DDS6619-302WF | DDS6619-302L | DDS6619-302 |
|---|---|---|---|
| Voltage Range | 170–270V | 170–270V | 170–270V |
| Current Range | 0–63A | 0–63A | 0–63A |
| Power Range | 0–17KW | 0–17KW | 0–17KW |
| Timing Range | 0–999Hrs | 0–999Hrs | 0–999Hrs |
| Electric Energy Range | 0–9999kWh | 0–9999kWh | 0–9999kWh |
| Temperature Range | -20–150°C | -20–150°C | -20–150°C |
| Frequency Range | 50–60Hz | 50–60Hz | 50–60Hz |
| Power Factor | 0.00–1.00PF | 0.00–1.00PF | 0.00–1.00PF |
| Power Failure Memory | ✓ | ✓ | ✓ |
| Undervoltage Protection | ✓ | ✓ | ✗ |
| Overvoltage Protection | ✓ | ✓ | ✗ |
| Wi-Fi | ✓ | ✗ | ✗ |
Package Includes
