SKU: 240905004450
Brand: TOMZN
Warranty: 15 Days
৳ 1160.04
Category: Automatic Switch
Additional Information

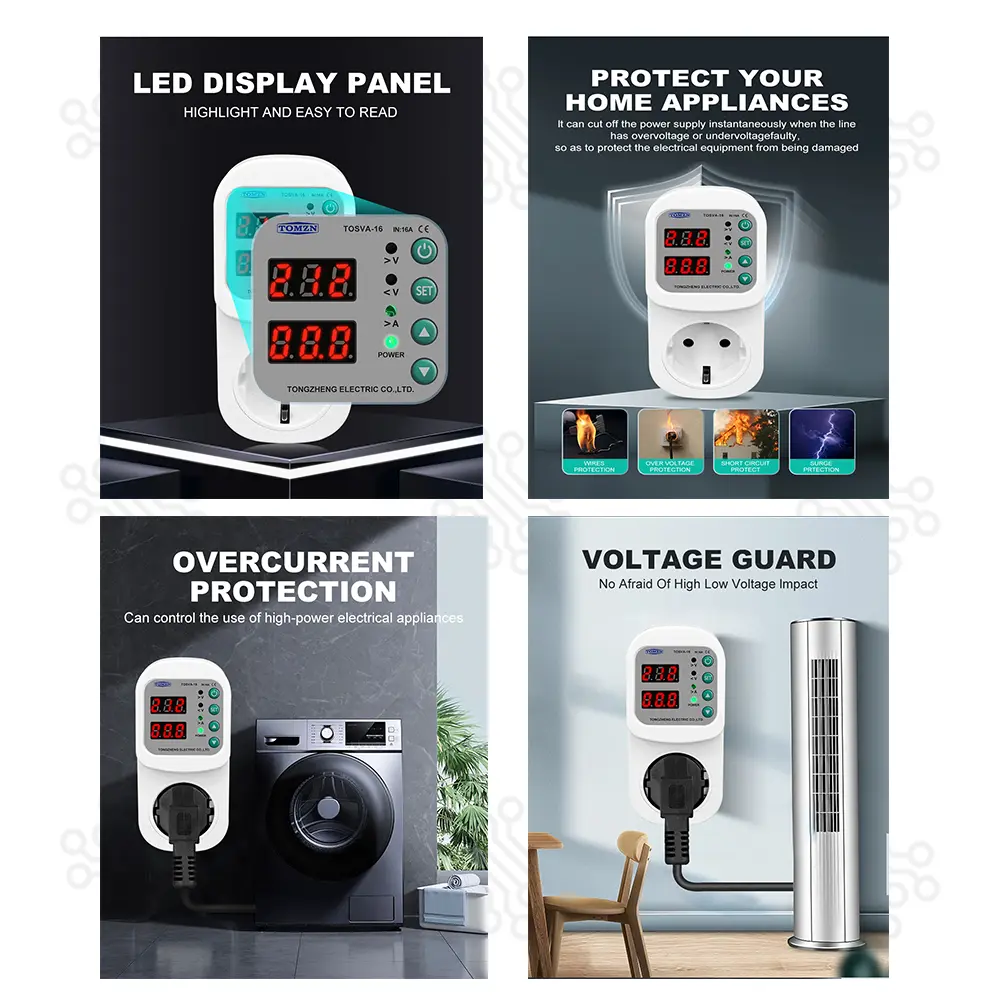

The TOMZN TOSVA-16 is a smart voltage and current protection device designed to protect electrical appliances from unstable power conditions. It continuously monitors voltage and current and automatically disconnects power when unsafe conditions occur, then restores power when everything returns to normal.
Featuring high-conductivity nickel-plated copper for efficient, low-heat power flow, this socket ensures long-lasting durability and rust resistance. To prevent children from accidentally inserting objects into the socket, the safety shutter is designed to open only when a pressure equivalent to 8.5 kg is applied.. It is ideal for homes, offices, laboratories, and industrial electrical systems.
| Parameter | Value |
|---|---|
| Model Number | TOSVA-16 |
| Power Supply | 90–300VAC, 50/60Hz |
| Max Load Current | 1–16A (Adjustable, Default 16A) |
| Power Consumption | ≤ 2W |
| Mechanical Life | 100,000 operations |
| Electrical and Mechanical Life | ≥ 100,000 cycles |
| Installation | 35mm DIN Rail |
| Socket Type | EU |
| Input Voltage | AC 190-300V |
| Over-voltage Protection Value | 100-300V, Default 270V |
| Over-voltage Recovery Value | 95-295V, Default 265V |
| Under-voltage Protection Value | 80-210V, Default 170V |
| Under-voltage Recovery Value | 85-215V, Default 175V |
| Over-current Protection Value | 1-16A, Default 16A |
| Over-current Recovery Value | 0.5-15.5A |
| Recovery Delay Time | 1-500s, Default 30s |
| Continuous Over Current Faults Times | 1-20 times, Default OFF |
| Power-on Delay Time | 1-500s, Default 10s |
| Action Time | 0.1-30s, Default 1s |

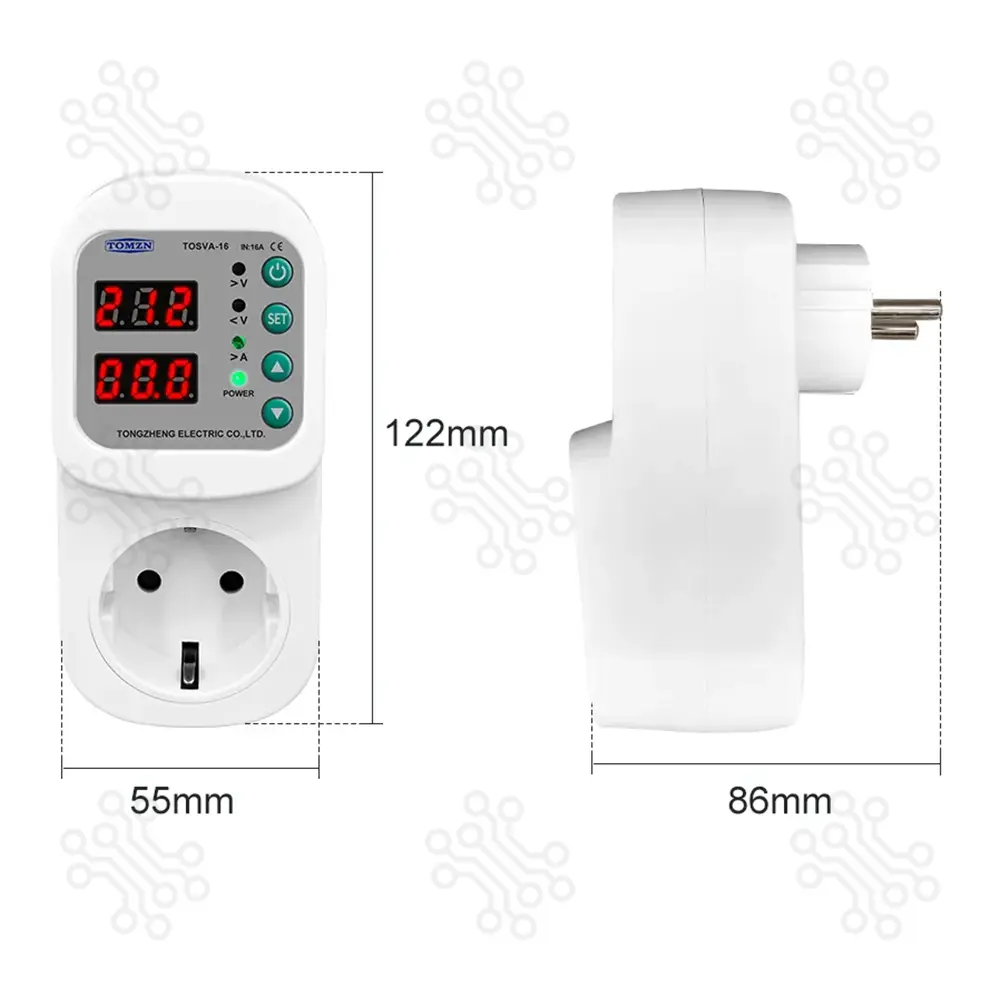

| Boundary Dimension | 122×55×86 mm |
The TOMZN TOSVA-16 is an advanced electrical safety device designed to protect your appliances from unstable power conditions by monitoring voltage and current in real-time. It features a highly customizable interface, allowing users to set specific protection limits and recovery times to suit their environment. Below is the detailed Product Setup guide covering all adjustable parameters:
| Code | Function | Range |
|---|---|---|
| A1 | Power-on delay time (seconds) | 1 – 500s |
| A2 | Over-voltage protection value (V) | 100 – 300 / OFF |
| A3 | Over-voltage recovery value (V) | 95 – 295 |
| A4 | Over-voltage recovery delay time (seconds) | 1 – 500s |
| A5 | Over-voltage protection action time (seconds) | 0.1 – 30s |
| A6 | Under-voltage protection value (V) | 80 – 210 / OFF |
| A7 | Under-voltage recovery value (V) | 85 – 215 |
| A8 | Under-voltage recovery delay time (seconds) | 1 – 500s |
| A9 | Under-voltage protection action time (seconds) | 0.1 – 30s |
| A10 | Over-current protection value (A) | 1 – 16A |
| A11 | Over-current recovery delay time (seconds) | 1 – 500s |
| A12 | Over-current protection action time (seconds) | 0.1 – 30s |
| A13 | Voltage calibration (%) | -9.5 – 9.5% |
| A14 | Continuous over-current fault times | OFF – 1 – 20 |
| A15 | Current calibration (%) | -9.5 – 9.5% |
1 × TOMZN Automatic Voltage Current Protector Socket
TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.
Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.
Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox
