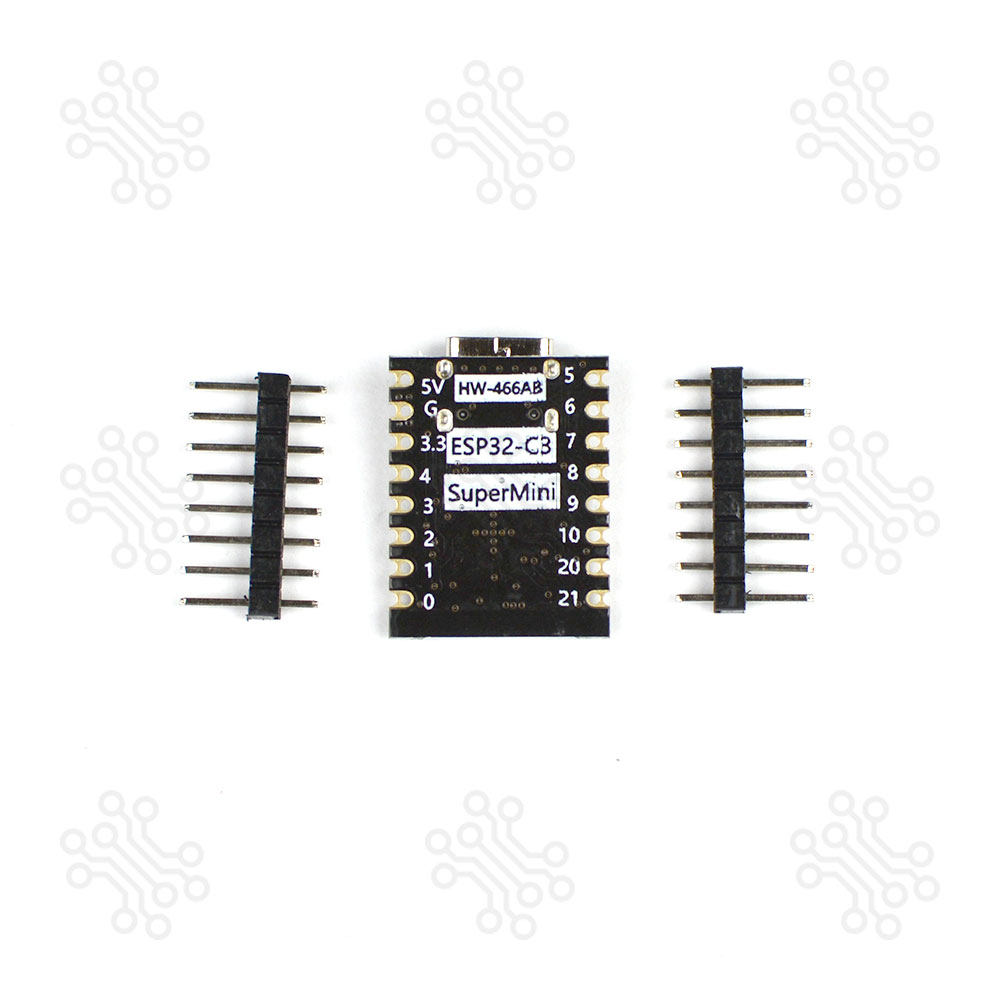

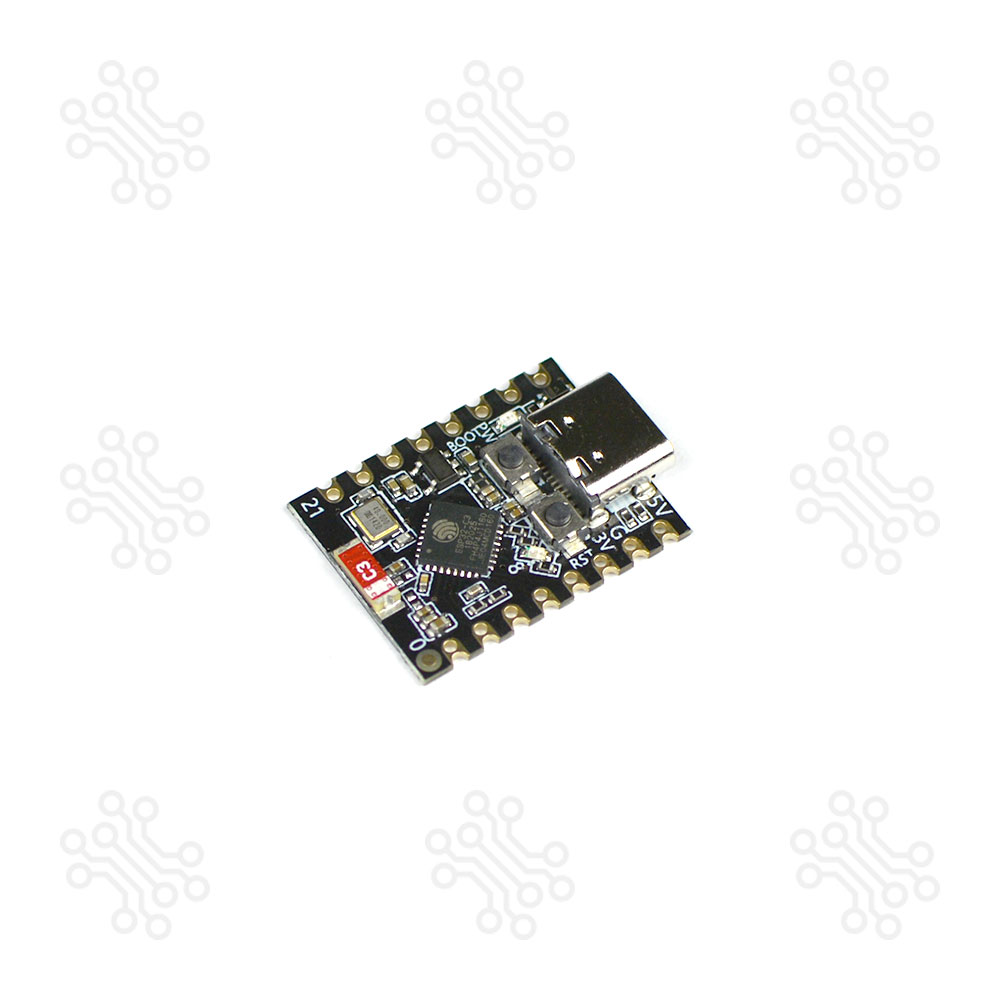

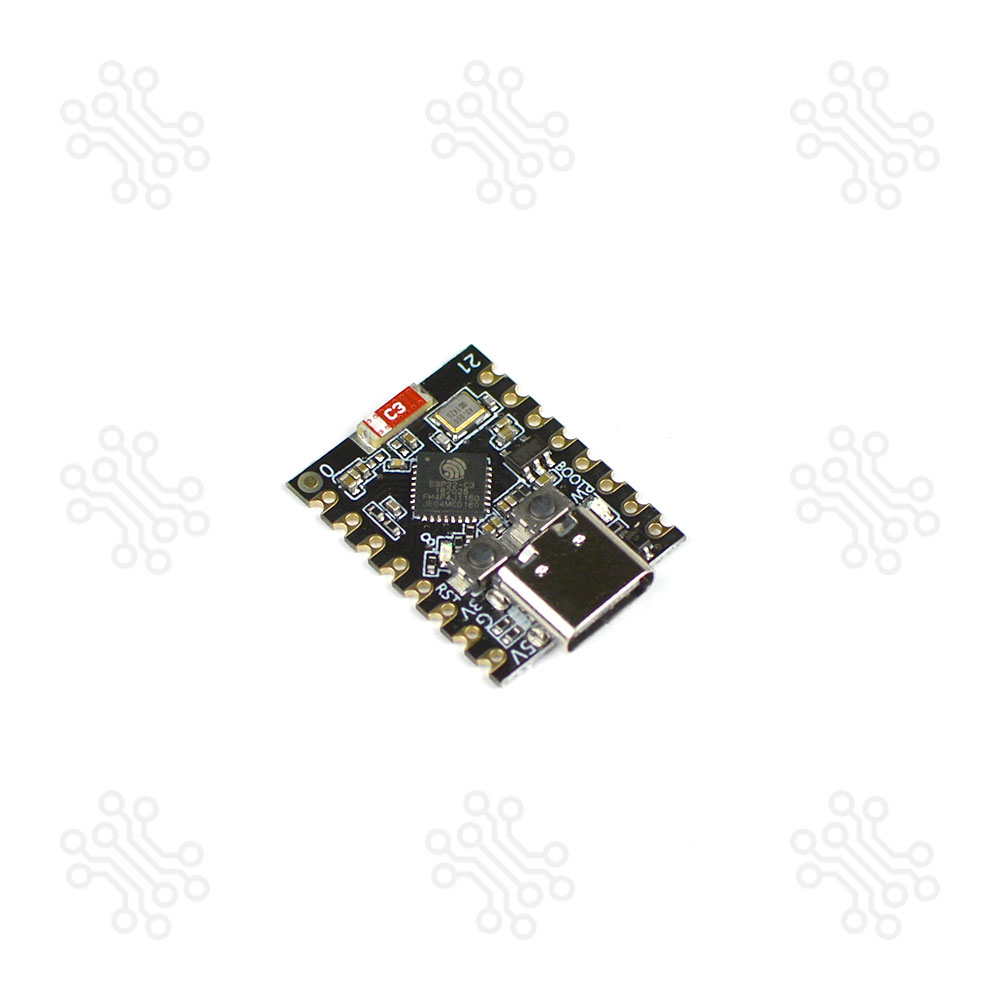

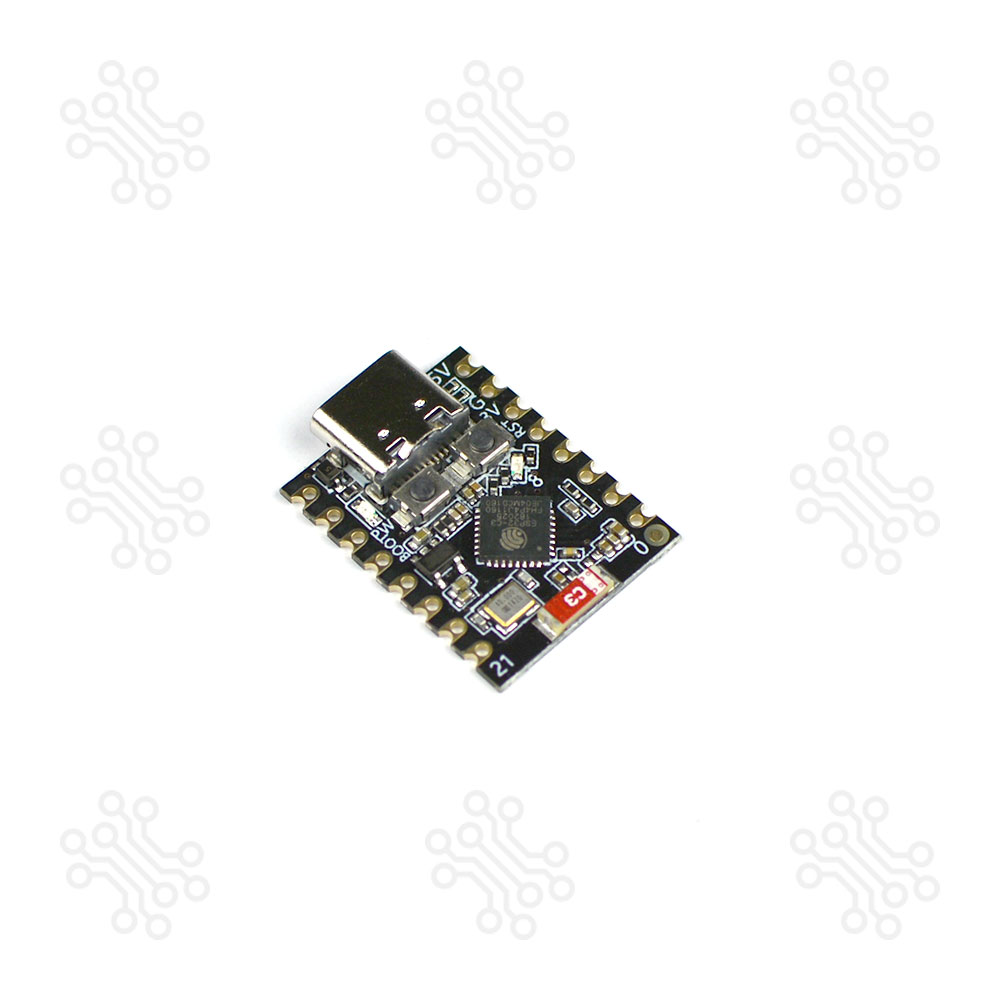

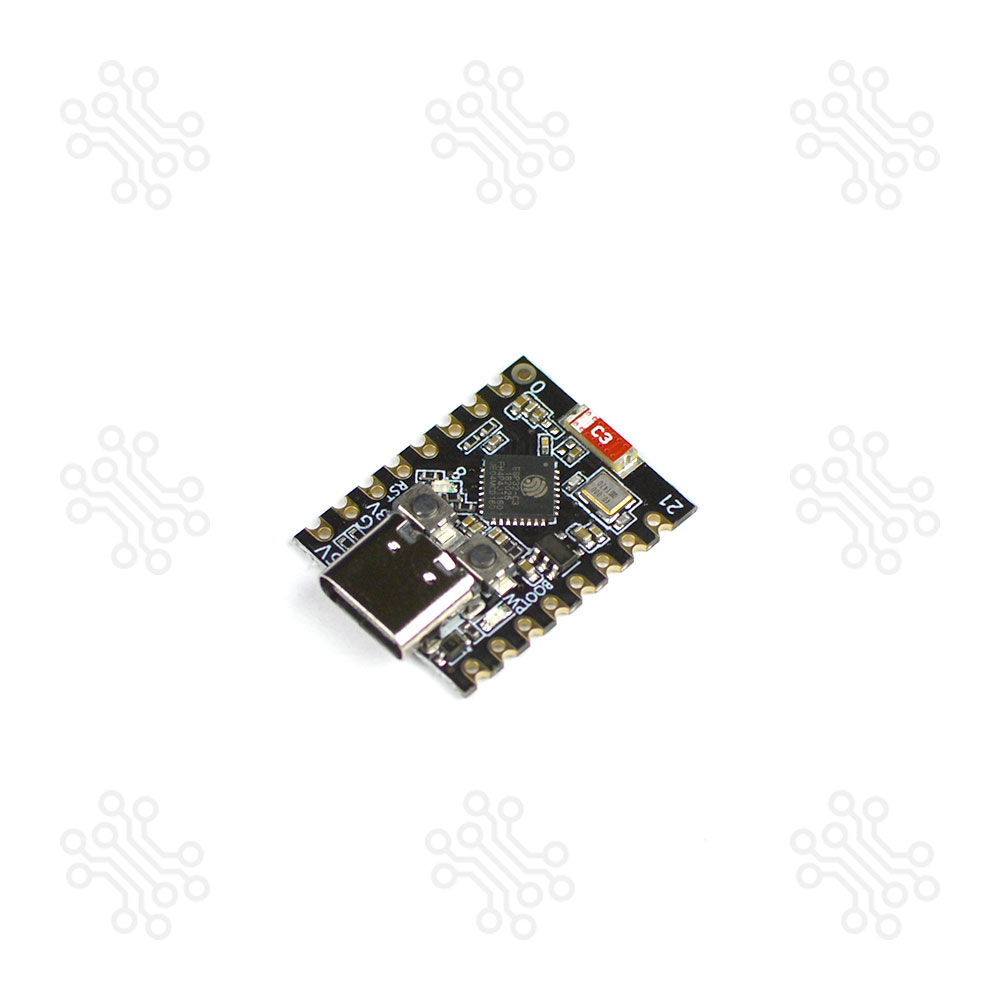

The ESP32-C3 Super Mini is an ultra-compact, high-performance, and cost-effective development board based on the powerful Espressif ESP32-C3 chip. This board features a 32-bit RISC-V single-core CPU running at up to 160 MHz, providing a strong balance of processing power and low energy consumption. With built-in WiFi + Bluetooth, it’s perfect for IoT projects that need reliable wireless connectivity.
The board offers flexible power management, supporting a wide input range of 3.3V to 6V. It can be powered via the onboard USB Type-C connector or an external power source, though users must select only one power input at a time.
Built with an ultra-compact form factor, this module fits perfectly into tight or space-limited projects. Its onboard PCB antenna delivers stable wireless connectivity without the need for any external antenna.
For hassle-free development, the board includes both a reset button and a bootloader button, ensuring smooth flashing and debugging during your workflow. With support for multiple communication interfaces such as UART, I²C, and SPI, along with a generous set of GPIO pins, the ESP32-C3 SuperMini is an excellent choice for a wide range of embedded and IoT applications.
| Parameter | Details |
|---|---|
| Chipset: | Espressif ESP32-C3 |
| Processor: | 32-bit RISC-V single-core CPU running up to 160 MHz |
| Flash Memory: | 4 MB (onboard SPI flash) |
| SRAM: | 400 KB |
| ROM: | 384 KB |
| Wi-Fi: | 802.11 b/g/n, 2.4 GHz, up to 150 Mbps |
| Bluetooth: | Bluetooth 5.0 LE |
| GPIO Pins: | 11 accessible GPIOs |
| Analog Inputs (ADC): | 2 × 12-bit SAR ADCs, up to 6 channels |
| PWM Channels: | 6 channels |
| SPI: | 3 × SPI interfaces (SPI0, SPI1 reserved) |
| I2C: | 1 × I2C interface |
| UART: | 2 × UART interfaces |
| I2S: | 1 × I2S interface |
| USB Interface: | USB Type-C, supports USB CDC |
| Power Supply: | 5V via USB-C or 3.3V–6V via VIN (5V) pin; onboard 3.3V regulator (up to 500 mA) |
| Operating Voltage: | 3.3V (logic level for GPIOs) |
| Deep Sleep Mode: | 43uA |
| Buttons: | 1 × Reset button, 1 × Boot button (GPIO9) |
| LED: | 1 × onboard LED (on GPIO8, active low) |
| Programming: | Arduino IDE, ESP-IDF, MicroPython, PlatformIO |
The following picture shows the pinout for the ESP32-C3 Super Mini board:
The following table describes the pin mapping and its functions.
| Pin | Function |
|---|---|
| 3V3: | 3.3V output/input (outputs 3.3V from the onboard regulator, or it is a input for external 3.3V power supply) |
| 5V: | 5V input/output (connects to the USB-C 5V or external 5V supply) |
| GND: | GND pin |
| GPIO 0: | General-purpose I/O, ADC1, PWM |
| GPIO 1: | General-purpose I/O, ADC1, PWM |
| GPIO 2: | General-purpose I/O ADC1, Strapping Pin (Boot Mode) (avoid for general use) |
| GPIO 3: | General-purpose I/O, PWM |
| GPIO 4: | General-purpose I/O, PWM, default SPI SCK pin |
| GPIO 5: | General-purpose I/O, PWM, default SPI MISO pin |
| GPIO 6: | General-purpose I/O, PWM, default SPI MOSI pin |
| GPIO 7: | General-purpose I/O, PWM, default SPI SS pin |
| GPIO 8: | Connected to the onboard LED (active low); Strapping Pin (avoid for general use); Default I2C SDA pin |
| GPIO 9: | Connected to BOOT Button (LOW to enter bootloader), Strapping Pin (avoid for general use), Default I2C SCL pin |
| GPIO 10: | General-purpose I/O, PWM |
| GPIO 20: | General-purpose I/O, PWM, default UART RX Pin |
| GPIO 21: | General-purpose I/O, PWM, default UART TX Pin |
You can still use the strapping pins in your projects, however, you need to take into account the fluctuation of the state of these GPIOs when the ESP32 resets or enters into bootloader mode.
When it comes to power pins, you have one 5V, one 3V3, and a GND pin. The 3V3 pin provides 3.3V from the onboard regulator or accepts 3.3V from an external power source. Similarly, the 5V pin, can be used for input to power the board, or it outputs 5V from the USB power supply.
All general-purpose GPIOs can output PWM signals.
GPIOs 0, 1, 2, 3, 4, and 5 support analog reading:
Due to the ESP32 multiplexing feature, the UART, SPI, and I2C interfaces can be assigned to nearly any GPIO.
However, when using Arduino IDE, and assuming you’re selecting the ESP32 C3 board in the Boards menu, it will assume the following pins as defaults:
