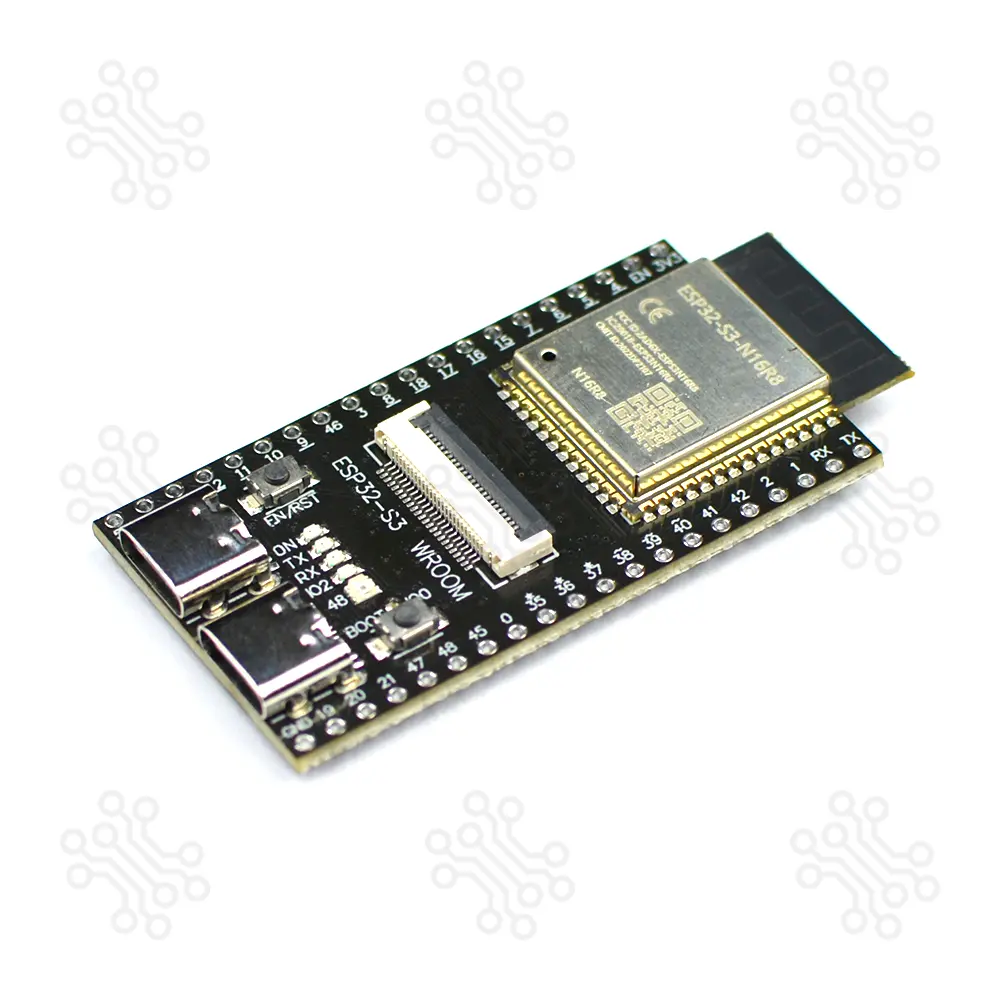

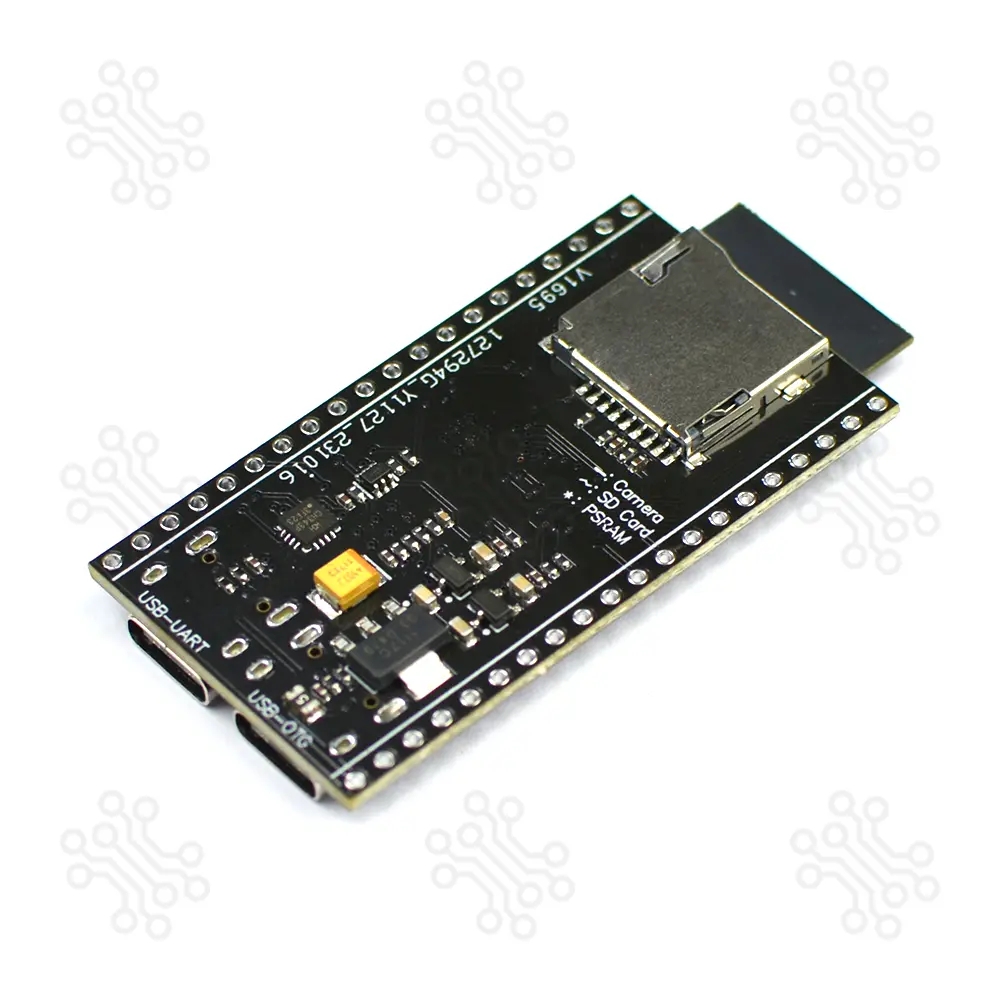

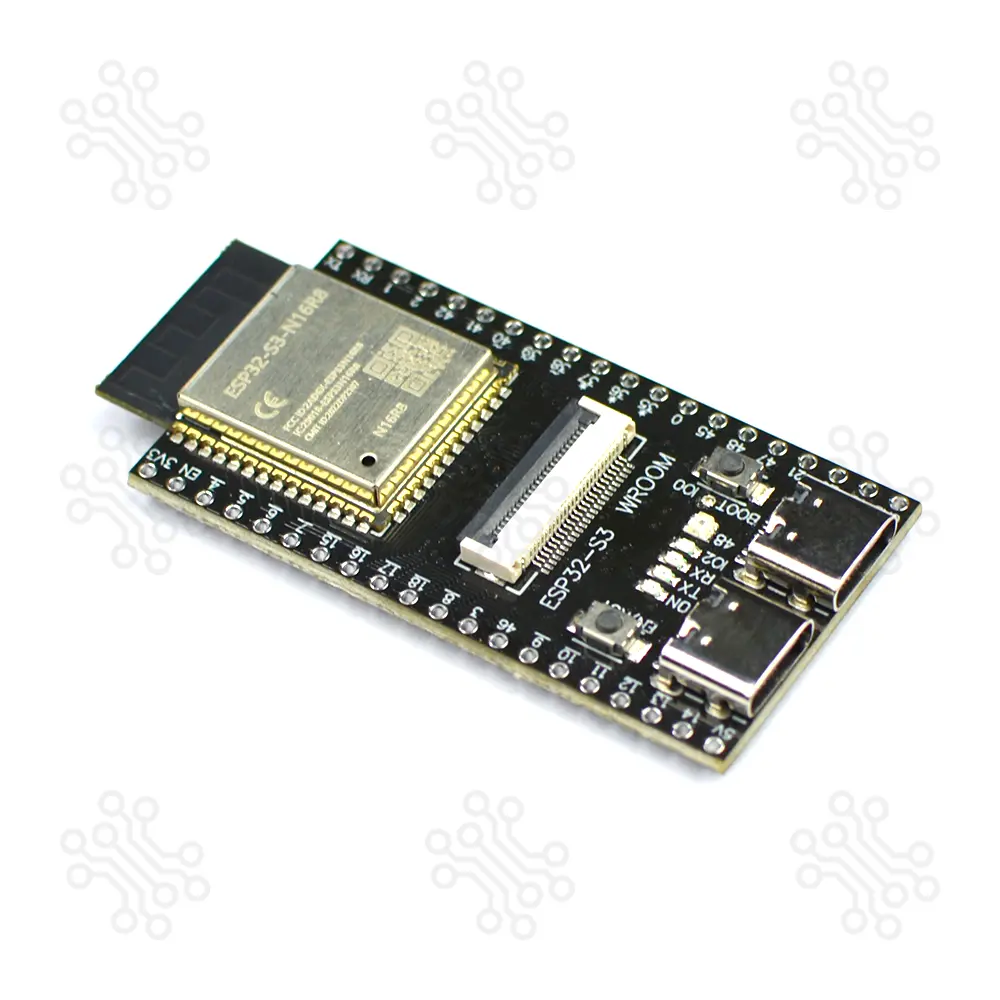

The ESP32-S3-WROOM-N16R8 Wi-Fi Bluetooth CAM Development Board is an entry-level development board equipped with ESP32-S3-WROOM-1 a general-purpose Wi-Fi + Bluetooth Low Energy MCU module that integrates complete Wi-Fi and Bluetooth Low Energy functions. It perfect for AI, IoT, and advanced embedded applications.

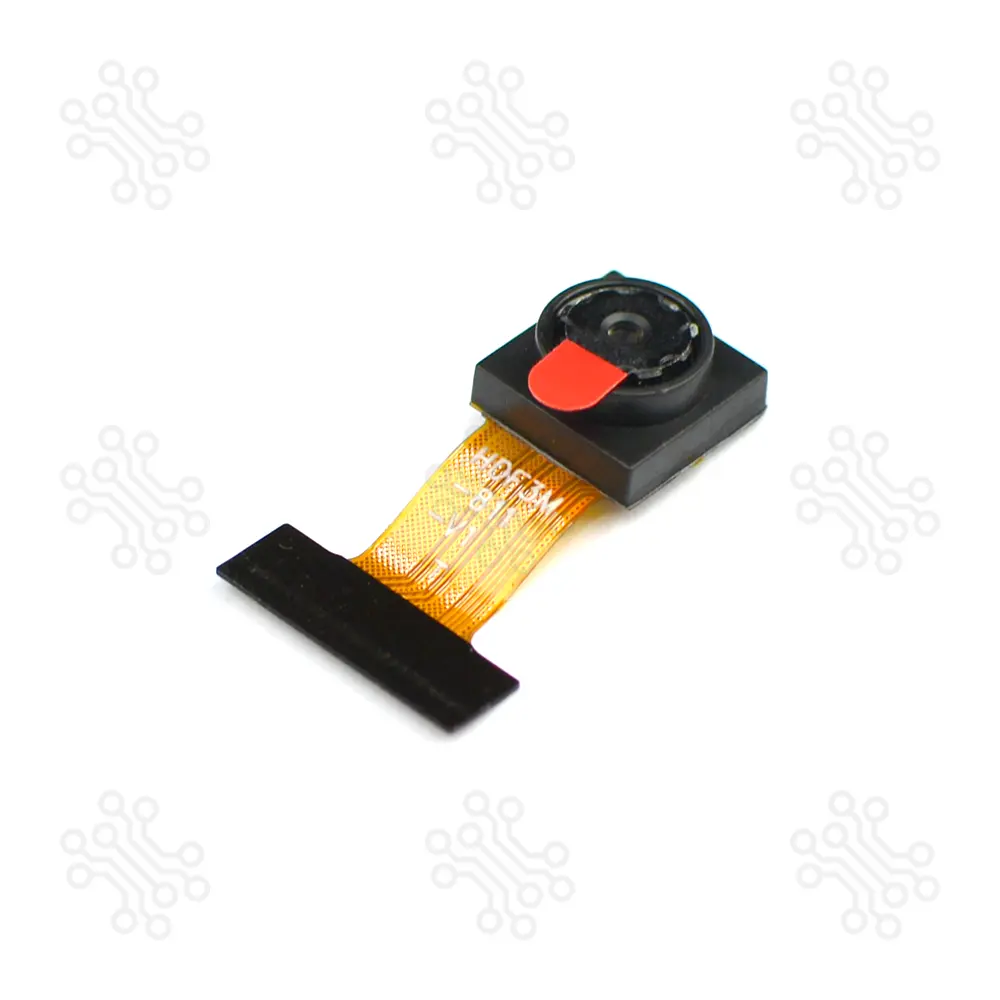

The board features a dual-core Xtensa LX7 processors, 16 MB flash memory, and 512 KB RAM, which helps it handle image capture, basic AI tasks, and wireless communication smoothly. It comes with an included OV2640 camera module, allowing users to start camera and vision projects easily without needing extra hardware. The board also has Dual USB ports, making power supply and programming more convenient.
Most of the module’s I/O pins are easily accessible through the pin headers located on both sides of the board. Developers can connect various peripherals using jumper wires or place the board directly on a breadboard. Before use, the header pins must be soldered onto the board.
| Parameter | Function | Details |
|---|---|---|
| Flash Memory | Storage | 16 MB embedded flash for program and data storage |
| RAM | Memory | 512 KB internal RAM for program execution |
| Wireless Connectivity | Communication | WiFi 802.11 b/g/n and Bluetooth 5.0 support |
| I/O Pins | GPIO Access | 34 multifunction GPIO pins |
| Operating Voltage | Power Requirement | 3.3V operation |
| Power Supply | Input Power | USB-C or external 5V supported |
| Analog Interfaces | Analog & Touch | 2 × 12-bit SAR ADC, temperature sensor, 14 touch pins |
| Digital Interfaces | Peripherals | 4 SPI, 3 UART, 2 I2C, 2 I2S, RMT, PWM, CAN, SDIO |
| Camera Interface | Imaging | 1 × DVP (8-bit–16-bit) |
| Display Interface | Display Output | LCD (8-bit), RGB (16-bit); supports RGB565, YUV422/420/411 |
| USB Interface | Programming & Debugging | 1 Full-Speed USB OTG + 1 USB Serial/JTAG controller |
| Timers | Timing Control | 4 × 54-bit timers, 1 × 52-bit system timer, 3 watchdog timers |
| DMA Channels | Data Transfer | 5 TX + 5 RX general-purpose DMA channels |
| Temperature Range | Operating Range | -40°C to +65°C |

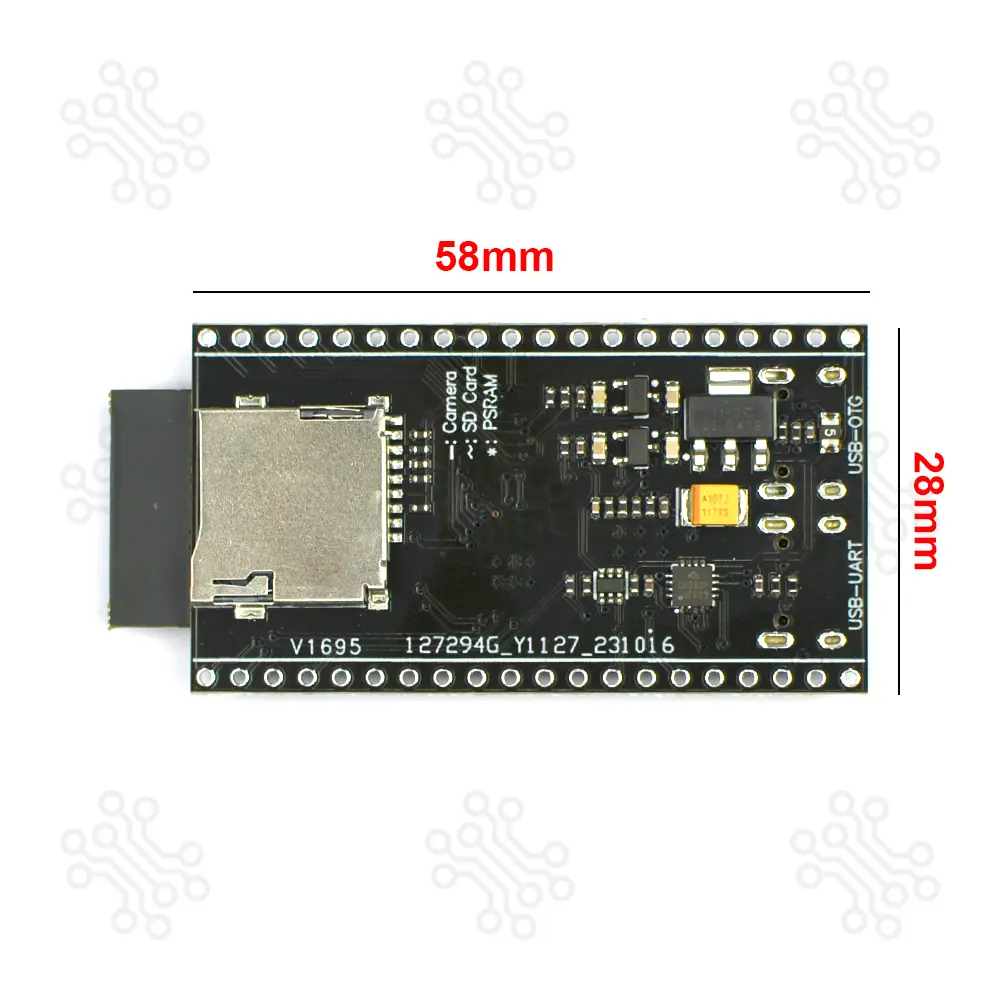

| Board Dimensions | Size | 57 mm × 28 mm |
There are three mutually exclusive ways to provide power to the board:
The two tables below provide the Name and Function of the pins on both sides of the board (J1 and J3).
| No. | Name | Type | Function |
|---|---|---|---|
| 1 | 3V3 | P | 3.3 V power supply |
| 2 | RST | I | EN |
| 3 | 4 | I/O/T | RTC_GPIO4, GPIO4, TOUCH4, ADC1_CH3 |
| 4 | 5 | I/O/T | RTC_GPIO5, GPIO5, TOUCH5, ADC1_CH4 |
| 5 | 6 | I/O/T | RTC_GPIO6, GPIO6, TOUCH6, ADC1_CH5 |
| 6 | 7 | I/O/T | RTC_GPIO7, GPIO7, TOUCH7, ADC1_CH6 |
| 7 | 15 | I/O/T | RTC_GPIO15, GPIO15, U0RTS, ADC2_CH4, XTAL_32K_P |
| 8 | 16 | I/O/T | RTC_GPIO16, GPIO16, U0CTS, ADC2_CH5, XTAL_32K_N |
| 9 | 17 | I/O/T | RTC_GPIO17, GPIO17, U1TXD, ADC2_CH6 |
| 10 | 18 | I/O/T | RTC_GPIO18, GPIO18, U1RXD, ADC2_CH7, CLK_OUT3 |
| 11 | 8 | I/O/T | RTC_GPIO8, GPIO8, TOUCH8, ADC1_CH7, SUBSPICS1 |
| 12 | 3 | I/O/T | RTC_GPIO3, GPIO3, TOUCH3, ADC1_CH2 |
| 13 | 46 | I/O/T | GPIO46 |
| 14 | 9 | I/O/T | RTC_GPIO9, GPIO9, TOUCH9, ADC1_CH8, FSPIHD, SUBSPIHD |
| 15 | 10 | I/O/T | RTC_GPIO10, GPIO10, TOUCH10, ADC1_CH9, FSPICS0, FSPIIO4, SUBSPICS0 |
| 16 | 11 | I/O/T | RTC_GPIO11, GPIO11, TOUCH11, ADC2_CH0, FSPIID, FSPIIO5, SUBSPID |
| 17 | 12 | I/O/T | RTC_GPIO12, GPIO12, TOUCH12, ADC2_CH1, FSPIIO6, SUBSPICLK |
| 18 | 13 | I/O/T | RTC_GPIO13, GPIO13, TOUCH13, ADC2_CH2, FSPIIO7, SUBSPIQ |
| 19 | 14 | I/O/T | RTC_GPIO14, GPIO14, TOUCH14, ADC2_CH3, FSPIWP, FSPIIO8, SUBSPIWP |
| 20 | 5V | P | 5 V power supply |
| No. | Name | Type | Function |
|---|---|---|---|
| 1 | TX | I/O/T | U0TXD, GPIO43, CLK_OUT1 |
| 2 | RX | I/O/T | U0RXD, GPIO44, CLK_OUT2 |
| 3 | 1 | I/O/T | RTC_GPIO1, GPIO1, TOUCH1, ADC1_CH0 |
| 4 | 2 | I/O/T | RTC_GPIO2, GPIO2, TOUCH2, ADC1_CH1 |
| 5 | 42 | I/O/T | MTMS, GPIO42 |
| 6 | 41 | I/O/T | MTDI, GPIO41, CLK_OUT1 |
| 7 | 40 | I/O/T | MTDO, GPIO40, CLK_OUT2 |
| 8 | 39 | I/O/T | MTCK, GPIO39, CLK_OUT3, SUBSPICS1 |
| 9 | 38 | I/O/T | GPIO38, FSPIWP, SUBSPIWP, RGB LED |
| 10 | 37 | I/O/T | SPIDQS, GPIO37, FSPIQ, SUBSPIQ |
| 11 | 36 | I/O/T | SPIIO7, GPIO36, FSPICLK, SUBSPICLK |
| 12 | 35 | I/O/T | SPIIO6, GPIO35, FSPID, SUBSPID |
| 13 | 0 | I/O/T | RTC_GPIO0, GPIO0 |
| 14 | 45 | I/O/T | GPIO45 |
| 15 | 48 | I/O/T | GPIO48, SPICLK_N, SUBSPICLK_N_DIFF |
| 16 | 47 | I/O/T | GPIO47, SPICLK_P, SUBSPICLK_P_DIFF |
| 17 | 21 | I/O/T | RTC_GPIO21, GPIO21 |
| 18 | 20 | I/O/T | RTC_GPIO20, GPIO20, U1CTS, ADC2_CH9, CLK_OUT1, USB_D+ |
| 19 | 19 | I/O/T | RTC_GPIO19, GPIO19, U1RTS, ADC2_CH8, CLK_OUT2, USB_D- |
| 20 | G | G | Ground |
How to Program ESP32 S3 WROOM N16R8?
The ESP32 S3 WROOM N16R8 Camera Module is a development board based on ESP32-S3-WROOM-1 modules, which include a microcontroller with Wi-Fi and Bluetooth LE. It exposes most of its I/O pins through headers, allowing you to connect sensors, actuators, and other devices.
You can program this board using different IDE platforms, depending on your preference and project type. The most common options are:
Before programming, make sure:
You can test the board by uploading the Camera Web Server for ESP32-S3 example using the Arduino IDE.
The ESP32 S3 WROOM N16R8 Wi-Fi Bluetooth CAM Development Board is ideal for:
