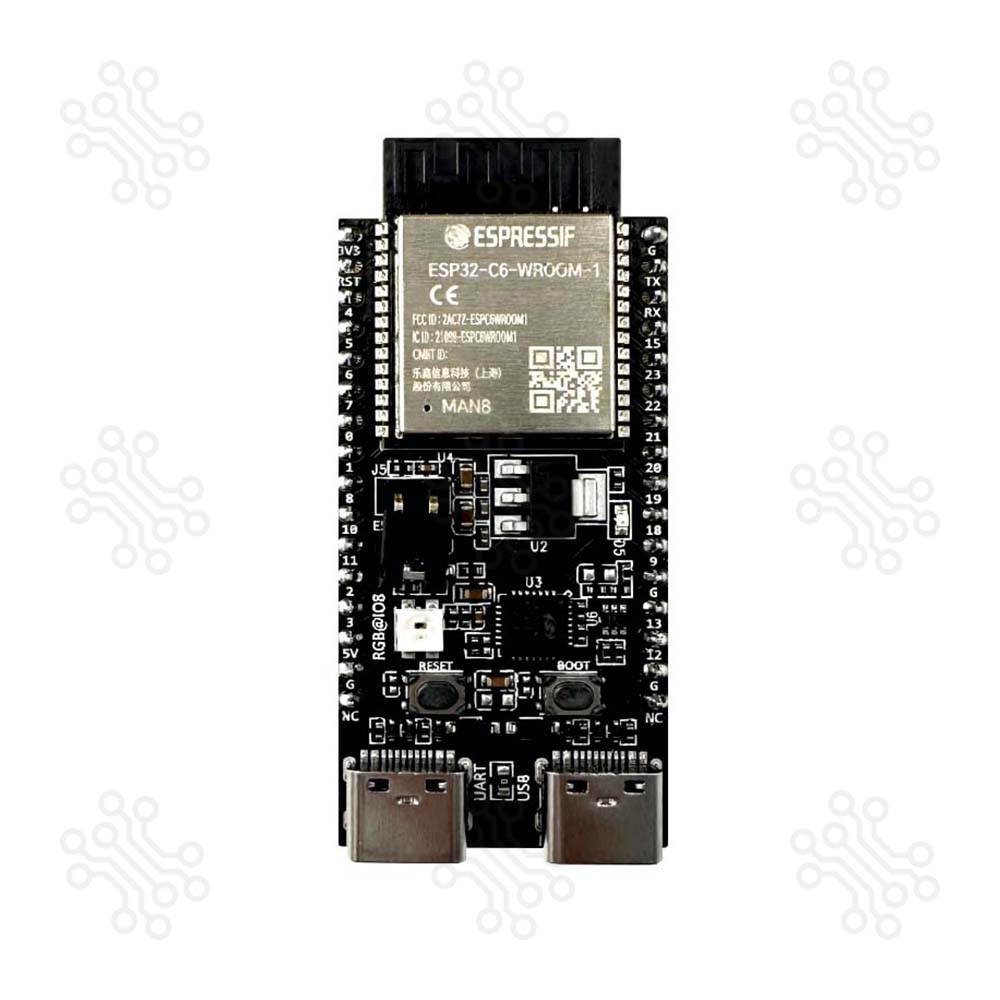

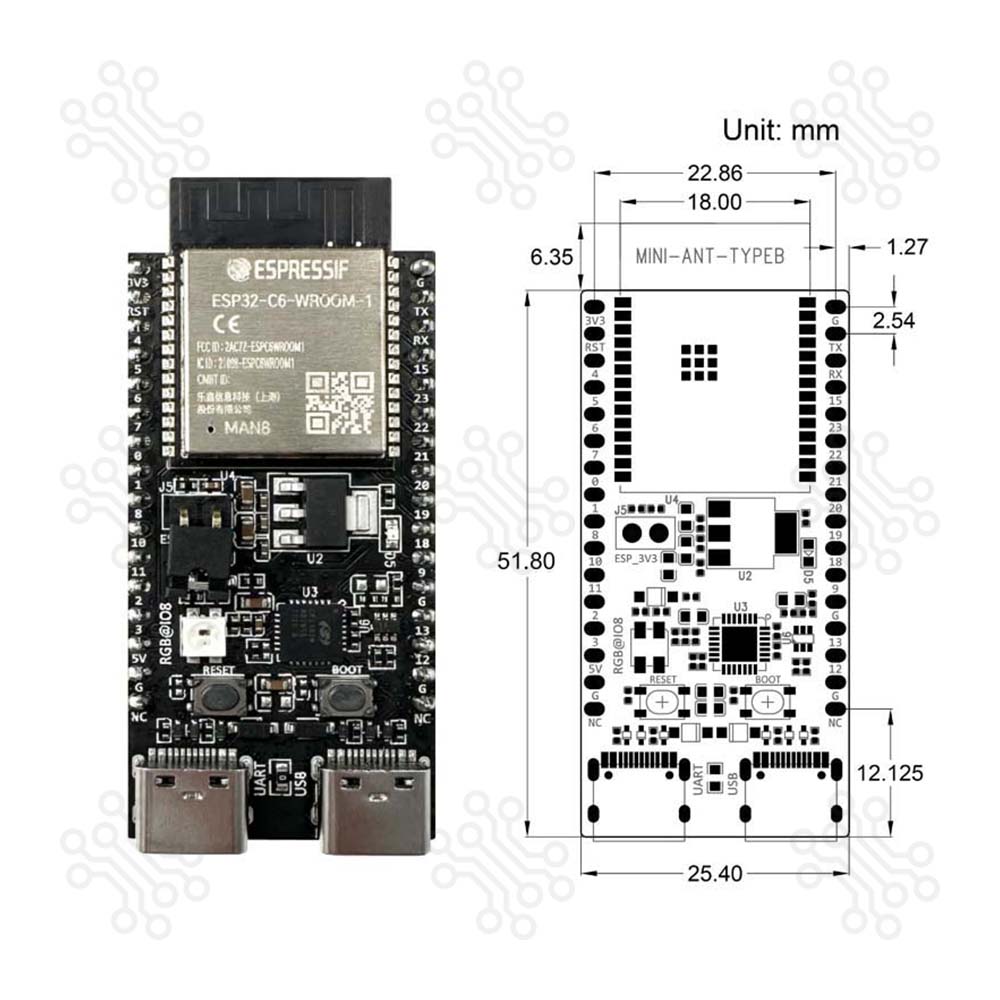

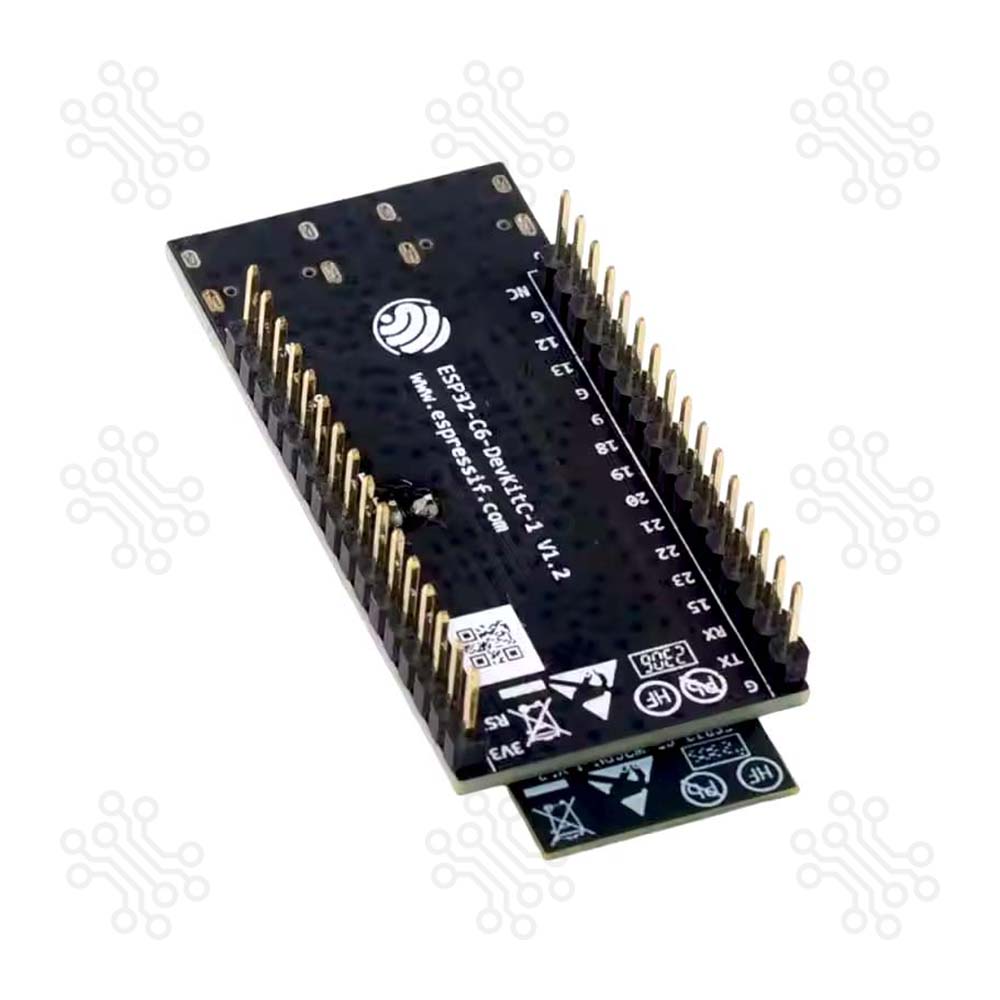

ESP32-C6-DevKitC-1 is an entry-level development board based on ESP32-C6-WROOM-1, a general-purpose module with a 8 MB SPI flash. This board integrates complete Wi-Fi, Bluetooth LE, Zigbee, and Thread functions.
Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard.

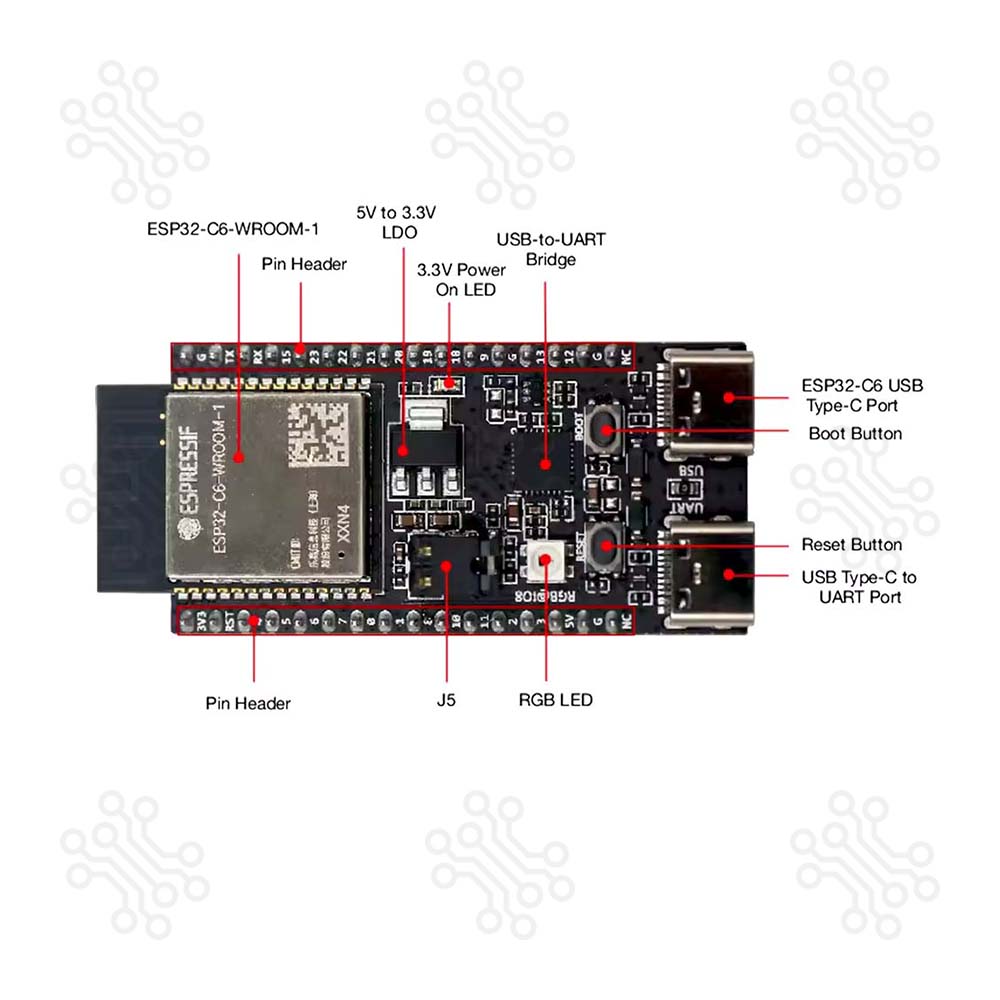

| Parameter | Function | Details |
|---|---|---|
| ESP32-C6-WROOM-1 | Wireless Module | Wi-Fi 6, Bluetooth 5, IEEE 802.15.4; 8 MB flash; WROOM-1 Onboard PCB antenna |
| Pin Header | GPIO Access | All usable GPIO pins exposed (except flash SPI) |
| 5 V to 3.3 V LDO | Power Regulation | Converts 5 V input to stable 3.3 V output |
| 3.3 V Power On LED | Power Indicator | Turns on when USB power is supplied |
| USB-to-UART Bridge | USB–UART Interface | Supports communication up to 3 Mbps |
| ESP32-C6 USB Type-C Port | Native USB Interface | USB 2.0 full-speed (12 Mbps); used for power, flashing, USB communication, JTAG |
| Boot Button | Firmware Download | Used with Reset to enter Firmware Download mode |
| Reset Button | System Reset | Restarts the board |
| USB Type-C to UART Port | Power & UART Communication | Used for power supply, firmware flashing, and UART communication |
| RGB LED | Status Indicator | Addressable LED controlled by GPIO8 |
| J5 Header | Current Measurement | Provides access point for current monitoring |
The block diagram below shows the components of ESP32-C6-DevKitC-1 and their interconnections.
There are three mutually exclusive ways to provide power to the board:
The J5 headers on ESP32-C6-DevKitC-1 (see J5 in Figure ESP32-C6-DevKitC-1 - front) can be used for measuring the current drawn by the ESP32-C6-WROOM-1 module:
Note: When using 3V3 and GND pin headers to power the board, please remove the J5 jumper, and connect an ammeter in series to the external circuit to measure the module’s current.
| Safe Pins to Use | |
|---|---|
| These pins are safe for general GPIO usage without boot or system conflicts: IO0, IO1, IO2, IO3, IO10, IO11, IO20, IO21, IO22, IO23 | |
| Why Are These Pins Safe? No boot sequence involvement; no flash/PSRAM connections; no USB or JTAG conflicts; freely assignable without issues |
| PIN | Label | Why Avoid | Type |
|---|---|---|---|
| IO4 | MTMS | Used during boot; required for JTAG debugging; flash data in internal-flash models | Strapping |
| IO5 | MTDI | Used during boot; required for JTAG debugging; flash data in internal-flash models | Strapping |
| IO6 | MTCK | Required for JTAG debugging; connected to flash clock in internal-flash models | JTAG |
| IO7 | MTDO | Required for JTAG debugging; connected to flash data in internal-flash models | JTAG |
| IO8 | GPIO8 | Determines boot mode; pulling low at reset can prevent normal boot | Strapping |
| IO9 | GPIO9 | Pulling low on reset forces the ESP32-C6 into download mode instead of normal boot | Strapping |
| IO12 | USB_D- | Dedicated to USB communication; avoid if using USB functionality | USB |
| IO13 | USB_D+ | Dedicated to USB communication; avoid if using USB functionality | USB |
| IO15 | JTAG_SEL | Controls JTAG input source at boot; avoid altering its state | JTAG |
| IO16 | U0TXD | Default UART0 transmit pin; may interfere with serial console or programming | UART |
| IO17 | U0RXD | Default UART0 receive pin; may interfere with serial console or programming | UART |
| IO18 | FSPIQ | Connected to internal flash; using as GPIO can disrupt flash operations | Flash |
| IO19 | FSPID | Connected to internal flash; using as GPIO can disrupt flash operations | Flash |

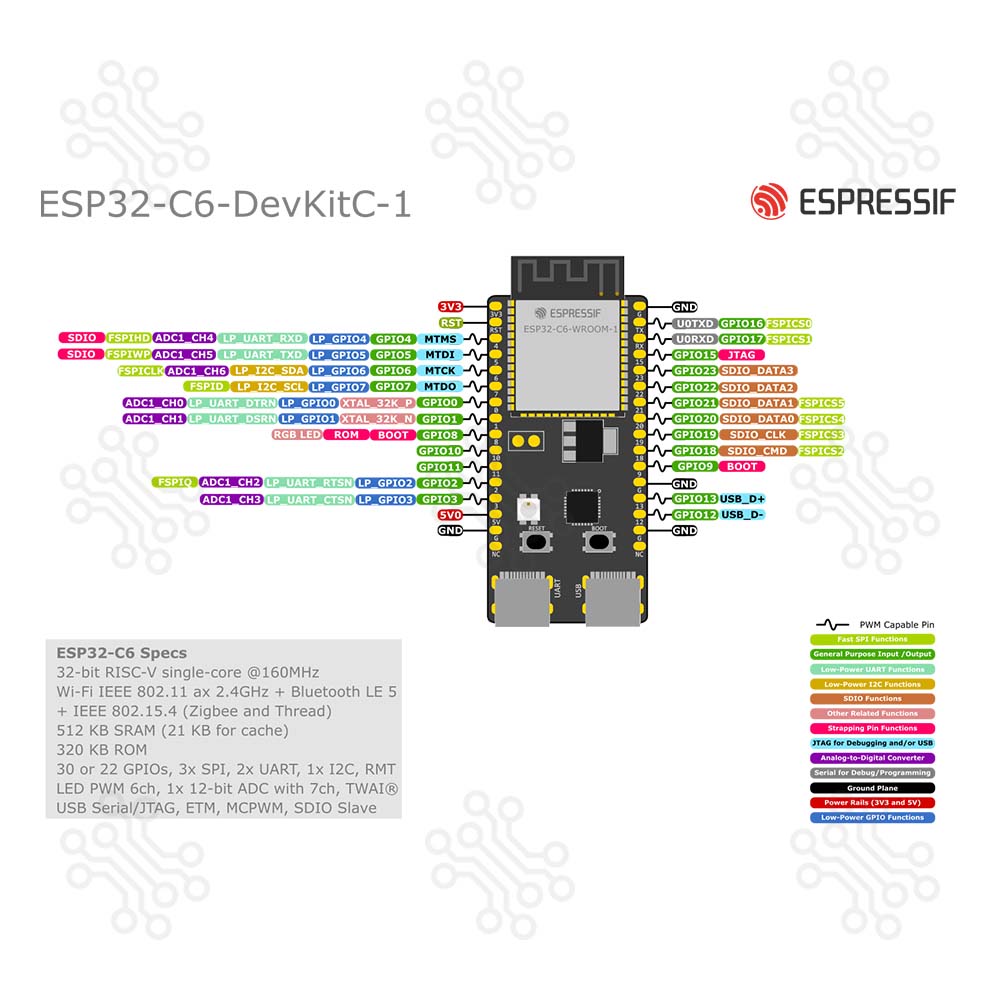

The two tables below provide the Name and Function of the pin headers on both sides of the board (J1 and J3). The pin header names are shown in Figure ESP32-C6-DevKitC-1 - front. The numbering is the same as in the ESP32-C6-DevKitC-1 Schematic v1.2 (PDF).
| No. | Name | Type | Function |
|---|---|---|---|
| 1 | 3V3 | P | 3.3 V power supply |
| 2 | RST | I | High: enables the chip; Low: disables the chip |
| 3 | 4 | I/O/T | MTMS, GPIO4, LP_GPIO4, LP_UART_RXD, ADC1_CH4, FSPIHD |
| 4 | 5 | I/O/T | MTDI, GPIO5, LP_GPIO5, LP_UART_TXD, ADC1_CH5, FSPIWP |
| 5 | 6 | I/O/T | MTCK, GPIO6, LP_GPIO6, LP_I2C_SDA, ADC1_CH6, FSPICLK |
| 6 | 7 | I/O/T | MTDO, GPIO7, LP_GPIO7, LP_I2C_SCL, FSPID |
| 7 | 0 | I/O/T | GPIO0, XTAL_32K_P, LP_GPIO0, LP_UART_DTRN, ADC1_CH0 |
| 8 | 1 | I/O/T | GPIO1, XTAL_32K_N, LP_GPIO1, LP_UART_DSRN, ADC1_CH1 |
| 9 | 8 | I/O/T | GPIO8 |
| 10 | 10 | I/O/T | GPIO10 |
| 11 | 11 | I/O/T | GPIO11 |
| 12 | 2 | I/O/T | GPIO2, LP_GPIO2, LP_UART_RTSN, ADC1_CH2, FSPIQ |
| 13 | 3 | I/O/T | GPIO3, LP_GPIO3, LP_UART_CTSN, ADC1_CH3 |
| 14 | 5V | P | 5 V power supply |
| 15 | G | G | Ground |
| 16 | NC | – | No connection |
| No. | Name | Type | Function |
|---|---|---|---|
| 1 | G | G | Ground |
| 2 | TX | I/O/T | U0TXD, GPIO16, FSPICS0 |
| 3 | RX | I/O/T | U0RXD, GPIO17, FSPICS1 |
| 4 | 15 | I/O/T | GPIO15 |
| 5 | 23 | I/O/T | GPIO23, SDIO_DATA3 |
| 6 | 22 | I/O/T | GPIO22, SDIO_DATA2 |
| 7 | 21 | I/O/T | GPIO21, SDIO_DATA1, FSPICS5 |
| 8 | 20 | I/O/T | GPIO20, SDIO_DATA0, FSPICS4 |
| 9 | 19 | I/O/T | GPIO19, SDIO_CLK, FSPICS3 |
| 10 | 18 | I/O/T | GPIO18, SDIO_CMD, FSPICS2 |
| 11 | 9 | I/O/T | GPIO9 |
| 12 | G | G | Ground |
| 13 | 13 | I/O/T | GPIO13, USB_D+ |
| 14 | 12 | I/O/T | GPIO12, USB_D- |
| 15 | G | G | Ground |
| 16 | NC | – | No connection |
Note
The ESP32-C6 is a next-generation MCU that supports Wi-Fi 6, BLE 5, Thread, and Matter. You can program it using several IDEs. Arduino IDE allows simple coding for beginners. ESP-IDF is used for advanced projects. PlatformIO provides a clean and flexible workflow in VS Code. Thonny IDE allows programming with MicroPython.
Please proceed to ESP-IDF Get Started, which will quickly help you set up the development environment then flash an application example onto your board.
