Digital Multimeter 10M Bandwidth Oscilloscope Signal Generator DST 210 FNIRSI in Bangladesh
Digital Multimeter 10M Bandwidth Oscilloscope Signal Generator DST 210 FNIRSI in Bangladesh

Digital Multimeter 10M Bandwidth Oscilloscope Signal Generator DST 210 FNIRSI

SKU: MIS-00859

Brand: FNIRSI

Warranty: 15 Days

Model: N/A

৳ 7450.04

Add to Wishlist

Category: Measurement

Share:

Frequently Bought Together

Description of Digital Multimeter 10M Bandwidth Oscilloscope Signal Generator DST 210 FNIRSI

The FNIRSI DST-210 Digital Multimeter 10M Bandwidth Oscilloscope Signal Generator is a cutting-edge, 3-in-1 handheld electronics diagnostic tool that integrates the functionality of a digital multimeter, digital storage oscilloscope, and programmable signal waveform generator into one ultra-portable device. Whether you are an electronics engineer, repair technician, educator, or hobbyist, the DST-210 delivers unmatched versatility, combining high-end performance with an ergonomic design and an intuitive user interface.
Crafted for precision, durability, and ease of use, this device is designed to measure, visualize, and simulate electronic signals—making it an indispensable tool for circuit analysis, fault detection, and component testing.

Key Features


  • DST-201 offers 5MSa/s sampling rate & 1MHz bandwidth; DST-210 offers 48MSa/s & 10MHz for precise waveform analysis.
  • ±400V voltage protection ensures safe testing in high-voltage environments.
  • Built-in signal generator supports 13 waveforms (0–10kHz) with 3V adjustable output.
  • Frequency, amplitude, and duty cycle are fine-tunable for flexible signal output.
  • The multifunctional multimeter supports AC/DC voltage & current, resistance, capacitance, frequency, temperature, diode/continuity testing, data hold, and live wire detection.
  • Features include recording mode, auto measurement, and zero/live line detection.
  • Overload protection and low battery warning enhance user safety.
  • Compact, lightweight design with a 2.8" TFT color display ensures portability and clarity.
  • The 3000mAh rechargeable battery provides up to 15 hours of standby time, making it ideal for mobile use.
  • Suitable for professionals, factories, schools, hobbyists, and home applications.

Technical Specifications


Category

Parameter

Specification

Basic Parameters

Model DST-210
Screen Material 2.8 inches TFT Colorful Screen
Backlight Brightness adjustable
Power Supply TYPE-C (5V/1A)
Battery 3000mAh
Languages 中文, English

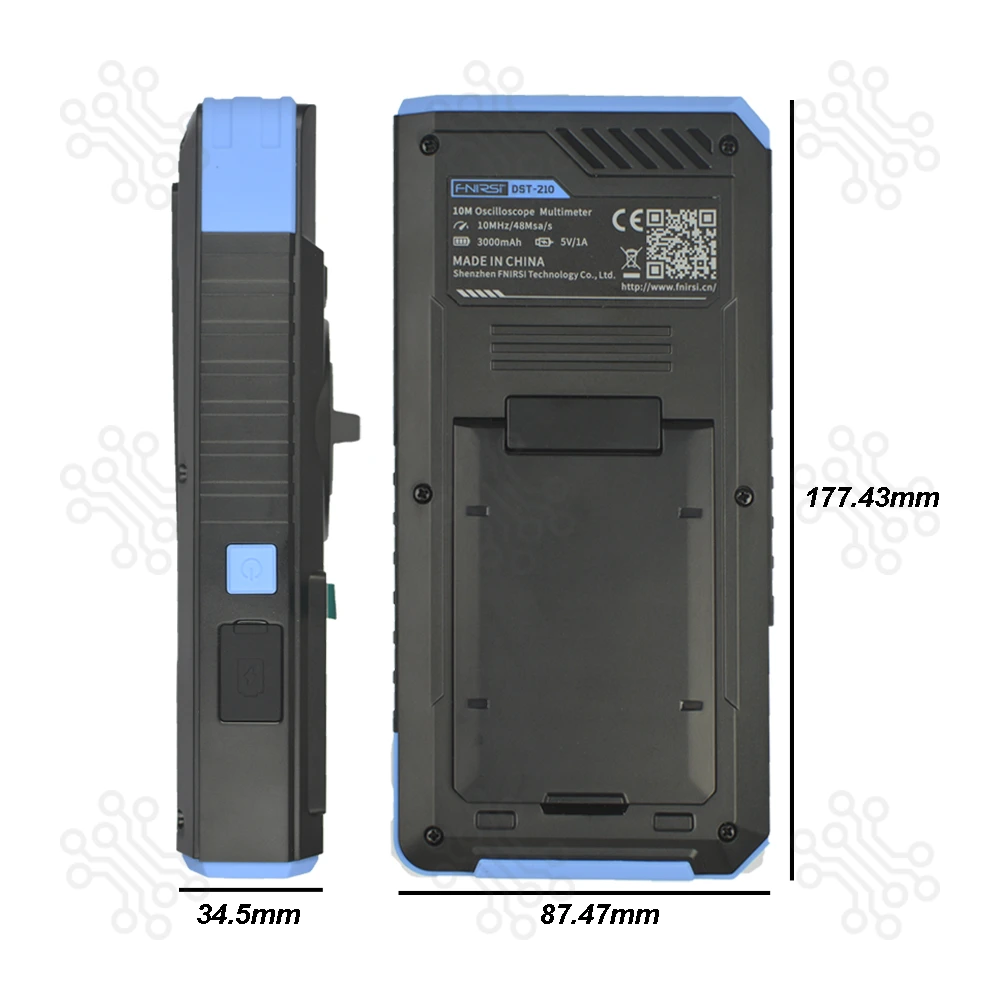

Product Size ≈177.43 × 87.47 × 34.5 mm
Bare Weight ≈300g

Oscilloscope Parameters

Sampling Rate 48MSa/s
Analog Bandwidth 10MHz
Input Impedance 1MΩ
Coupling Mode AC/DC
Test Voltage Range 1:1 probe: 80Vpp (+40V)
10:1 probe: 800Vpp (+400V)
Vertical Sensitivity 10mV/div ~ 10V/div (x1)
Vertical Displacement Adjustable with indicators
Horizontal Time Base 50ns ~ 20s
Trigger Mode Auto / Normal / Single
Trigger Type Rising Edge & Falling Edge
Trigger Level Adjustable with indicators
Waveform Freeze Support (HOLD function)
Auto Measurement Max, Min, Avg (Vavg), RMS, VPP, Freq, Period, Duty Cycle

Multimeter Parameters

DC Voltage 1.9999V / 19.999V / 199.99V / 1000V
AC Voltage 1.9999V / 19.999V / 199.99V / 750.0V
DC Current 19.999mA / 199.99mA / 1.9999A / 9.999A
AC Current 19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ / 1.9999KΩ / 199.99Ω
Capacitance 9.999mF / 99.99mF / 999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF
Frequency 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature (-552372℉)
Diode / Continuity Support
Single Probe AC Voltage Measurement (LIVE) Support

Signal Generator Parameters

Output Waveform 13 types of waveform output
Waveform Frequency 0 – 50KHz
Square Duty Cycle 0–100% (Square and Sawtooth adjustable)
Waveform Amplitude 0.1V – 3.0V

Application


  • Electronic repair & troubleshooting
  • Lab-based circuit prototyping
  • Signal waveform simulation
  • Field servicing & installation
  • Technical education & student training
  • Embedded system debugging
  • Home-based DIY electronics projects

FNIRSI DST-210 Multimeter & Oscilloscope: Full Button and Port Diagram


Document

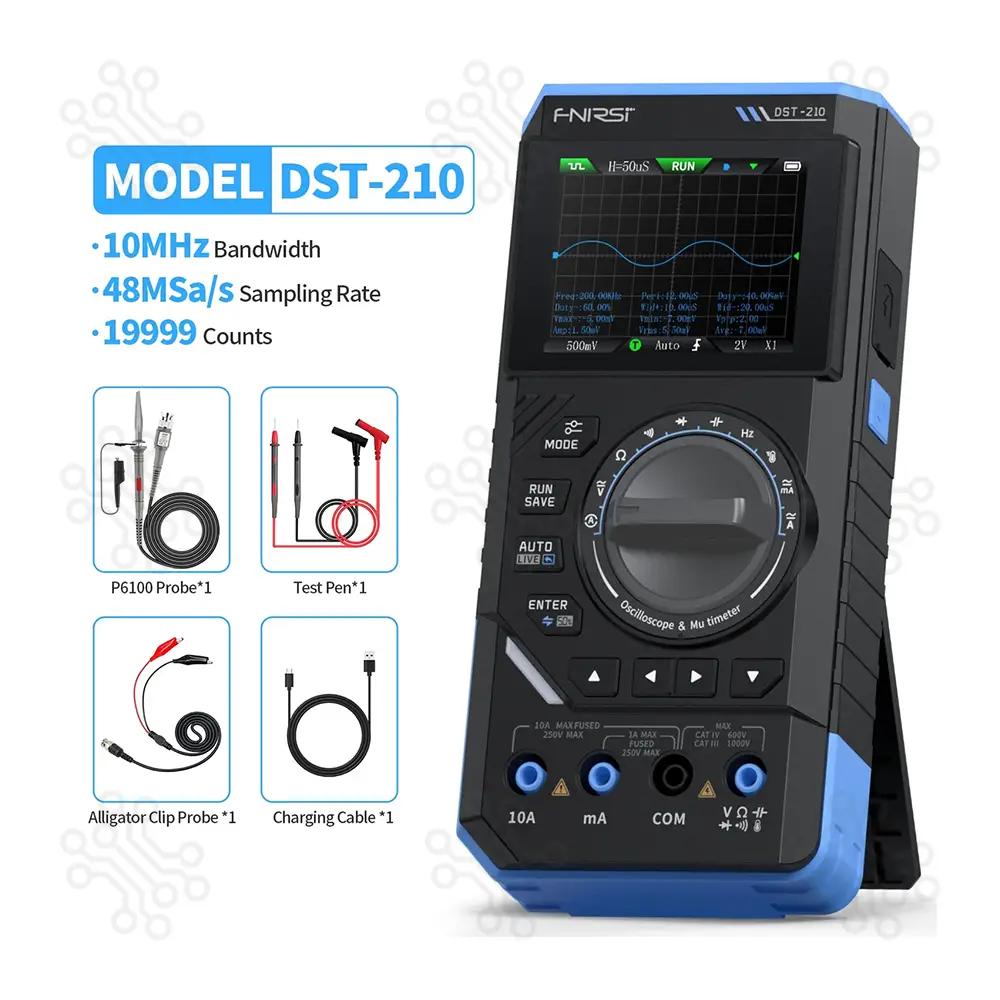

Packaging Details


  • 1 x Digital Multimeter 10M Bandwidth Oscilloscope Signal Generator DST 210 FNIRSI
  • 1 x Oscilloscope Probe
  • 1 x Crocodile Clip Probe
  • 1 x Multimeter Probe
  • 1 x Charging Cable
  • 1 x User Manual


Digital Multimeter 10M Bandwidth Oscilloscope Signal Generator DST 210 FNIRSI – Frequently Asked Questions


What is the FNIRSI DST-210 TriScope?
The DST-210 is a compact handheld 3-in-1 electronics diagnostic tool combining a digital multimeter, digital storage oscilloscope, and programmable signal waveform generator.
What are the main functions of the DST-210?
It measures electrical parameters (voltage, current, resistance, capacitance, frequency, temperature), visualizes waveforms, and generates test signals with adjustable frequency and amplitude.
What is the sampling rate and bandwidth of the DST-210 oscilloscope?
The DST-210 offers a sampling rate of 48MSa/s and an analog bandwidth of 10MHz for precise waveform analysis.
How safe is the DST-210 for high voltage measurements?
It features ±400V voltage protection and supports probes with 1:1 ratio (up to 80Vpp) and 10:1 ratio (up to 800Vpp) for safe measurements.
How many waveforms can the built-in signal generator produce?
The signal generator supports 13 types of waveforms, with frequencies ranging from 0 to 50kHz and output amplitude adjustable between 0.1V and 3.0V.
Does the DST-210 support both AC and DC measurements?
Yes, the multimeter can measure AC and DC voltage and current, resistance, capacitance, frequency, and temperature.
How long does the battery last?
The DST-210 is equipped with a 3000mAh rechargeable battery that provides up to 15 hours of standby time.
Is the screen easy to read?
Yes, it has a 2.8-inch TFT colorful display with adjustable brightness for clear viewing in different lighting conditions.
Can the DST-210 perform auto measurements?
Yes, it features auto measurement modes that display max, min, average, RMS, peak-to-peak voltage, frequency, period, and duty cycle.
What kind of safety features are included?
The device has overload protection, low battery warning, and live wire detection to enhance user safety.
What applications is the DST-210 suitable for?
It is ideal for electronic repair, lab prototyping, signal simulation, field servicing, education, embedded system debugging, and DIY electronics projects.
Does it support temperature measurement?
Yes, the multimeter supports temperature measurements (though please check exact sensor compatibility).
How portable is the device?
The DST-210 is compact (approx. 177 x 87 x 34 mm), lightweight (approx. 300g), and designed for easy portability.
Is the user interface beginner-friendly?
Yes, it features an intuitive UI suitable for engineers, technicians, educators, and hobbyists.
What kind of power supply does it use?
The device is powered via a USB Type-C port (5V/1A) and includes a rechargeable battery.
