Infrared Receiver 1 Channel Relay Driver in Bangladesh
Infrared Receiver 1 Channel Relay Driver in Bangladesh

Infrared Receiver 1 Channel Relay Driver

SKU: 250911005021

Brand: Made in China

Warranty: 3 Days

Model: N/A

৳ 480.05

Add to Wishlist

Category: Relay

Share:

Description of Infrared Receiver 1 Channel Relay Driver

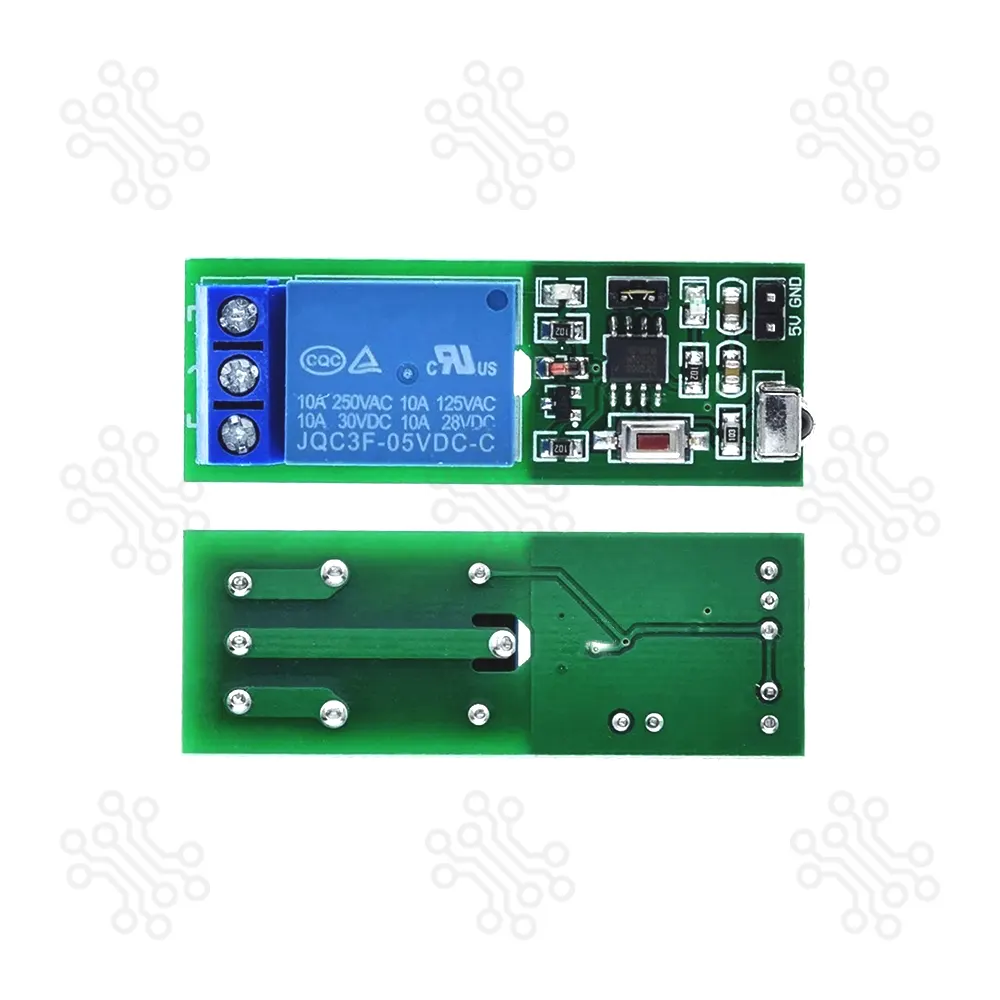

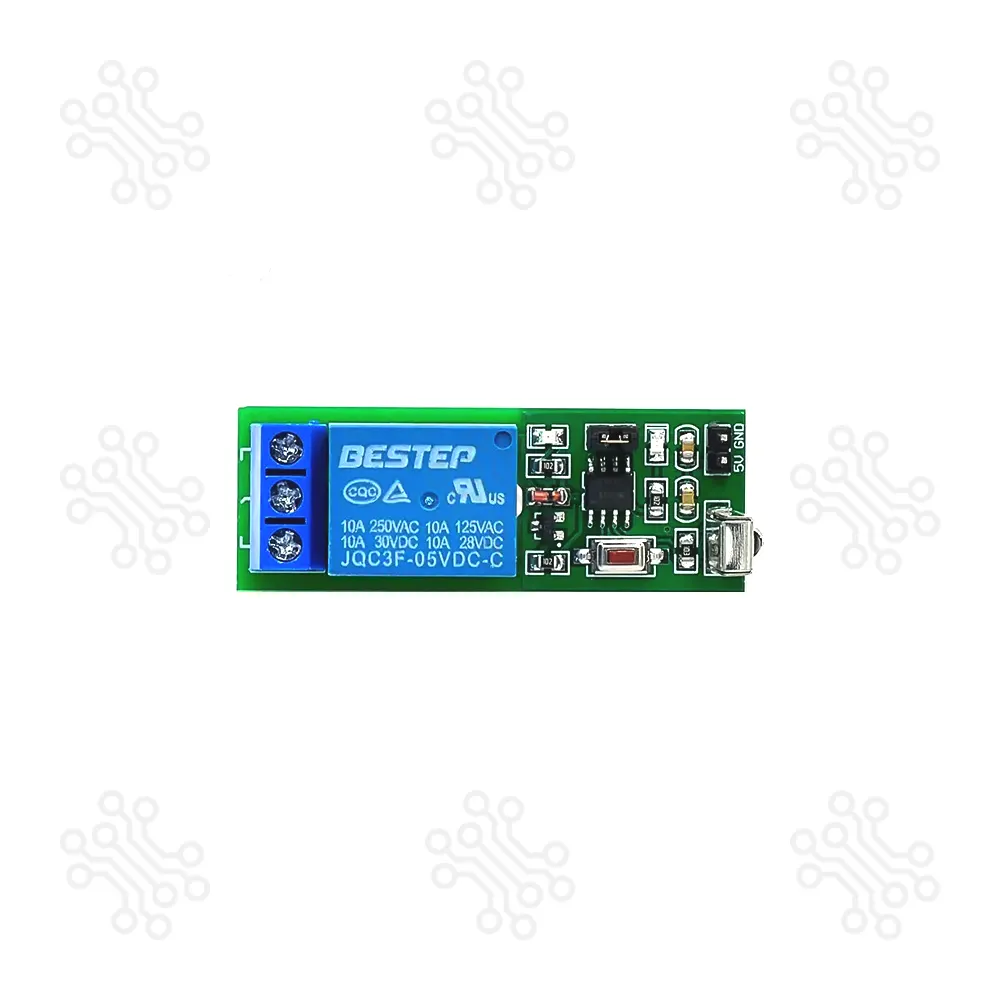

The Infrared Remote Control Relay Module is designed for reliable 5V DC operation for both power input and relay output. It supports both manual and remote control, featuring an onboard S1 push-button, LED indicators, and an infrared remote learning function. The module allows single-button remote assignment and provides configurable relay behavior through an optional Computer Jumper.


Key Features

  • Power and relay status LED indicators
  • Onboard S1 push button for manual ON/OFF switching
  • Isolated circuit design for safe input/output separation
  • Infrared Remote Control
  • Powered by CR2025 battery (included)
  • Control distance: 8–12 meters (environment dependent)

Specification

Parameter Value
Operating Voltage (Input) DC 5V
Relay Output Voltage DC 5V
Control Method IR Remote & S1 Push Button
Remote Distance 8–12 meters
Relay Output NO/NC Contacts, Insulated Circuit (5V)

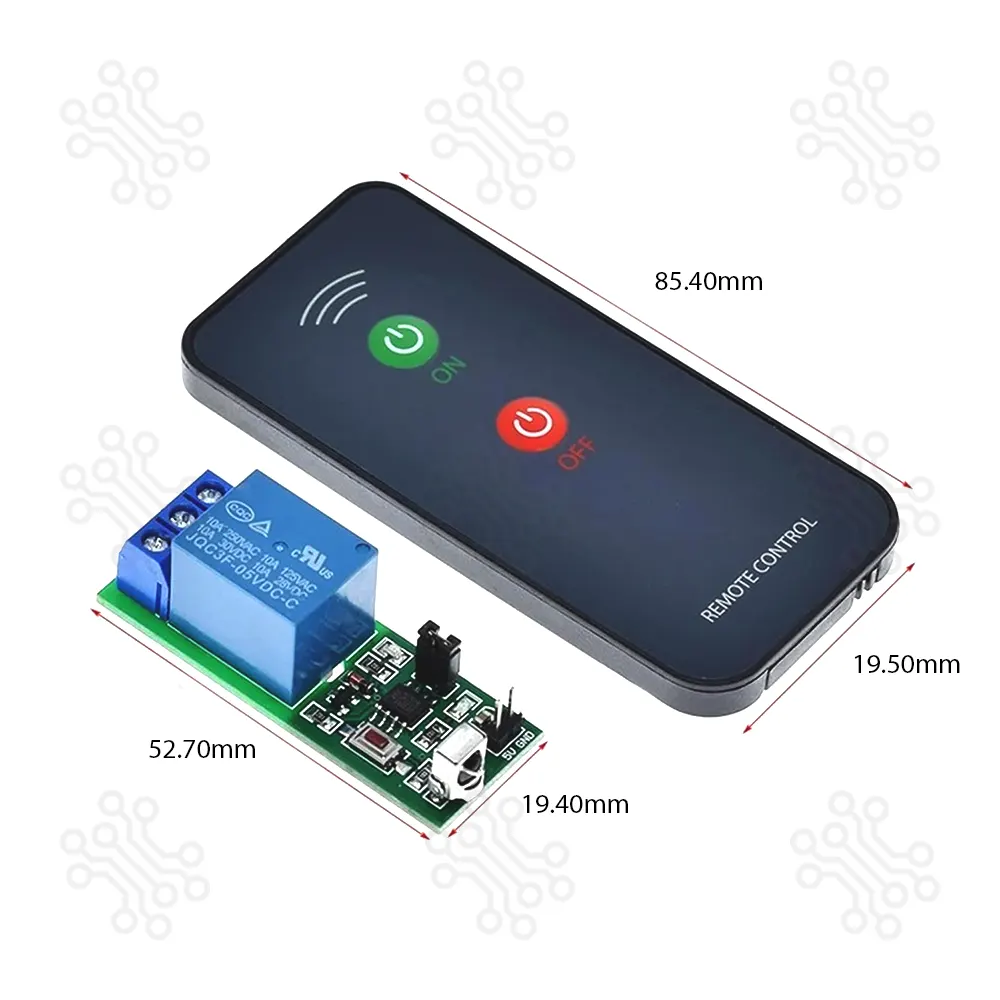

Module Size 52.70 × 19.40 × 16.80 mm
Remote Controller Size 39.50 × 6.60 × 85.40 mm
Weight 28.70 g
Battery CR2025 (included)
Relay Toggle Behavior With Jumper: ON/OFF twice per press; Without Jumper: ON/OFF per press
Remote Binding Assign a single button; press both buttons to clear the assignment.

Module Operation

  1. Power on: Power LED remains steadily on.
  2. Press S1 once: Power LED blinks, and the module enters remote learning mode.
  3. Press a remote button: assigns that button to the module.
  4. Press both remote buttons simultaneously: clears the remote assignment.
  5. Press the assigned remote button:
    • With the Computer Jumper connected, the relay and LED toggle ON/OFF twice per press.
    • Without the Computer Jumper: the relay and LED toggle ON/OFF once per press.
  6. Only one remote button can be assigned to the module at a time.

    Note: The module can only be used with one button at a time.

Applications

  • Smart home automation
  • Remote-controlled lighting and appliances
  • DIY electronics projects
  • Learning-based IR control experiments
  • Automation systems requiring relay switching

Packaging Details

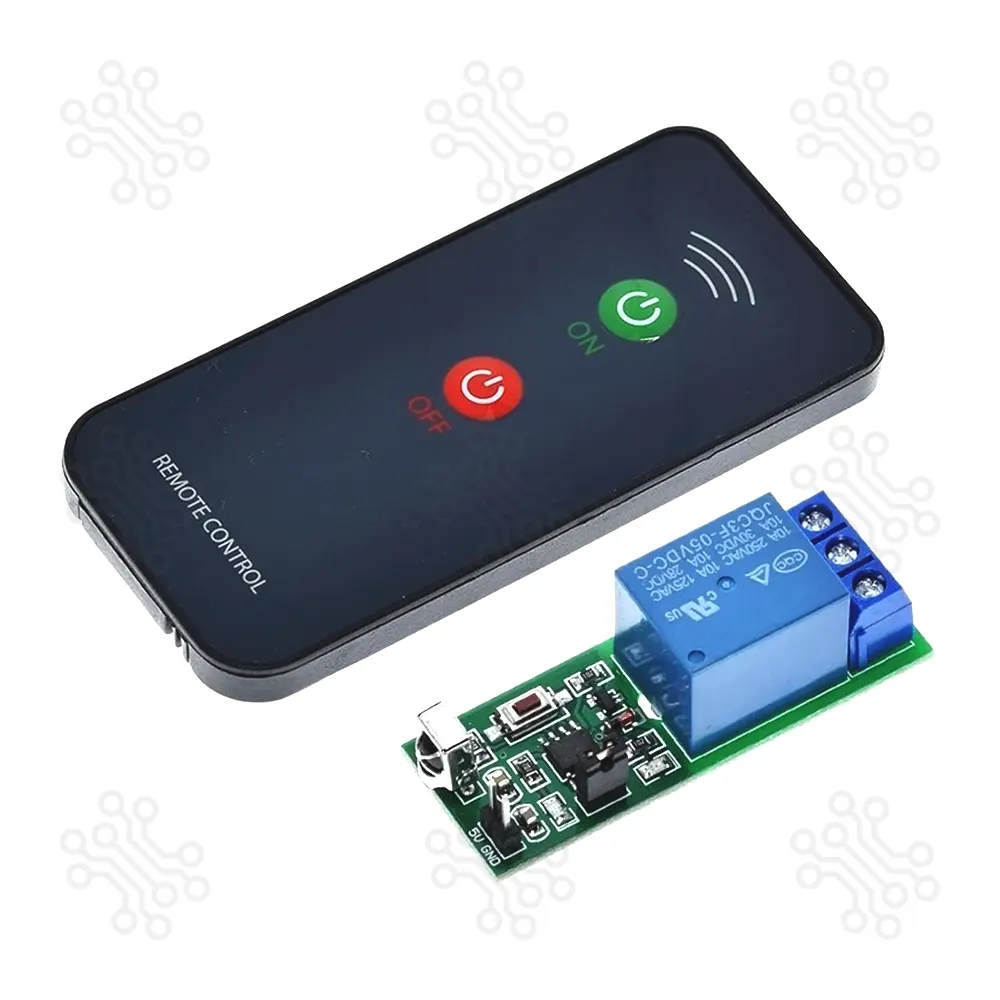

  •  1 × Infrared Receiver 1 Channel Relay Drive
  • 1 × IR Remote

Infrared Receiver 1 Channel Relay Driver- Frequently Asked Questions

What power supply does the Infrared Remote Control Relay Module require?
The module operates with a DC input of 5V (VIN+ & GND).

Can I control the Infrared Remote Control Relay Module without the remote?
Yes, the onboard S1 push button allows manual ON/OFF switching.

How far can the Infrared Remote Control Relay Module be controlled using the remote?
The effective distance is 8–12 meters, depending on the environment and obstacles.

Which remotes are compatible with the Infrared Remote Control Relay Module?
Most household infrared remotes are supported, except 38KHz air conditioner remotes.

Is the battery included with the Infrared Remote Control Relay Module remote?
No, the remote requires a CR2025 button cell, which must be purchased separately.

Can I use the Infrared Remote Control Relay Module for AC appliances directly?
Yes, the relay supports NO/NC outputs, but ensure proper voltage and load ratings are followed with external wiring.
