Line Follower Sensor Array 5 Infrared Analog IR Sensor Array in Bangladesh
Line Follower Sensor Array 5 Infrared Analog IR Sensor Array in Bangladesh

Line Follower Sensor Array 5 Infrared Analog IR Sensor Array

SKU: 250427004823

Brand: Waveshare Electronics

Warranty: 3 Days

৳ 640.05

Add to Wishlist

Category: Robotics Sensor

Share:

Description of Line Follower Sensor Array 5 Infrared Analog IR Sensor Array

The 5-Channel Tracker Sensor utilizes high-sensitivity ITR20001/T infrared detectors to accurately track lines and surfaces. It features five analog outputs that respond to object distance and color. Surfaces with higher infrared reflectivity (e.g., white) yield higher analog values, while darker surfaces (e.g., black lines) generate lower values, especially as the sensor approaches them.

Compared to traditional digital-only modules, this sensor provides high-resolution analog outputs, enabling more precise line tracking, especially when paired with control algorithms like PID.


Key Feature

  • 5-channel ITR20001/T infrared detectors
  • High sensitivity, stable performance, and excellent anti-interference capability
  • Analog output for precise reflectance data and distance estimation
  • Compatible with PID control for enhanced robot line-tracking stability

Technical Specification

Parameter Specification
Power Supply 3.3V ~ 5V
Detection Range 1cm ~ 5cm
Detector Spacing 16mm
Analog Output Channels 5 (IR1 to IR5)

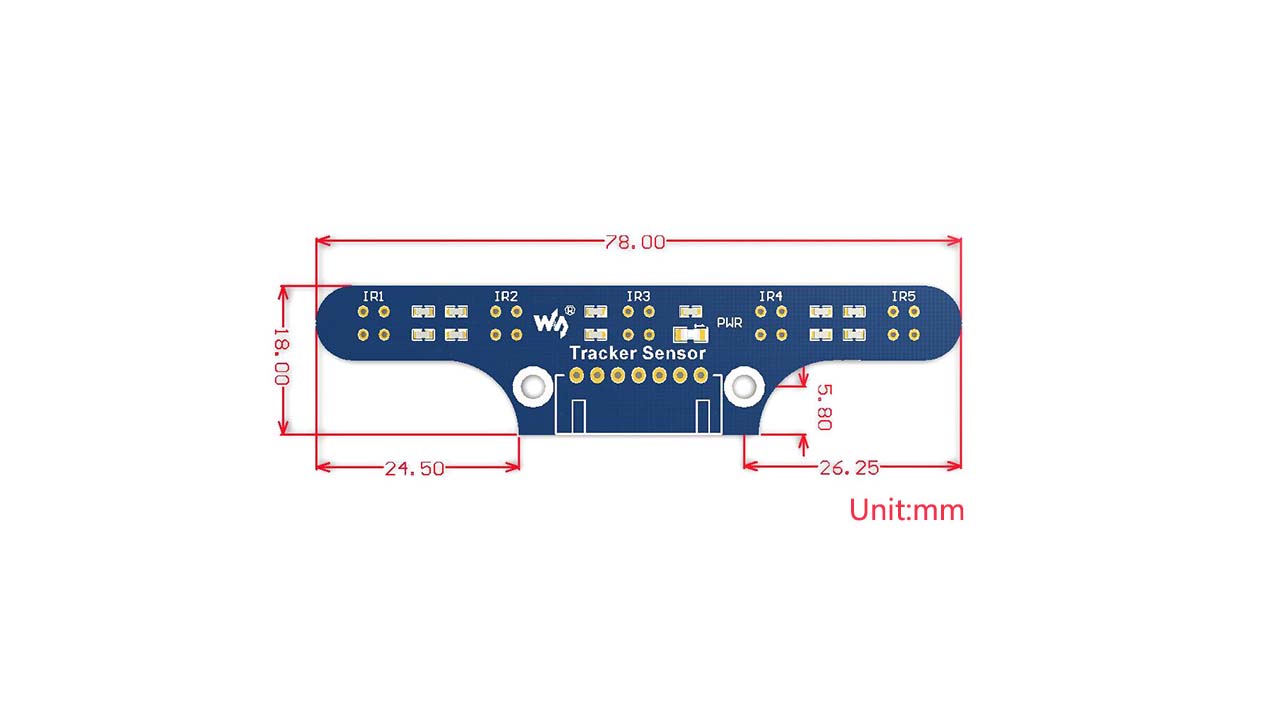

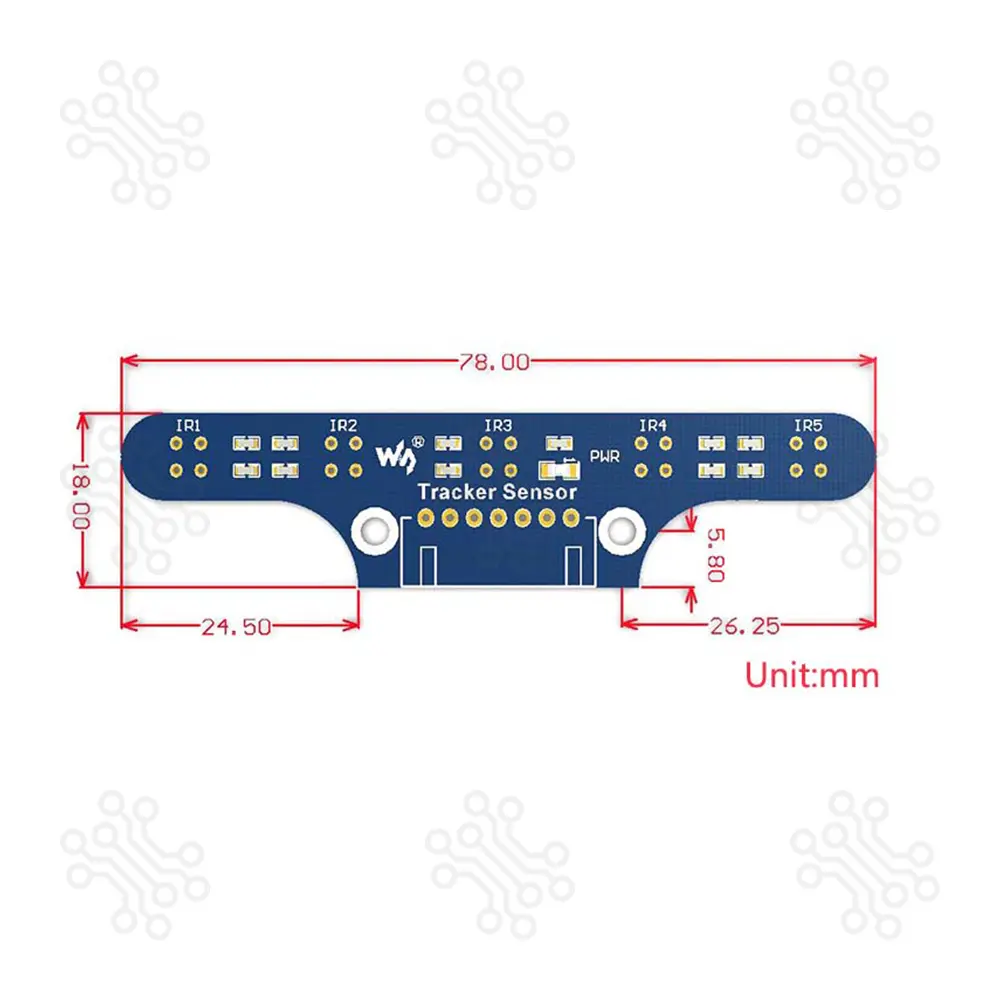

Module Dimensions 78mm × 18mm
Mounting Hole Size 3mm

Applications

  • Line-following robots
  • Path detection and guidance systems
  • Automated ground-based navigation

How to Use with a Microcontroller (MCU)

Module Pin MCU Connection
VCC ↔ 3.3V ~ 5V Power Supply
GND ↔ Ground
IR1 ↔ MCU Analog Input (CH1)
IR2 ↔ MCU Analog Input (CH2)
IR3 ↔ MCU Analog Input (CH3)
IR4 ↔ MCU Analog Input (CH4)
IR5 ↔ MCU Analog Input (CH5)

Packaging Details

  1. 1x Line Follower Sensor Array 5 Infrared Analog IR Sensor Array
  2. 1x 7 Pin JST Connector with Wire
