Raspberry Pi Zero W in Bangladesh
Raspberry Pi Zero W in Bangladesh

Raspberry Pi Zero W

SKU: 180226002936

Brand: Waveshare Electronics

Warranty: 3 Days

৳ 4150.04

Add to Wishlist

Category: Raspberry Pi & Accessories

Share:

Frequently Bought Together

Description of Raspberry Pi Zero W

The Raspberry Pi Zero W is a small and affordable single-board computer, perfect for embedded systems, IoT projects, learning, and light computing tasks. It has a Broadcom BCM2835 processor with ARM11 architecture, a compact and lightweight design, and a 40-pin GPIO header that is HAT-compatible, making it useful for many types of projects.

It supports HDMI video output and CSI cameras and uses very little power, which is great for portable or embedded projects. The Raspberry Pi Zero W also includes built-in Wi-Fi and Bluetooth for easy wireless connectivity.


Technical Specification

Feature Specification
Processor (SoC) Broadcom BCM2835, ARM11 @ 1 GHz
Memory (RAM) 512 MB LPDDR2
Wireless LAN 2.4 GHz 802.11 b/g/n Wi-Fi
Bluetooth Bluetooth 4.1 & Bluetooth Low Energy (BLE)
GPIO 40-pin GPIO header (unpopulated)
Video Output Mini HDMI, up to 1080p HD video & audio
Audio Output HDMI digital audio
USB Ports 1× micro USB OTG + 1× micro USB power
Camera Interface CSI camera connector
Storage MicroSD card slot
Power Input 5 V via micro USB

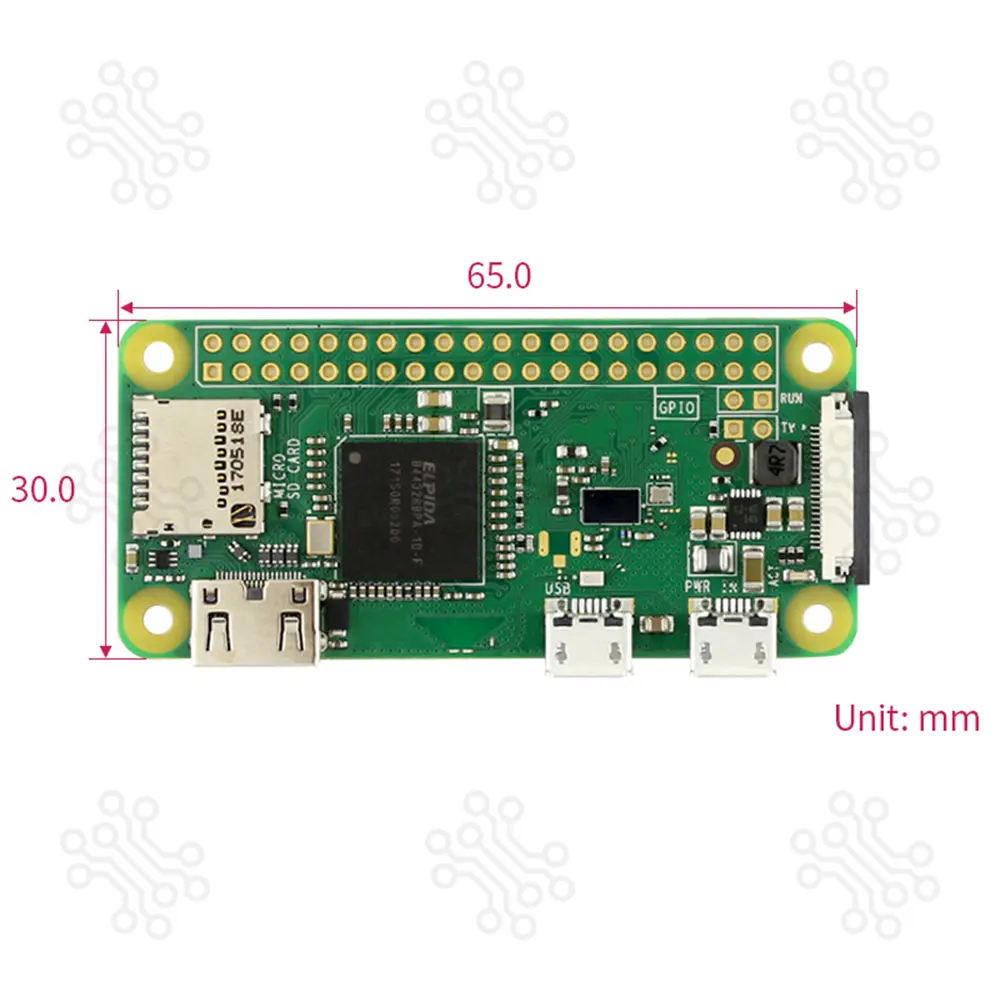

Dimensions 65 mm × 30 mm × 5 mm
Operating System Support Raspberry Pi OS and other Linux-based OSes

Hardware Overview


Power supply

  • Input Voltage: 5V DC
  • Power Supply Options:
    • Micro USB power input
    • GPIO header (5V pin)
Note
The Raspberry Pi Zero W requires a stable 5 V DC supply. A power supply capable of providing at least 1.2 A current is recommended to avoid undervoltage and stability issues during boot and operation; using a high‑quality 5 V micro USB power adapter (such as the official 5 V/2.5 A supply) ensures reliable performance under typical loads.

Recommended SD cards

We recommend using an SD card with at least 32 GB of storage for Raspberry Pi OS installations. For Raspberry Pi OS Lite, we recommend at least 16 GB. You can use any SD card with a capacity of less than 2 TB. Capacities above 2 TB are currently not supported due to limitations in the MBR. As with any other boot media, you’ll see improved performance on SD cards with faster read and write speeds.

If you’re unsure which SD card to buy, consider MicroSD Memory Card 64GB Class10 with Raspberry Pi OS.


Raspberry Pi Zero W GPIO Pins

The Raspberry Pi Zero W General Purpose Input Output (GPIO) header has 40 pins that can be used to send data in and out of the Pi Zero W along with a few power pins.

The GPIO header consists of the following options:

  • 2x 5V DC input/output power pins
  • 2x 3.3V DC output power pins
  • 8x GND pins
  • 26x Digital I/O
  • 4x PWM
  • 1x UART
  • 1x I2C
  • 1x SPI
  • 1x PCM (I2S)
  • 1x I2C EEPROM
Note

The Raspberry Pi Zero W does not have any analog input pins because it does not include a built-in ADC (Analog-to-Digital Converter). However, you can use an external ADC module that communicates through I2C or SPI to read analog sensors.

All GPIO digital pins operate at 3.3V, so when connecting 5V devices, a voltage level shifter is required. Connecting a GPIO pin directly to a voltage higher than 3.3V can permanently damage the Raspberry Pi’s GPIO circuitry.

The Raspberry Pi uses two main pin numbering systems:

  • Physical pin numbers (1 to 40)
  • Broadcom BCM GPIO numbers (GPIO0 to GPIO26)

You can choose either system, but it must be specified at the start of your program. For example:
GPIO.setmode(GPIO.BOARD) uses physical pin numbering,
GPIO.setmode(GPIO.BCM) uses BCM GPIO numbering.


Raspberry Pi Zero W Specification Comparison

Item Raspberry Pi Zero Raspberry Pi Zero W Raspberry Pi Zero WH
SoC (System on Chip) BCM2835 (CPU, GPU, DSP and SDRAM)
CPU (Central Processing Unit) ARM11 single core 700MHz
Memory 512MB
USB 2.0 1x Micro USB port (supports USB HUB expansion)
Video output Supports PAL and NTSC formats, HDMI (1.3 and 1.4), resolutions from 640×350 to 1920×1200
Audio output HDMI (High Definition Multiple Audio/Video Interface)
Network Access None WiFi and Bluetooth 4.1 WiFi and Bluetooth 4.1
Extended interface 40-pin GPIO
Power Input 5V via MicroUSB or pin
Overall size 65 × 30 × 5 mm
Operating System Debian GNU/Linux, Fedora, Arch Linux, RISC OS, etc.

Applications

  • IoT and smart devices
  • Robotics and automation
  • Educational projects
  • Embedded Linux systems
  • Portable and low-power computing

Resources


Packaging Details

  • 1 x Raspberry Pi Zero W

Recommended Accessories for Raspberry Pi Zero W

Enhance your Raspberry Pi Zero W experience with these essential accessories. From storage and power to cooling and protection, these components help you get the most out of your Raspberry Pi Zero W.


Warranty and Replacement

TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.


Attention

Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.


Need Help?

Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox

Ratings & Reviews of Raspberry Pi Zero W

4.84
Out of 5

19 Ratings and 1 Reviews

5 star
89.47%
4 star
5.26%
3 star
5.26%
2 star
0.00%
1 star
0.00%
Your Rating:

Reviews (1)

User
By Shawon Hasnat on 03 Nov 2021
verified purchase Verified Purchase
User
By Sharfuddin Turjo on 01 Nov 2021
verified purchase Verified Purchase
User
By Md Jahangir on 01 Nov 2021
verified purchase Verified Purchase
User
By Babul Ahmed on 27 Oct 2021
verified purchase Verified Purchase
User
By Nazmul hasan on 27 Oct 2021
verified purchase Verified Purchase
1 2 3 ..... 4 »

Questions & Answers about Raspberry Pi Zero W

Questions answered by Techshop (5)

when it will be available again??

By K_Tipu on 18 May 2023

This item is out of stock in their official website Waveshare Electronics.

By TechShopBD on 22 May 2023

When will it restock

By smdraiyankhan378@gmail.com on 10 Jan 2023

It's out of stock on their official website.

By TechShopBD on 14 Jan 2023

Can you bring Zero WH version? It has presoldered gpio pins and same as Zero W.

By rifathaqueamit on 20 Jul 2018

Please fill up this form with proper link. The sourcing team will contact you. https://www.techshopbd.com/sip

By TechShopBD on 22 Jul 2018

After you place order, when we call you for confirmation, you've to tell us for soldering the gpio headers. You must also have that male/female connector in your order. But be noted that by doing so warranty will be void. We won't take any liability for any damage done to the product due to soldering and we won't take it back if damaged. You'll need a mini hdmi to regular hdmi converter to connect it to a hdmi monitor. And and additional hdmi to vga converter if your display input is vga. You'll find them in computer stores like idb.

By techshopbd on 15 Jul 2018

Can you provide it with soldered IO pins ? what else should I need to run this with a monitor ?

By rifathaqueamit on 13 Jul 2018
