SKU: TOL-00119
Warranty: 3 Days
Model: N/A
৳ 4490.03
Category: Measurement

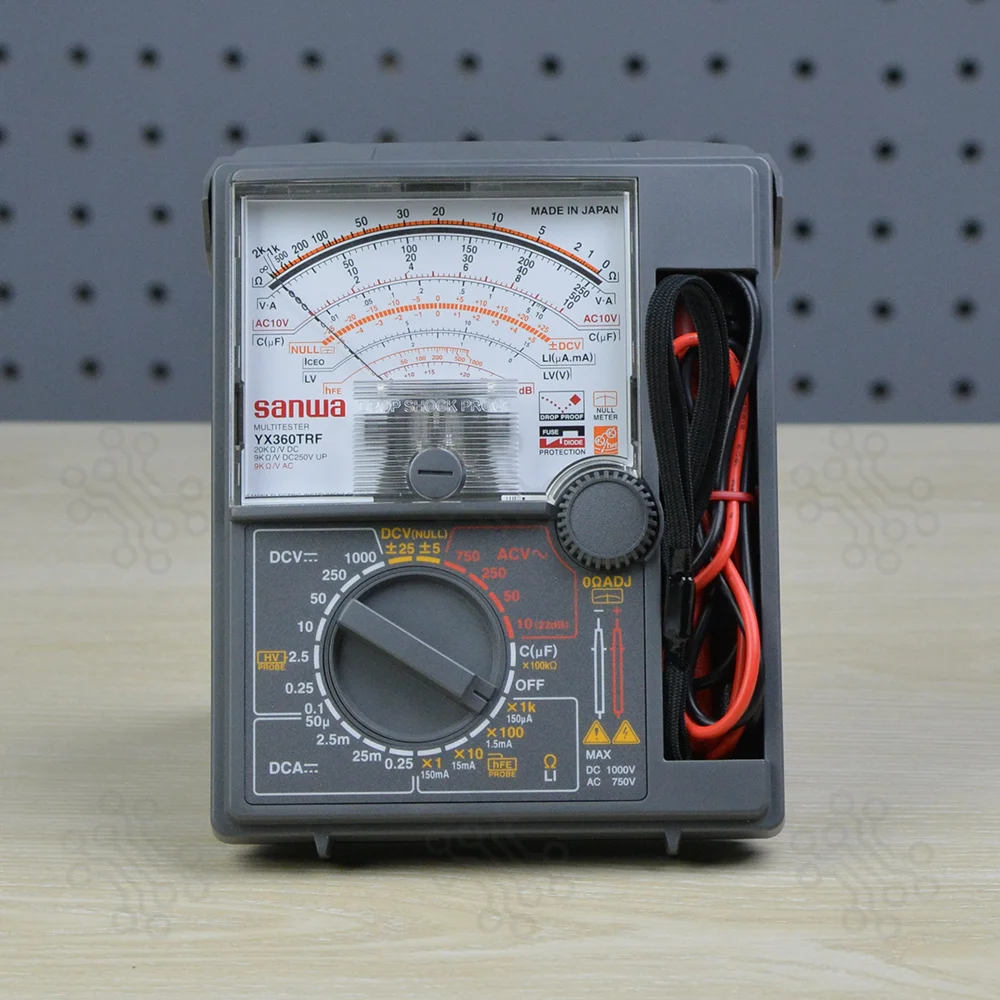

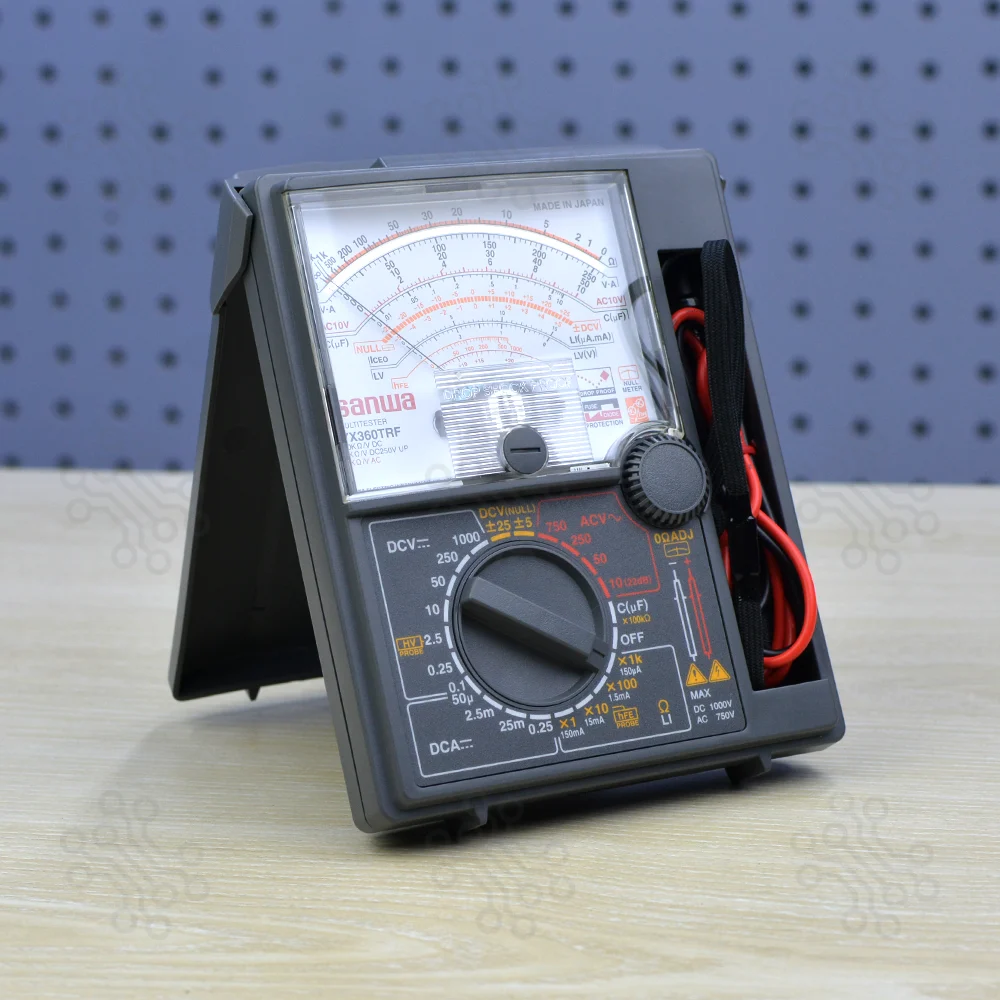

The Sanwa YX360TRF is a portable multimeter designed for measuring low-voltage circuits. Incorporating the latest design technology, it is suitable for measuring home electrical appliances, lamp line voltage, and various types of batteries. The device is housed in a sturdy case, ensuring durability and shock resistance. It features capacitance measurement up to 10μF and resistance measurement up to 200MΩ. Additionally, the test leads can be conveniently stored in the case.
Function |
Measuring Range |
Tolerance |
---|---|---|
DC Voltage (DCV) |
0.1V (20kΩ/V), 0.25/2.5/10/50V (20kΩ/V), 250/1000V (9kΩ/V) |
±5% of full scale, ±3% of full scale |
DC Voltage (NULL) |
±5/25V (40kΩ/V) |
±5% of full scale |
AC Voltage (ACV) |
10/50/250/750V (9kΩ/V) |
±4% of full scale |
DC Current (DCA) |
50μA/2.5mA/25mA/0.25A |
±3% of full scale * |
Resistance |
2k/20k/200k/2MΩ (x1/x10/x100/x1k), 200MΩ (x100k) |
±3% of arc, ±5% of arc |
Capacitance |
10μF |
Approximate value |
Decibel (dB) |
-10dB to +22dB (for 10VAC) to +62dB |
Approximate value |
Load Current (LI) |
0-150mA/15mA/1.5mA/150μA/1.5μA |
Approximate value |
DC High Voltage |
DC 25kV (requires optional probe "HV-10T") |
- |
hFE |
1000 at x10 range (requires optional probe "HFE-6T") |
- |
Note:
※ The value in ( ) at DCV and ACV is the input resistance.
*1 Not including the resistance of the fuse.
Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please contact us to determine if further actions may be taken.
Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 08:00 pm (7 days a week). You can also reach us via Live Chat or Facebook Inbox.
0 Reviews
Ratings andReviews (0)
No reviews yet. Be the first to review this product!
is it 'made in japan' or china ?
By Boatman on 19 Dec 2015
Made in Japan but we sourced it from China.
By Techshop on 20 Dec 2015
