TOMZN 63A WiFi Smart Circuit Breaker TOB9e63 in Bangladesh
TOMZN 63A WiFi Smart Circuit Breaker TOB9e63 in Bangladesh

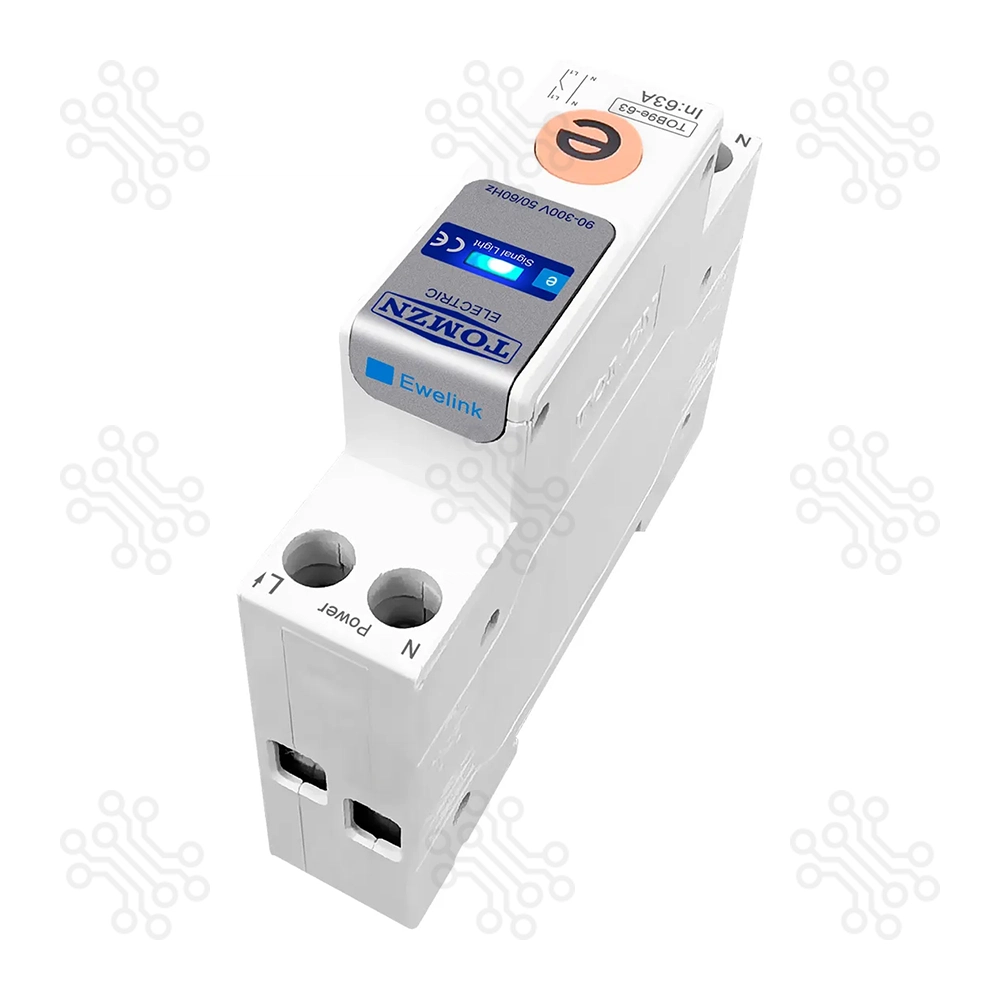

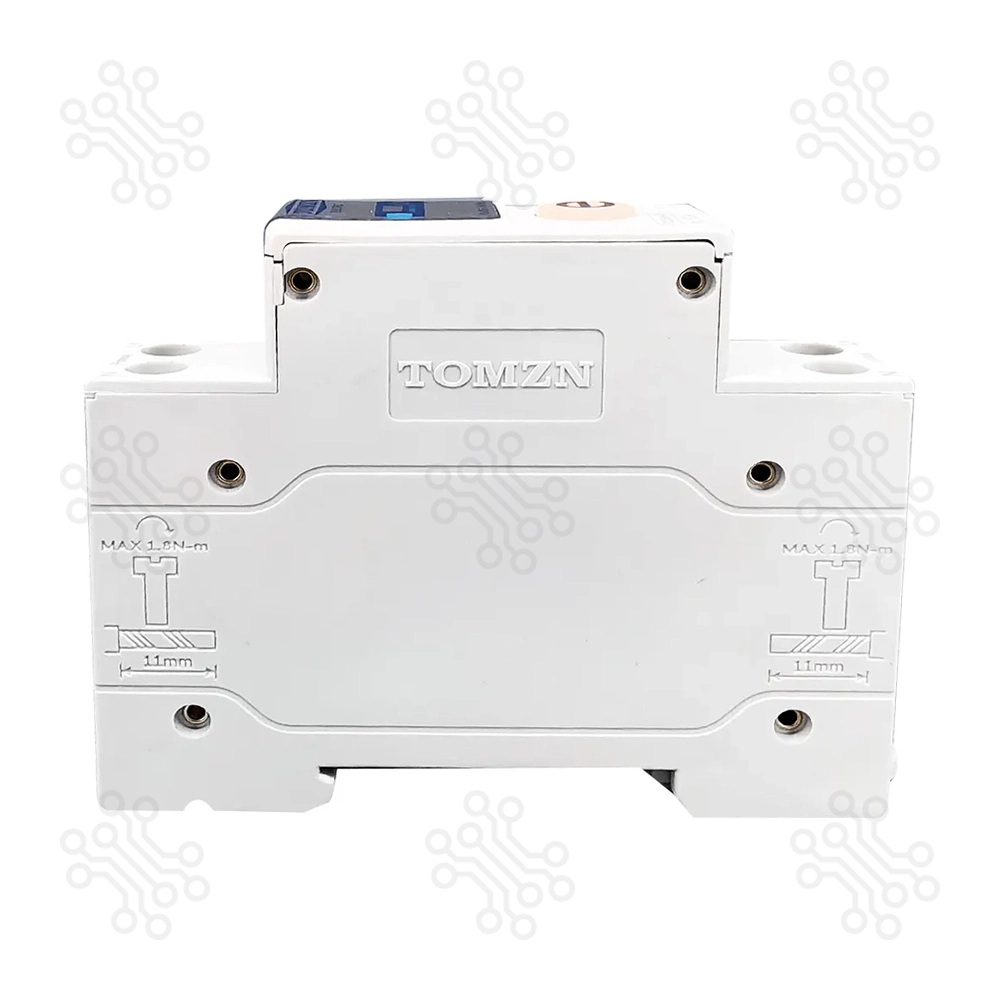

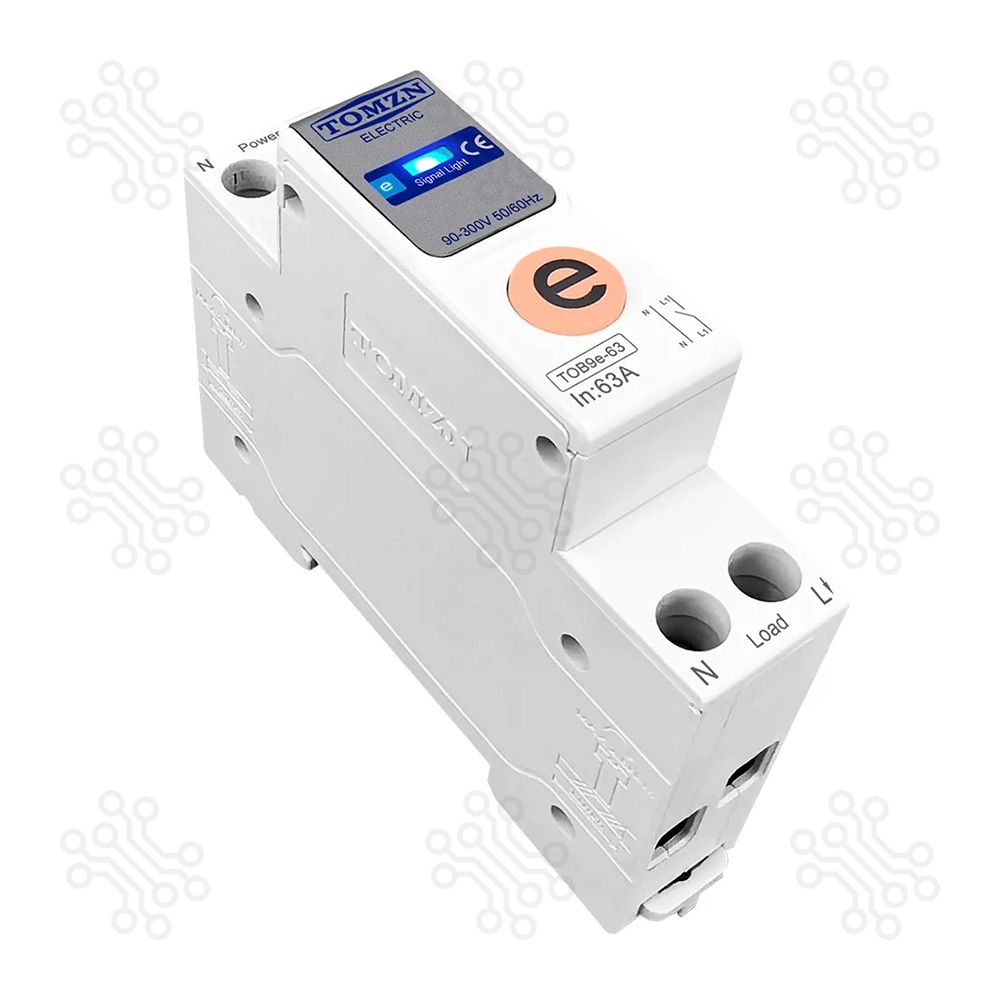

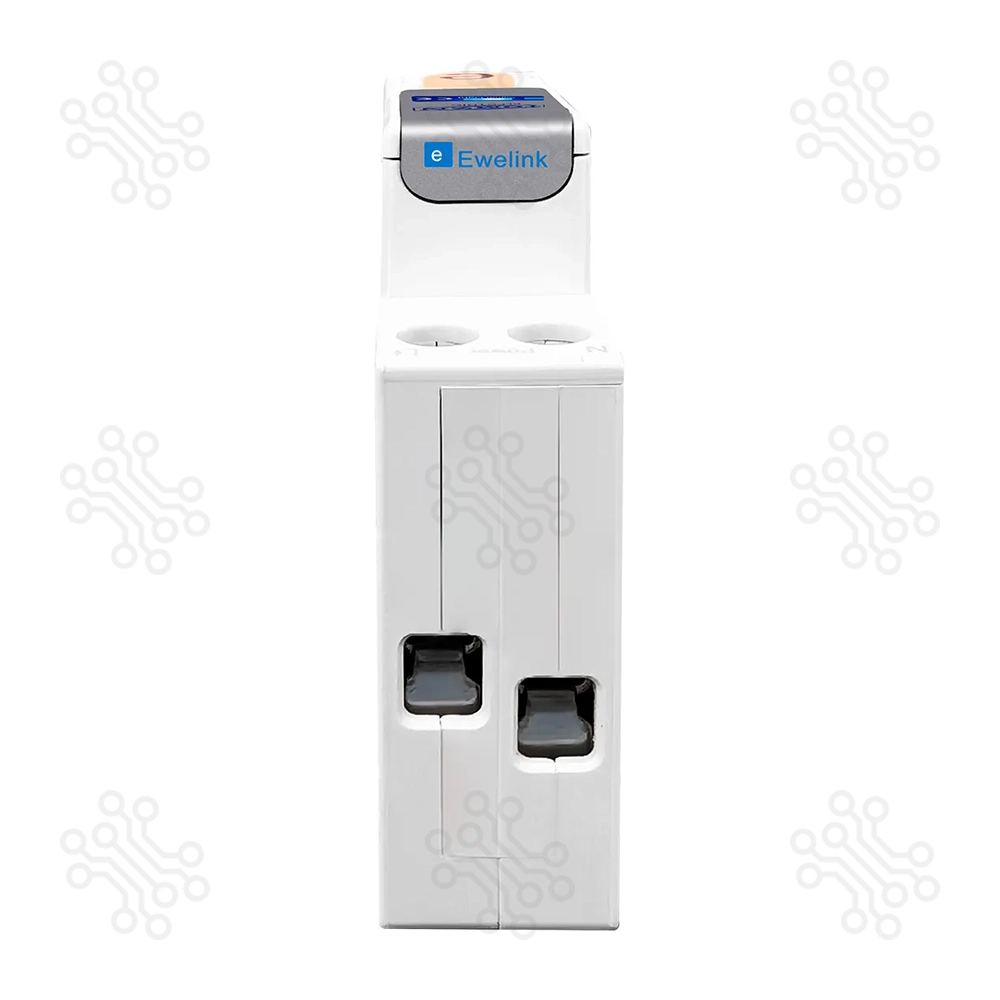

TOMZN 63A WiFi Smart Circuit Breaker TOB9e63

SKU: 250306004709

Brand : TOMZN

Warranty : 60 Days

৳ 2450.02

Add to Wishlist

Category: Automatic Switch

Share:

Frequently Bought Together

Description of TOMZN 63A WiFi Smart Circuit Breaker TOB9e63

The TOMZN TOB9e63 WiFi Smart Circuit Breaker is an intelligent electrical switching device designed for modern power distribution systems. It enables remote ON/OFF control of electrical circuits via the eWeLink app, providing convenient and reliable wireless operation in a compact DIN-rail mounted design.

This device supports WiFi connectivity and allows users to control connected electrical loads remotely through the eWeLink platform. It is suitable for smart home, commercial, and industrial applications where remote switching and basic circuit protection are required.

⚠️ No energy metering function (no voltage, current, power, or kWh monitoring)

Key Feature

  • Remote ON/OFF control via eWelink app
  • Timer and scheduling function
  • DIN rail installation

Technical Specifications

Feature Specification
Model TOB9e63
Rated Current 63A (Recommended ≤ 40A)
Working Voltage AC 90–300V, 50/60Hz
Wireless Connectivity Wi-Fi 2.4GHz
Mounting Type DIN Rail

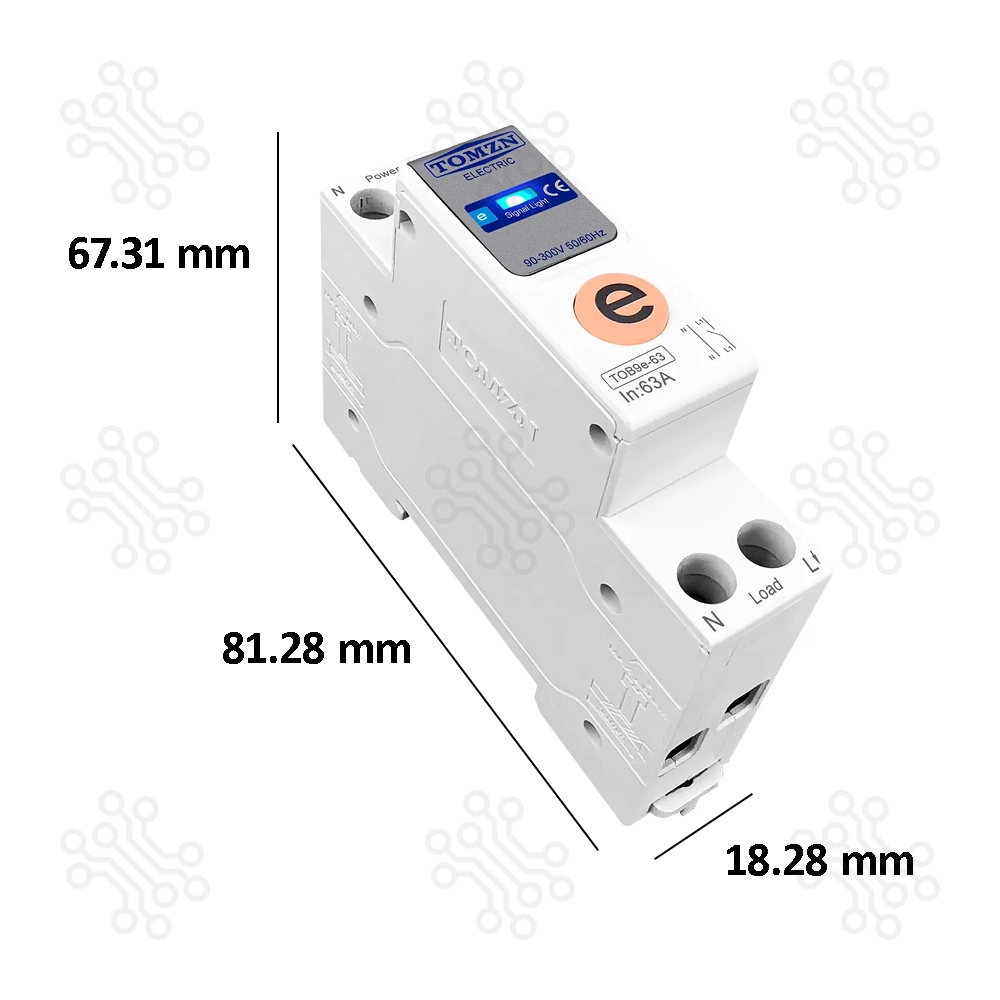

Device Width 18mm
Control App eWelink (Android / iOS)
Voice Control Support Amazon Alexa, Google Assistant
Energy Monitoring Not Supported
In-app Current/Voltage Settings Not Supported

Installation and Setup

IMPORTANT: Installation should only be performed by a qualified electrician in accordance with all applicable electrical codes.


Power Disconnection: Before beginning any work, ensure the main power supply to the circuit is completely disconnected at the service panel. Verify with a voltage tester.

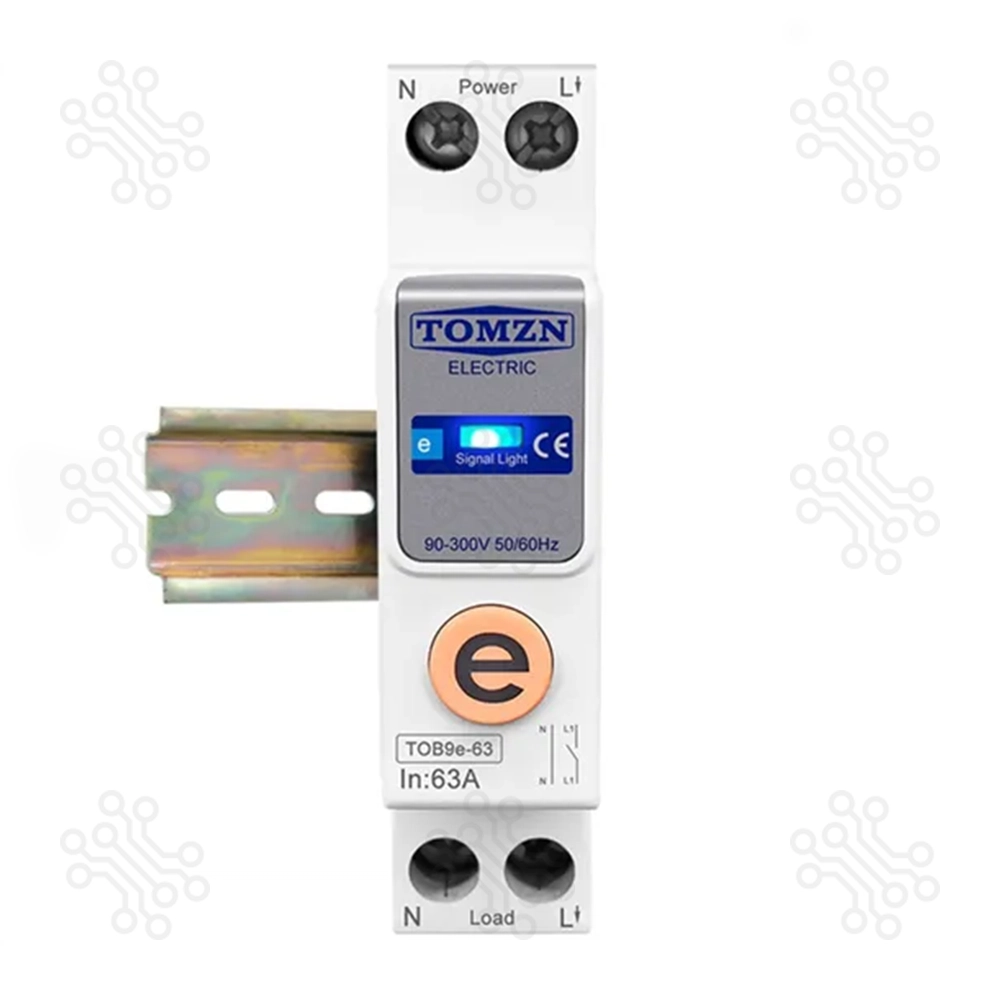

Mounting: Mount the smart circuit breaker onto a standard DIN rail within an appropriate electrical enclosure.

Wiring:

  • Connect the incoming Neutral (N) wire to the 'N Power' terminal.
  • Connect the incoming Live (L1) wire to the 'L1 Power' terminal.
  • Connect the outgoing Neutral (N) wire to the 'N Load' terminal.
  • Connect the outgoing Live (L1) wire to the 'L1 Load' terminal.

Ensure all screw terminals are tightened securely to prevent loose connections and overheating.

Power Restoration: Once wiring is complete and verified, restore power to the circuit.

WiFi Pairing:

  • Download the compatible smart home application (e.g., eWelink) on your smartphone.
  • Follow the in-app instructions to add a new device. This typically involves putting the circuit breaker into pairing mode (often by pressing and holding the 'e' button or cycling power) and connecting it to your 2.4GHz WiFi network.
  • Once paired, the signal light on the device will indicate a successful connection (e.g., solid blue).

Operating Instructions

After successful installation and WiFi pairing, you can operate your TOMZN smart circuit breaker using the dedicated mobile application.

Remote Control

  • Open the eWeLink app on your smartphone
  • Select your TOMZN device from the device list
  • Use the ON/OFF control to remotely switch the circuit breaker

Timer and Schedule Functions (If supported by firmware)

  • Access the timer or scheduling section in the app
  • Set automatic ON/OFF timing based on your requirements
  • Countdown function may be available depending on version

Applications

  • Smart Home Electrical Automation
  • Remote Industrial Circuit Management
  • Smart Control Panels
  • Load Scheduling
  • IoT-Enabled Electrical Systems

Packaging Details

  • 1 × TOMZN TOB9e63 WiFi Smart Circuit Breaker (63A, 18mm)
  • 1 × User Manual

Warranty and Replacement

TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.


Attention

Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.


Need Help?

Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox
